43–

4

43

1 - Front Windshield Assembly

2 - Front Left Door Glass Assembly

3 - Rear Left Door Glass Assembly

4 - Left Triangular Window Glass Assembly

5 - Rear Windshield Assembly

6 - Right Triangular Window Glass Assembly

7 - Rear Right Door Glass Assembly

8 - Front Right Door Glass Assembly

43–

5

43

Power window control system controls the power window glass UP/DOWN function by operating power glass
regulating control switch on the door inner protector assembly. Main control devices of this system include:
power glass regulating control master switch (built into driver side door) and power glass regulating switches
(built into front passenger side door and rear doors). Press the power glass regulating control master switch or
any power glass regulating switch to transmit the UP/DOWN signal to corresponding power glass regulator
motor, thus controlling the UP/DOWN operation of corresponding power window glass.

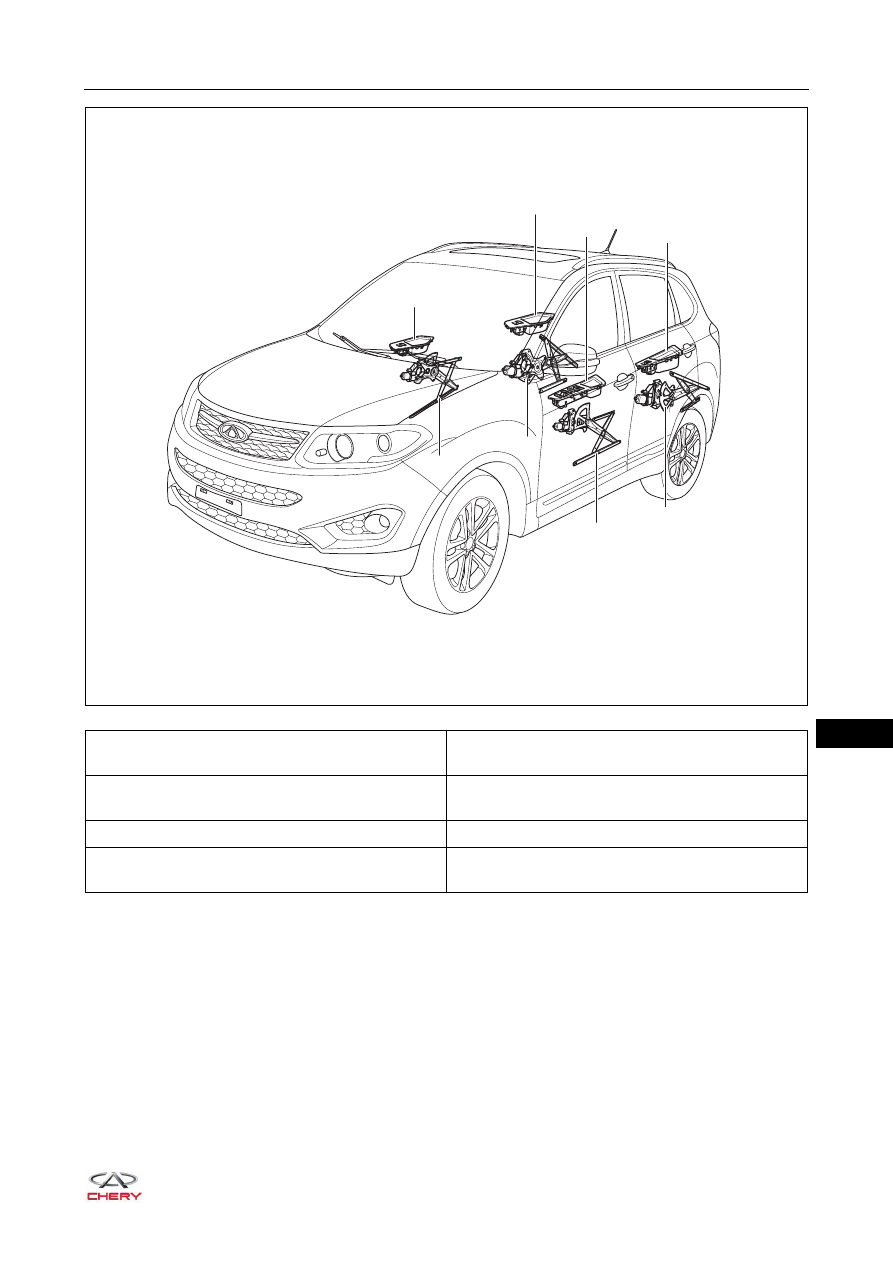

1 - Front Right Door Power Glass Regulating Switch

Assembly

2 - Rear Right Door Power Glass Regulating Switch

Assembly

3 - Front Left Door Power Glass Regulating Control

Master Switch Assembly

4 - Rear Left Door Power Glass Regulating Switch

Assembly

5 - Rear Left Door Power Glass Regulator Assembly 6 - Front Left Door Power Glass Regulator Assembly

7 - Rear Right Door Power Glass Regulator

Assembly

8 - Front Right Door Power Glass Regulator

Assembly

RT21430020

5

6

7

8

2

4

3

1

43–

6

43

Main Components Function

System Function

Component

Description

Power window lock switch

Locates on front left door inner protector assembly
and controls operations of front and rear passenger
door power window glass.
When power window lock switch is in lock position,
only driver side power glass regulating control
master switch can control UP/DOWN operation of
driver side power window glass.

Power glass regulating switch

Locates on door inner protector assembly.
Each power glass regulating switch controls UP/
DOWN operation of corresponding power window
glass.

Power glass regulator motor

Receives switch signal and performs conversion in
order to activate power glass regulator motor to
change power window glass position.

Function

Description

Manual UP function

Power glass regulating control master switch and
power glass regulating switches have manual UP
function. Power window glass goes up when power
glass regulating control master switch or any power
glass regulating switch is pulled up and stops when
switch is released.

Manual DOWN function

Power glass regulating control master switch and
power glass regulating switches have manual
DOWN function. Power window glass goes down
when power glass regulating control master switch
or any power glass regulating switch is pressed and
held and stops when switch is released.

Automatic DOWN function

Power glass regulating control master switch and
power glass regulating switches have automatic
DOWN function. Power window glass goes down
automatically when power glass regulating control
master switch or any power glass regulating switch is
pressed. To stop it partway, press switch again.

Power window LOCK function

When power window lock switch is pressed,
corresponding power window glass cannot be
operated with passenger side power glass regulating
control switches. In this case, only driver side power
window glass can be operated. This function can be
canceled only when power window lock switch is
pressed again.

43–

7

43

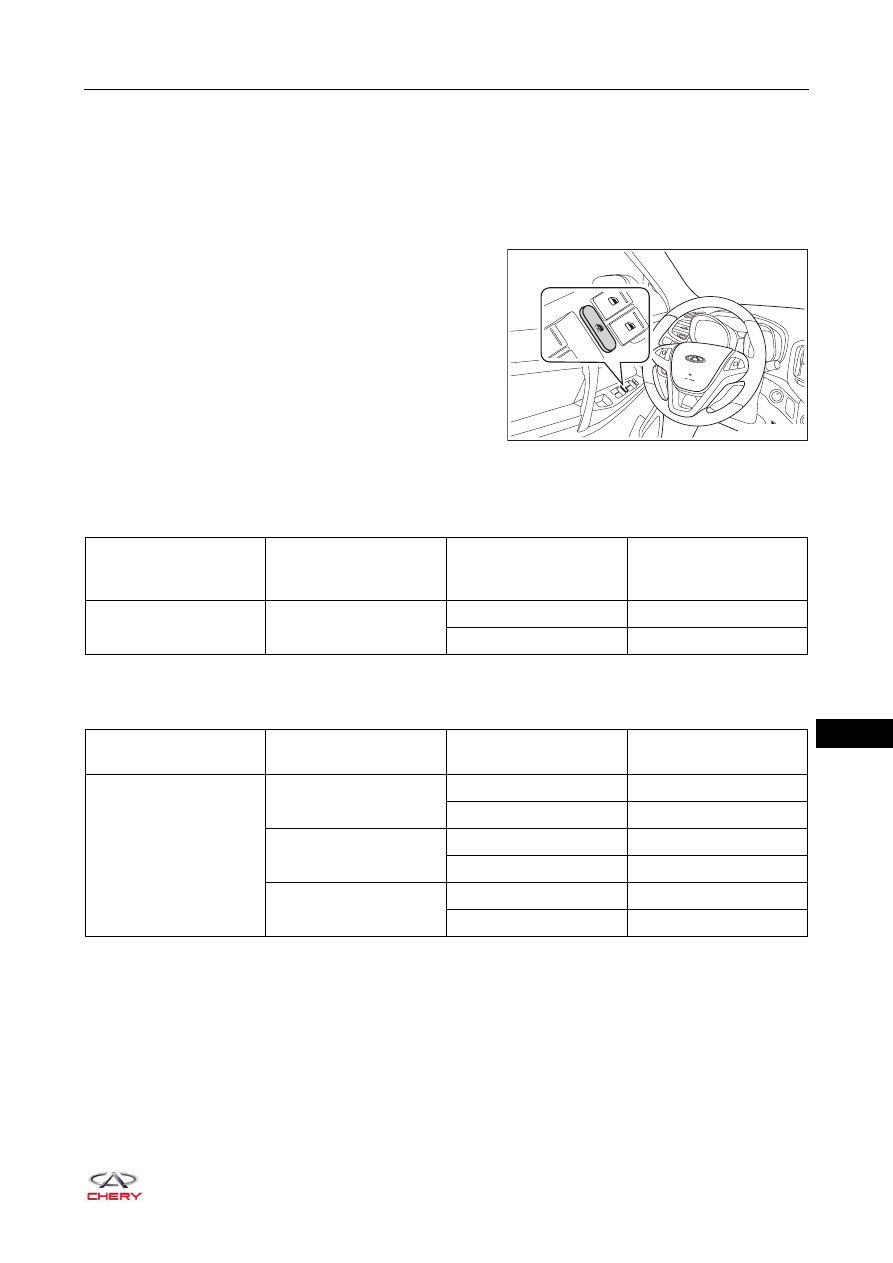

Operation Inspection

1. Check power window lock switch.

a. Check that front passenger side power window glass and rear door window glass cannot be operated

with front passenger side power glass regulating switch and rear door glass regulating switch when
power window lock switch is pressed.
OK: Operation for front passenger side power glass regulating switch and rear door glass
regulating switch is failed.

b. Check that front passenger side power window glass

and rear door window glass can be operated with front
passenger side power glass regulating switch and
rear door glass regulating switch when power window
lock switch is pressed again.
OK: Front passenger side power glass regulating
switch and rear door glass regulating switch can
be operated.

2. Check manual UP/DOWN function.

a. Check that driver side power window glass operates as follows:

OK

b. Check that power window glasses other than driver side power window glass operate as follows:

OK

RT21430030

Condition

Power Glass

Regulating Control

Master Switch

Switch Operation

Power Window Glass

Ignition switch ON

Driver side

Pulled

UP (close)

Pushed

DOWN (open)

Condition

Power Glass

Regulating Switch

Switch Operation

Power Window Glass

Ignition switch ON

Window lock switch OFF

Passenger side

Pulled

UP (close)

Pushed

DOWN (open)

Rear left side

Pulled

UP (close)

Pushed

DOWN (open)

Rear right side

Pulled

UP (close)

Pushed

DOWN (open)
