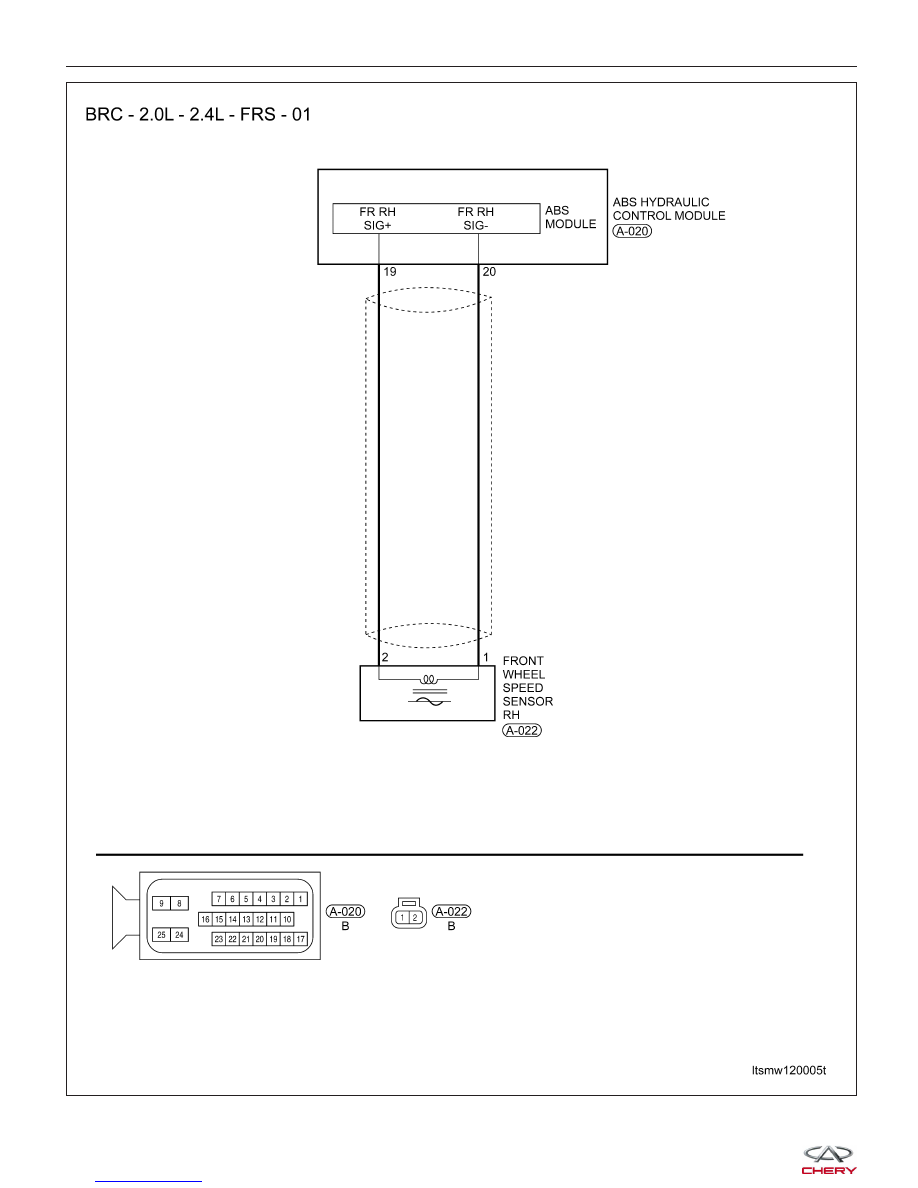

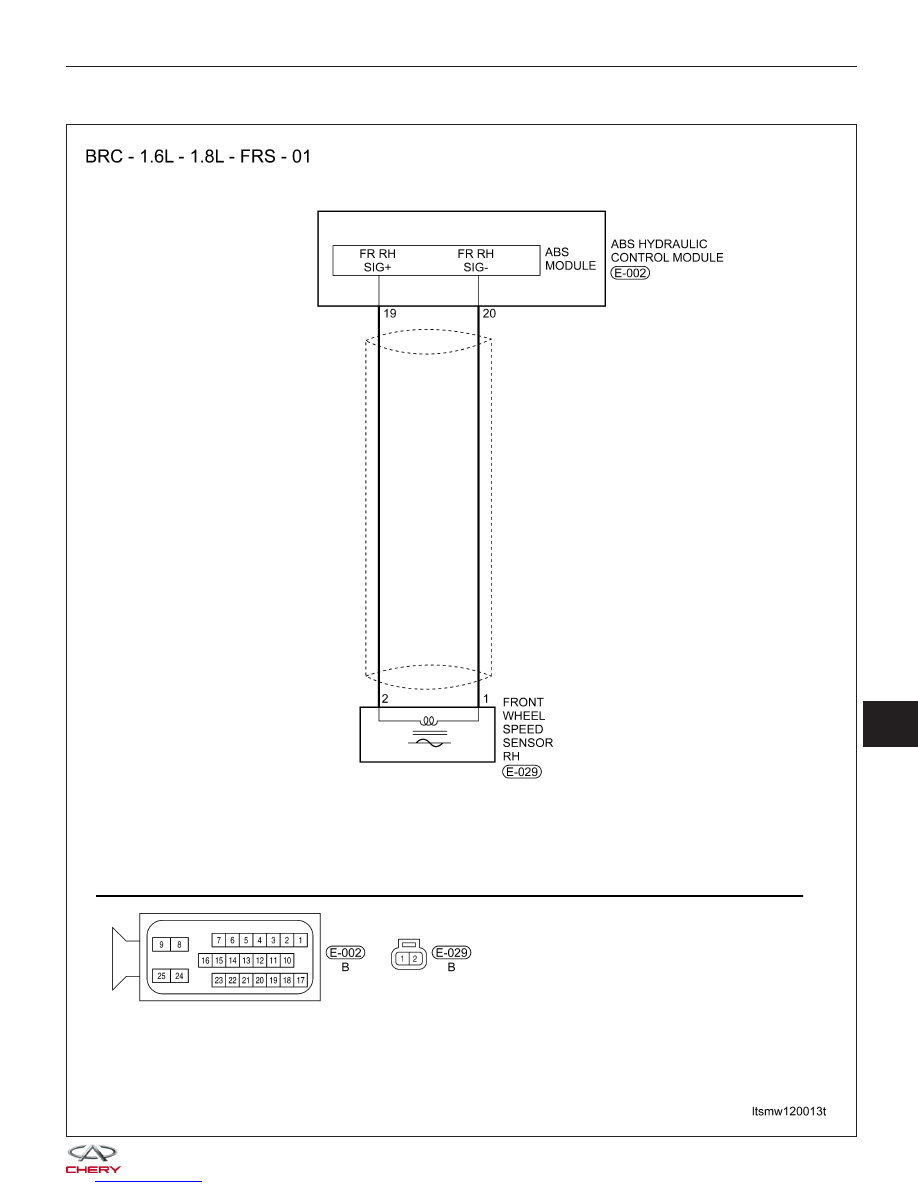

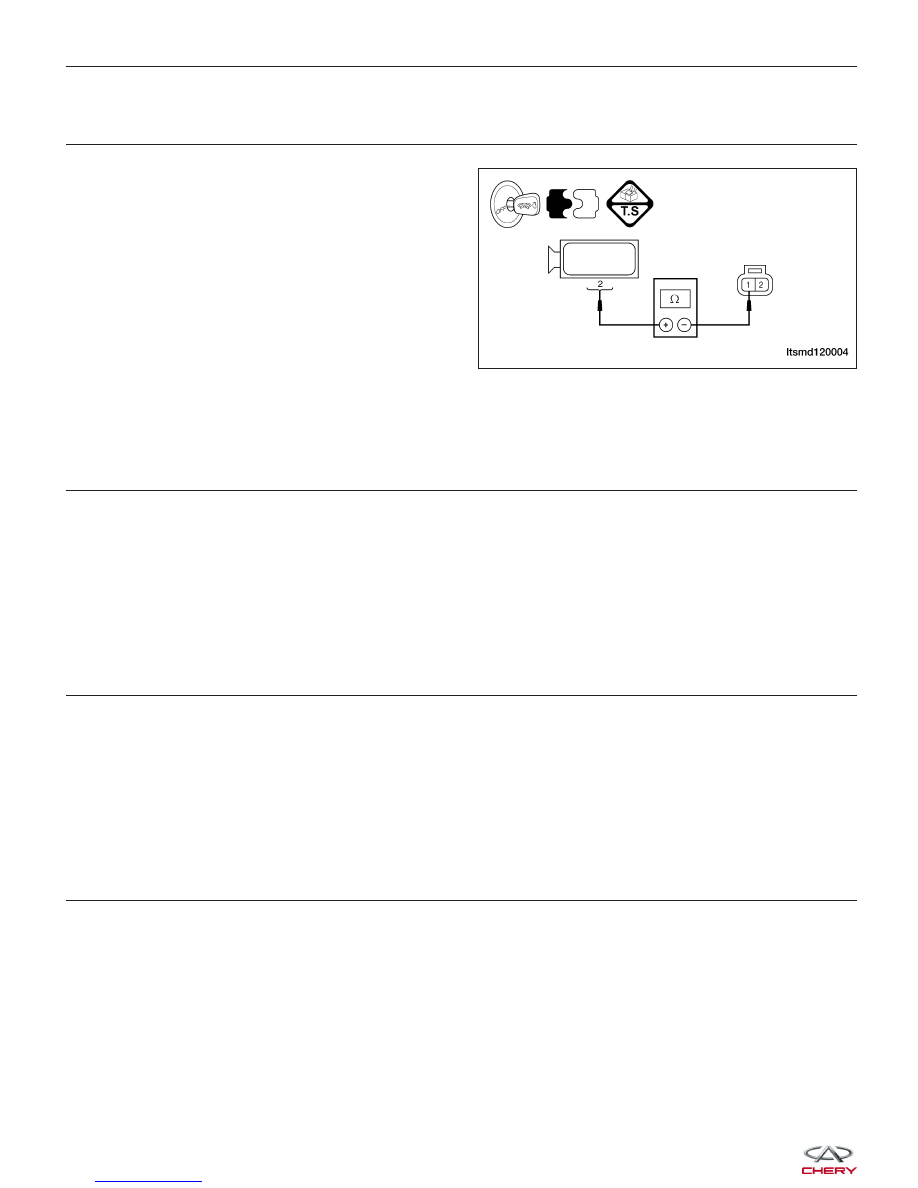

5. CHECK LEFT FRONT WHEEL SPEED SENSOR GROUND CIRCUIT FOR AN OPEN • Turn ignition switch off. • Disconnect the ABS module electrical connector. • For 1.6L/1.8L engine: Check the continuity between terminal 2 of the ABS module connector E-002, and • For 2.0L/2.4L engine: Check the continuity between terminal 2 of the ABS module connector A-020, and • Continuity should exist. Is the check result normal? Yes >> Go to the next step. No >> Repair or replace the circuit for an open. 6. CHECK LEFT FRONT WHEEL SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO GROUND • Check the continuity between terminal 1 of the Left Front wheel speed sensor connector, terminal side and ground. • Continuity should not exist. Is the check result normal? Yes >> Go to the next step. No >> Repair or replace the circuit for a short to ground. 7. CHECK LEFT FRONT WHEEL SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO VOLTAGE • Check the voltage between terminal 1 of the Left Front wheel speed sensor connector, terminal side and ground. • Voltage should not exist. Is the check result normal? Yes >> Go to the next step. No >> Repair or replace the circuit for a short to battery. 8. CHECK DTC • With the X-431 scan tool, read the ABS module DTCs. • Refer to ⬙DTC Confirmation Procedure⬙. Is DTC C1200 present? Yes >> Replace the ABS module (See ABS Module Removal & Installation in Section 12 Brakes). No >> The system is now operating properly. DIAGNOSIS & TESTING LTSMD120004
|
