Chery Tiggo. Manual - part 344





STEERING GEAR

GENERAL INFORMATION

11-19

Description

11-19

Operation

11-19

Specifications

11-19

Special Tool

11-19

DIAGNOSIS & TESTING

11-20

Binding and Sticking Troubleshooting
Chart

11-20

Insufficient Assist / Poor Return To Center
Troubleshooting Chart

11-20

ON-VEHICLE SERVICE

11-21

Steering Gear - LHD

11-21

Removal & Installation

11-21

Steering Gear - RHD

11-25

Removal & Installation

11-25

Tie Rod

11-29

Removal & Installation

11-29

Inspection

11-30



GENERAL INFORMATION

Description

The steering gear used is the rack-and-pinion type with power assist. It is mounted on the front suspension sub-
frame. The outer ends of the outer tie rods attach to the front knuckles.

NOTE :
The power steering gear should not be serviced or adjusted. If a malfunction or steering fluid leak occurs with the
steering gear, the complete steering gear needs to be replaced.

Operation

The steering wheel turns the pinion. The rack is a long flat bar with geared teeth on one side. The rack teeth mesh
with the teeth on the pinion gear. Rotation of the pinion moves the rack from left to right and right to left. The tie rod
then causes the wheels to turn to the left or right.

Specifications

Torque Specifications

DESCRIPTION

TORQUE (N·m)

Inlet / Outlet Pipe Nut

25 - 30

Intermediate Shaft Bolt

25 - 30

Steering Gear to Sub-Frame Bolts

70 - 80

Sub-Frame Assembly Bolts

180 ± 15

Tie Rod End Nut

32 - 38

Tie Rod Jam Nut

15

Wheel Mounting Nuts

110

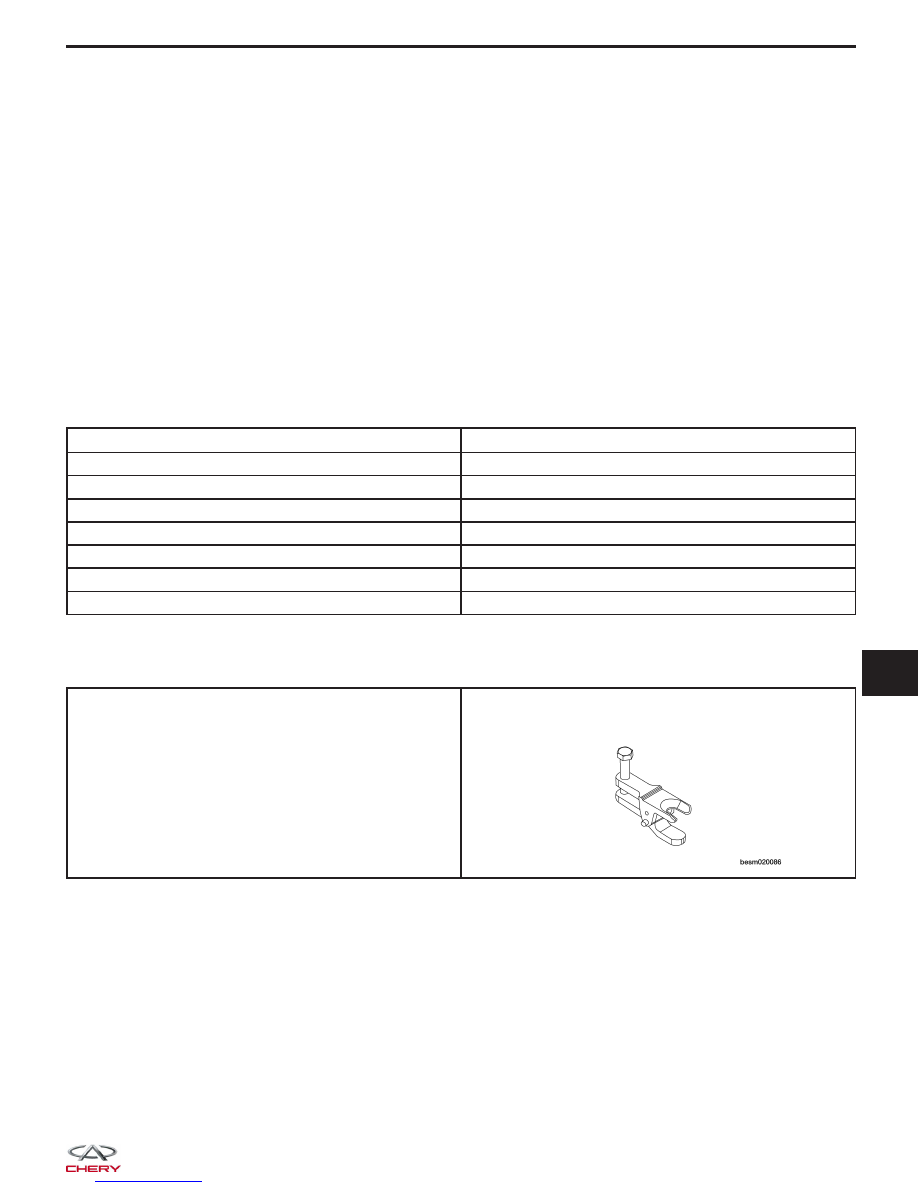

Special Tool

Ball Joint Separator

CH-10002

11



DIAGNOSIS & TESTING

Binding and Sticking Troubleshooting Chart

CONDITION

POSSIBLE CAUSES

CORRECTION

Difficult To Turn Wheel Sticks Or
Binds

· Low fluid level.
· Tire pressure.
· Steering component.
· Loose belt.
· Low pump pressure.
· Column shaft coupler binding.
· Steering gear worn or out of
adjustment.
· Ball joints binding.
· Belt routing.

· Fill to proper level.
· Adjust tire pressure.
· Inspect and lubricate.
· Adjust or replace.
· Pressure test and replace if
necessary.
· Replace coupler.
· Repair or replace gear.
· Inspect and repair if necessary.
· Verify belt routing is correct.

Insufficient Assist / Poor Return To Center Troubleshooting Chart

CONDITION

POSSIBLE CAUSES

CORRECTION

Hard Turning Or Momentary
Increase In Turning Effort

· Tire pressure.
· Low fluid level.
· Loose belt.
· Lack of lubrication.
· Low pump pressure or flow.
· Internal gear leak.
· Belt routing.

· Adjust tire pressure.
· Fill to proper level.
· Adjust or replace.
· Inspect and lubricate steering and
suspension components.
· Pressure and flow test and repair if
necessary.
· Pressure and flow test, and repair
if necessary.
· Verify belt routing is correct.

Steering Wheel Does Not Want To
Return To Center Position

· Tire pressure.
· Wheel alignment.
· Lack of lubrication.
· High friction in steering gear.
· Ball joints binding.

· Adjust tire pressure.
· Align front wheels.
· Inspect and lubricate steering and
suspension components.
· Test and adjust if necessary.
· Inspect and repair if necessary.



ON-VEHICLE SERVICE

Steering Gear - LHD

Removal & Installation

NOTE :
The following special tools are required to perform the repair procedure:
• CH-10002 - Ball Joint Separator

1. Siphon out as much power steering fluid as possible from the reservoir.

WARNING!

Prolonged and repeated contact with power steering fluid will damage skin. If steering fluid is spilled on your
skin, wash it off immediately with water.

2. Remove the wheel mounting nuts and wheel assemblies from both sides of the vehicle.

(Tighten: Wheel mounting nuts to 110 N·m)

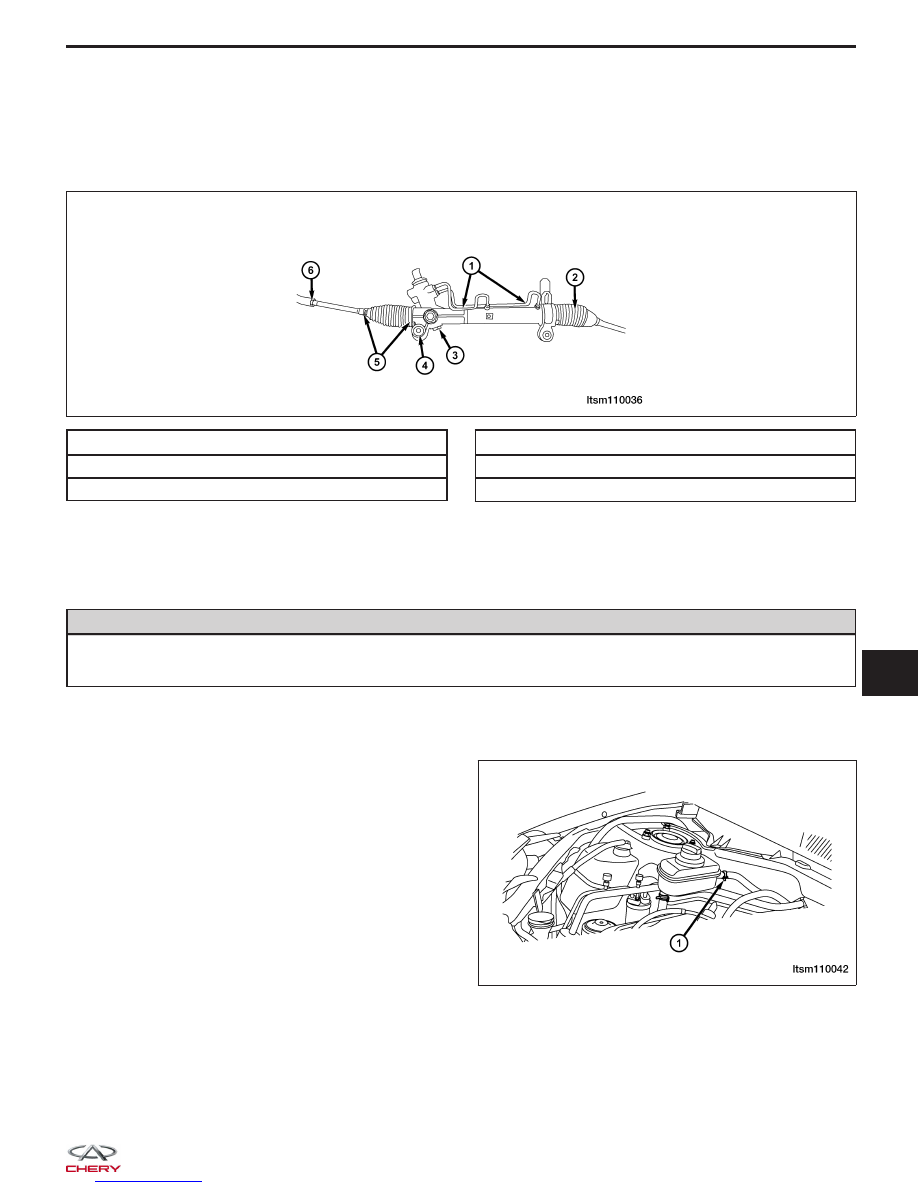

3. Remove the return hose clamp (1) from the steer-

ing liquid reservoir and insert the end of the hose
into a container.

4. Start the engine and turn the steering wheel from lock-to-lock until all power steering fluid has been drained from

the system.

5. Stop the engine.

6. Raise and support the vehicle.

1 - Steering Gear Inlet/Outlet Pipe

2 - Dust Boot

3 - Steering Gear Lock Nut

4 - Steering Gear Retaining Hole

5 - Clamp

6 - Tie Rod Lock Nut

LTSM110036

LTSM110042
