Chery Tiggo. Manual - part 324





Torque Specifications

DESCRIPTION

TORQUE (N·m)

Bow Beam to Plate Bolts

60 ± 5

Front Intermediate Shaft to ITM Controller Bolts

70 ± 7

ITM Bracket to Bow Beam Bolts

60 ± 5

ITM Control Module Bolts

9 ± 1

Transaxle to Transfer Case Bolts

80

Rear Intermediate Shaft to ITM Controller Bolts

39 ± 3

Rear Intermediate Shaft to Rear Differential Bolts

65 ± 6

Transfer Case Fluid-Limiting Bolt

40 ± 3

Transfer Case Fluid Fill Bolt

40 ± 3

Transfer Case Fluid Drain Bolt

40 ± 3

Transfer Case Front Housing Bolt

35

Transfer Case Rear Housing Bolts

40

Transfer Case Right Bearing Seat Bolt

35

Transfer Case Vent Bolt

18 ± 3

Fluid Specifications

NAME

TYPE

QUANTITY

MAINTENANCE TERM

Transaxle Gear Fluid

GL-4 75w-90

2.2 Liters

1 year / 30,000 km

Transfer Case Gear Fluid

GL-5 80w-90

0.8 Liters

50,000 km

Rear Final Drive Gear
Fluid

Hypoid 85w-90

0.8 Liters

50,000 km

Transfer Case Specifications

Differential Assembly

Side Gear

Type of Gear

Straight bevel gear

Number of Gears

14

Planetary Gear

Type of Gear

Straight bevel gear

Number of Gears

10

Hypoid G Gear

Drive Gear

Number of Gears

41

Driven Gear

Number of Gears

14

ITM Control Module Electronic Signals

SIGNALS

MODE OF PROVISION

SIGNAL SOURCE

Signals Of The Four Wheel Speed

CAN

Wheel Speed Sensor

Vehicle Speed Signals

CAN

Vehicle Speed Sensor

Acceleration Signals

CAN

G Sensor

Engine Speed Signals

CAN

Crankshaft Position Sensor

Throttle Position Signals

CAN

Throttle Position Sensor

Steering Wheel Angle Signals

Simulated

ITM Module

Ignition Switch Signals

Direct

Ignition Switch

GENERAL INFORMATION

09



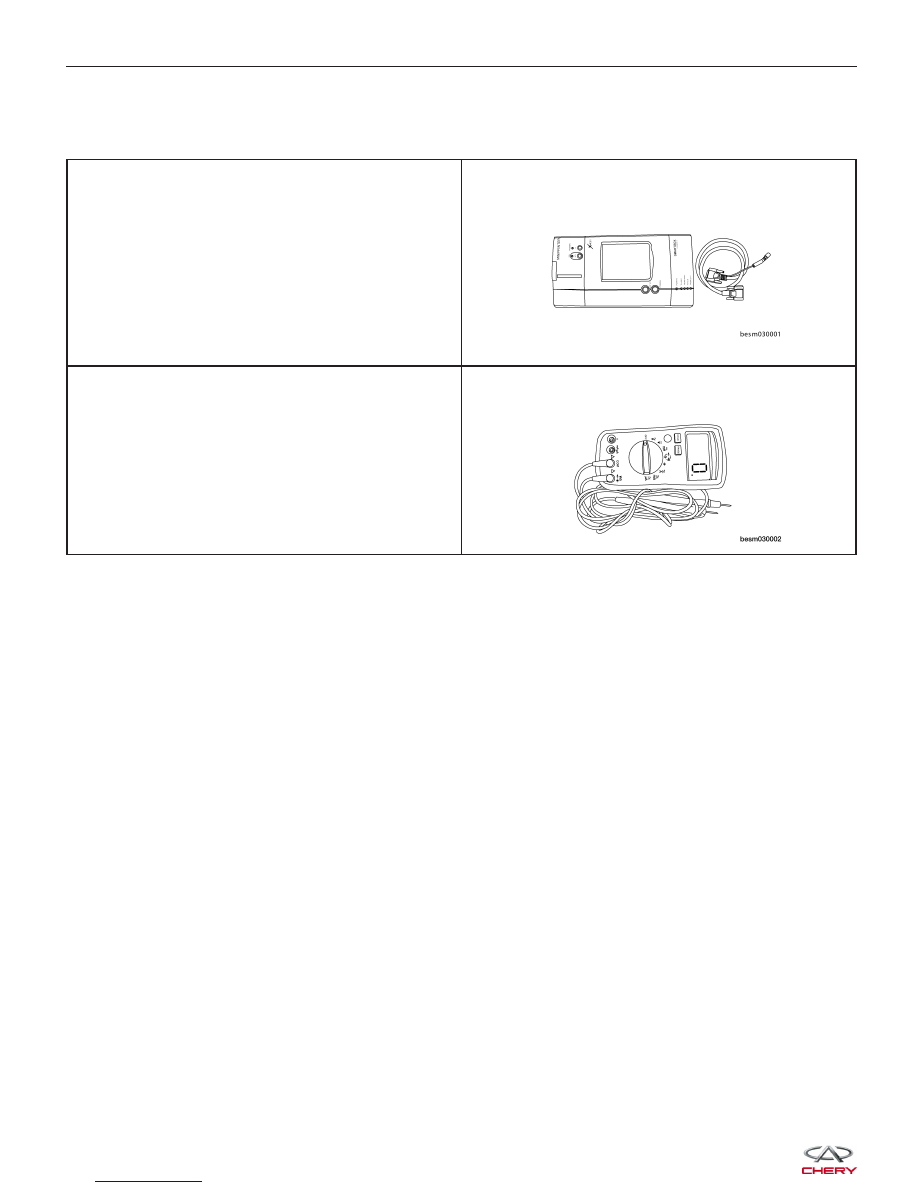

Special Tools

Diagnostic Scan Tool

X-431

Digital Multimeter

Fluke 15B & 17B

GENERAL INFORMATION



ON-VEHICLE SERVICE

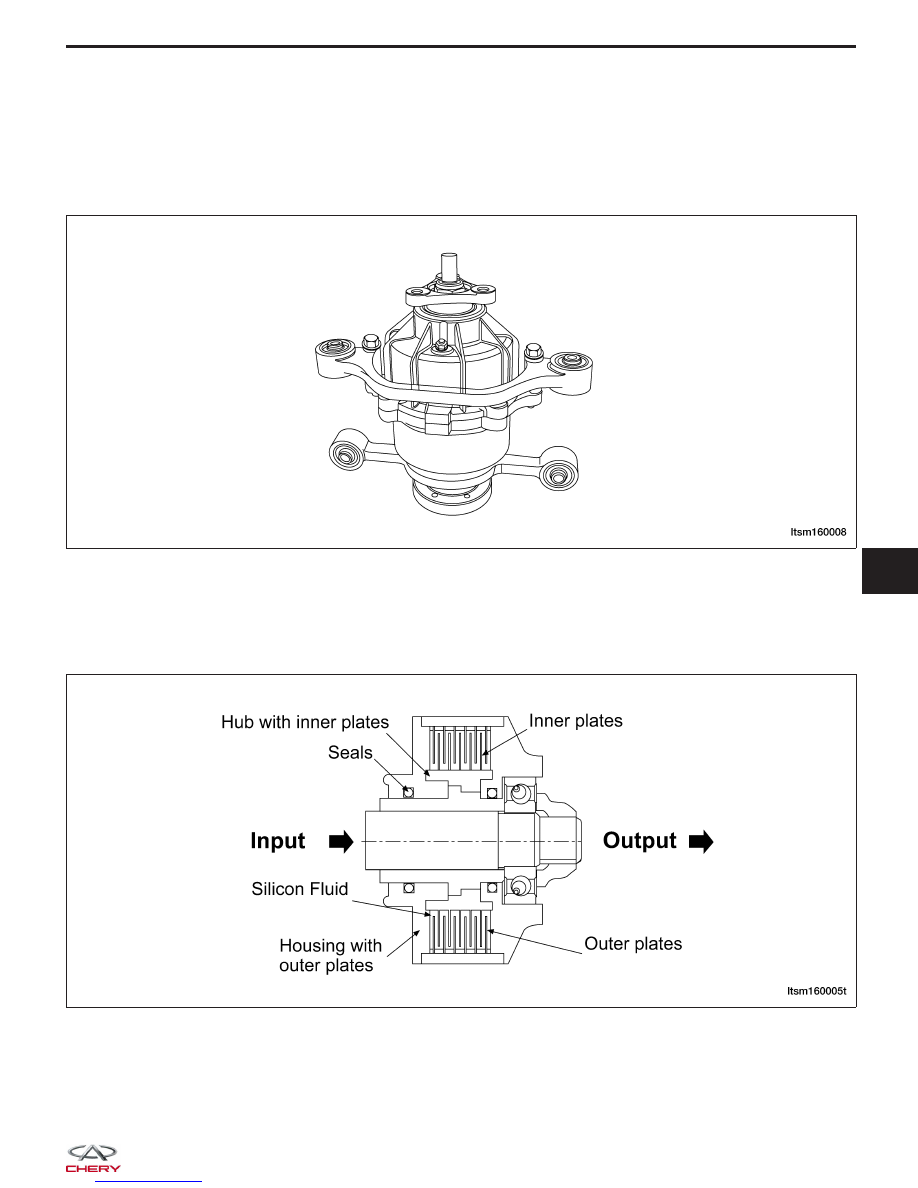

Interactive Torque Management (ITM) Controller

Description

The ITM Controller is mounted between the front and rear intermediate drive shafts.

NOTE :
Under normal vehicle usage, the ITM Controller requires no maintenance

Operation

The ITM Controller transfers the torque output from the transaxle to the rear drive axle.

LTSM160008

LTSM160005T

09



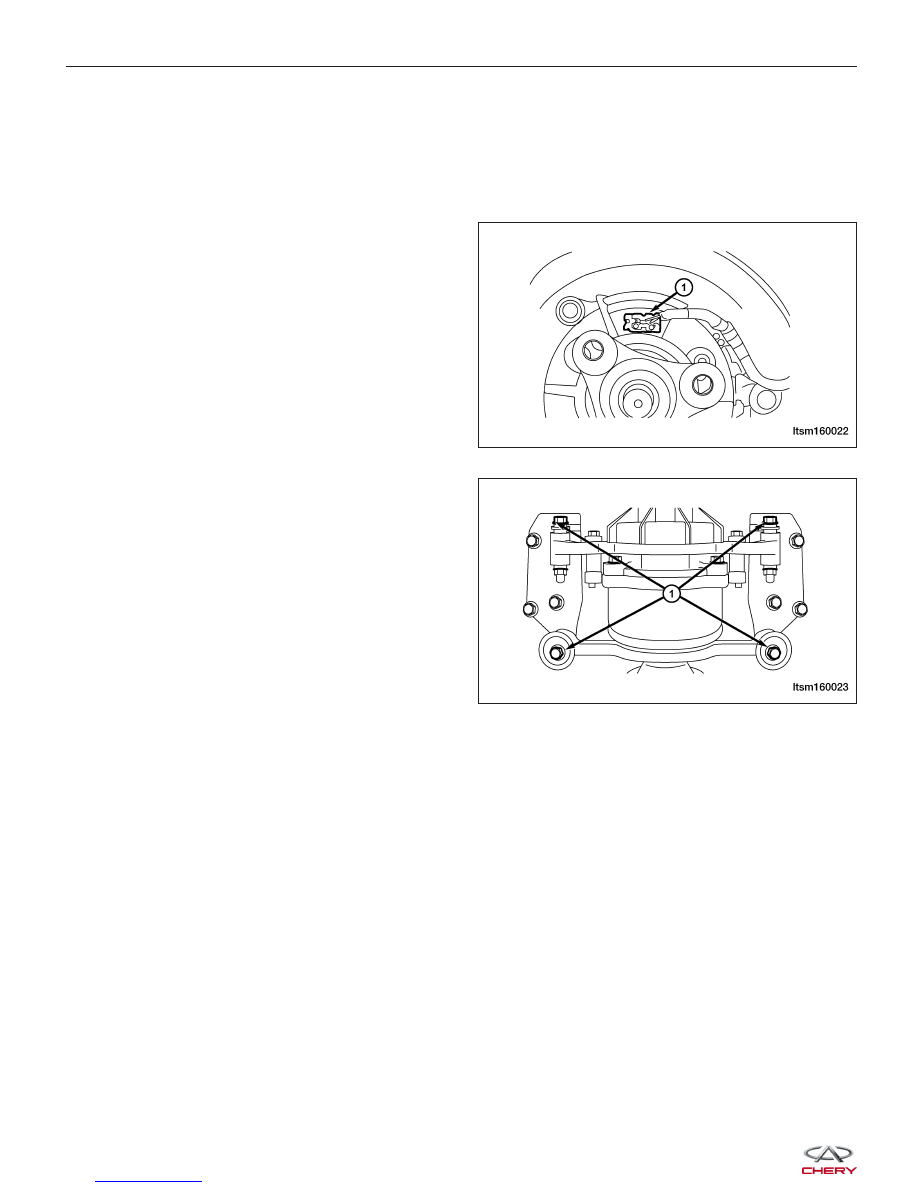

Removal & Installation

1. Raise and support the vehicle.

2. Remove the front intermediate drive shaft (See Front Intermediate Drive Shaft Removal & Installation in Section

09 Driveline & Axle).

3. Remove the rear intermediate drive shaft (See Rear Intermediate Drive Shaft Removal & Installation in Section

09 Driveline & Axle).

4. Remove the ITM Controller electrical connector (1).

5. Remove the ITM Controller mounting bracket bolts

(1).
(Tighten: ITM Controller mounting bracket bolts to
60 ± 5 N·m)

6. Remove the ITM Controller assembly.

NOTE :
The ITM Controller assembly is a precision component, be careful to avoid dropping or mis-handling the ITM Con-
troller during removal.

7. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

LTSM160022

LTSM160023
