Chery Tiggo. Manual - part 129





GENERAL INFORMATION

Description

The Engine Control Module (ECM) utilizes integrated circuitry and information carried on the Controller Area Network
(CAN) data bus along with many hard wired inputs to monitor many sensors and switches inputs throughout the
vehicle. In response to those inputs, the internal circuitry and programming of the ECM allow it to control and inte-
grate many electronic functions and features of the vehicle through both hard wired outputs and the transmission of
electronic message outputs to other electronic modules in the vehicle over the CAN data bus.

The following are the input and output components monitored by the ECM. The monitored functions include compo-
nents from the engine, ignition, transaxle, air conditioning, or any other ECM supported subsystem.

ECM Inputs
• Brake Switch Sensor

• A/C Pressure Switch

• Camshaft Position (CMP) Sensor

• Crankshaft Position (CKP) Sensor

• Engine Coolant Temperature (ECT) Sensor

• Intake Air Temperature (IAT) Sensor

• Air Flow Sensor

• Throttle Position Sensor (integral with Electronic Throttle Control Actuator)

• Power Steering Switch

• Accelerator Pedal Position (APP) Sensor

• Knock Sensor

• Oxygen Sensor (Upstream & Downstream)

• Clutch Pedal Switch (manual transaxle only)

ECM Outputs
• Canister Control Valve

• Fuel Injectors

• Fuel Pump Relay

• Electronic Throttle Control Actuator

• Ignition Coil

• A/C Compressor

• Cooling Fan

• Oxygen Sensor heating coil (Upstream & Downstream)

Operation

The ECM monitors components and circuits and tests them in various ways depending on the hardware, function,
and type of signal. For example, analog inputs such as throttle position or engine coolant temperature are typically
checked for opens, shorts and out-of-range values. This type of monitoring is carried out continuously. Some digital
inputs like vehicle speed or crankshaft position rely on rationality checks - checking to see if the input value makes
sense at the current engine operating conditions. These types of tests may require monitoring several components
and can only be carried out under appropriate test conditions.

The ECM is a pre-programmed, microprocessor-based digital computer. It regulates ignition timing, air-fuel ratio,
emission control devices, charging system, certain transmission features, speed control, air conditioning compressor
clutch engagement and idle speed. The ECM can adapt its programming to meet changing operating conditions.

03



Electronic Engine Control Input & Output Device Failure Modes

NUMBER

ITEM

FAILURE MODE

CORRECTION

1

CKP

• Engine is hard to start.

• The engine RPM will be limited after the engine starts.

• The highest RPM is less than 3800.

• Excessive exhaust emissions.

• No ignition signal to the ECM.

• The tachometer does not work.

• Rough engine operation.

Replace

2

CMP

• The fuel injector ON time may vary from 720 degrees to 360
degrees.

• The sensor output is not correct, the MIL light will turn on
when with the second revolution after the engine starts.

• Engine is hard to start.

• The highest RPM is less than 4000.

Replace

3

APPS

• The MIL light will turn on.

• Poor acceleration.

• The engine RPM will be limited after the engine starts.

Replace

4

ECT

• Engine hard to start when cold.

• Engine hard to start when hot.

• Poor driving capability.

• If the sensor circuit is shorted to power, the engine will run
under the default values.

• The temperature gauge indicates too high.

• The temperature gauge indicates too low.

• The cooling fan operates continuously on high speed.

• The high temperature warning lamp will flash when the IP
indicates low temperature.

Replace

5

MAF

• The cooling fan will operate for approximately 60 seconds on
high speed after the ignition switch is turned off.

• Poor acceleration.

• Poor driving capability.

Replace

6

O

2

Senser

• Poor fuel economy.

• Excessive exhaust emissions.

• Sluggish acceleration.

• Poor driving capability.

Replace

7

Knock Sensor

• The engine produces an engine knock.

• Overheated engine.

• Excessive exhaust emissions.

• Poor fuel economy.

• Lack of engine power.

• Internal engine damage.

Replace

8

ECM

• Unstable engine idle.

• Poor acceleration.

• Unable to start.

• High engine idle.

• The engine exhaust exceeds emission standards.

• Engine is hard to start.

• Air conditioner does not operate.

• Fuel injector control failure.

• Engine stalls out.

Replace

9

Ignition Coil

• Unstable idle.

• Lack of engine power.

• Poor fuel economy.

• Excessive exhaust emissions.

• Weak spark.

Replace

GENERAL INFORMATION



NUMBER

ITEM

FAILURE MODE

CORRECTION

10

Fuel Injector

• Unstable idle.

• Lack of engine power.

• Poor acceleration.

• Engine will not start.

• Plugged injector.

Replace

11

TPS

• Poor acceleration.

• The MIL light will turn on.

Replace

12

EVAP

• The engine base fuel closed-loop control self-learning will be
shut off.

• The engine idle air control self-learning will be shut off.

• Unstable idle or high idle.

Replace

13

Fuel Pump

• Noisy fuel pump operation.

• Poor acceleration.

• Engine will not start.

Replace

14

MAP

• Poor acceleration.

• Unstable idle.

• Rough engine operation.

Replace

15

IAT

• Intake air temperature will be equal to the coolant
temperature.

Replace

16

Cooling Fan

• High engine temperature.

• Poor air conditioner performance.

Replace

17

Accelerator

Sensor

• Misfire

• Poor driving capability.

• Rough engine operation.

Replace

Specifications

Torque Specifications

DESCRIPTION

TORQUE (N·m)

Engine Coolant Temperature Sensor

20

Knock Sensor

20

Oxygen Sensors

45

Crankshaft Position Sensor

10

Camshaft Position Sensor

7

Air Flow Sensor

5

Engine Control Module

10

Accelerator Pedal Position Sensor

11

Electronic Throttle Control Actuator

10

Vehicle Speed Sensor

10

GENERAL INFORMATION

03



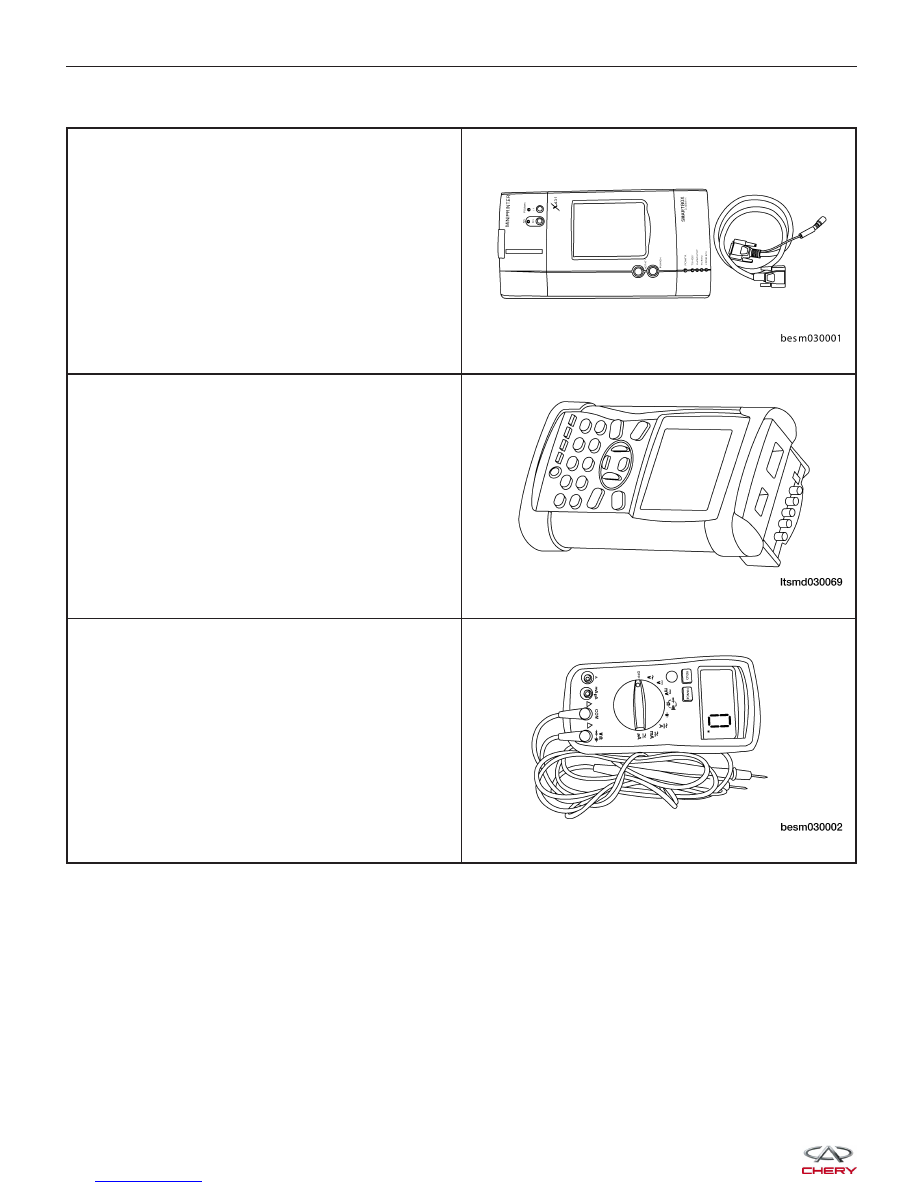

Special Tools

Diagnostic Scan Tool

X-431

Engine Analyzer

KES-200

Digital Multimeter

Fluke 15B & 17B

GENERAL INFORMATION
