The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

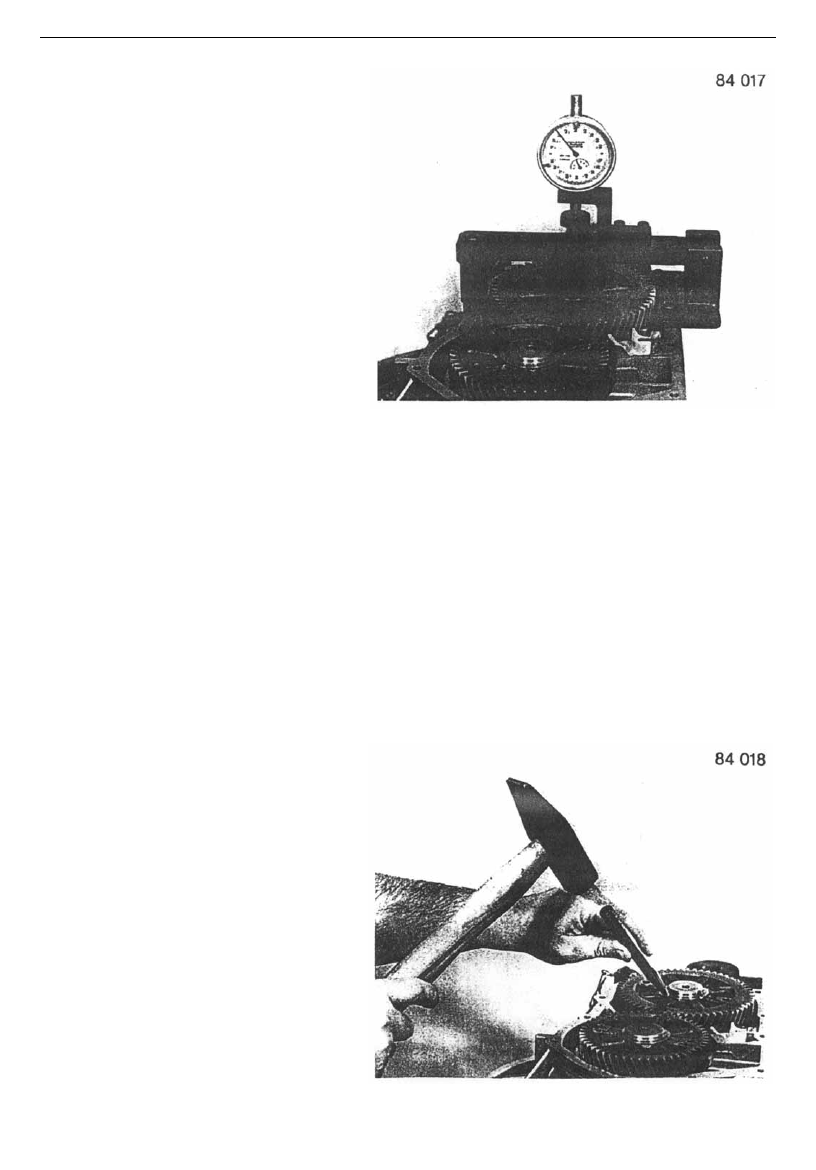

Turn the gear to determine indicator reading.

Reading X

For example, X=0.46mm















Washer thickness S is calculated by following

formula:

S = 1.75mm (Xmm – 0.06mm)



S = Required washer thickness

1.75 = Maximun washer thickness provided in table.

X = Measured reading.

0.06 = Selected clearance (select range is from 0.05 to 0.10)

For example

S = 1.75 (0.46 – 0.06)

S = 1.75 – 0.4

S=1.35mm



Measured readings X=0.46mm

Therefore, 1.35mm washer is needed or other washer to replace 1.75mm washer.

If 1.35mm or other thickness washer is installed, the tighten torque (30Nm) should be made    again.





Using appropriate tool, damp locking bolt flange

edge to distortion for locking.



-10-

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

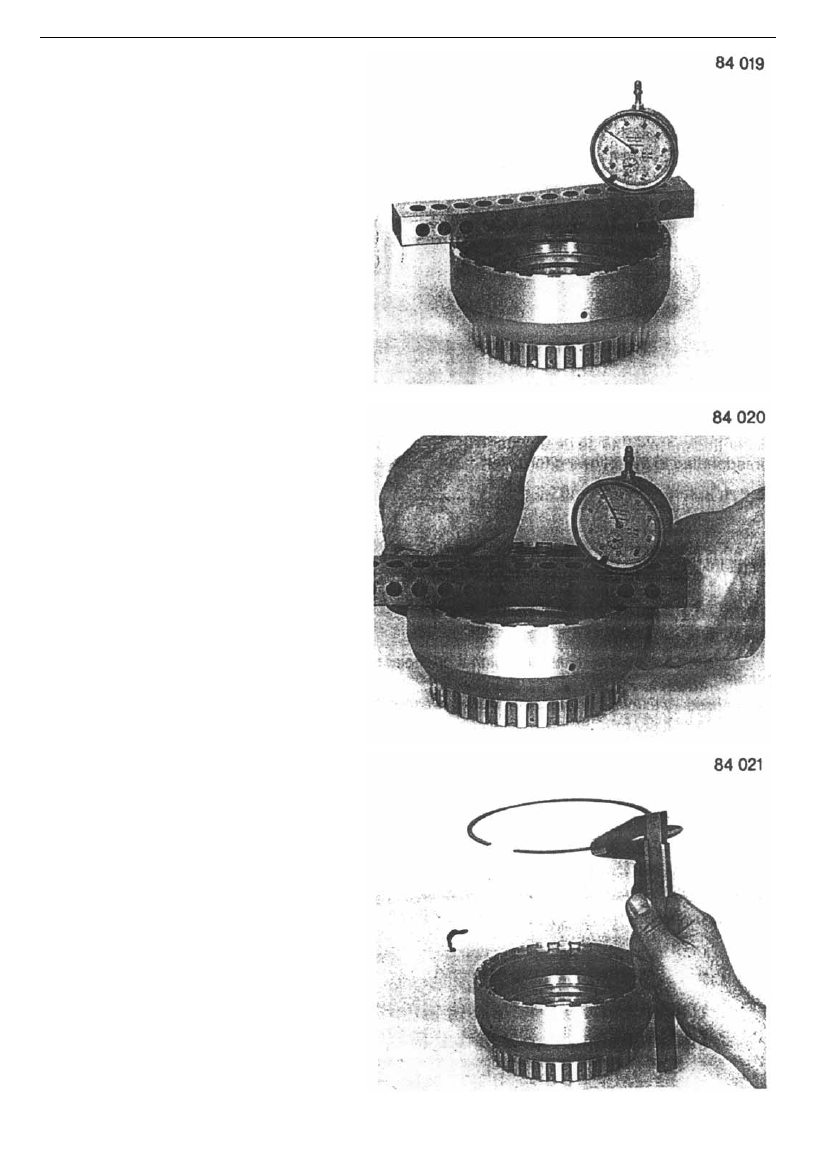

1.3.3、Clutch A clearance (snap ring

thickness) adjustment

Install 2.2mm thickness snap ring.



Use measuring unit with dial indicator.



Put the indicator right on, pointer must be at zero

position.





Lift up clutch, read the readings. Clearance

should be within 1.80mm ~ 2mm.





















If the measured value is too small or big, select a

thinner or thicker snap ring.



-11-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

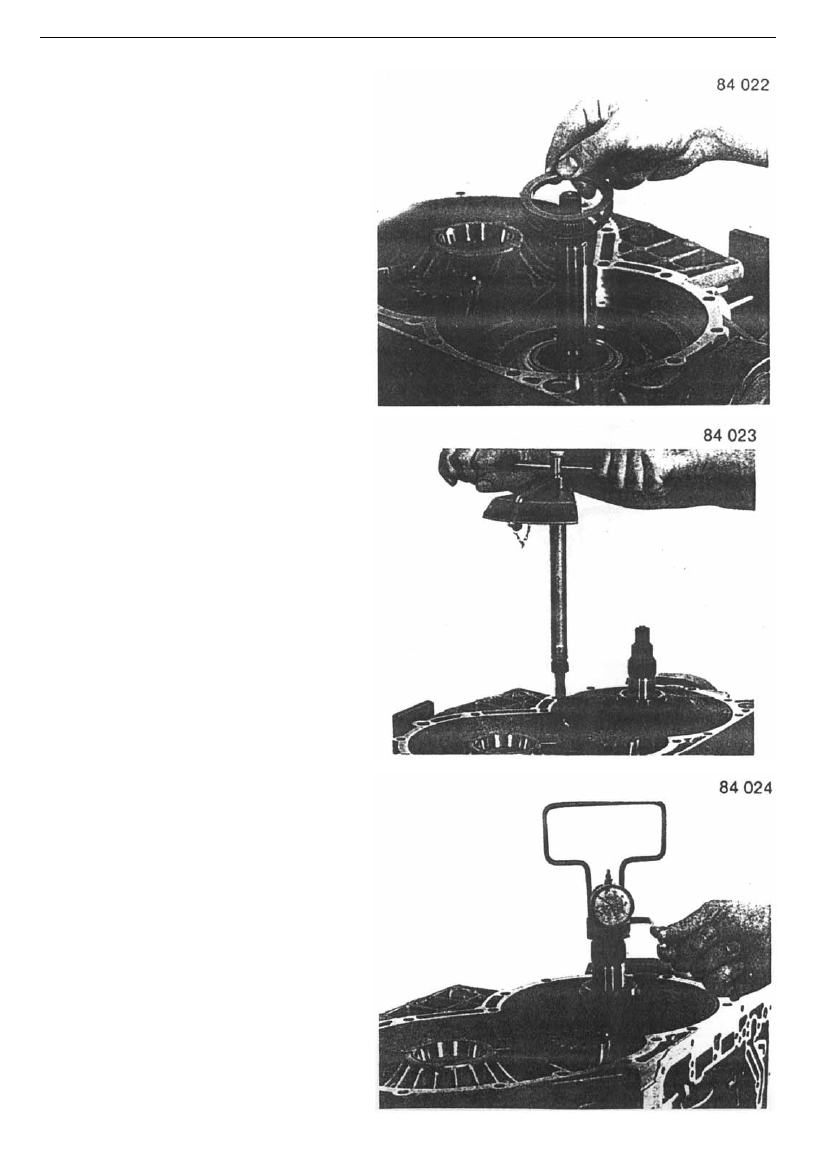

1.3.4、Central seat clearance (washer

thickness)

Install adjusting washer (2.0mm thickness) and

flanged thrust washer.



















Install clutch, brake, oil pump and other middle

units. And retain with bolts. Tighten torque is

10Nm.



While installing, turning it to install into place.

















Install adjuster on input shaft and retain it with

bolts.



-12-

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

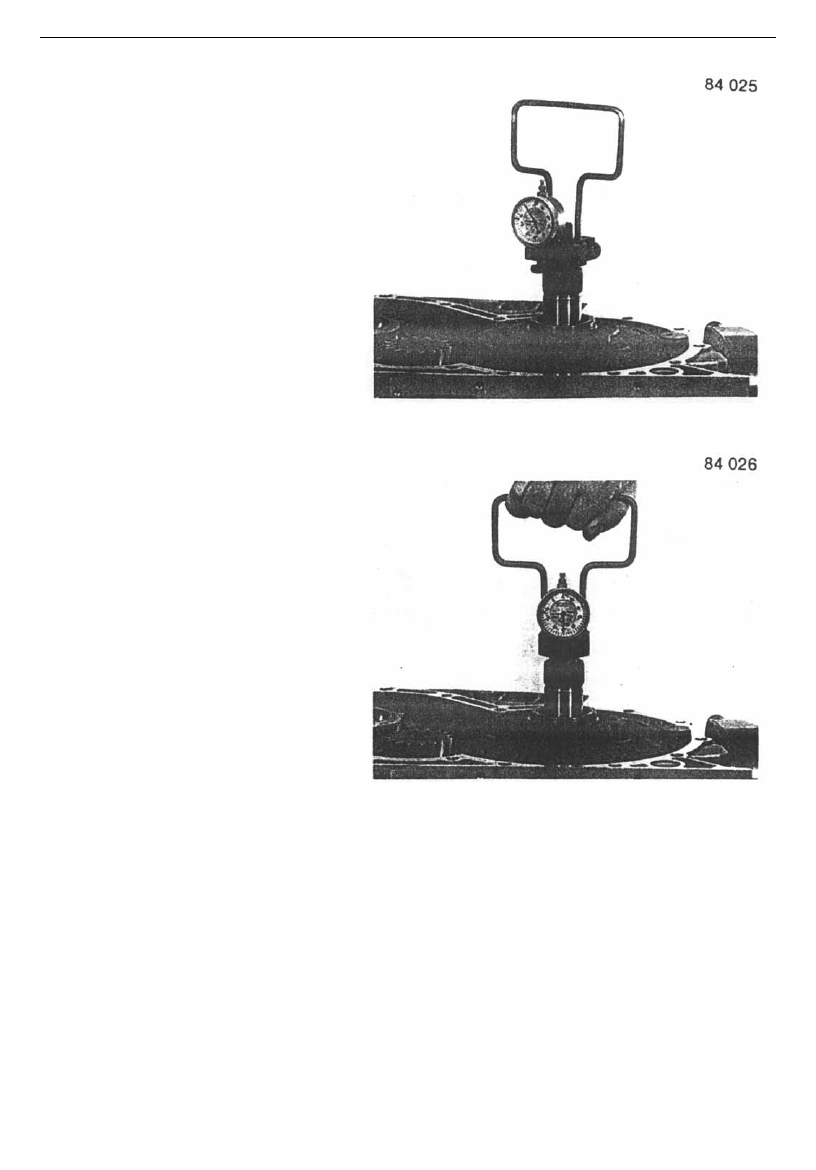

When measuring, the indicator must be

positively placed and the pointer is set to zero

positon.























As shown on fig., pull up the handle; read out

the measured result. Clearance should be within

0.1mm~0.3mm. The measured results may vary

if different thickness washer is used.
