CAC Gasoline Engine Maintenance And Servicing Manual

30

——Camshaft journal and cylinder head cam bearing
hole size:
(1) Standard size                                      mm



(2). Over size (0.38) mm
                                                                          mm






Installation:

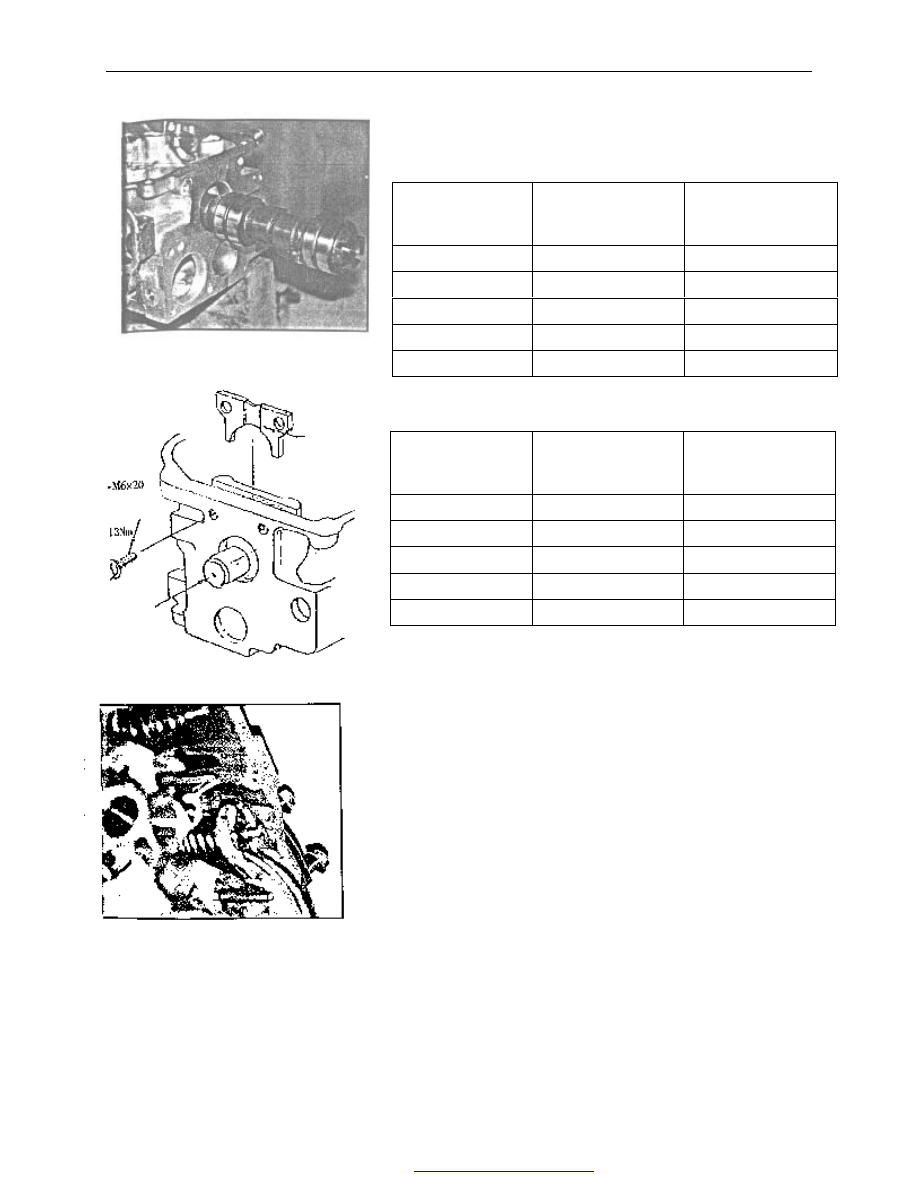

——If camshaft needs to be replaced, check the shape of the
rear end of camshaft to select appropriate camshaft.
——Before installation,apply hypoid gear oil or engine oil
on camshaft cams, assembly camshaft from behind the
cylinder head forward.
——Apply engine oil on camshaft thrust spacer,insert thrust
washer into the groove in the cylinder head.
——Screw 2 bolts into thrust washer tapped holes,
tightening torque is 9—13Nm.
——Check camshaft end play,end play should be as
specified.

——When the hydraulic lifting rod of oversize 0.25 is
applied, camshaft must be selected, or the hydraulic lifting
rod may be stuck.




Camshaft

journal number



Camshaft journal

diameter



Cylinder head

bearing hole

diameter



44.74—44.76

44.783—44.808

44.99—45.01

45.033—45.058

45.24—45.26

45.283—45.308

45.49—45.51

45.533—45.558

45.74—45.76

45.783—45.808

Camshaft journal

number



Camshaft journal

diameter



Cylinder head

bearing hole

diameter



45.12—45.14

45.163—45.188

45.37—45.39

45.413—45.438

45.62—45.64

45.663—45.688

45.87—45.89

45.913—45.938

46.12—46.14

45.163—45.188

bolt



Tightening torque

Thrust
washe

Fig.35

Fig. 36

Fig. 37



PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

31


5.Valve, valve spring, valve oil seal, spring seat assembly
removal and

installation:
Removal:
Using special tools for valve compression, take out valve
locking pieces, don't compress spring excessively, compress
spring enough to slip locking pieces out of its stroke, or valve
stem may be bent.
If valve locking pieces do not come out during spring
compression, remove compression tools, put an appropriate

pipe on spring seat,  so the valve locking piece will not be
impacted. Put a wooden block on valve head (with cylinder
head combustion chamber facing workbench), and then strike
pipe end with hammer.
Reinstall special tools for valve spring compression, locking
pieces may be taken out. After locking piece is taken out,
remove compression tools by unbolting slowly.

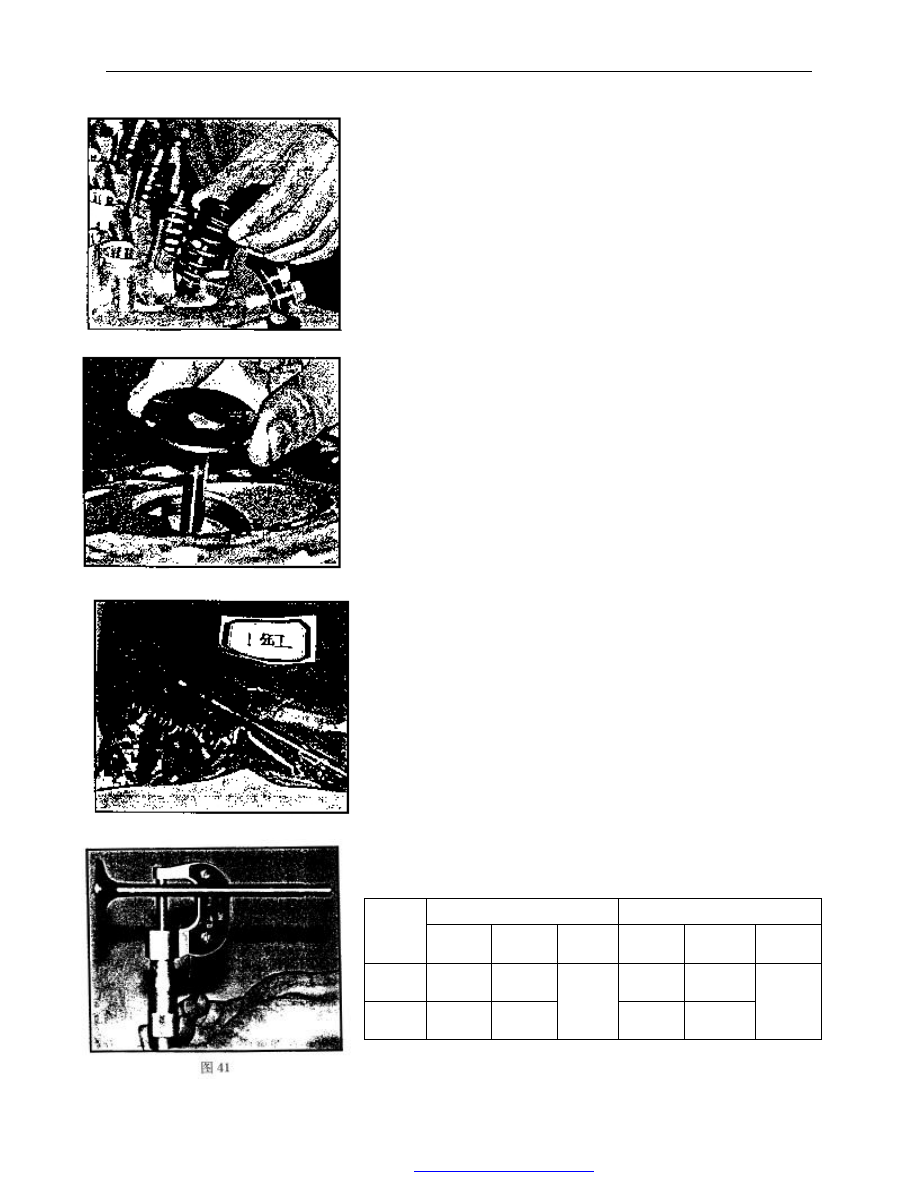

——Remove valve spring seat and valve spring,take out
valve oil seal spring seat assembly with screwdriver,  and
valve oil seal spring seat must be replaced.



——Overturn cylinder head  ,remove intake and exhaust
valves.


——Keep each set of valve, valve locking pieces, valve
spring, spring seat in the same plastic bag and mark numbers
on it, so the parts may be installed in the original place.



——Valve standard sizes and clearance:

Unit:Mm







Intake valve

Exhaust valve

grade

Valve stem

diameter

Valve guide

hole

diameter

Clearance

Valve stem

diameter

Valve guide

hole

diameter

Clearance

standard

8.043+0

-0.018

8.063-8.094

8.017+0

-0.018

8.063-8.094

oversize0.4

8.443+0

-0.018

8.463-8.494



0.02-0.069

8.417+0

-0.018

8.463-8.494

0.046-0.095

Fig.38

Fig. 39

Fig. 40

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

32



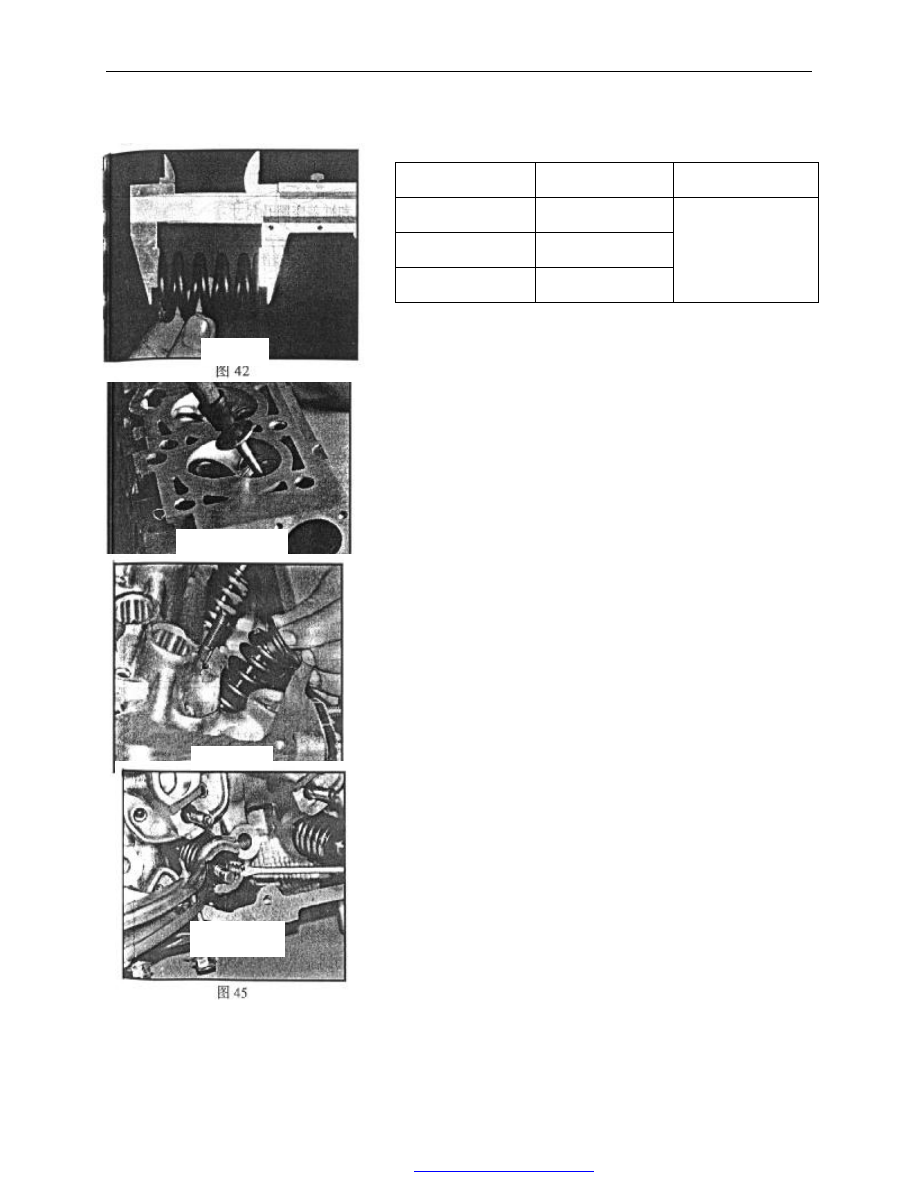

——Measure valve spring free length and spring force:





——Grinding  the  valve  and  the  valve  seat  with  the  valve
conical angle(Intake valve and exhaust valve):

44°30′— 45°30′

valve seat sealing width:

1.75 — 2.32mm











Installation:
——Before  installation,  make  sure  that  cylinder  head  has  been
cleaned  without  any  grinding  material  on  cylinder  head,  valve  or

valve guide .
——Lubricate the valve stem and guide with clean engine oil.
——Install the valve. notice that the intake and exhaust valve for 478
and 480 are not interchangeable .refer to the previous valve mark for
valve assembly.
——Press  the  valve  spring  assembly  with  oil  seal  onto  the  top  of
valve  guide.  apply  engine  oil  on  the  intake  and  exhaust  valve  guide
edge  where  the  valve  seals  are  installed    for  preventing  valve  lock
piece  groove  from  damaging  oil  seal  lip.  You  may  protect  the  valve
lock groove with tape and remove the tape after installing the valve.

——Install the valve spring and spring seat. Compress the spring seat
to expose the lock piece groove with a special compression tool. Then
put the lock pieces into it and release the compression tool slowly and
remove the tool .
——Put  the  cylinder  head  on  a  wood  lump  after  all  lock  pieces  are
assembled. And tap the small head of the valve stem with a plastic or
copper hammer to fit for the valve mechanism.

Compression (mm)

Spring load (N)

Spring free length

L

1

=37.084

422

L

2

=27.7

892.7

L

3

=27.0

945

L

0

=47.2

Fig.42

Fig.43

Fig.44

Fig.45

Fig.42

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

33



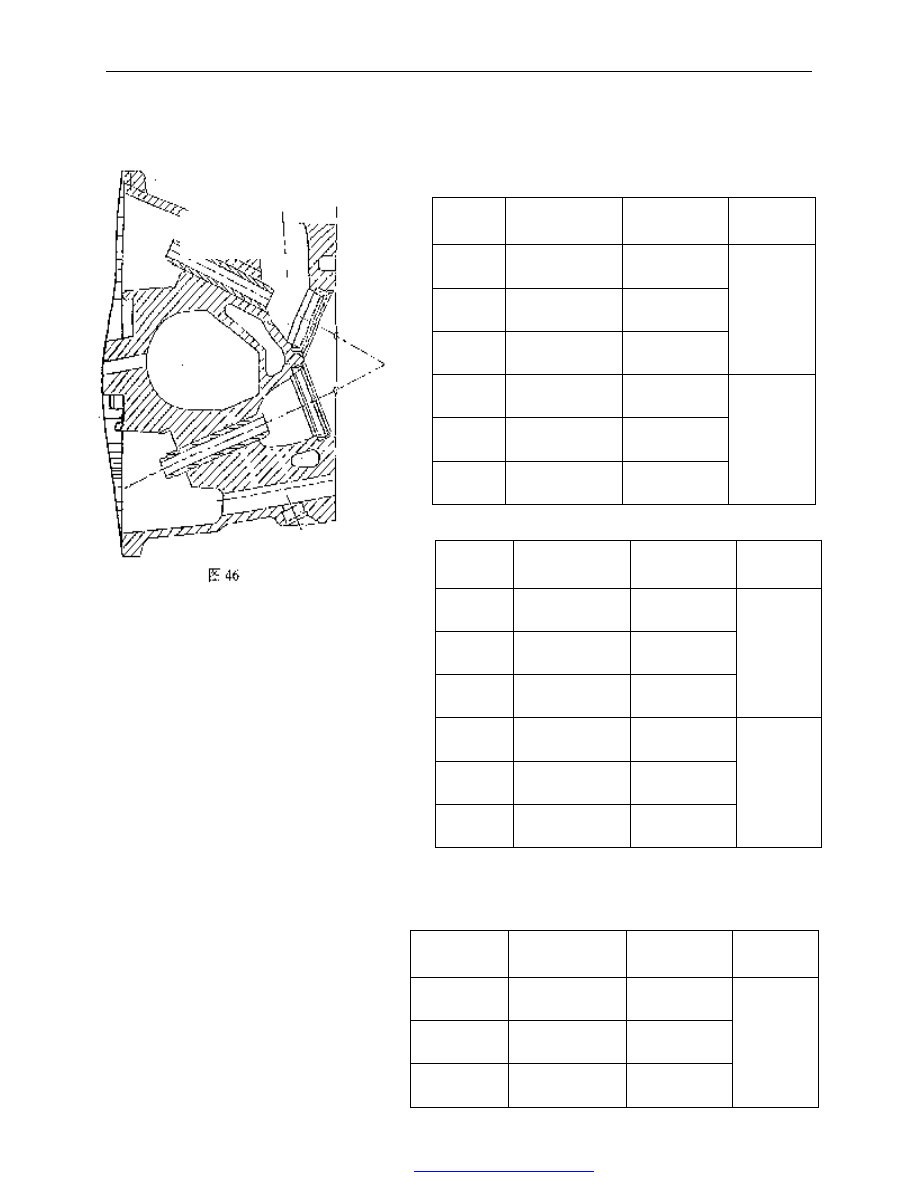

6.the sizes for intake valve, intake valve seat, exhaust valve seat and valve guide


―the size of intake valve seat and cylinder head valve seat hole

the size of exhaust valve seat and cylinder head valve seat hole


—













——the size of valve guide and valve guide hole





Diameter. of intake

valve seat

Diameter of the

cylinder head

valve seat hole

  press fit
clearance

Standard

478

41.877

+0.01

          -0.01



41.763

+0.025

      0



oversize

0.5

42.377

+0.01

          -0.01



42.263

+0.025

      0



oversize

1.0

42.877

+0.01

          -0.01



42.763

+0.025

      0



0.079—0.124

Standard

480

43.877

+0.01

          -0.01



44.763

+0.025

      0



oversize

0.5

44.377

+0.01

          -0.01



44.263

+0.025

      0



oversize

1.0

44.877

+0.01

            -0.01



44.763

+0.025

      0



0.079—0.124



Diameter. of intake

valve seat

Diameter of the

cylinder head

valve seat hole

press fit

clearance

Standard

478

35.377

+0.01

          -0.01



35.263

+0.025

      0



oversize 0.5

35.877

+0.01

          -0.01



35.763

+0.025

      0



oversize 1.0

36.377

+0.01

          -0.01



36.263

+0.025

      0



0.079—0.124

Standard

480

38.377

+0.01

          -0.01



38.263

+0.025

      0



oversize 0.5

38.877

+0.01

          -0.01



38.763

+0.025

      0



oversize 1.0

39.377

+0.01

            -0.01



39.263

+0.025

      0



0.079—0.124

Level

The valve guide

hole

The diameter. of

cylinder head tube

hole

press fit

clearance

Standard

13.555

0

                  -0.01



13.481-13.519

oversize

14.305

                  -0.01



14.231-14.269

oversize

14.505

  0

                  -0.01



14.481-14.519

0.026-0.07



Fig.46
