Chapter Six Disassembly of A/C Compressor

I. Disassembly Procedure

Before disassembling the compressor, disassemble the steering oil pump first.

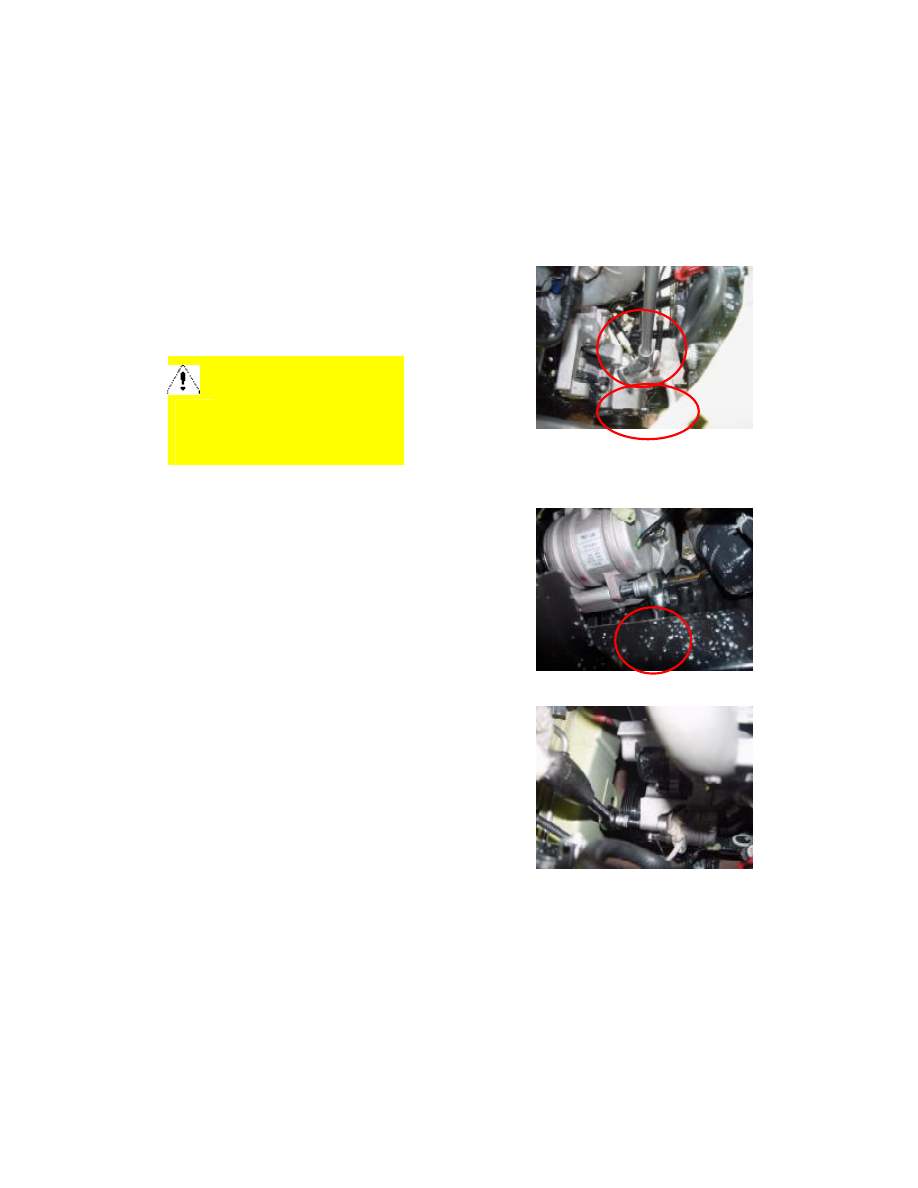

1. Use a 12# sleeve and a universal joint connecting rod to

loosen  the  connecting  bolt  of  A/C  high  and  low  pressure

pipelines.  (Note: if there is R134a in the condenser,  use a

special equipment to reclaim first.)















After

the

pipeline

is

loosened,  immediately  block  high

and  low  pressure  holes  of  the  compressor

with  clean  cotton  cloth  to  avoid  entry  of

foreign material into the compressor!



2. Hoist the vehicle and then use a 13# sleeve to loosen the

fixing bolt of the compressor from underside.

Torque: 20+5Nm.















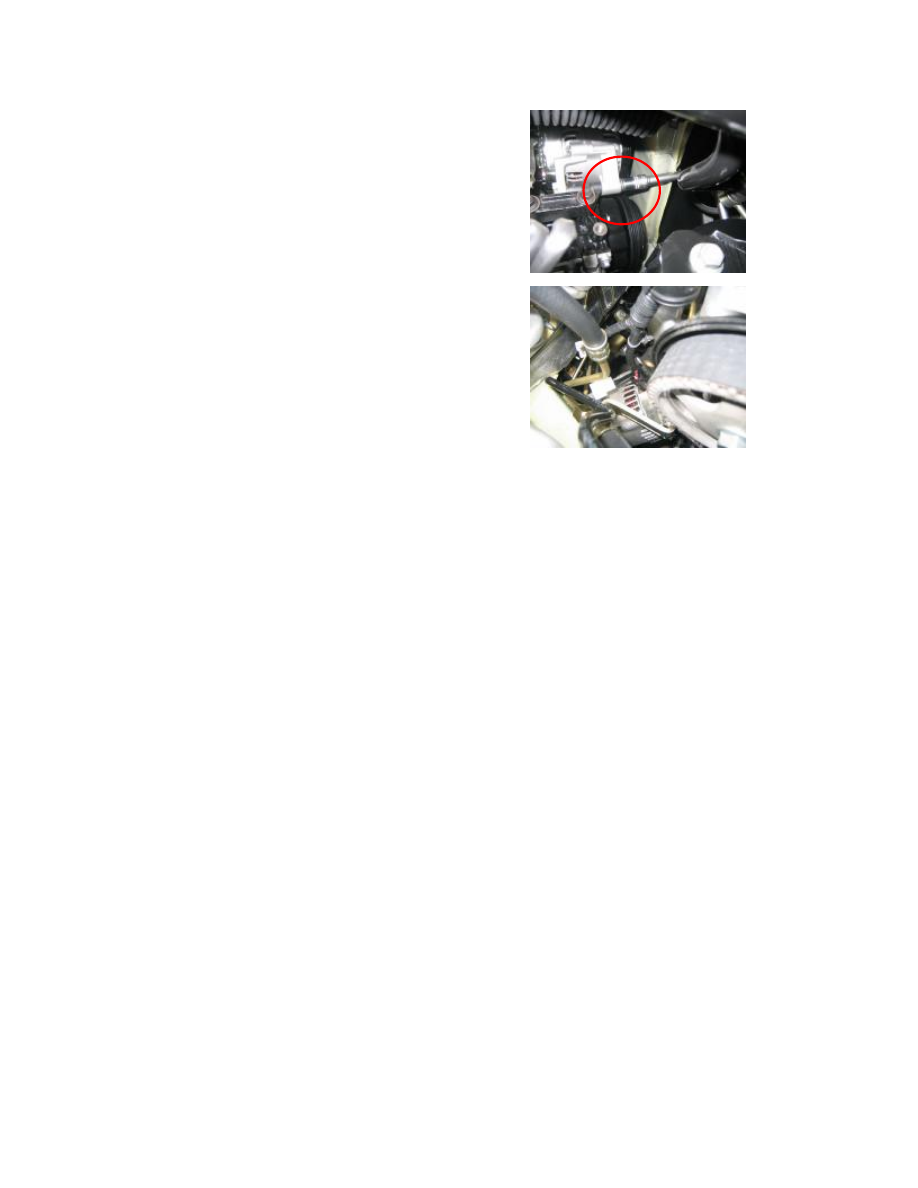

3.  Lower  the  vehicle  and  then  use  a  13#  sleeve  to  loosen

the  fixing  bolt  of  the  compressor  from  upside.  Use  a  13#

sleeve  to  loosen  the  fixing  bolt  at  middle  of  the

compressor, and then dismount the compressor assembly.

Torque: 20+5Nm.









II. Overhaul of Compressor

Inside of the compressor are assembled with highly machined fine parts, in case abnormal noise or

internal failure is found, replace the assembly.

III. Installation procedure

For the installation order, please refer to the disassembly order, and then follow the  order adverse

to that for disassembly to install. It should be noted that, when installing the A/C pipeline joint on

the compressor, be sure to replace with a new gasket and tight the joint at specified torque to avoid

leak.







Chapter Seven Disassembly of Generator

I. Disassembly Procedure









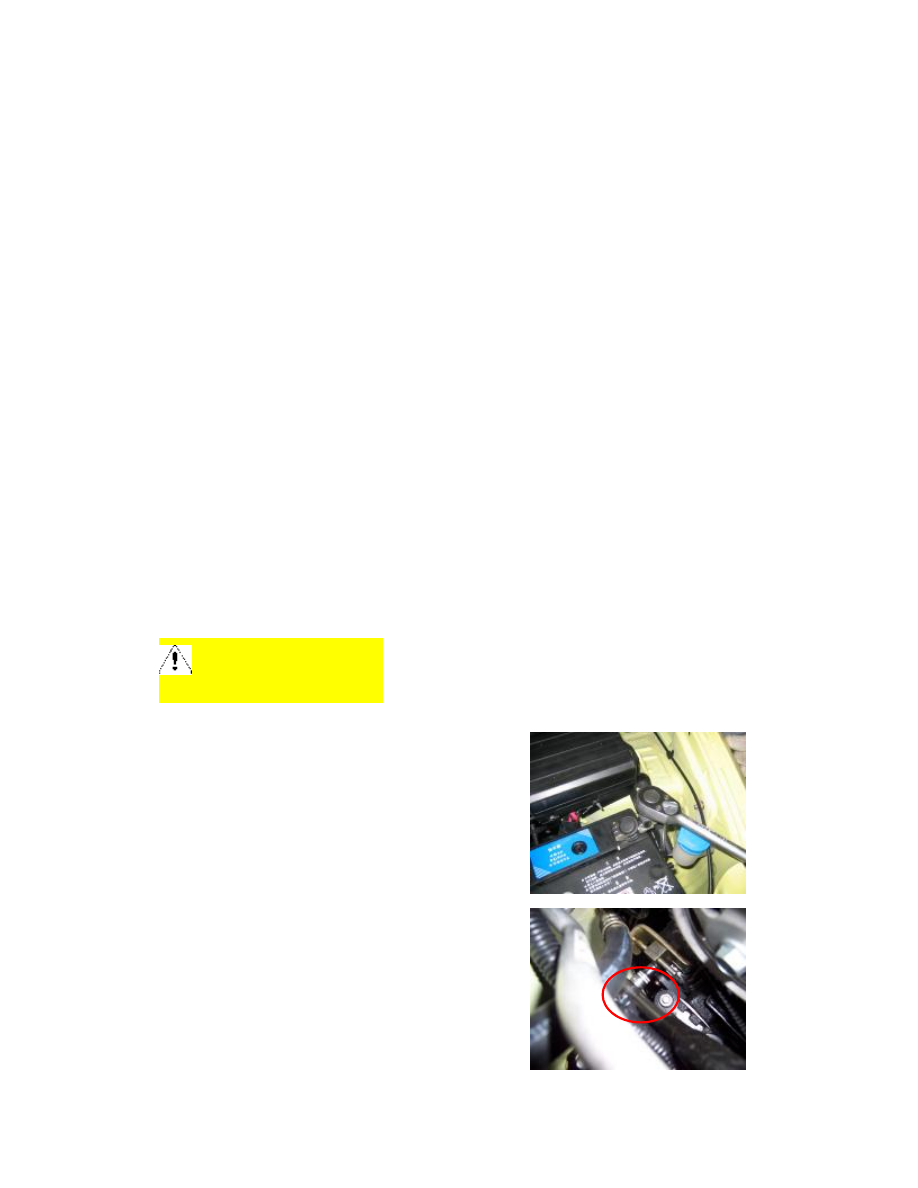

1.  Use  a  10#  sleeve  to  remove  the  connecting  line  of

battery.





2. Use a 10#  sleeve to  loosen  the  fixing bolt of  generator

adjusting bracket, and then take off the adjusting bracket.

Torque: 30+5Nm.





Before  disassembling  the

generator, remove the connecting

line of battery first.

3.  Use  a  13#  sleeve  to  remove  lower  fixing  bolt  of  the

generator.

Torque: 40+5Nm.





4. Use a 10# sleeve to remove the fixing bolt of generator

anode harness, pull out  the  harness connector, remove the

belt and then take out the generator.







II. Overhaul of Generator

In  case  the  generator  makes  abnormal  noise  or  its  yield  is  too  high  or  too  low,  replace  the

assembly.

III. Installation Procedure

The installation order of the  generator is adverse to that for its disassembly. After the  generator is

installed, adjust deflection of the belt.







Chapter Eight Replacement of Engine Timing Belt

I. Disassembly Procedure











1. Disassembly of engine timing belt:

1.1 Follow the disassembly methods for power-assisted steering pump, compressor and generator

to disassemble the generator and compressor belt.

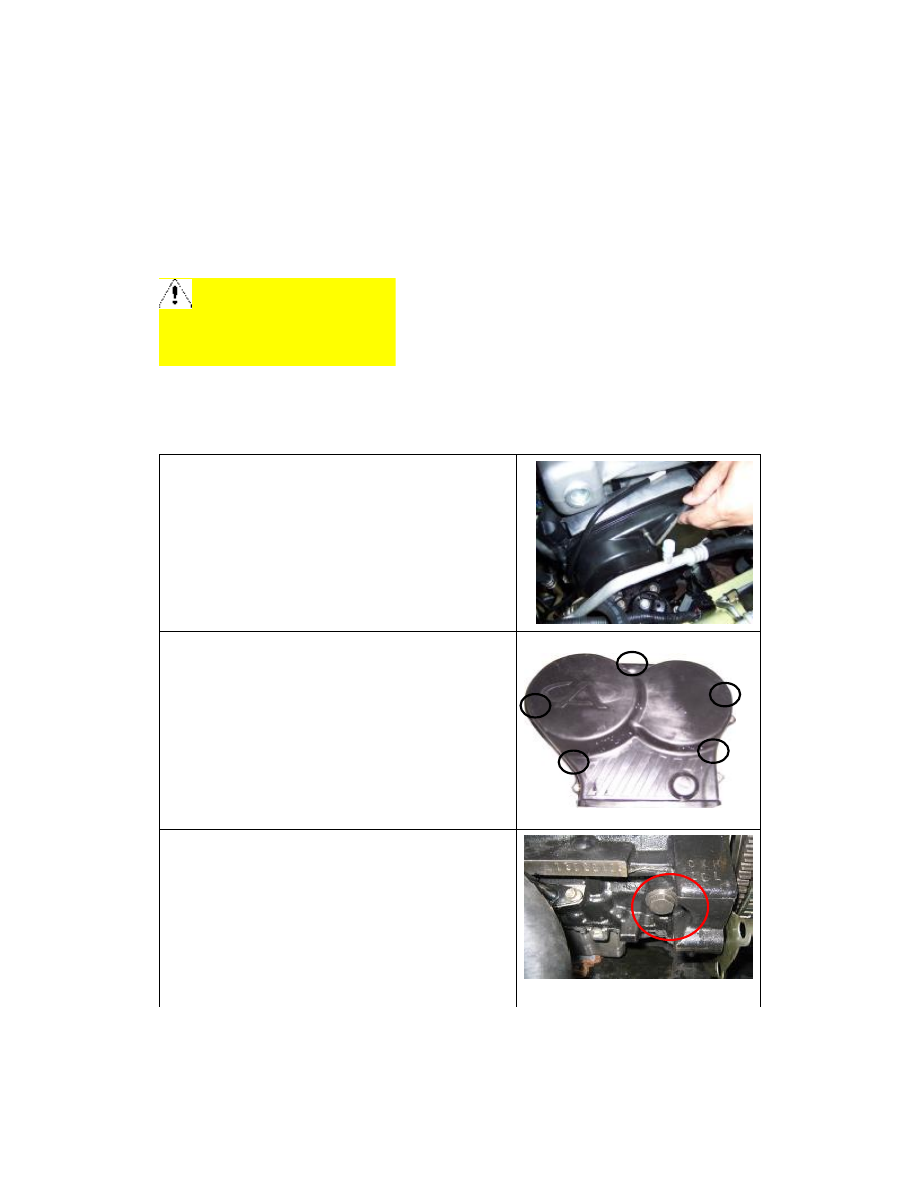

1.2  Use  a  5mm  hexagon  wrench  to  remove  the  five

fixing bolts on timing upper cover.







1.3 The positions of the five fixing bolts on timing upper

cover are shown by the red circles in the figure.









1.4  Use  a  13#  sleeve  to  loosen  the  crankshaft  timing

adjusting hole bolt. (The adjusting bolt is at upside of the

starter)







In order to ensure normal and

highly  effective  working  of  the

engine,  replacing  the  timing  belt  at

50,000km mileage is recommended.
