Chery Eastar Service Manual Body Dimension and Accessories

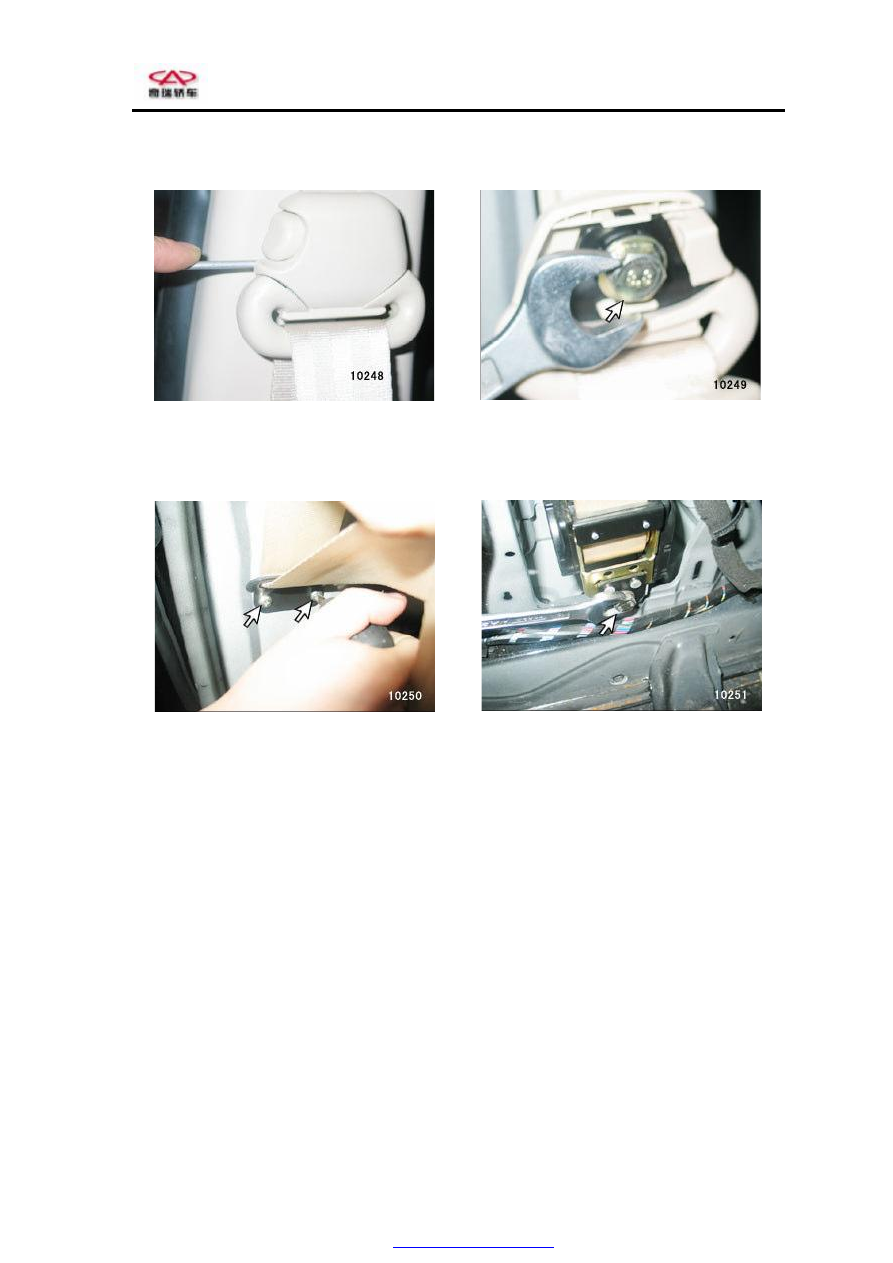

5. Pry out the trims, and unscrew the fixing bolts.

Note: Apply 17# socket to disassemble it.

6. Unscrew the three fixing bolts and one fixing screw, and remove the external seat belt.

Assemble in the reverse order of disassembly.

Assembling requirements:

The assembly angle of left/right front seat belt retractor assy. shall be

80 degrees, and the tightening torque of catch bolt shall be 50±5 N·m. the tightening torque of

adjusting slide assy. fixing bolt shall be 50±5 N·m. the tightening torque of guide ring fixing bolt shall

be 50±5 N·m. the guide support shall be fixed securely. the tightening torque of screw shall be l.5±0.5

N m, and the tightening torque of end piece fixing bolt shall be 50±5 N·m. the lock catch assy. shall be

positioned securely on the special bolts of front seat belt, and it shall be ensured that the seat belt’s lock

tongue operates conveniently, and the tightening torque of its fixing nut shall be 50±5 N·m. All

fasteners of this assy. shall be coated uniformly with the thread fastening glue before assembly, and the

webbing shall be stretched freely and smoothly without slackness after the lock tongue and lock catch

are tightened. The assembly angle of left/right rear seat belt retractor assy. shall be 90 degrees. The

tightening torque of all fasteners of this assy. shall be 50±5 N·m, and these fasteners shall be coated

with the thread tightening glue before assembly. and the webbing shall be stretched freely and

smoothly, without slackness after the lock tongue and lock catch are tightened. The catch bolts of

middle seat belt shall be coated with the thread tightening glue, and its tightening torque shall be 50±5

N·m. The catch bolts of double-end retaining ring shall be coated with the thread tightening glue, and

its tightening torque shall be 50±10 N·m.

PDF created with pdfFactory Pro trial version

www.pdffactory.com

Chery Eastar Service Manual Body Dimension and Accessories

(II) Disassembly of Front Seat Interior

Belt (See Disassembly of Seat)

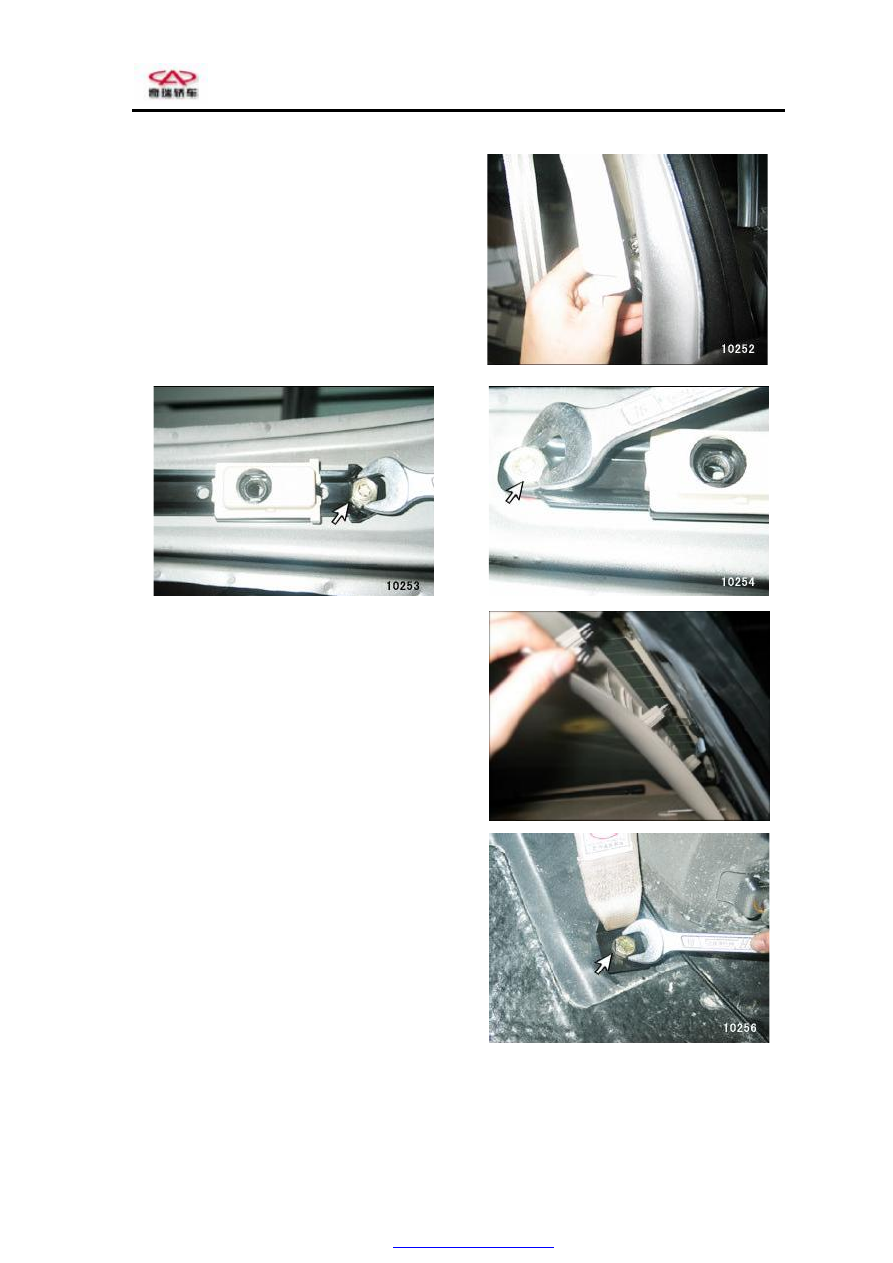

(III) Disassembly of Seat Belt Regulator

1. Remove the B column lower guard plate.

2. Remove the two bolts, and adjust the slide.

Note: Apply the T50 tool to remove it.

Assemble in the reverse order of disassembly.

(IV) Disassembly of Rear Seat Belt

1. Disassemble the following parts.

① Rear seat backrest and cushion (See

Disassembly of Seat)

②

C column trim panel (See Disassembly of

Rear Curtain)

③ Rear high mount brake lamp and rear curtain

assy. (Disassembly of Rear Curtain).

2. Remove the rear seat belt floor fixing bolts.

Note: Apply 17# socket to disassemble it.

PDF created with pdfFactory Pro trial version

www.pdffactory.com

Chery Eastar Service Manual Body Dimension and Accessories

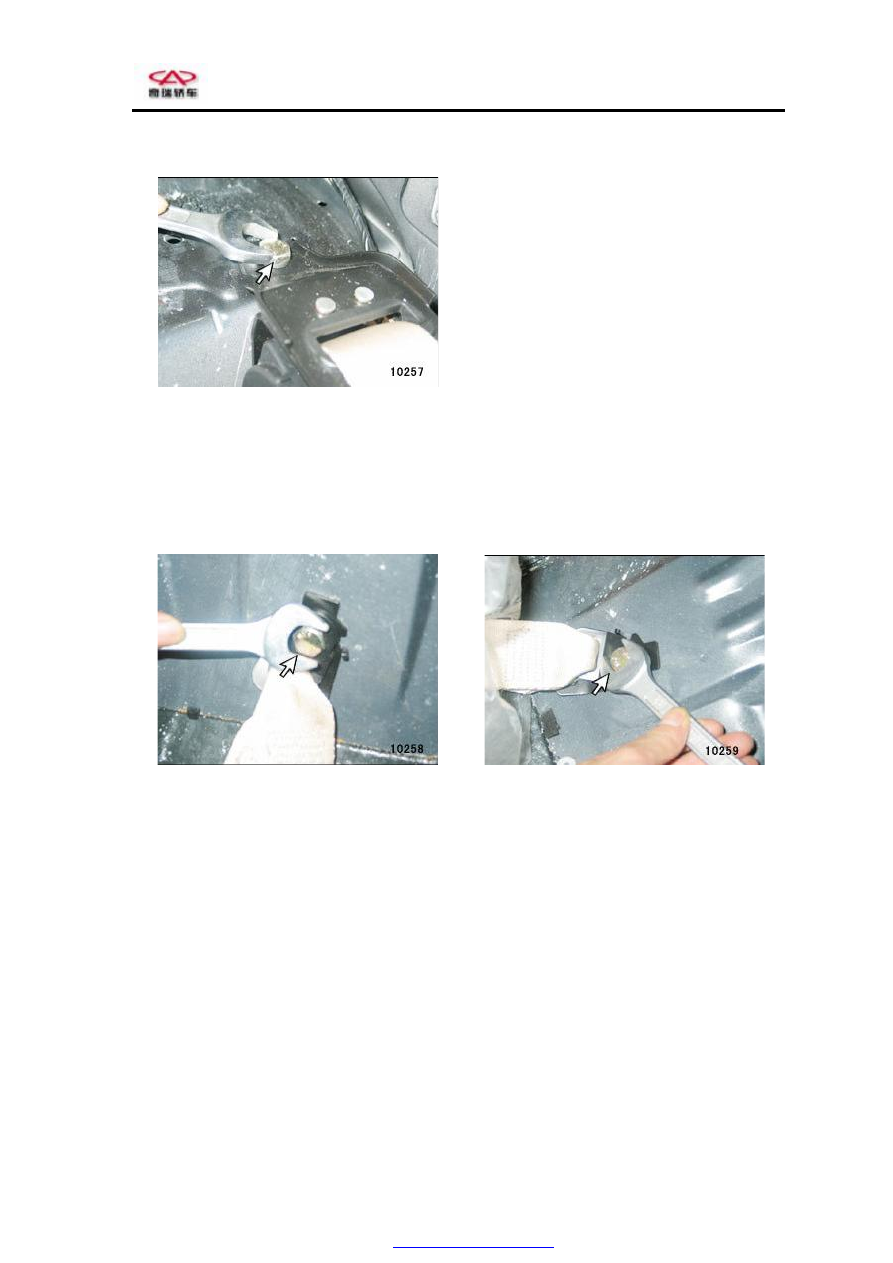

3. Remove one fixing bolt on the retractor.

Note: Apply 17# socket to disassemble it.

4. Disassemble rear seat belt.

Unscrew the fixing bolts of inner seat belt.

Note: Apply 17# socket to disassemble it.

Assemble in the reverse order of
disassembly.

PDF created with pdfFactory Pro trial version

www.pdffactory.com

Chery Eastar Service Manual Body Dimension and Accessories

Chapter Nine Bumper

I. Disassembly of Front Bumper Inner

Bar

Disassemble the following parts:

l. Headlamp.

2. Fender lining.

3. Top front bumper strip.

4. Unscrew the two fixing bolts, and remove the

inner bar.

Assemble in the reverse order of disassembly.

II. Disassembly of Rear Bumper

1. Remove the luggage boot trim plate rear

cover.

2. Remove the floor cover.

3. Disassemble the side covers of left/right trim

plate.

4. Unscrew the fixing bolts on the both sides.

5. Loosen the rear wheel fender plate.
