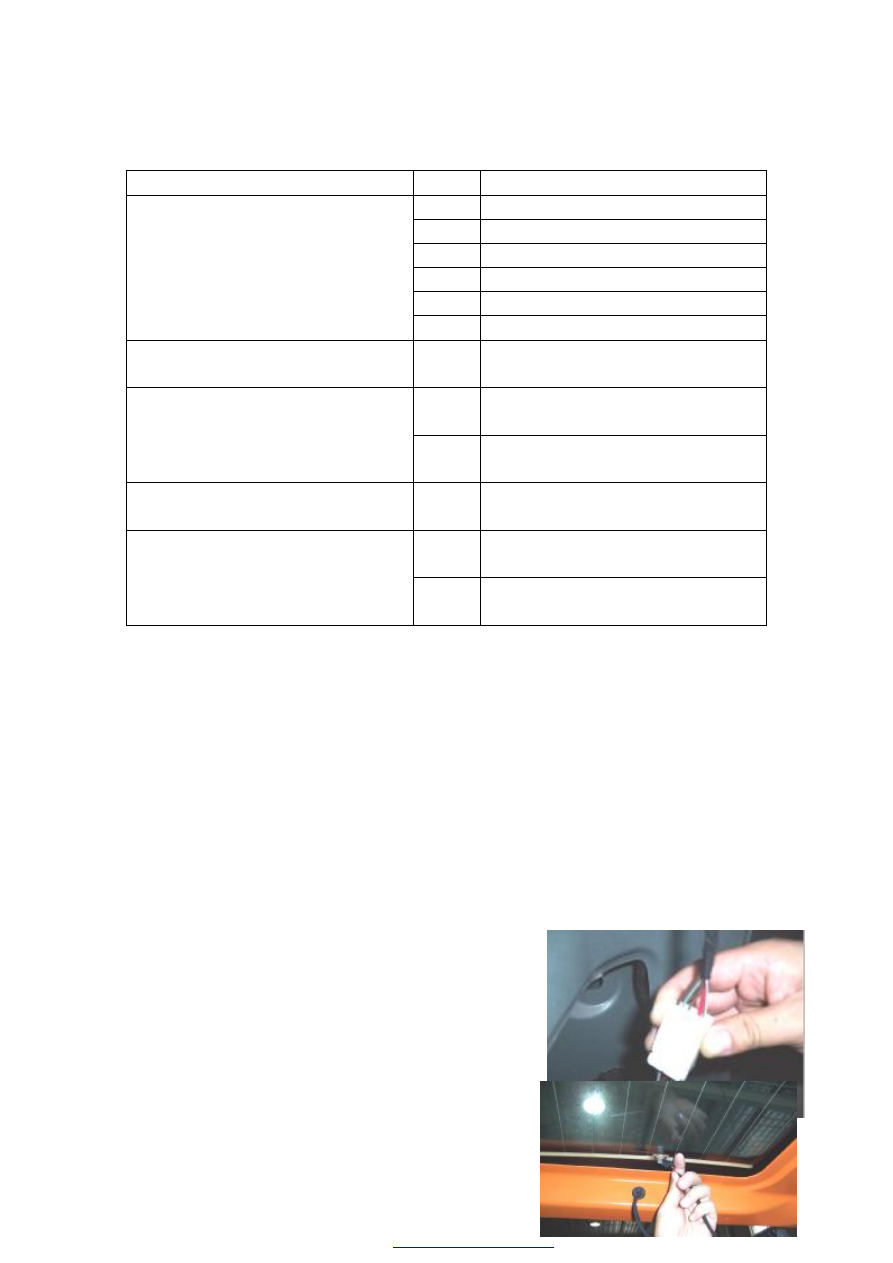

II. Main plug-in units explanation
Name of plug-in unit
Pin No.
Origin
1
To the rear trunk door lock
2
Rear defrosting anode
3
—
4
To the rear trunk door lock
5
License plate lamp
To the plug-in unit of the indoor harness
interface
6
Rear defrosting cathode
Rear defrosting anode
1
To the plug-in unit of the indoor harness
interface
1
To the plug-in unit of the indoor harness
interface
Plug-in unit(2) of the license plate lamp
2
To the plug-in unit of the indoor harness
interface
Rear defrosting cathode
1
To the plug-in unit of the indoor harness
interface
1
To the plug-in unit of the indoor harness
interface
To the rear trunk door lock
2
To the plug-in unit of the indoor harness
interface
III. Disassembly & assembly of the rear door wiring harness
Part No.：A18-3724160
(I).Attentions
Firstly cutting the power is a must before disassemble
electric components & wiring harness.
The ignition switch must be in a close state.
(II).
Disassembly steps

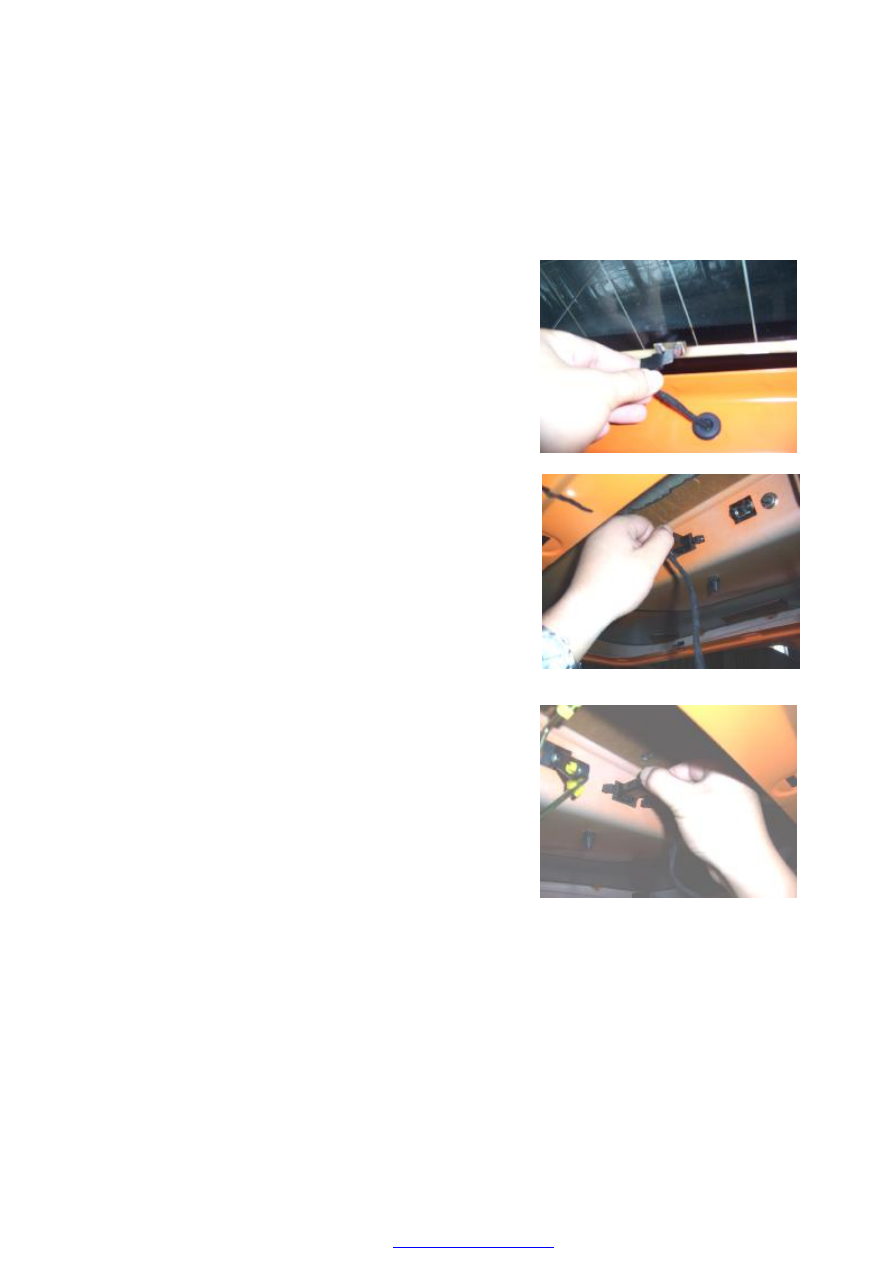

1. Take out the plug-in unit of the wiring harness with
the inside floor

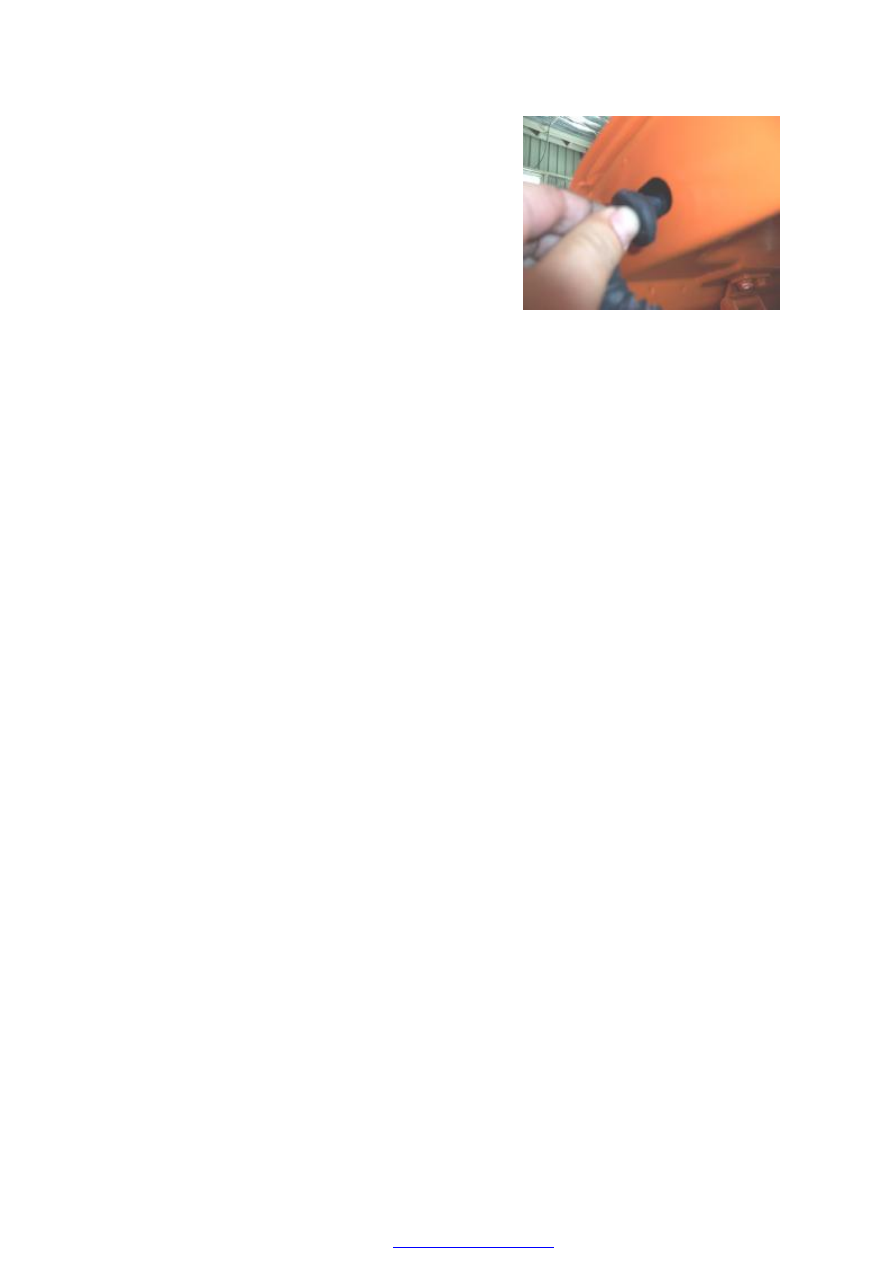

2．Take out the left & right plug-in units with the rear
windshield glass defrost
