No.3                                                                                                                                                                        CIRCUIT



CIRCUIT MANUAL EXPLANATION







— 1 —

                                                                                                                                                                          CIRCUIT

Compiling Explanation


1.    Central Electrical Box Main Circuit Board Circuit No.

        30：No Fuse, Positive Goes Directly From Battery

        15：No Fuse, Positive Goes To Ignition----Start Switch

        X：No Fuse, Positive Goes To Ignition ----Start Switch, And Being Cut Off During Starting

31：Fictitious



Ground, This wire actually exists or does not actually exist.

Example: 30(E8) defines these 30 hot wires are directly from battery, and come from central

electrical box socket E pin No. 8.

30(C16)、15(D10)、X(D12)…are similar as 30 (E8)

2.      Central Electrical Box Main Circuit Board Block

          This block on main circuit board includes fuse, relay and connection interface.

3.

Wire routes as follows:

          ——coming from right side on previous page

——going to left side on next page

4.      Central Electrical Box Main Circuit Board Pins No.

It will be helpful for locating main circuit board circuit, such as E/8 indicates the 8

th

 pin on central

electrical box socket E.

5.      Wire colors and cross-area, square millimeter

6.   Connection Symbol

This symbol is signed on component.

7.      Parts or components name (illustrated on left bottom of each page).

8.   symbol for wire continuing

Number in square form indicates wire number or appropriate extending wire no.

9.   Internal wire

          Used for locating internal wire. This wire may actually exist or does not exist.

10.  Ground point

          Indicated by number in circle, and the point is also indicated on circuit.

11.  Circuit number

          Used to locating component and interrupted wire connecting point.

12.    Multi-hole connector connecting points

     Socket terminal numbers are given.












— 2 —



                                                                                                                                                                          CIRCUIT

CONTENT

——Battery, Alternator, Starter Motor, Ignition Switch

01

·········································································

···········································································································

·····················································································

······················································································

·········································

····················································································································································

·····················································································································

·····································································································

······································································

····························

··········································································································

·················································································

·······················································

··································································································

··································································································································

···········································································································

·························································································································

·············································································································

·····························································································································

·································································································································

···············································································································································

····································································································

································································································

——SPI EI System (MARELLI)

02

——MPI EI(Electronic Injection) (MARELLI)

02

——A/C Unit, Control Head, Cooling System

03

——A/C Switch, Interior Circulate Solenoid, High & Low Pressure Switch

04

——Oil Pressure Switch, Coolant Temperature Sensor, Manual Brake Indicator Switch, Mileage Gauge

Sensor

05

——Radio and 6 Speakers

06

——IP (Instrument Panel) and MFA

07

——Front Fog Light, Cigar Lighter, A/C Panel Indicator

08

——Rear Window Heating System, Dual Pitch Horn, Compressor Magnetic Clutch

09

——Wiper, Horn Button, Washer

10

——Headlight, Front Position Light, Light Relay

11

——Turn Light, Parking Light Switch, Emergency Warning Relay

12

——Taillight, Side Light, Brake Light

13

——Light Switch

14

——Back Light, Rear Fog Light

15

——Headlight Adjuster

16

——Front & Rear Interior Light, Luggage Compartment Illumination Light, Sun Visor Light, License

Plate Light, Door Touch Switch

17

——Central Locking

18

——Power Mirror

19

——ABS

20

——Power Glass Lifter Control Unit

21

——Power Glass Lifter Control Switch

22













                                                                                                                                                                          CIRCUIT

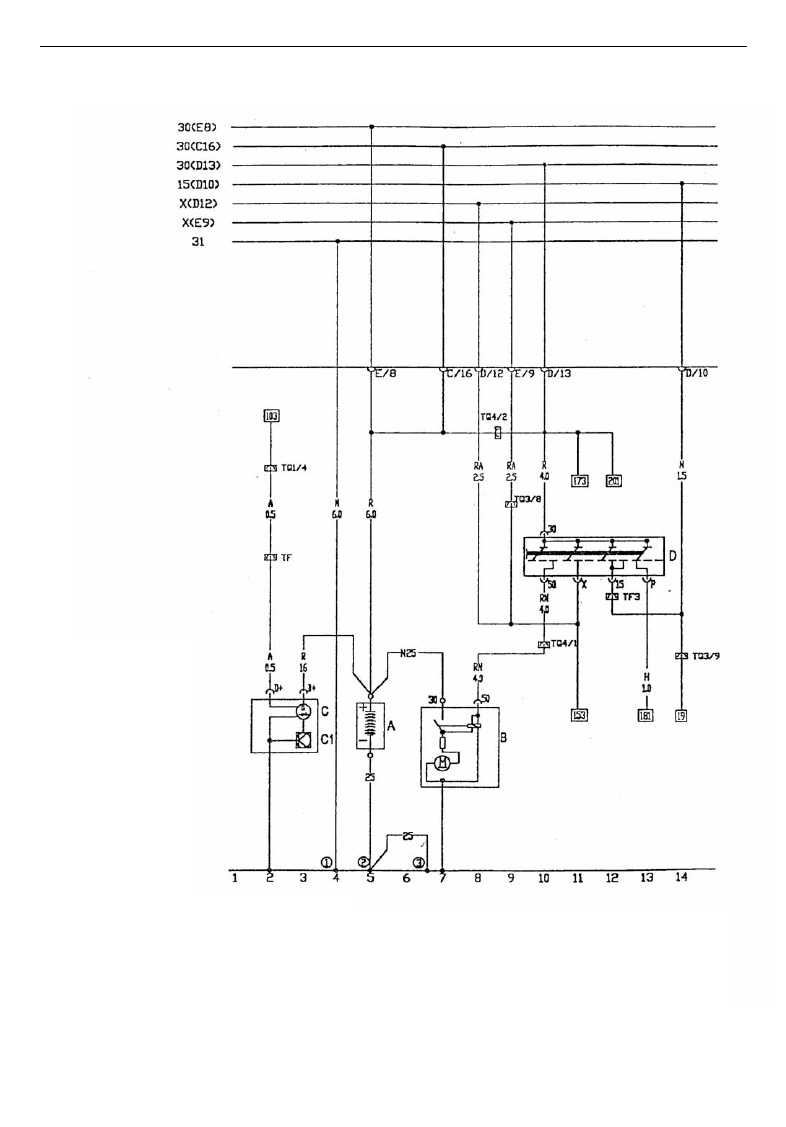

Battery, Alternator, Starter Motor, Ignition Switch





○

1

  G round, At Ground Carrier Beside Central Electrical Box

○

2

  Body Ground, Near Battery

○

3

  Engine Ground Point, Located Beside Transmission

TQ4    2 Holes Match Connector

A  Battery

B  Starter Motor

C  Alternator

C1  Voltage Regulator

D  Ignition Switch

B=White

N=Black

R=Red

M=Brown

V=Green

A=Blue

H=Grey

Z=Purple

G=Yellow

— 1 —
