  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof

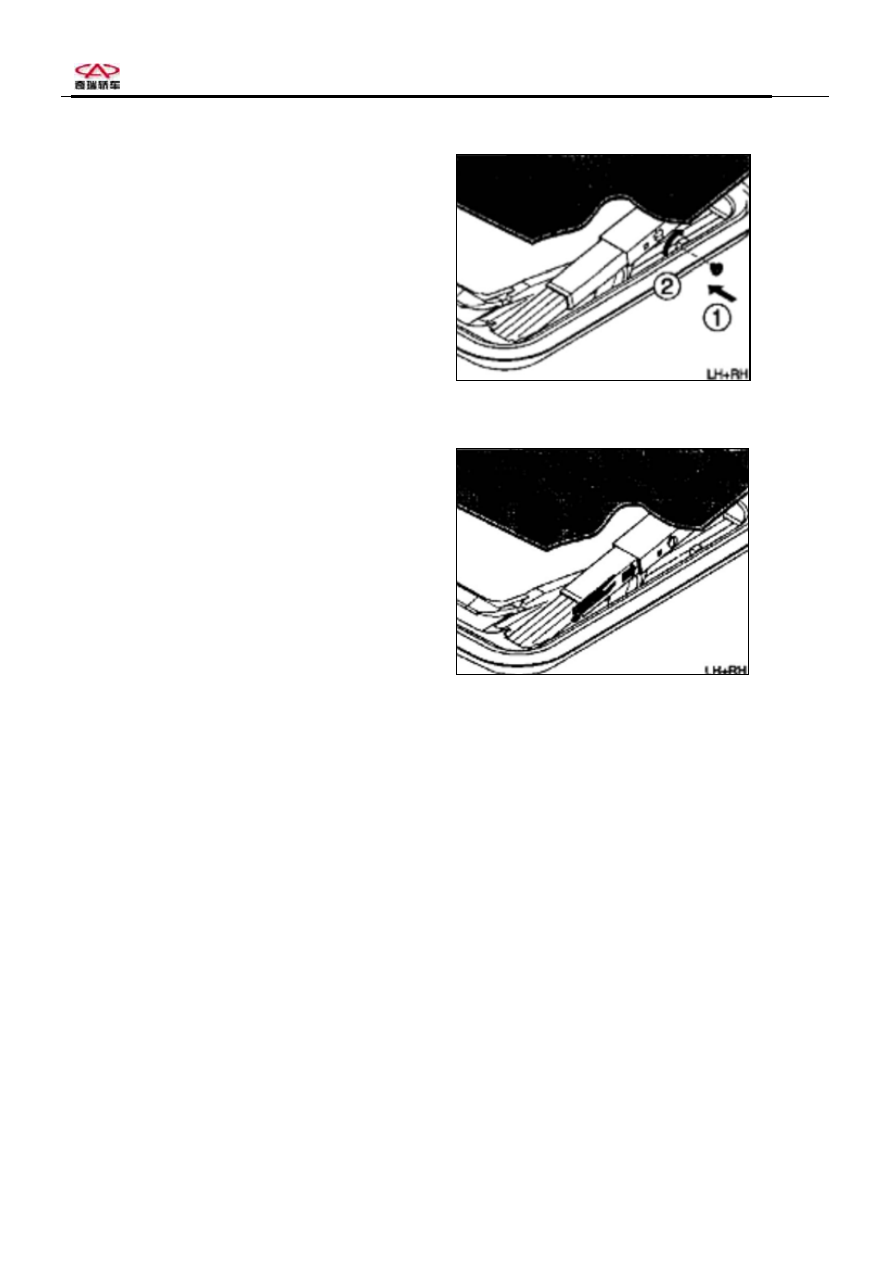

4.6.28 Fix glass plate fixing pin and turn it to a 90º

position.

















4.6.29 Push the fixing pin to its position.

Page 33 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





4.7 Instruction

Reprogramming will be necessry to resume all sunroof

functions after power cut or maintenance of sunroof

module.

In case of sunroof malfunction, try to reprogram to

resume its functions.

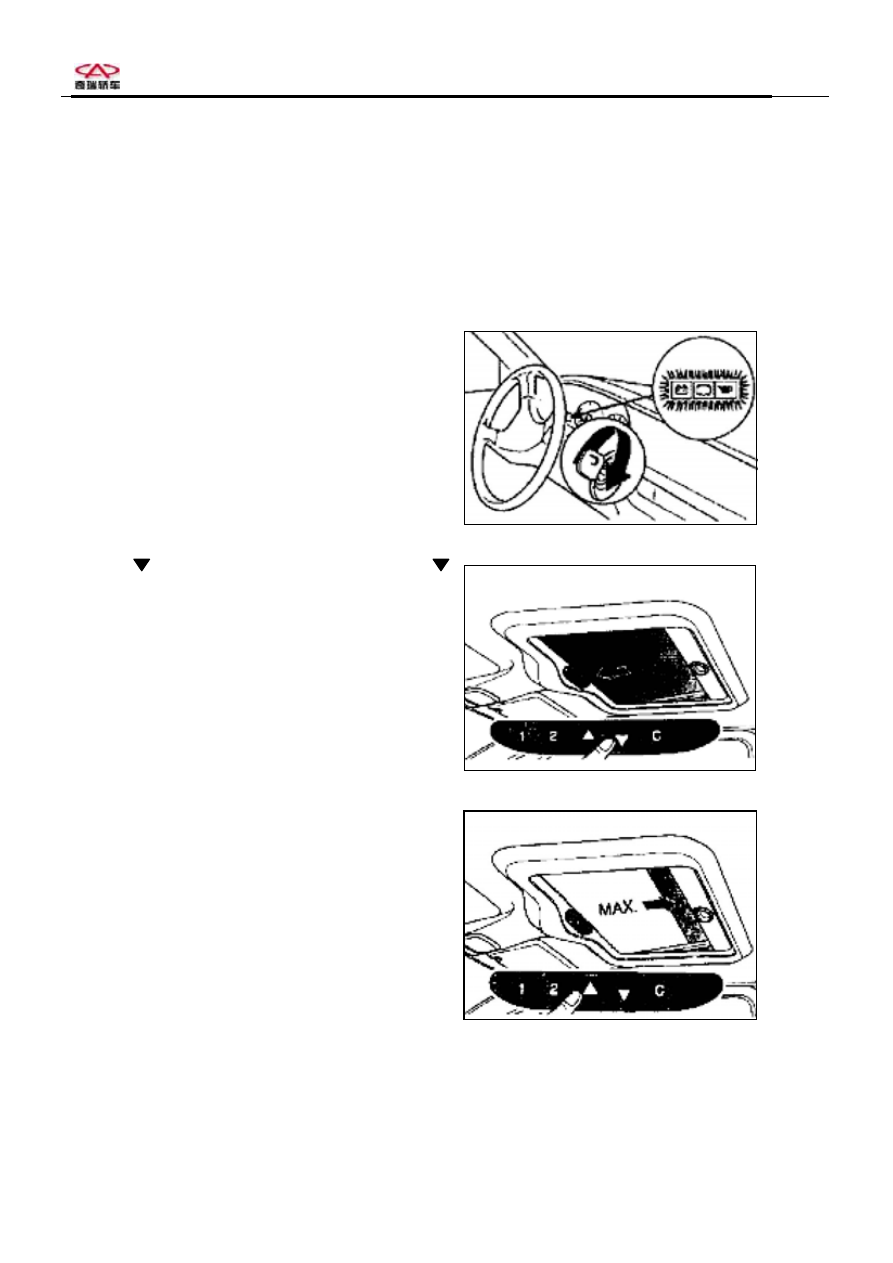

4.7.1 Programming: turn on ignition switch.



















4.7.2 Press   button to fully shut sunroof, then press

button and hold for at least 5 seconds.



















4.7.3 Fully open sunroof to finish programming. Now all

functions are resumed.

















Page 34 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof





5. Maintenance and Precaustions

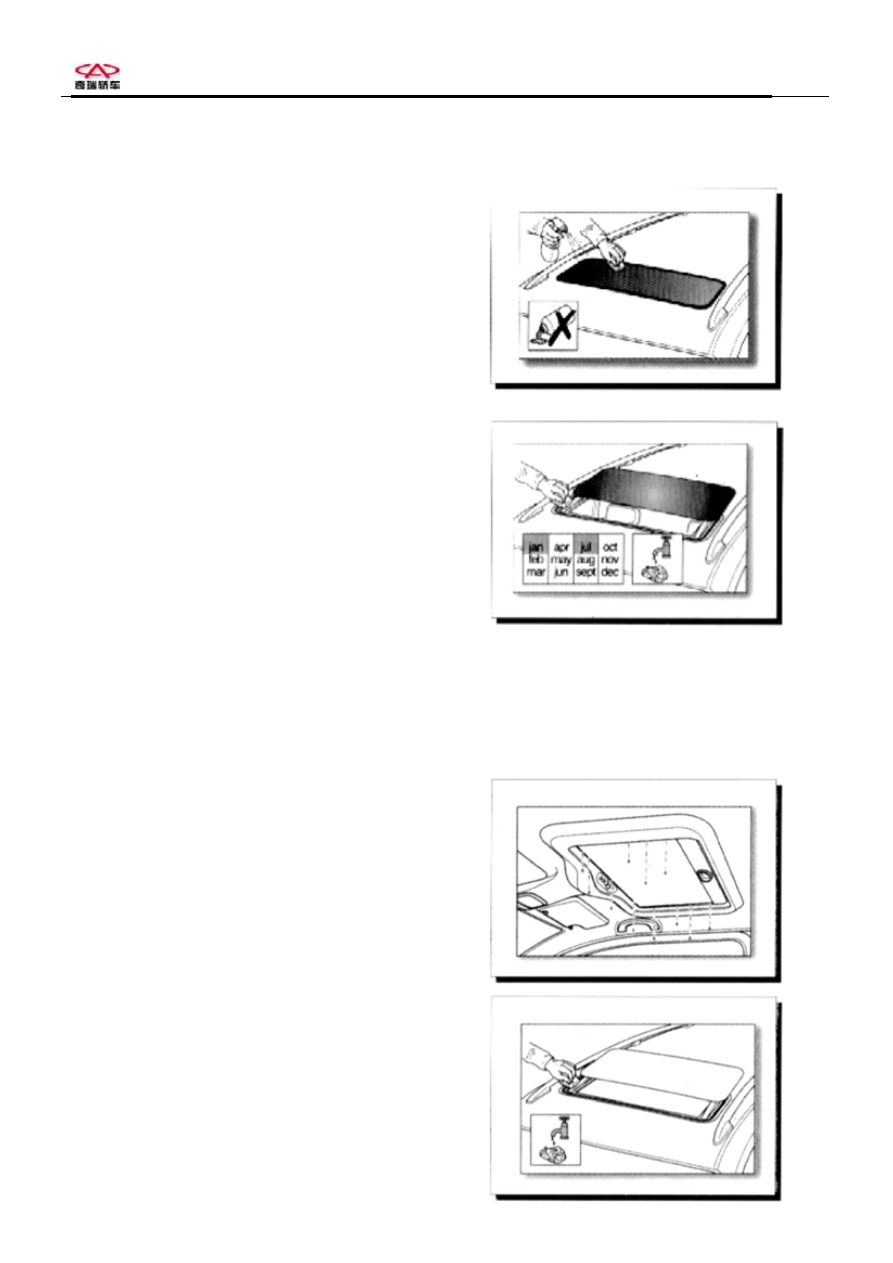

5.1 Maintenance

5.1.1 The glass plate is designed to insulate heat and UV

radiation. Please clean glass plate with a piece of

soft cloth and detergents other than viscous

detergent. Please clean sunshade with a piece of

soft cloth and detergents other than viscous

detergent.



5.1.2 Glass plate is sealed by a highly elastic wearproof

rubber seal ring to ensure water resistance. Make

sure that the seal ring is dust-free without debris.

Please clean the seal ring with wet sponge with a

frequency of once per two months. Application of

French chalk during maitenance will expand the

service life of seal ring. Moving parts of sunroof

are made of materials that require less

maintenance. It is recommended to clean

mechanical parts with engine oil or lubricant with

a frequency of once per two months.



5.1.3 Should water leak from sunroof, please clean

rubber seal ring immidiately.









Page 35 of 37



  Maintenance Manual for Chery·Windcloud

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

．

Sunroof

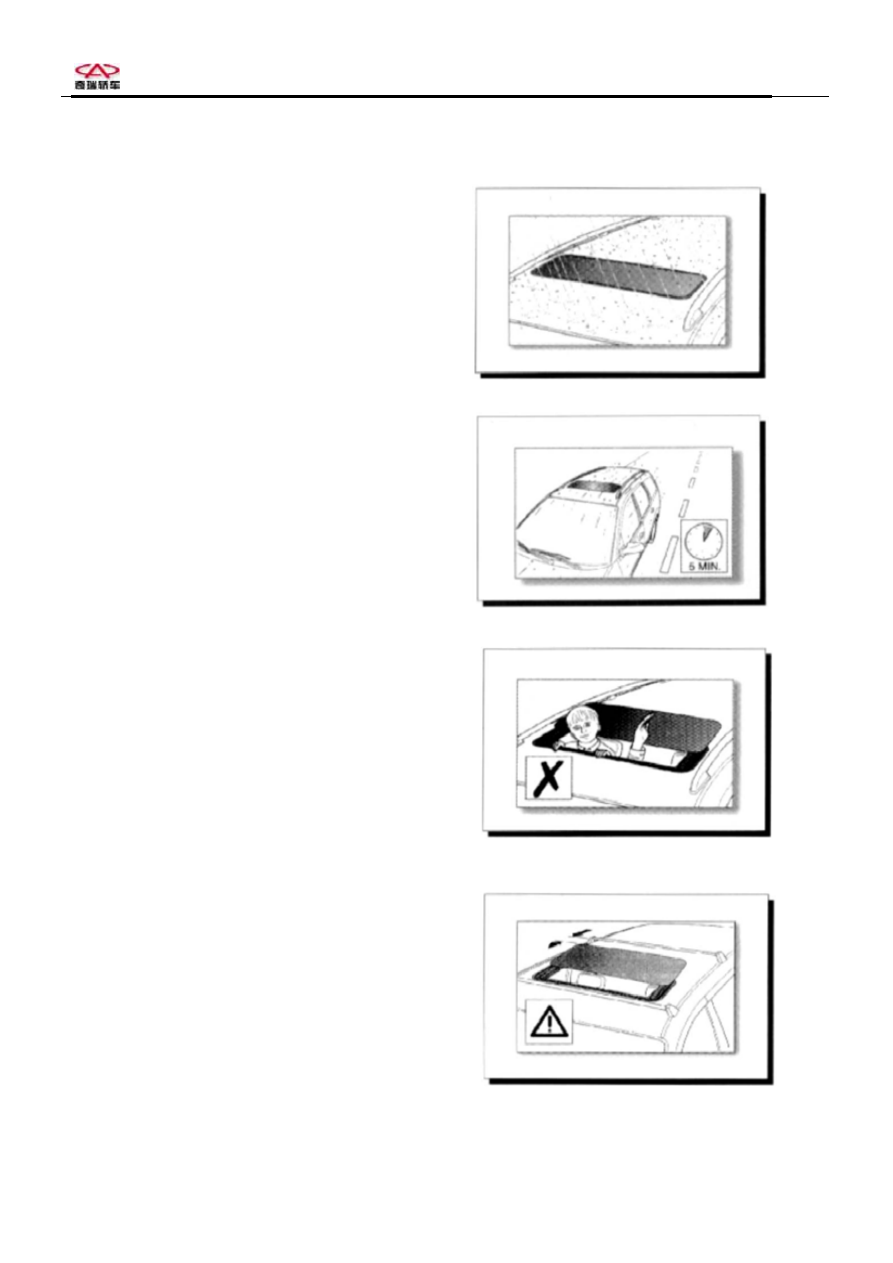

5.2 Precautions

5.2.1 Do not open sunroof when it is ranining or sunroof

is being cleaned.













5.2.2 Please wait for at least 5 minutes after the rain or

car cleaning before opening sunroof.















5.2.3 Never stretch your head or hands out of sunroof.













5.2.4 Make sure that the movement of glass plate is free

of obstacles before opening sunroof.
