Chery A11. Manual - part 111

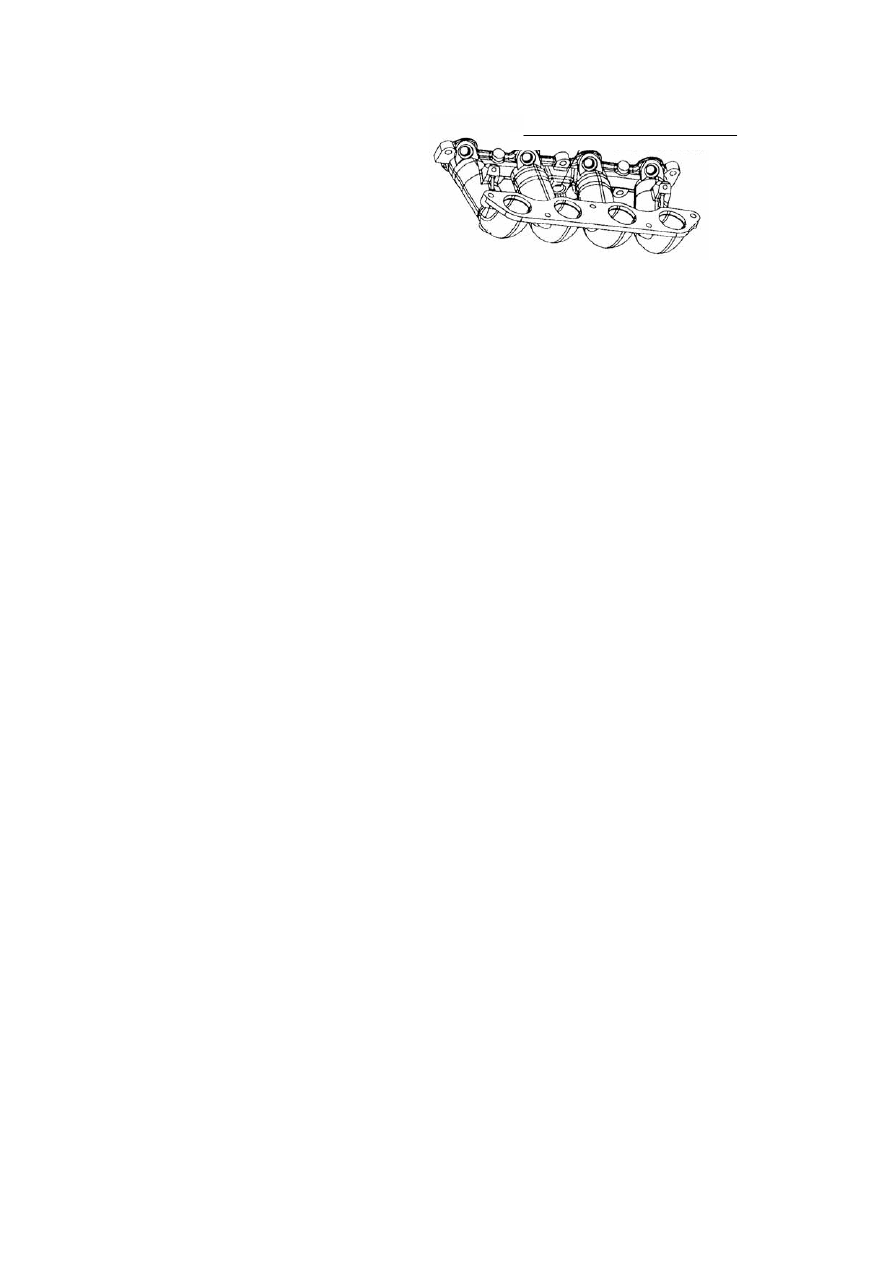

2.3.3.2    air intake manifold lower body











2.4 fuel vapor control system

In order that air could be exchanged for fuel tank, and to prevent fuel vapor from exhausting

to atmosphere,  fuel vapor is absorbed by active carbon and stored in it. Upon engine

operating condition, stored fuel vapor will be timely and adequately sent to air intake hose

and burned with mixture in combustion chamber.

SQR480EC multi-port fuel injection system using and servicing

3.1 fuel and purge system using and servicing

3.1.1 Fuel grade used in Chery engine must be higher than 93#RON, and leaded gasoline or

fuel grade lower than 93#RON CAN NOT be used.  Leaded oil could do harm to the

3-way catalyst, resulting in the loss of oxidization and reduction function to harmful

materials in exhaust. Lower grade gas will cause fuel injector being blocked, pin valve and

regulator etc. being damaged, shortening components lifetime. Using leaded gasoline will

cause a damaged 3-way catalyst converter, after which 3-way catalyst converter function

will not recover even the right gas is used.    If leaded fuel is added, the vehicle should be

driven to specified repairing workshop and repaired as soon as possible.
★  3-way catalyst converter lose its function under following conditions, which should be

avoided.

Burned under high temperature. The ideal temperature for a high purge ratio and long life

time is s 400-800℃. A higher temperature will cause overheat catalyst, fast ageing, losing

catalyst function;

Catalyst hole blocked;

(3)   Under an over 800℃  temperature and last for 30 seconds, remaining gas in catalyst

will cause 3-way catalyst converter being damaged. Therefore when engine operating,

removing ignition coil wire for an operational engine is absolutely forbidden.

3.1.3 Poor engine operation may cause 3 way catalyst converter being damaged. Therefore,

scheduled technique service must be done as per Servicing Manual.

3.1.4 Before engine stalls, let engine idle for some time and cool down gradually, lower heat

impact strength which will do good to a prolonged engine components and 3 way catalyst

converter life time.

3.1.5 After a long-time driving, the vehicle CAN NOT be immediately parked in a place

where the 3-way catalyst may reaches flammable materials to avoid accidents caused by

high temperature 3 way catalyst converter.

3.1.6 DO NOT depress throttle pedal when starting. ECU determines engine operating

conditions upon throttle position. Once throttle pedal is depressed, throttle is opened and

ECU cannot determine if engine is under operating condition and can not supply fuel

correctoly.

Water temperature sensor

Beside is

elbow of water





3.1.7 After cool starting, the engine is in fast idle. With water temperature increasing,

engine speed decrease. After engine warming up (water temperature above 85  ℃), engine

speed stabilize at 950±50r/min.



3.1.8 Wrap pipe connector with plastic cloth when servicing fuel pipe, preventing fuel

splash. DO NOT smoke or fire to avoid fire hazard.



3.1.9 DO NOT remove injector to check fuel injecting condition. DO NOT spray to sky to

avoid explosion and combustion from spark.



3.1.10 Check whole fuel pipe circuit leakage frequently and fuel leakage problem should be

immediately repaired..



3.1.11 Set screw for controlling throttle idle position on throttle valve has been precisely

adjusted and any adjustment is forbidden.

3.2 Electrical system using and servicing



3.2.1 Stop vehicle and turn ignition off after stopping.



3.2.2 Lead on battery MUST BE removed before removing electrical connector.



3.2.3 Voltage supplied to engine is battery voltage and to avoid ECU damaging for over

voltage, any other external voltage supply such as fast-charging, starter voltage stabilizing

power CAN NOT be used to start engine.



3.2.4 ECU, sensor and actuator elements must be protected from humidity, static electricity,

and strong electronic interference  (wiring harness must be at least 50 cm away from

high-tense wire),. Avoid equipments falling and dropping when servicing..



3.2.5 Do not start engine when loose connection or battery leads exist.



3.2.6 Disconnecting battery from vehicle circuit is absolutely forbidden when engine is

under normal operating condition; otherwise a permanent ECU damage will be caused.



3.2.7 Disconnecting battery from all vehicle circuits when fast-charging battery.



3.2.8 DO NOT remove and connect harness connectors on ECU when ignition key is at ON

position avoiding ECU being damaged by over voltage.



3.2.9 SQR480EC engine utilize high impedance spark and wire, which are special parts for

such engine, and can not be replaced with common high-tension wire, otherwise ECU will

be damaged and affect system normal operating.







III. SQR480EC EI system faults and trouble shooting



4.1 CAN NOT START ENGINE



Power check

1 battery

2 fuse

Check ignition system

problem









1 ECU voltage

check

2 Check ignition

switch

3 check starter relay

4 check starter

5check connecting

harness

Repair or replace defective

components







Check ignition

system falut

 Check



1 ignition wire

2 ignition coil

3 spark







check fuel pipe

pressure and fuel

injector




★  ECU power wire diagnostic



Measure ECU voltage with a digital voltmeter, Pin A16 is positive and pin B16 is negative.

When ignition is turned on, this pin voltage is 12V. If the voltage is not 12V, check ECU

fuse and related circuit.


★  Power and ground fault diagnostic

Computer ground lead is generally connected to battery negative lead.

1 fuel pressure

regulator

2 fuel pump

3 fuel filter

4 fuel injector

5 fuel pipe

leakage





4.2 Hard to start

Check fault

codes



Determine fault source upon fault

codes



Check if air intake system

vacuum leakage or intake

valve dirt



1 Hose connection

2 throttle valve body air intake

valve

3 PCV hose



check if ignition system fault

1 wire

2 ignition coil

3 spark



1 Remove fuel injector

connector on each cylinder

2 keep the spark plug about 8mm

away from cylinder body. Start

motor and watch firing. A strong

fire should be visible



Watching firing of each cylinder and check spark and spark plug gap

Spark plug gap: 1mm

Note: If necessary, measure compression pressure and air valve gap



1 fuel injector leakage or short

2 fuel injector wire short

3 over fuel injection



Check fuel supply:

1 if fuel tank is empty

2 fuel supply pipe fuel pressure. When ignition key is

turned to ON position, the pump should operate 1~2

seconds.

Listening pump operating sound in fuel tank;

Feeling pressure in fuel return pipe.



1 fuel circuit leakage or

deformation

2 fuse

3 pump relay

4 fuel pump

5 fuel pump filter

6 fuel pressure

regulator

7 fuel injector



Check idle step motor

1 idle motor mount screw

2 when ignition is turned on, short

vibration should be felt.



1 replace or turn mount

screw

2 step motor connection

3 step motor



Check circuit

Using voltmeter or

oscilloscope

 1circuit

connection

2 ECU voltage

Fusible link

Fuse
