CAC Gasoline Engine Maintenance And Servicing Manual 63 ——Remove the studs of same length .
1.3 Carburetor. basic parameters: Pierburg 2E3 carburetor: CAC478 CAC480 Larger throat pipe diameter
20/24
22/26 Mixing chamber size 28/30

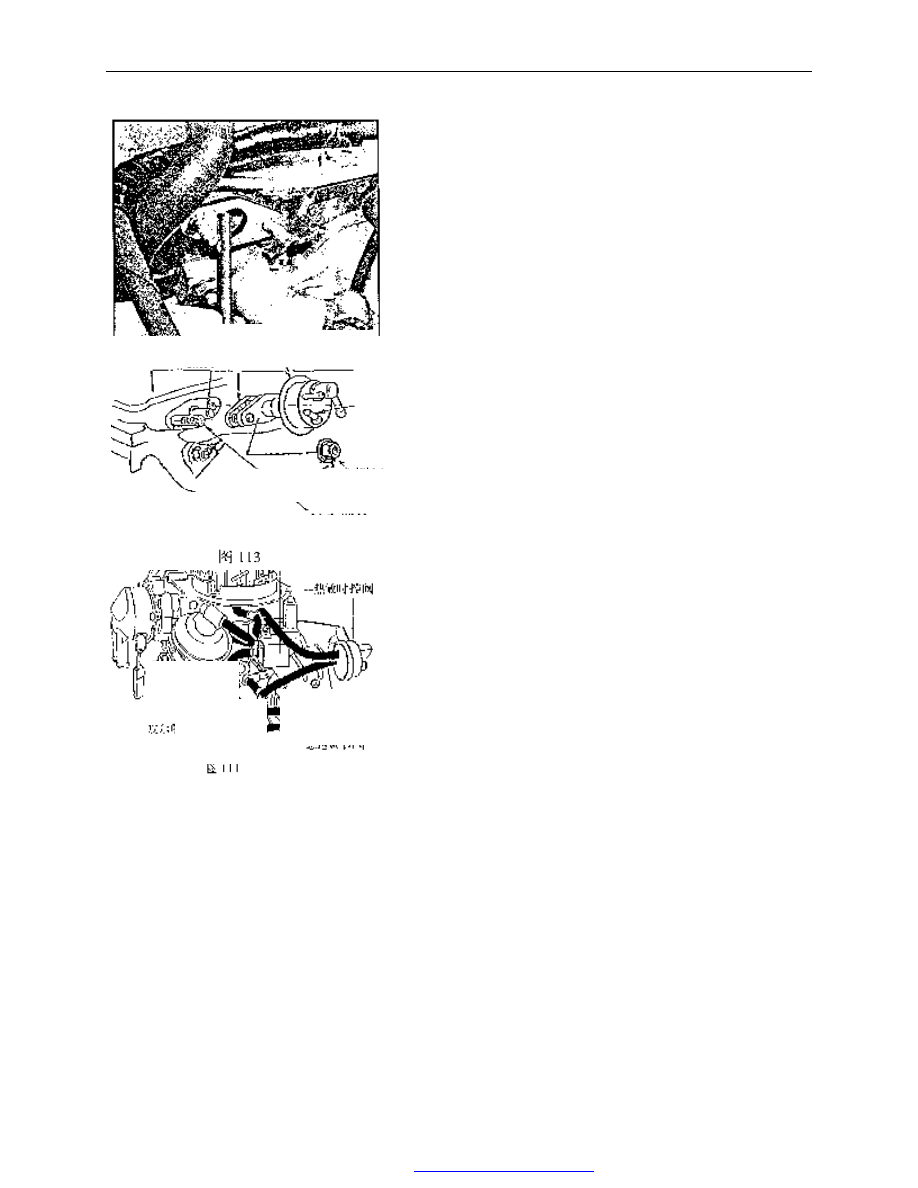

28/30 Use studs, nuts, and washers to connect the transition flange with intake manifold. Screw the studs into intake Adjustment: The carburetor adjustment mentioned in this introduction only specifies the idle speed adjustment and CO Fig.112 Push rod sealing gasoline pump nut 2-M8 stud Fig.113 Idle and overdrive cut-off valve Thermo time control valve Pierburg 2E3 Idle regulator |
