CAC Gasoline Engine Maintenance And Servicing Manual

47

4. The removal and installation of oil pump with oil seal assembly

removal:
——Loosen six M6×30 hexagonal flange surface bolts. Remove the
bolts (as the figure indicates )
——Remove oil pump with oil seal assembly






——Pry out the front oil seal of crankshaft by screwdriver or chisel.
Note: Don’t damage the front oil seal bore.








——Remove  seven  M6  countersunk  head  screws  (as  the  arrow  in
figure indicates )
——Remove oil pump cover







——Take out the inner and outer rotor

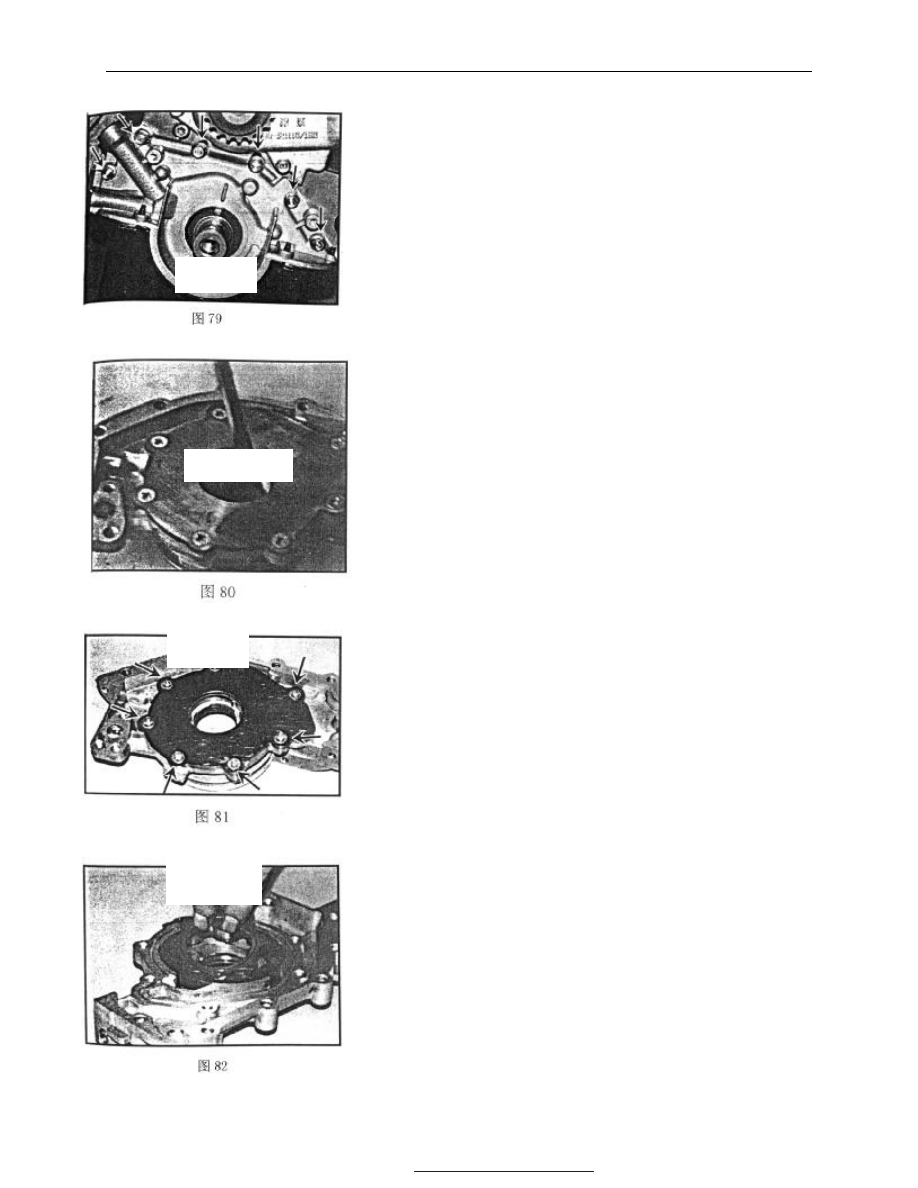

Fig. 79

Fig. 80

Fig. 81

Fig. 82

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

48

——Check the clearance between outer rotor of oil pump and case bore
of oil pump.

The clearance between outer rotor of oil pump and case bore of oil

pump should be 0.06—0.19mm.









——Check  the  radial  clearance  between  inner  rotor  and  outer  rotor  of
oil pump.
        The  radial  clearance  between  inner  rotor  and  outer  rotor  of  oil
pump should be 0.05—0.18mm.








——Check the end play of rotor
        The end play of rotor should be 0.014—0.100mm.



——Remove horizontal hexagonal socket head plug (small one)
——Take out the spring of relief valve and plunger of relief valve.
——Check the spring load and free length
        spring free length is 46mm。
        spring load is 32.8N±2N when the length is 29mm.
        installation length of relief valve spring is 38.5mm.





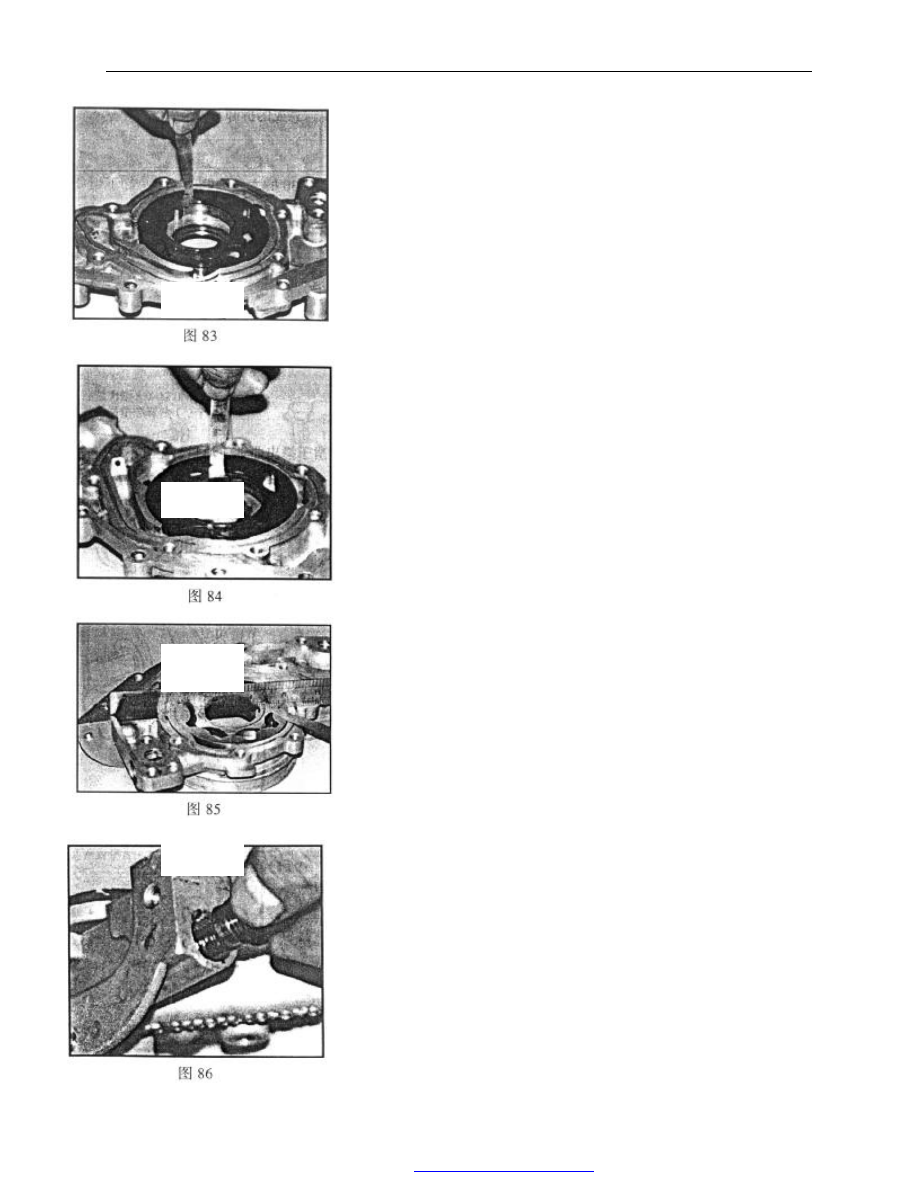

Fig. 83

Fig. 84

Fig. 85

Fig. 86

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

49

——If  relief  valve  spring  is  not  to  specification,  it  must  be
replaced.









Installation:
——Install  the  outer  and  inner  rotor  into  the  oil  pump  house
ensuring      the installation mark of outer and inner rotor upward.
——Install  oil  pump  cover  on  oil  pump.  Tighten  seven  chamfer
head screws. tightening torque is 7-10Nm.

——Install  relief  valve  and  relief  valve  spring  into  the  oil  pump
bore.
——Screw  3/8″plug  screw  into  the  oil  pump  house.  keep  it  in
place.    tightening torque is 20-25Nm.
——Stick  the  new  oil  pump  sealing  gasket  on  the  front  end  of
cylinder block.
——Install the oil pump into the front end  of crankshaft.    center
the inner bore of inner rotor Before installation.

——Screw six mounting bolts by hand.
——Check and adjust the roughness of lower surface of oil pump
and flange surface of cylinder block oil pan. It should be within the
range:±0.26mm.
——Tighten the retaining bolt of oil pump to 8-11Nm.

——Apply the engine oil on the oil seal journal of crankshaft.
——Wrap  a  plastic  tape  on  the  oil  seal  journal  of  crankshaft
avoiding to damage the edge of front crankshaft oil seal .

——Apply  engine  oil  on  the  edge  of  front  crankshaft  oil  seal.
Press  the  oil  seal  in  place  using  appropriate  socket  or  sleeve  and
crankshaft pulley and pulley bolt and washers.

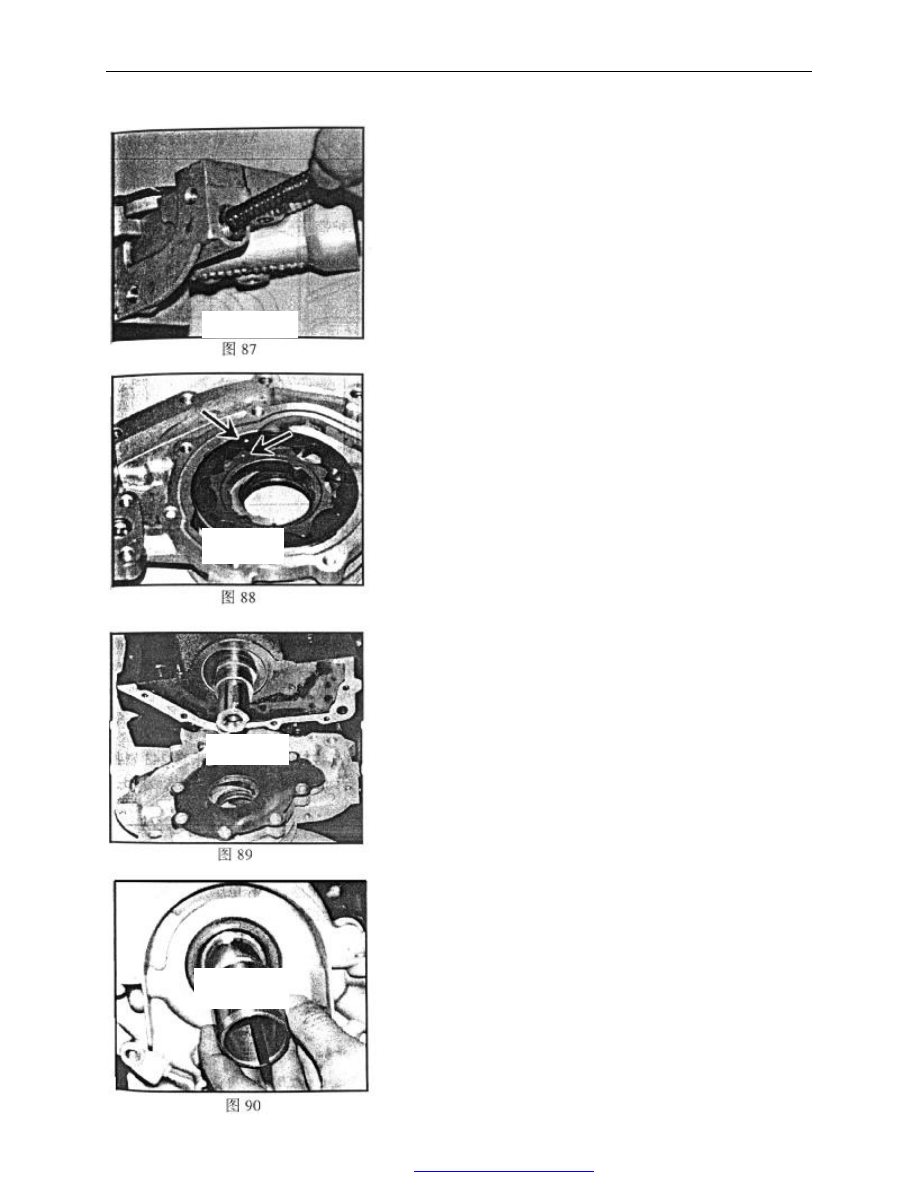

Fig. 87

Fig. 88

Fig. 89

Fig. 90

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

50





——Remove the thin plastic protective tape









5.

removal and installation of oil filter and oil
pressure sensor.
Removal:

——Remove  the  oil  filter.  rotate  oil  filter  counterclockwise

during removal.

——Remove the oil pressure sensor
Installation:

——Apply engine  oil  on the sealing  gasket of  oil  filter  and

screw into the connector. Tightening torque is 12-17Nm.
Or screw into oil filter by hand. once rubber sealing gasket
contacts cylinder block, tighten another 3/4-1 turns.

——Apply  Lotite  243  sealant  and  screw  it  to  the  main  oil

passage  of  cylinder  block.  Tightening  torque  is  25 -
29Nm.

The threaded hole of oil pressure sensor is    1/4″-18NPTF.
The operating voltage of oil pressure sensor is 6-24V.

                                                                                                    The starting warning pressure is 30±15kPa.

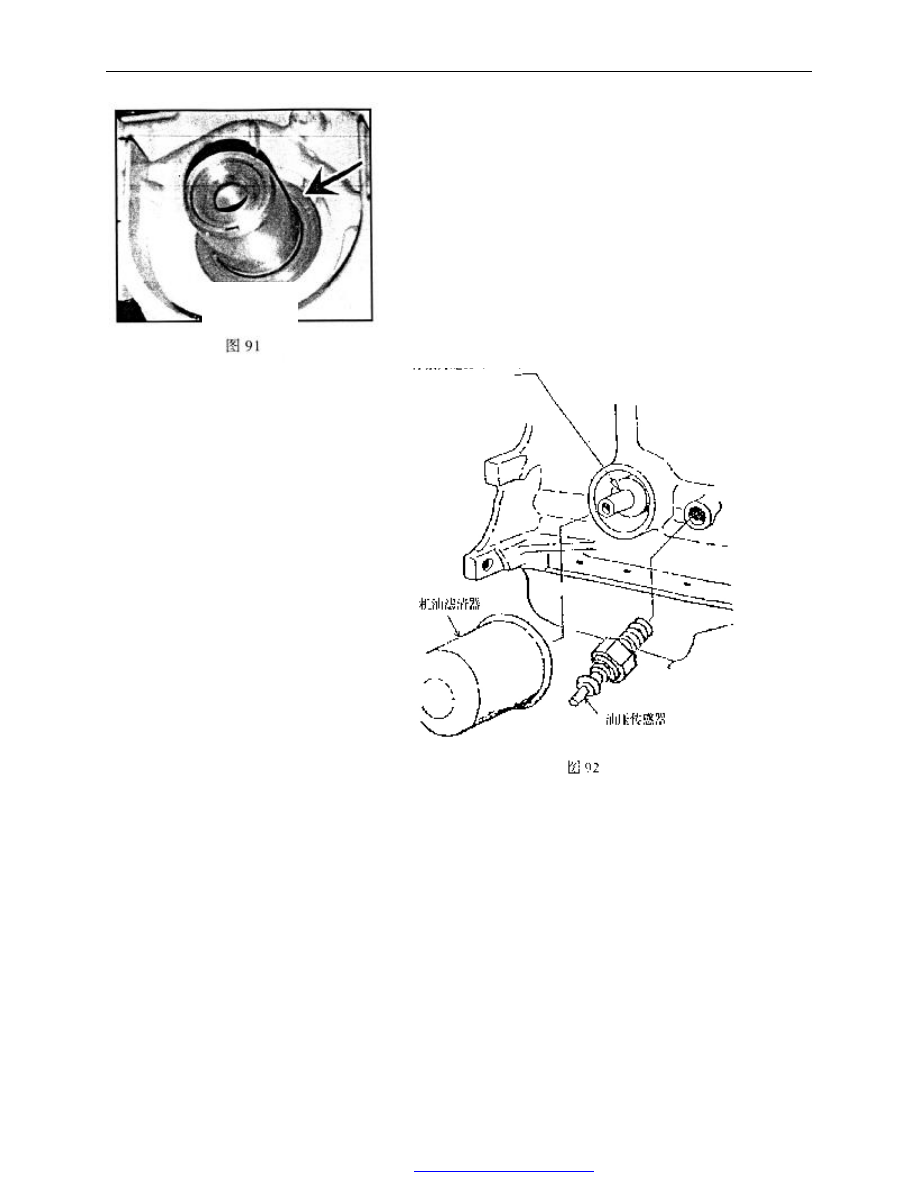

Fig. 91

tightening torque 18.0-25.0Nm

oil  pressure
