Bobcat S150. Manual - part 5

S150 Bobcat Loader

Operation & Maintenance Manual

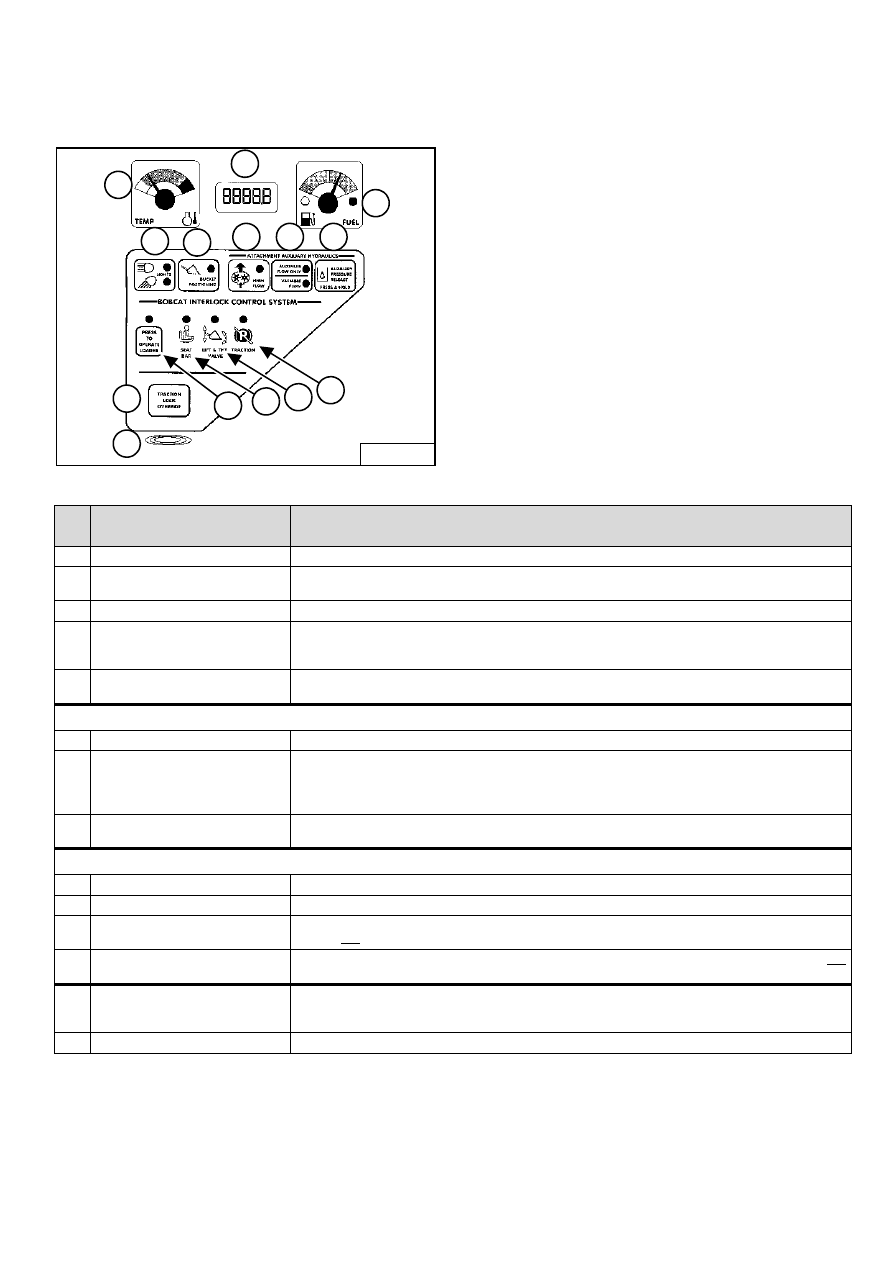

INSTRUMENT PANEL IDENTIFICATION

Left Panel

Figure 5

The left instrument panel is the same for both the
Standard and Deluxe Instrument Panels [Figure 5].

The table below shows the DESCRIPTION and
FUNCTION / OPERATION for each of the components of
the left panel.

Press and hold LIGHTS button (4) [Figure 5] for two
seconds to view SERVICE CODES in the HOURMETER/
CODE DISPLAY (2) [Figure 5]. If more than one
SERVICE CODE is present, the codes will scroll on the
HOURMETER / CODE DISPLAY.

B-15551

REF.

DESCRIPTION

FUNCTION / OPERATION

TEMPERATURE GAUGE

Shows the engine coolant temperature.

HOURMETER / CODE DISPLAY /
GLOW PLUG COUNTDOWN

HOURMETER - Records operating hours of loader. CODE DISPLAY - Display numeric SERVICE CODES*
relating to the loader monitoring system. COUNTDOWN - Preheat time remaining

FUEL GAUGE

Shows the amount of fuel in the tank.

LIGHTS / HOLD FOR CODES

LIGHTS - Press once for FRONT LIGHTS. Press a second time for FRONT AND REAR lights. Press a third time
to turn all lights off. HOLD FOR CODES - Press and hold two seconds for display of SERVICE CODES (2).
(CODES* show only when there is an error found by loader monitoring system.)

BUCKET POSITIONING (Option)

Press to engage the BUCKET POSITIONING function. Press again to disengage. Press and hold 2 seconds to
view SHTDN (SHUTDOWN) feature & Operational Code Number in HOURMETER / CODE DISPLAY.

ATTACHMENT AUXILIARY HYDRAULICS

HIGH FLOW (Option)

Press to engage the HIGH FLOW auxiliary hydraulics. Press again to disengage.

MAXIMUM FLOW / VARIABLE FLOW

Press once to engage the VARIABLE FLOW auxiliary hydraulics. Press a second time to engage MAXIMUM
FLOW. Press a third time to disengage all auxiliary hydraulics. [VARIABLE FLOW allows for slow-to-fast
movement of auxiliary functions (The farther you move the switch, the faster the movement of auxiliary
functions.) MAXIMUM FLOW allows for only fast movement.]

AUXILIARY PRESSURE RELEASE

Rear Auxiliary Only - With key ON or engine running, press and hold button for 5 seconds. (See Releasing
Hydraulic Pressure - Loader and Attachment Page 14 for front auxiliary pressure release.)

BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

PRESS TO OPERATE LOADER

Press to activate BICS™ System when the Seat Bar is down and operator is seated in operating position.

SEAT BAR

The light comes ON when the seat bar is down.

LIFT & TILT VALVE

The light comes ON when the seat bar is down and the PRESS TO OPERATE Button is pressed. The lift and tilt
functions can be operated when the light is ON.

TRACTION

The light comes ON when the seat bar is down, engine is running, and parking brake is released. The loader can
be moved forward or backward when the light is ON.

TRACTION LOCK OVERRIDE

(Function Only When Seat Bar Is Raised And The Engine Is Running) Press to unlock the brakes. Allows you to
use the steering levers to move the loader forward or backward when using the backhoe attachment or for loader
service. (See TRACTION LOCK OVERRIDE Page 8). Press a second time to lock the brakes.

ALARM

The ALARM beeps when there is an Error, WARNING or SHUTDOWN condition.

* See System Setup & Analysis for further description on SERVICE CODES.

S150 Bobcat Loader
Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT’D)

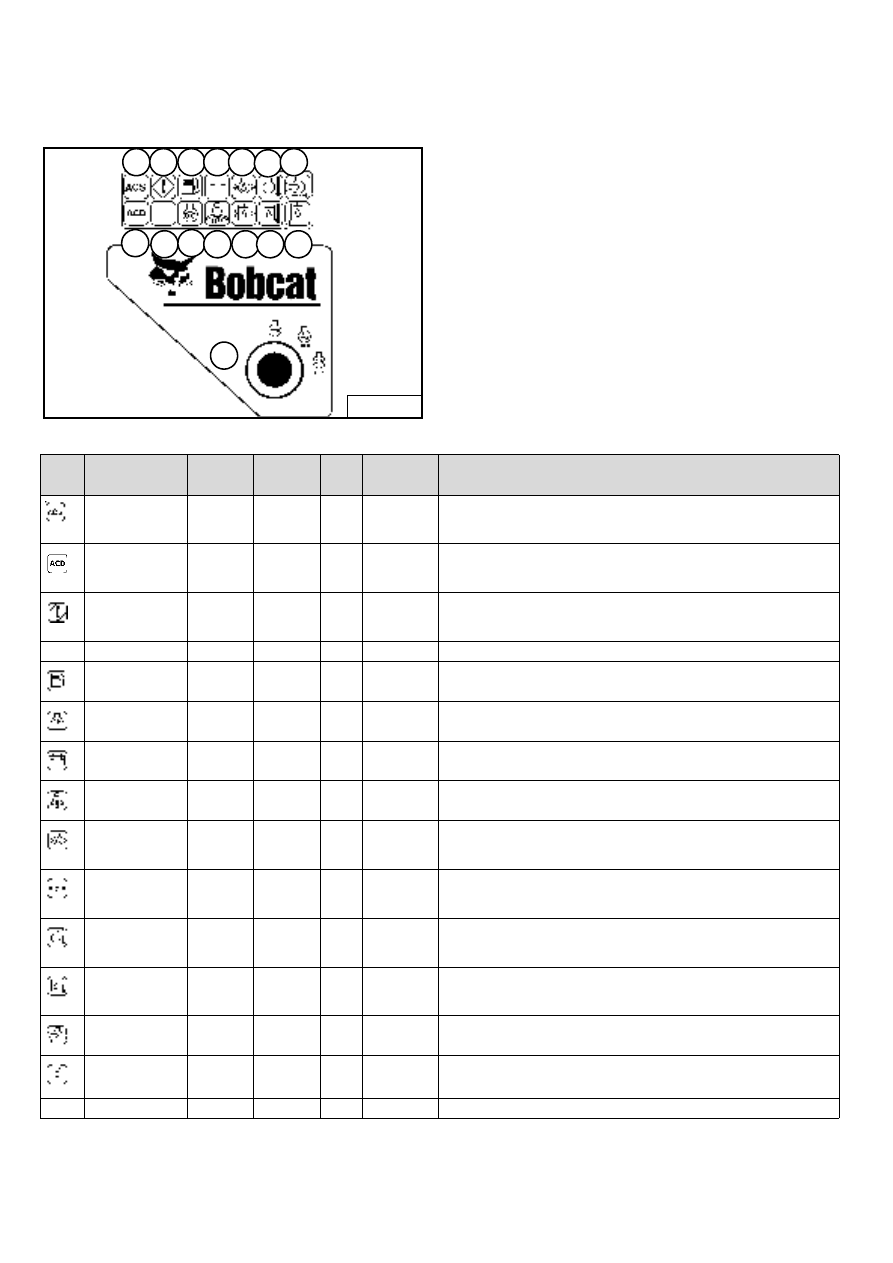

Right Panel (Standard - With Key Switch)

Figure 6

The right instrument panel shown [Figure 6] is the
Standard Panel.

The table below shows the Icons and other components
of the Right Standard Panel

* These functions are monitored and have SERVICE
CODES associated with them.

For descriptions, (See

DIAGNOSTICS SERVICE CODES, Page 88).

B-15552B

15 17 19 21 23 25 27

16 18 20 22 24 26 28

REF.

FUNCTION

ICON /
LIGHT

ALARM

CODE

CONDITION

DESCRIPTION

Advanced Control
System (ACS)
(Opt.)

3 Beeps

Error

Error with Advanced Control System (ACS).

Attachment Control
Device (ACD)
(Opt.)

ON
FLASHING

- - -
3 Beeps

-
*

- - -
Error

Electrical controlled attachment is present.
Error with Attachment Control Device (ACD).

General
Warning

ON
ON
FLASHING

3 Beeps
3 Beeps
Continuous

*
*
*

Error
WARNING
SHUTDOWN

Error with one or more engine or hydraulic functions.
Engine speed high or in shutdown.
Engine speed extremely high. Engine will stop in 10 seconds.

18 NOT USED

Fuel
Level

ON
FLASHING

3 Beeps
3 Beeps

*
*

Error
WARNING

Fuel level sender system fault.
Fuel level low.

Glow
Plugs

ON
FLASHING

- - -
3 Beeps

-
*

- - -
Error

Glow plugs are energized.
Error with glow plugs.

System Voltage

3 Beeps

WARNING

Voltage low, high or extremely high.

Seat Belt

- - -

Light stays on for 45 seconds to remind operator to fasten seat belt.

Engine
Oil Pressure

ON
ON
FLASHING

3 Beeps
3 Beeps
Continuous

*
*
*

Error
WARNING
SHUTDOWN

Engine oil pressure sender out of range.
Engine oil level low.
Engine oil pressure extremely low. Engine will shutdown in 10 seconds.

Hydrostatic
Charge
Pressure

ON
ON
FLASHING

3 Beeps
3 Beeps
Continuous

*
*
*

Error
WARNING
SHUTDOWN

Hydraulic oil pressure sender out of range.
Hydraulic oil pressure low.
Hydraulic charge pressure extremely low. Engine will stop in 10 seconds.

Engine
Coolant
Temperature

ON
ON
FLASHING

3 Beeps
3 Beeps
Continuous

*
*
*

Error
WARNING
SHUTDOWN

Engine coolant sender out of range.
Engine coolant temperature high.
Engine coolant temperature extremely high. Engine will stop in 10 seconds.

Hydraulic
Oil
Temperature

ON
ON
FLASHING

3 Beeps
3 Beeps
Continuous

*
*
*

Error
WARNING
SHUTDOWN

Hydraulic oil temperature out of range.
Hydraulic oil temperature high.
Hydraulic oil temperature extremely high. Engine will stop in 10 seconds.

Engine
Air Filter

ON
FLASHING

3 Beeps
3 Beeps

*
*

Error
WARNING

Air filter with high restriction.
Air filter switch not connected.

Hydraulic
Filter

ON
FLASHING

3 Beeps
3 Beeps

*
*

Error
WARNING

Hydraulic filter with high restriction.
Hydraulic filter switch not connected.

29 Key Switch

Used to start and stop the engine.

* These functions are monitored and have associated SERVICE CODES. See SYSTEM SETUP AND ANALYSIS for description of SERVICE CODES.

S150 Bobcat Loader

Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT'D)

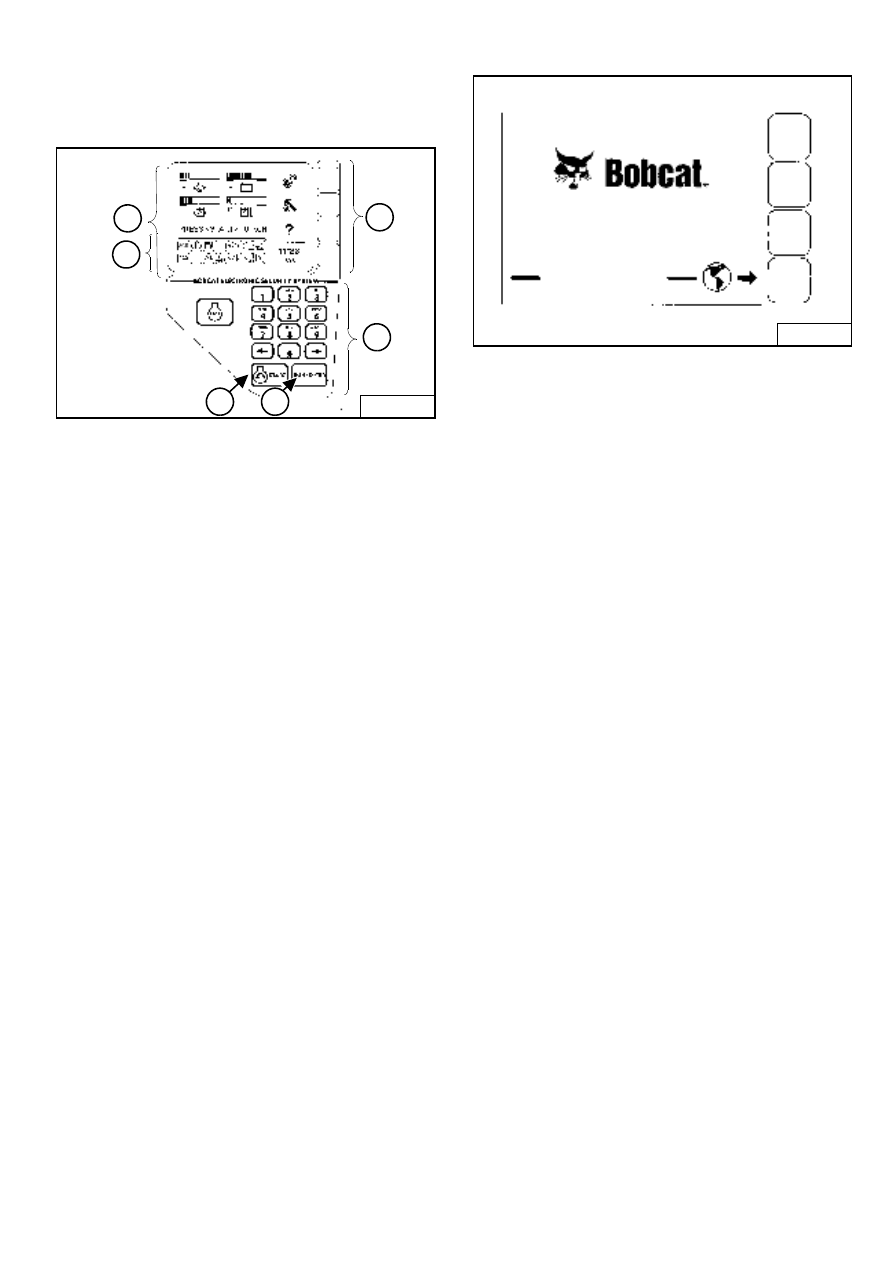

Right Panel (Deluxe - With Keyless Start)

Figure 7

The right instrument panel shown [Figure 7] is the
Deluxe Panel.

Display Panel: The Display Panel is where all system
setup, monitoring, troubleshooting, and error
conditions are displayed.

Function Icons: The lower left area of the Deluxe
Panel has the same Icons as the Standard Panel.
These Icons are only visible when the monitoring
system has detected an error.

Selection Buttons: The four Selection Buttons allow
you to select items from the Display Panel and scroll
through screens.

Keypad: The numeric keypad (4) [Figure 7] has two
functions:

To enter a number code (password) to allow starting
the engine (Keyless Start).

To enter a number as directed for further use of the
Display Panel.

Figure 8

The first screen you will see on your new loader will be as
shown in [Figure 8].

When this screen is on the display you can enter the
password and start the engine or change the Display
Panel setup features.

NOTE: Your new loader (with Deluxe Instrument

Panel) will have a Owner Password. Your
dealer will provide you with this password.
Change the password to one that you will
easily remember to prevent unauthorized use
of your loader. (See Deluxe Panel Setup,
Page 10.) Keep your password in a safe place
for future needs.

Start Engine: Use the Keypad to enter the numbers
(letters) of your password and press the RUN / ENTER
key (5) [Figure 7].

Press and hold the START Button (6) [Figure 7] until the
engine starts.

Change Language: Press the Selection Button at the end
of the arrow [Figure 8] to go to the next screen.

B-15553B

B-16165

LANGUAGES

ENTER PASSWORD

S150 Bobcat Loader
Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT'D)

Right Panel (Deluxe - With Keyless Start) (Cont’d)

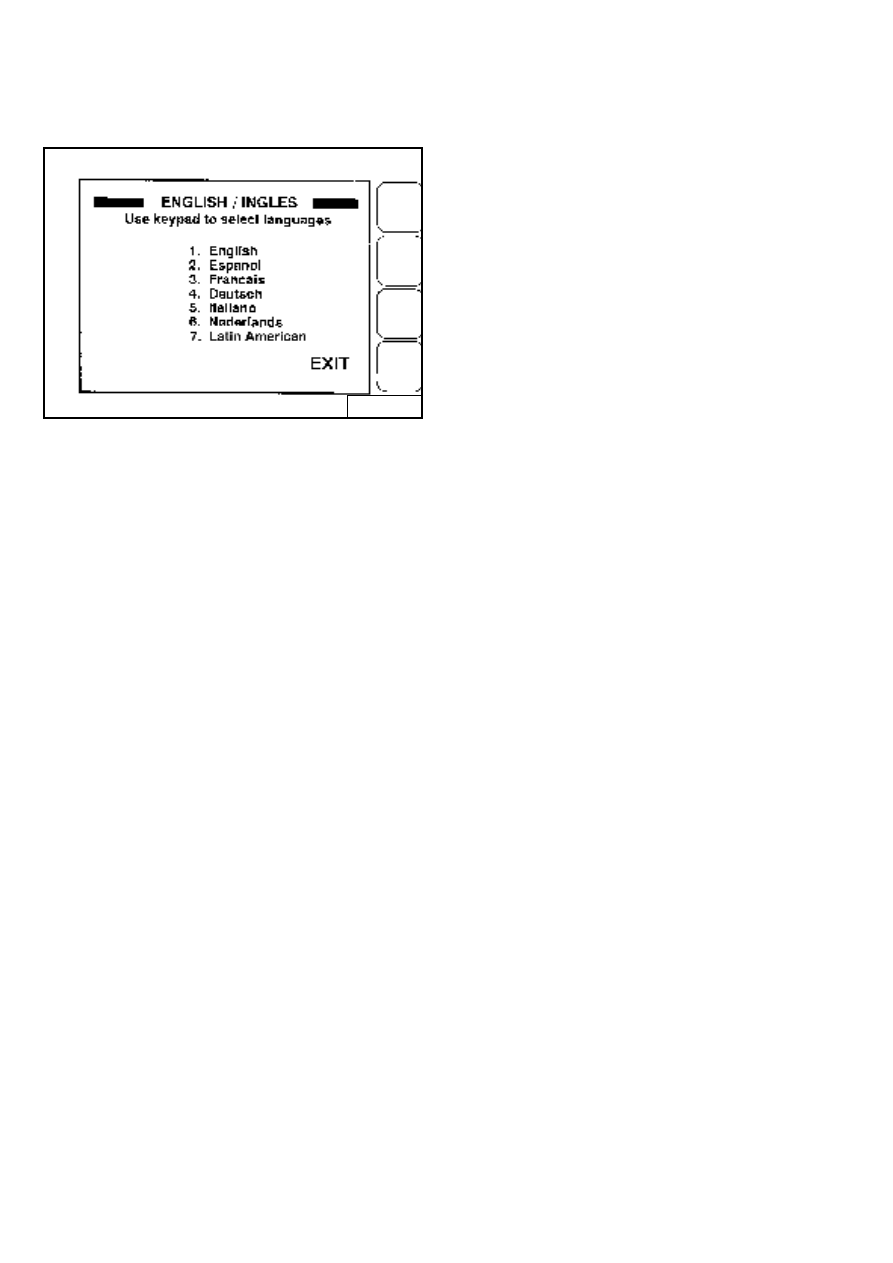

Figure 9

Use the Keypad to select the number of the language
[Figure 9].

Press EXIT. The screen will return to [Figure 8]. You can
then enter the password and start the engine.

For further description of screens to setup the system for
your use. (See DELUXE INSTRUMENT PANEL SETUP
on Page 93.)

NOTE: Pressing the EXIT key will go to the previous

screen and you can continue pressing until
you get to the initial (home) screen.
SHORTCUT: Press the “0” (zero) key to get to
the home screen immediately.

B-16655
