STARTER

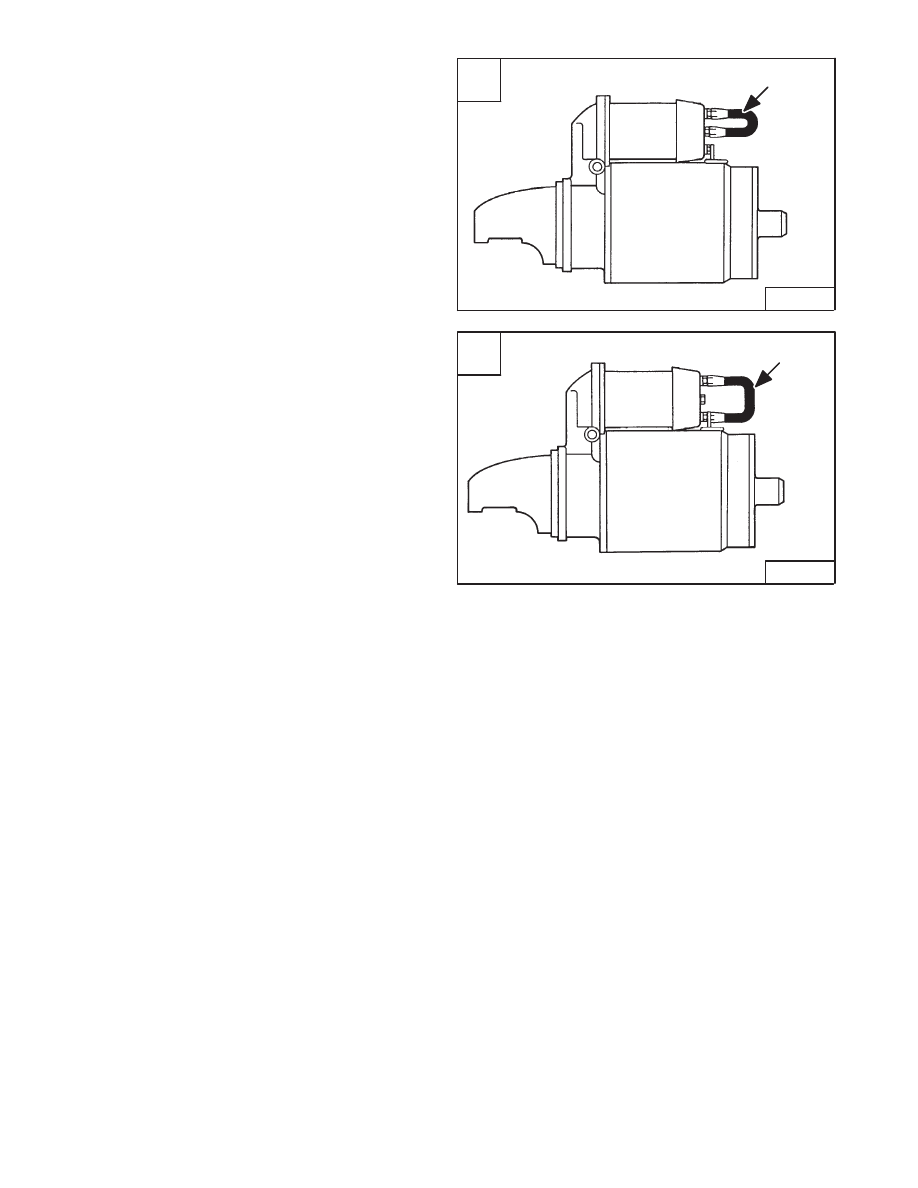

Checking The Starter

The key switch must be in the OFF position.

The battery must be at full charge.

The cable connections on the battery must be clean and
tight.

Connect a jumper wire between S terminal and BAT
terminal [A].

If the starter turns but does not turn the engine, the starter
drive has a defect.

Connect a jumper wire between the M terminal and the
BAT terminal [B].

If the starter turns, the defect is in the solenoid.

If the starter does not turn, the starter is defective.

A

A–01992

Cranking

Bat

S

M

Motor

Jumper Wire

B

A–01991

Cranking

Motor

Bat

S

M

Jumper Wire

–6–16–

853, 853H Loader

Service Manual

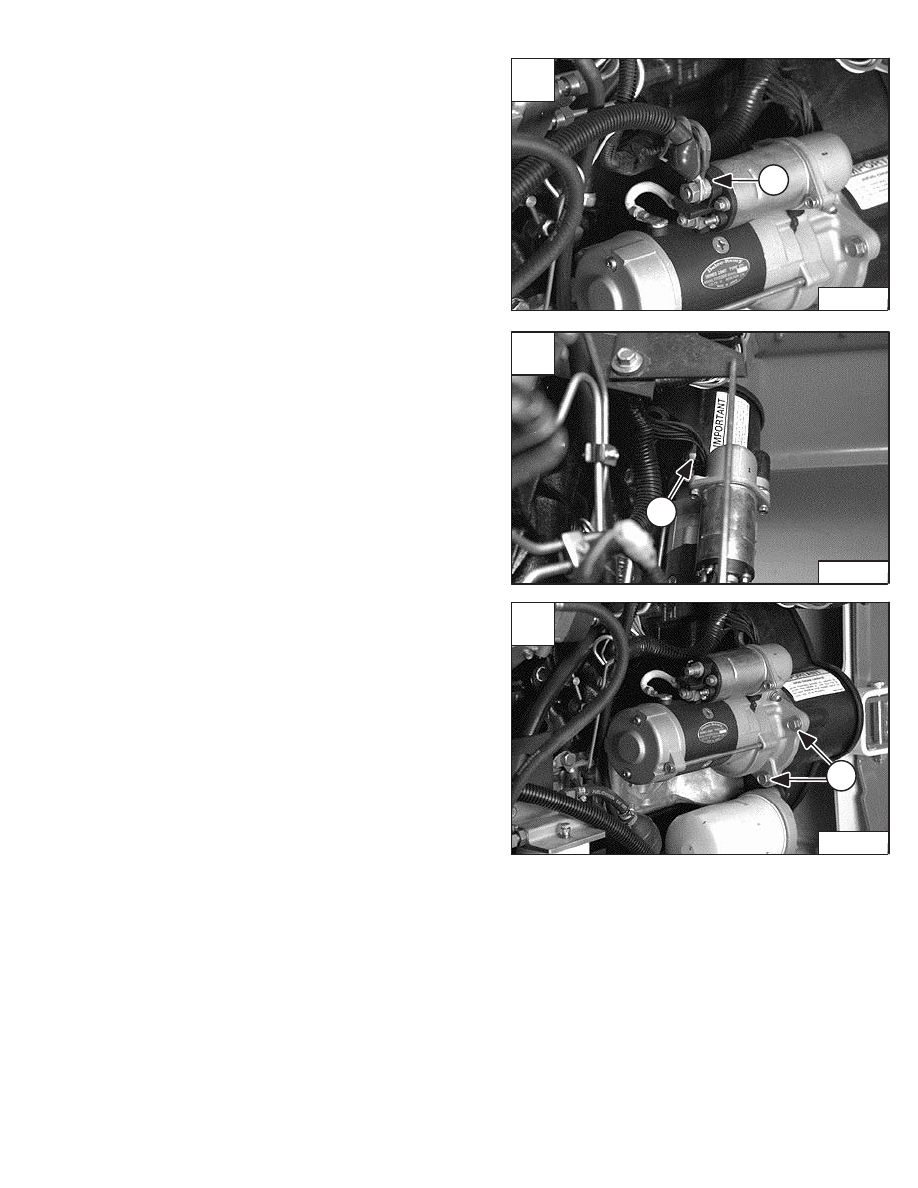

STARTER (Cont’d)

Removal And Installation

Disconnect the negative (–) cable from the battery.

Disconnect the positive (+) cable (Item 1) [A] and starter
wires from the starter solenoid.

Remove the starter mounting bolt (Item 1) [B] and engine
harness ground wires from the starter.

Remove the other two mounting bolts (Item 1) [C].

Remove the starter from the engine.

C

CD–15139

1

A

CD–15138

1

853, 853H Loader

–6–17–

Service Manual

B

CD–15140

1

D–02119

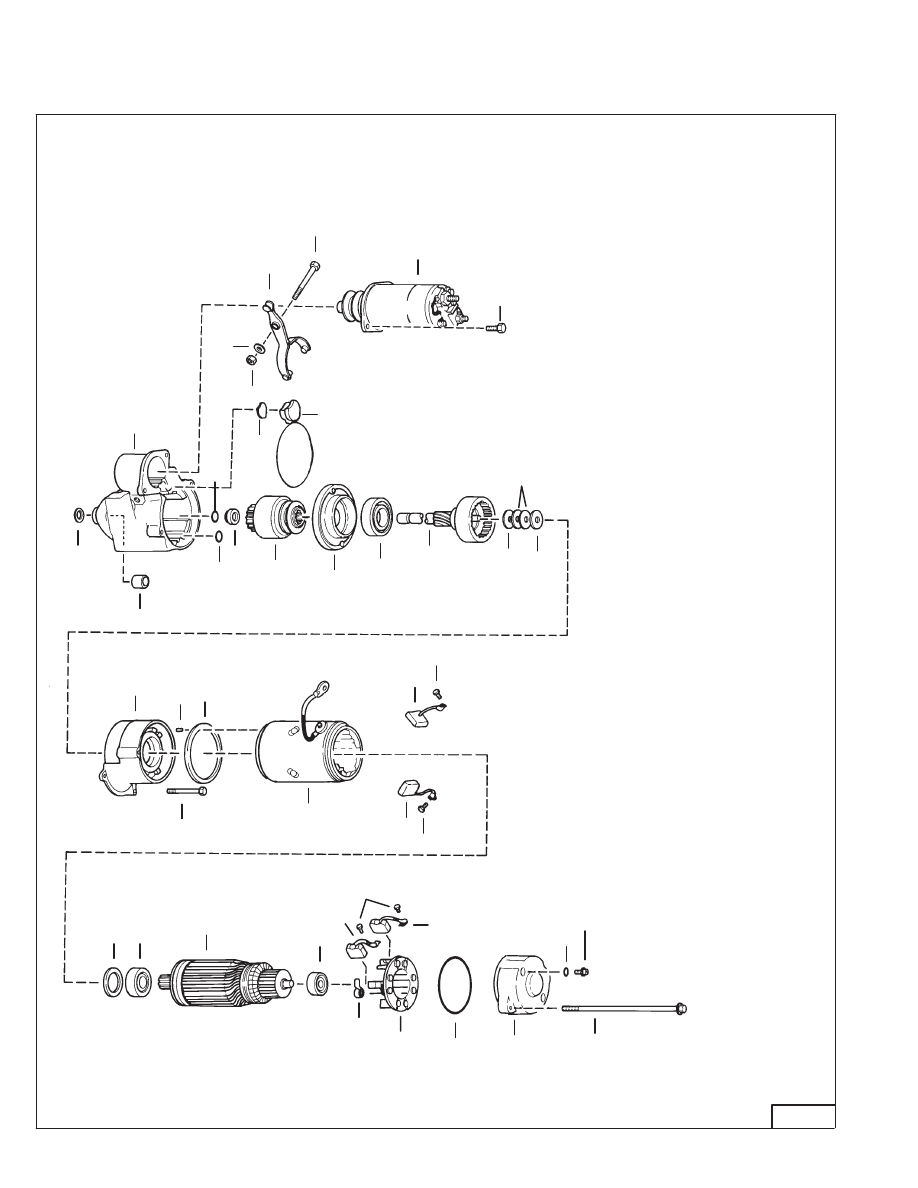

STARTER (Cont’d)

Parts Identification

  1

Screw

  2.

Solenoid

  3.

Bolt

  4.

Lever

  5.

Washer

  6.

Nut

  7.

Plug

  8.

Washer

  9.

Housing Drive

10.

Washer

11.

Bushing

12.

Ring

13.

Stop

14.

Drive

15.

Drive Support

16.

Support

17.

Drive Shaft

18.

Washer

19.

Washer

20.

Washer

21.

Screw

22.

Brush

23.

Frame Assy.

24.

Gasket

25.

Pin

26.

Armature Support

27.

Bolt

28.

Spacer

29.

Bearing

30.

Armature

31.

Bearing

32.

Spring

33.

Holder Assy.

34.

Brush

35.

Screw

36.

O–ring

37.

Frame

38.

Washer

39.

Screw

40.

Bolt

41.

Ring

1

2

3

4

5

6

10

11

12

13

14

15

16

17

18 20

19

26

25 24

27

23

22

21

21

22

28 29

30

31

32

35

34

34

33

36

37

40

38

39

41

7

8

9

–6–18–

853, 853H Loader

Service Manual

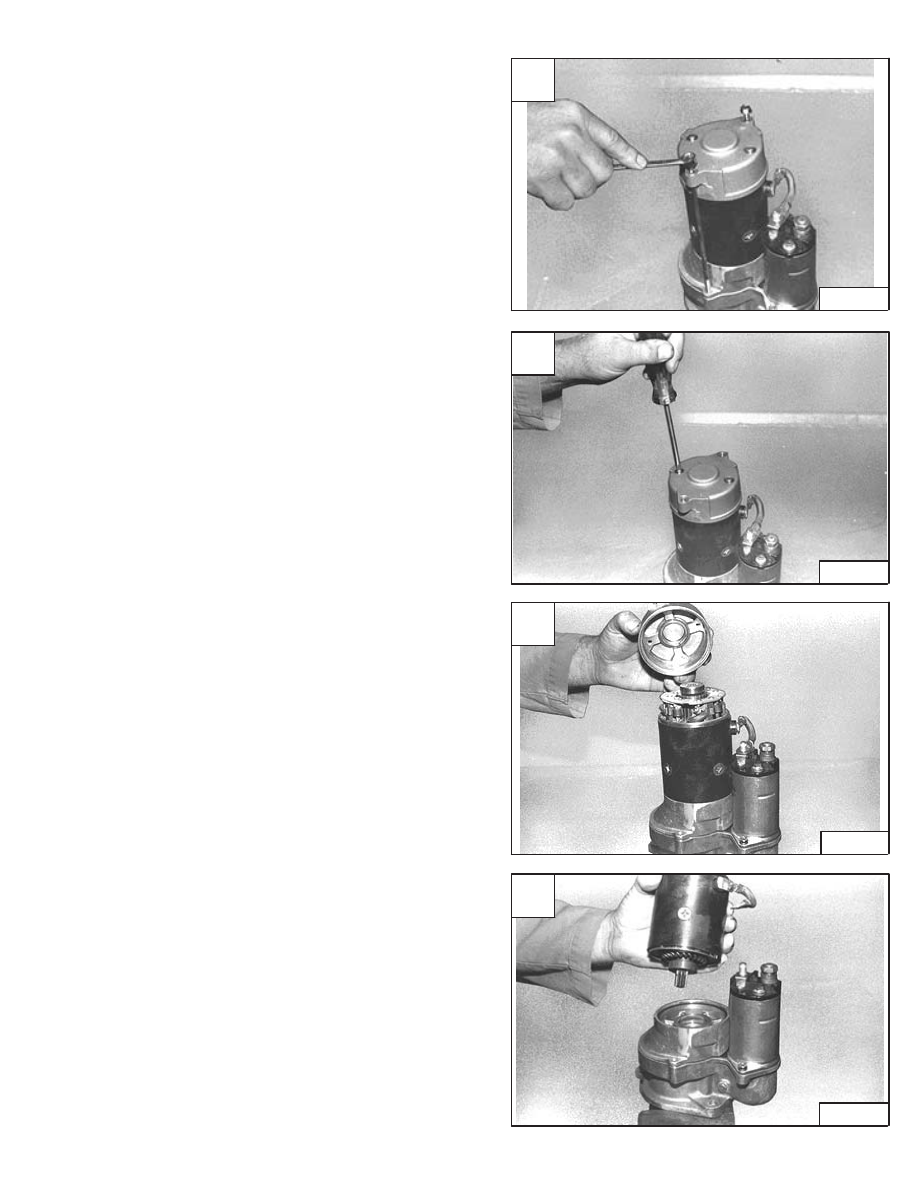

STARTER (Cont’d)

Disassembly And Assembly

Remove the starter thru–bolts [A].

Remove the screws for the brush holders [B].

Remove the starter end cap [C].

Remove the starter housing/armature assembly from the
reduction gear drive [D].

A

CD–08924

C

CD–08926

D

CD–08927

853, 853H Loader

–6–19–

Service Manual

B

CD–08925
