REDUCTION GEARCASE (Cont’d)
Checking Reduction Gearcase
Before disassembly of the gearcase do the following
checks:

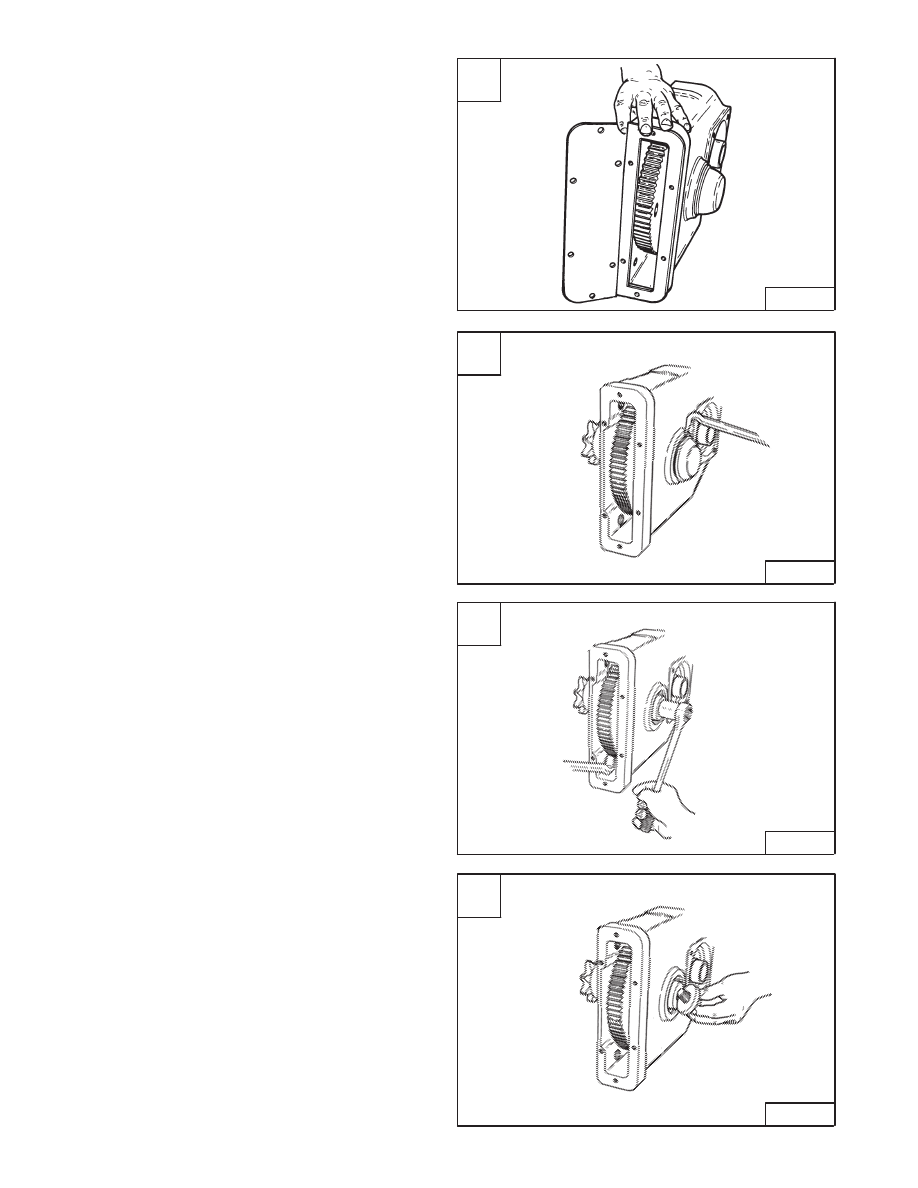

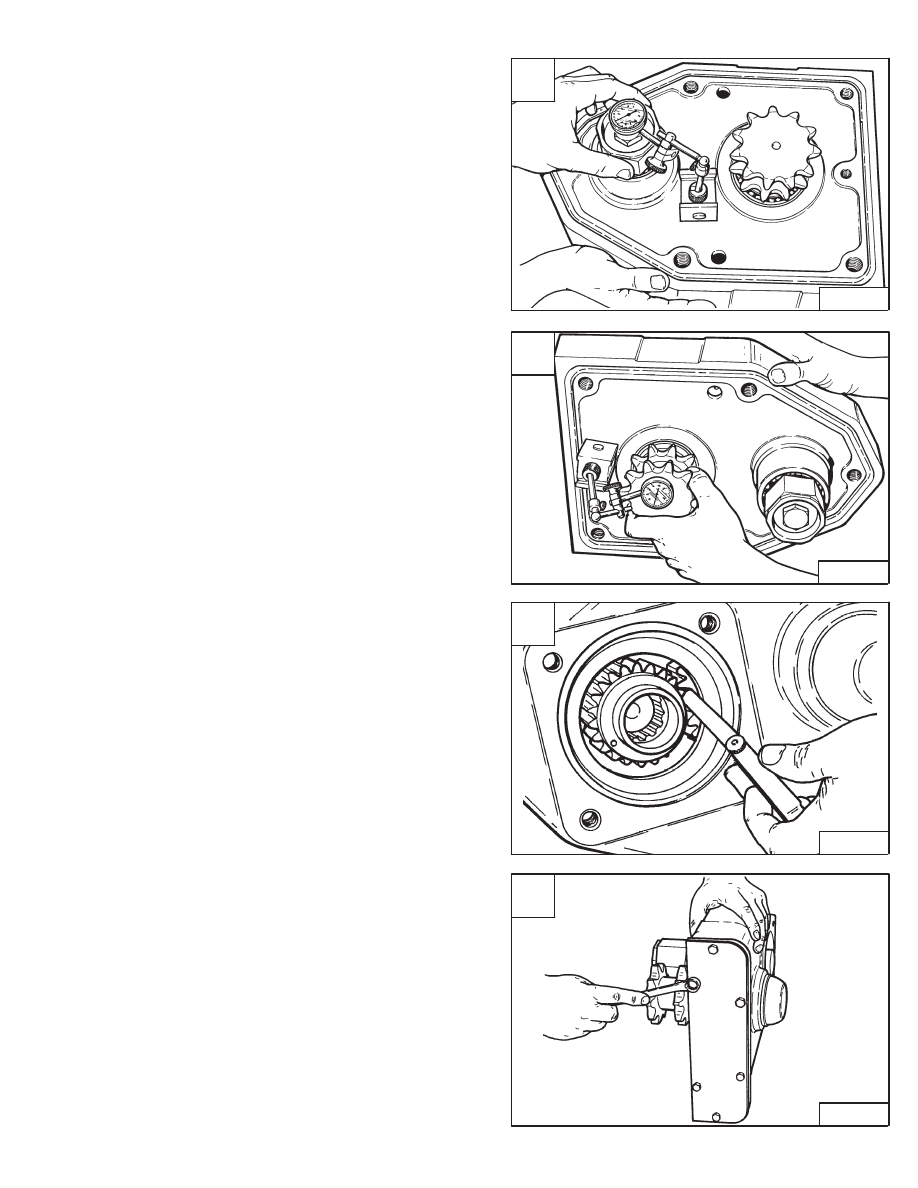

Install a dial indicator on the input shaft [A]. The end play
must be between 0.00–0.010 inch (0,0254 mm.) If not, the
following parts may need replacing: Bearing, bearing
cups, gear or gearcase housing.
Install the dial indicator on the output shaft [B]. The end
play must be between 0.00–0.010 inch (0,0254 mm.) If
not, the following parts may need replacing: Bearing,
bearing cups, gear or gearcase housing.
Remove the seal (See Page 4–15.)
Install a feeler gauge between the teeth of the gears [C].
The back lash must be between 0.003–0.009 inch
(0,076–0,228 mm.) If not, the following parts may need
replacing: Large gear or the shaft.
Measure the bore diameter for the seal. Correct diameter
is 3.750
±
0.001 inch (95,25
±
0,025 mm.) Install a dial
indicator on the input shaft. Set the indicator so the stylus
is against the pilot bore for the drive motor. Rotate the
shaft 360 degrees. Maximum run–out should not exceed
0.009 inch (0,23 mm.) If either check (Bore I.D. &
Run–Out) is not within these specifications, replace the
gearbox.

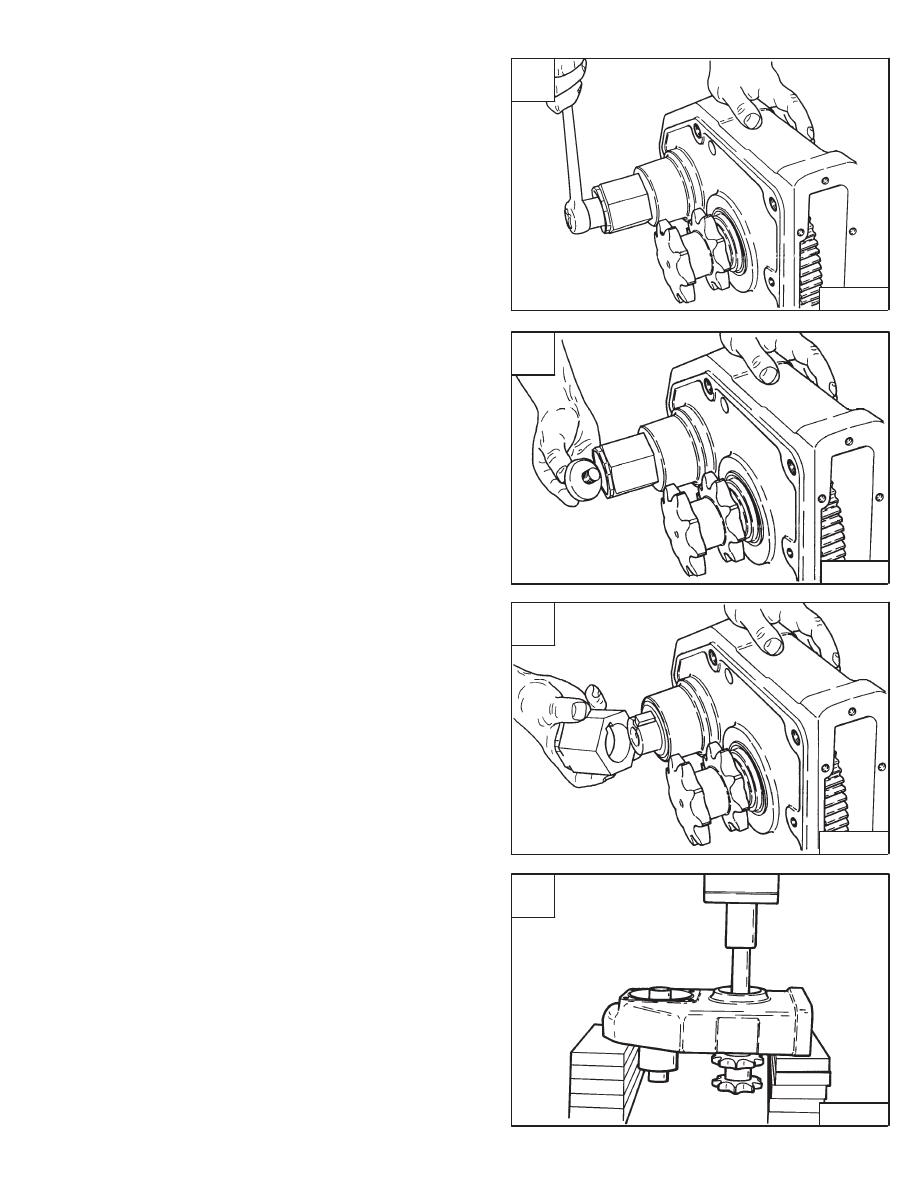

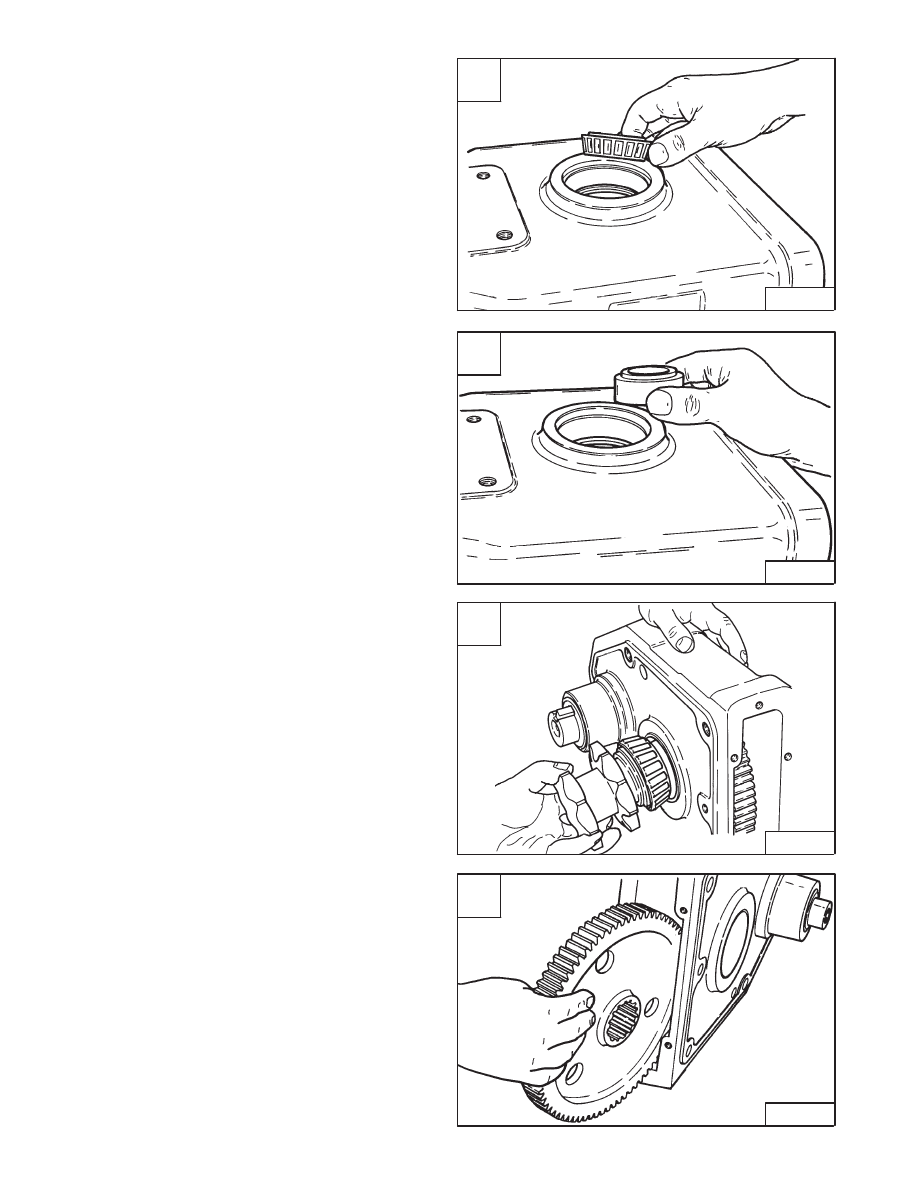

Disassembly
The tool listed will be needed to do the following
procedure:
MEL1047 – Seal Installation Tool
Remove the bolts from the end plate [D].
