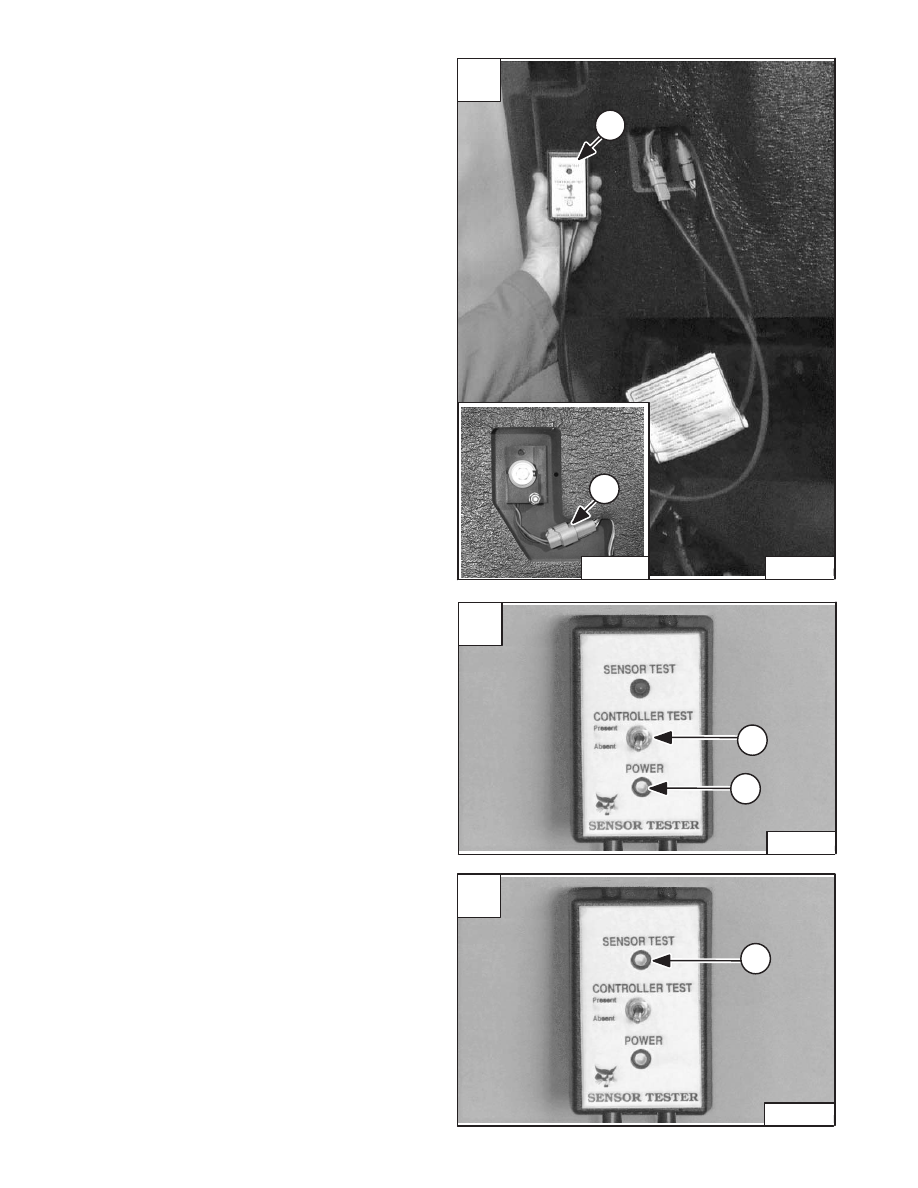

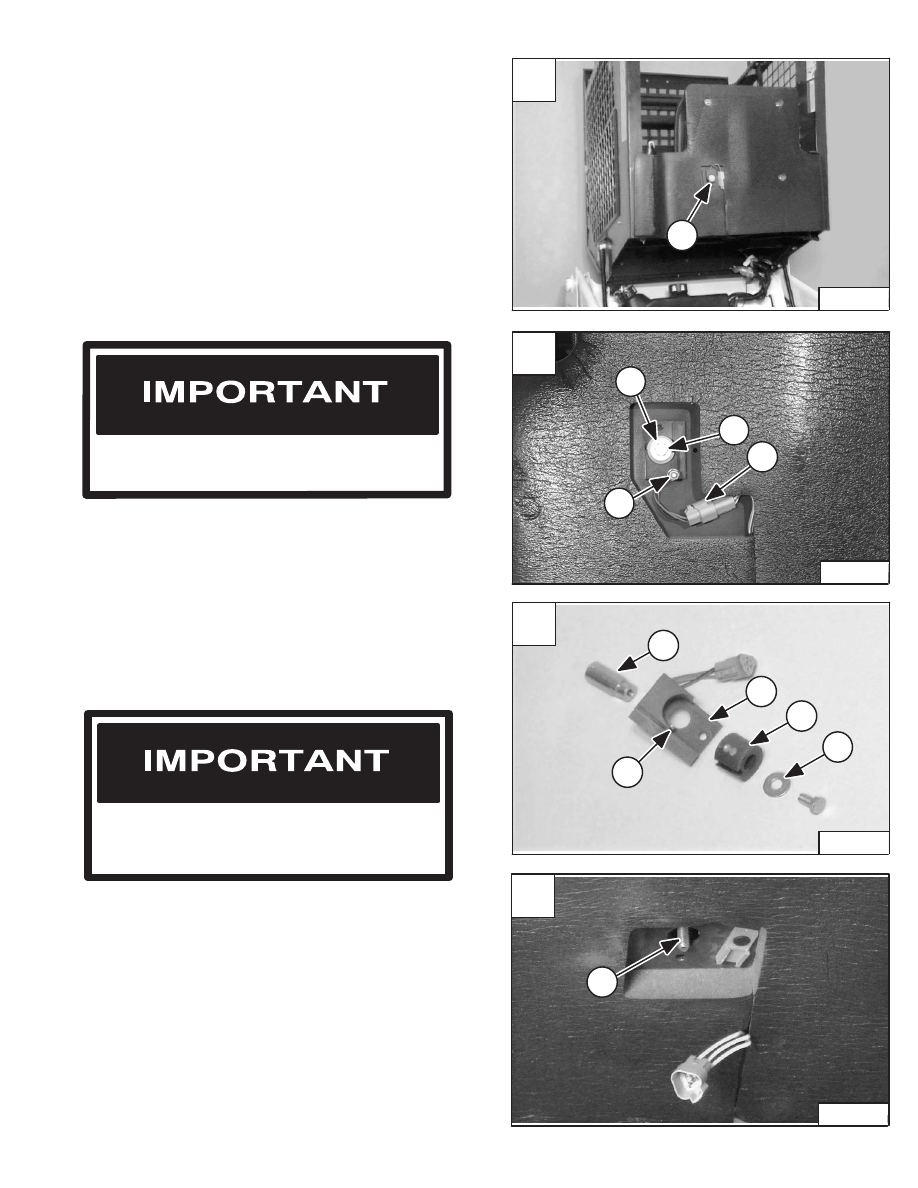

W–2004–1285 Check for correct function after adjustments, BOBCAT INTERLOCK CONTROL SYSTEM (BICS ™ ) (Cont’d) Troubleshooting Guide (Cont’d) The following troubleshooting guide is provided for SEAT SENSOR Seat indicator light does not come ON with operator in seat.. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 Seat indicator light stays ON when operator out of seat. 2, 3, 6, 10, 11, 12, 13, 14 Intermittent indicator light during operation. 11, 15, 16, 17, 18 1. Check to make sure power indicator light is ON. 2. Check for debris under and around seat. 3. Look for any obstruction around seat. 4. Check to make sure seat rail lowers when weight is in seat. 5. Raise cab and check for magnet collar movement when weight is added to seat. 6. Use sensor tester to check operation of sensor and controller. Follow instructions 7. Check to make sure the magnet guide pin is in place. 8. Check for contamination on magnets such as metal particles or for shipping plate 9. Check to make sure both magnets are in collar. 10. Check for binding of magnet collar or bushing with hex head on other side for 11. Check for correct mounting. One spring for standard seat. Two springs for 12. Check for loose hardware mounting magnet collar. Check to make sure the 13. Check to make sure seat rail raises when weight is removed from the seat. 14. Raise cab and check for magnet collar movement when weight is removed from 15. With smaller operators that operate with the seat forward some mounting 16. Adjust suspension seat to lightest weight setting. 17. Check to make sure the seat rails move up and down freely when weight is added. 18. Add washer between the bushing the magnet collar assembly slides on and the PROBLEM SOLUTION # SOLUTION SUGGESTIONS Revised Jan. 99 –8–10– 773 BICS Loader Service Manual |
