Loader Bobcat 773. Manual - part 5

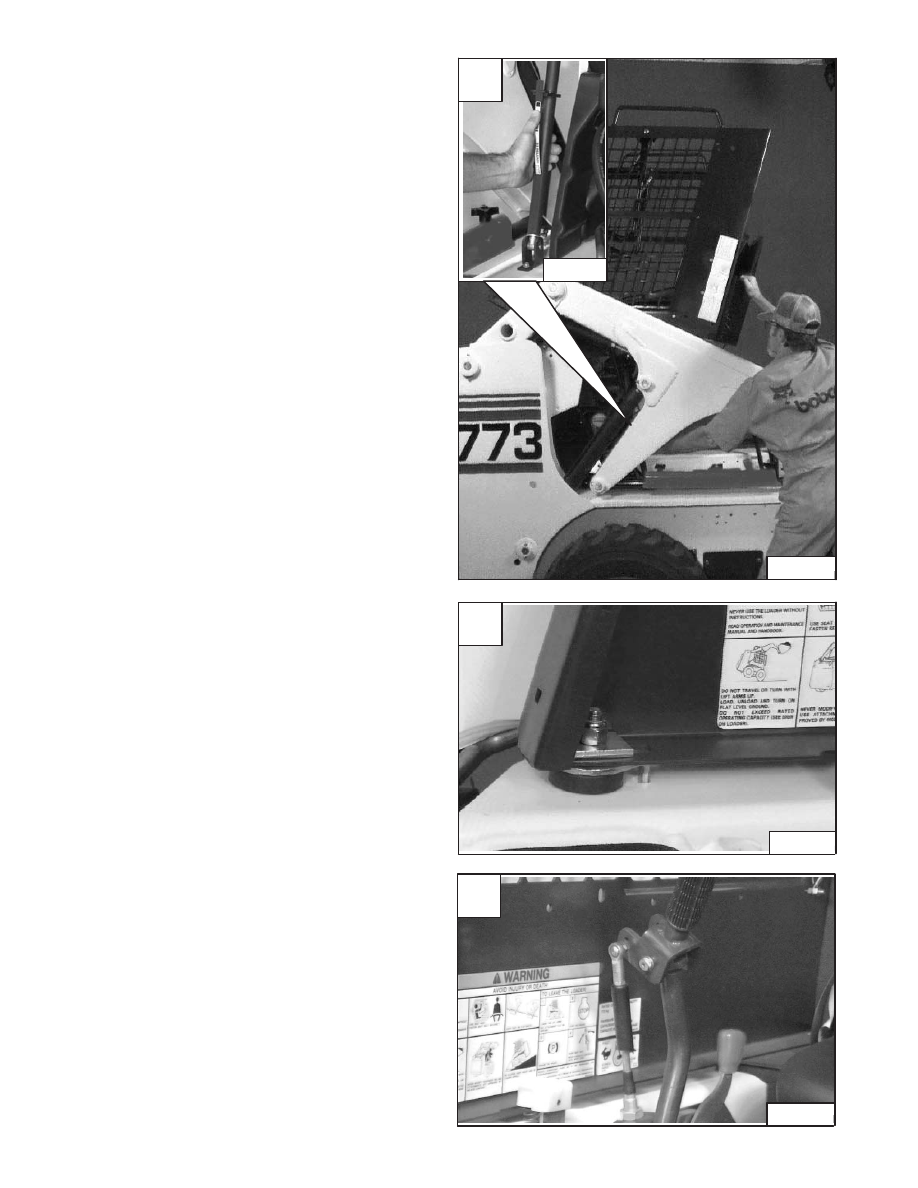

OPERATOR CAB (Cont’d)

Raising The Operator Cab (Cont’d)

Lift on the grab handle and bottom of the operator cab
slowly until the cab latching mechanism engages and the
cab is all the way up [A].

Lowering The Operator Cab

NOTE: Make sure the seat bar is fully raised or

lowered when lowering the cab. Use the grab
handles to lower the cab.

Pull down on the bottom of the operator cab until it stops
at the latching mechanism (Inset) [A]. Release the
latching mechanism (Inset) [A] and pull the cab all the
way down.

Install the plate and nut (both sides) [B].

Tighten the nuts to 40–50 ft.–lbs. (54–68 Nm) torque.

If equipped with mechanical hand controls move the
control linkage from the TOP hole to the BOTTOM hole
(work position) on the control handle (both sides) [C].

Revised Jan. 99

A

P–10596

P–10599

B

P–01518

C

P–03561

–1–10–

773 BICS Loader

Service Manual

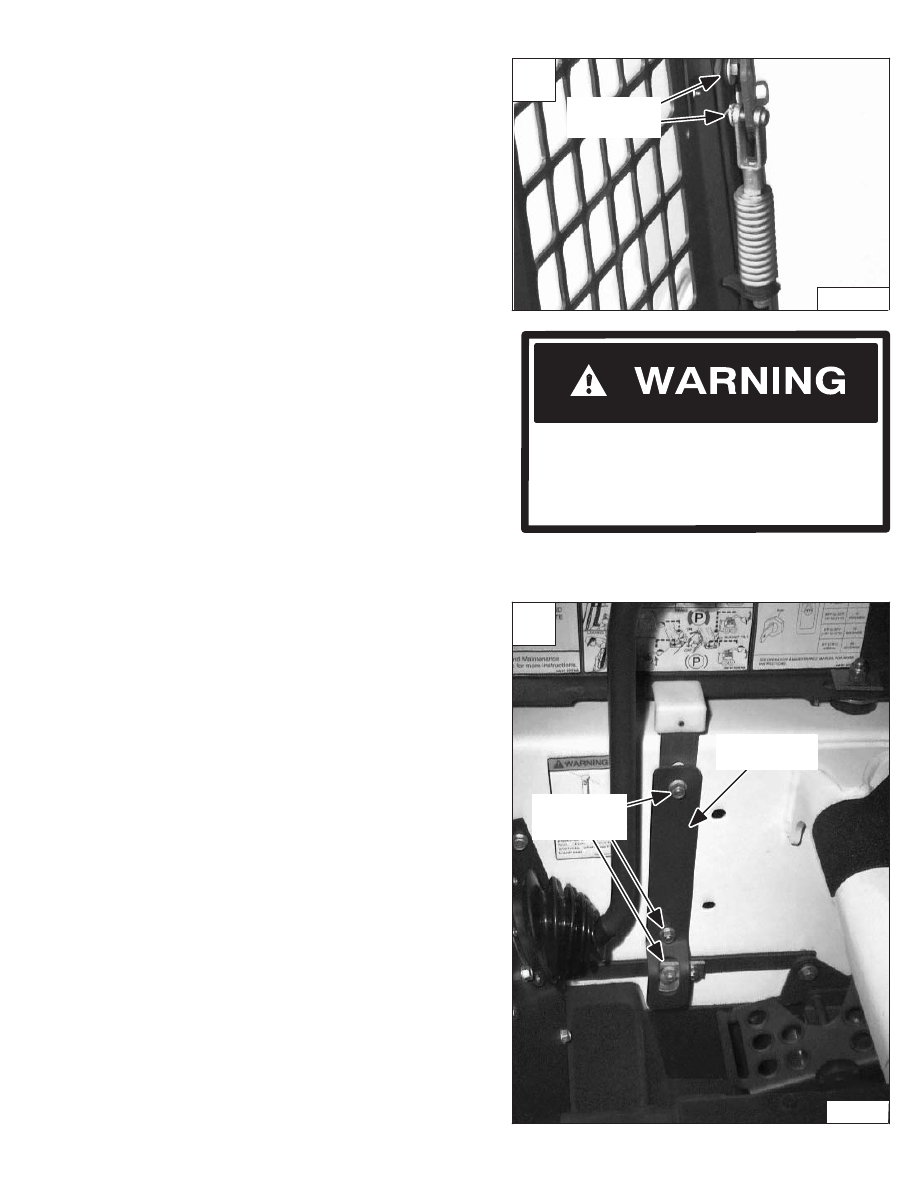

SEAT BAR RESTRAINT SYSTEM (Foot Pedals)

Description

2.

The seat bar restraint system has a pivoting, spring assist
seat bar with arm rests and has spring loaded interlocks
for the lift and tilt functions.

The operator controls the use of the seat bar. The seat bar
in the down position helps to keep the operator in the seat.

The interlocks require the operator to lower the seat bar
in order to operate the foot pedal controls.

When the seat bar is up, the lift and tilt control functions
are locked when returned to the NEUTRAL POSITION.

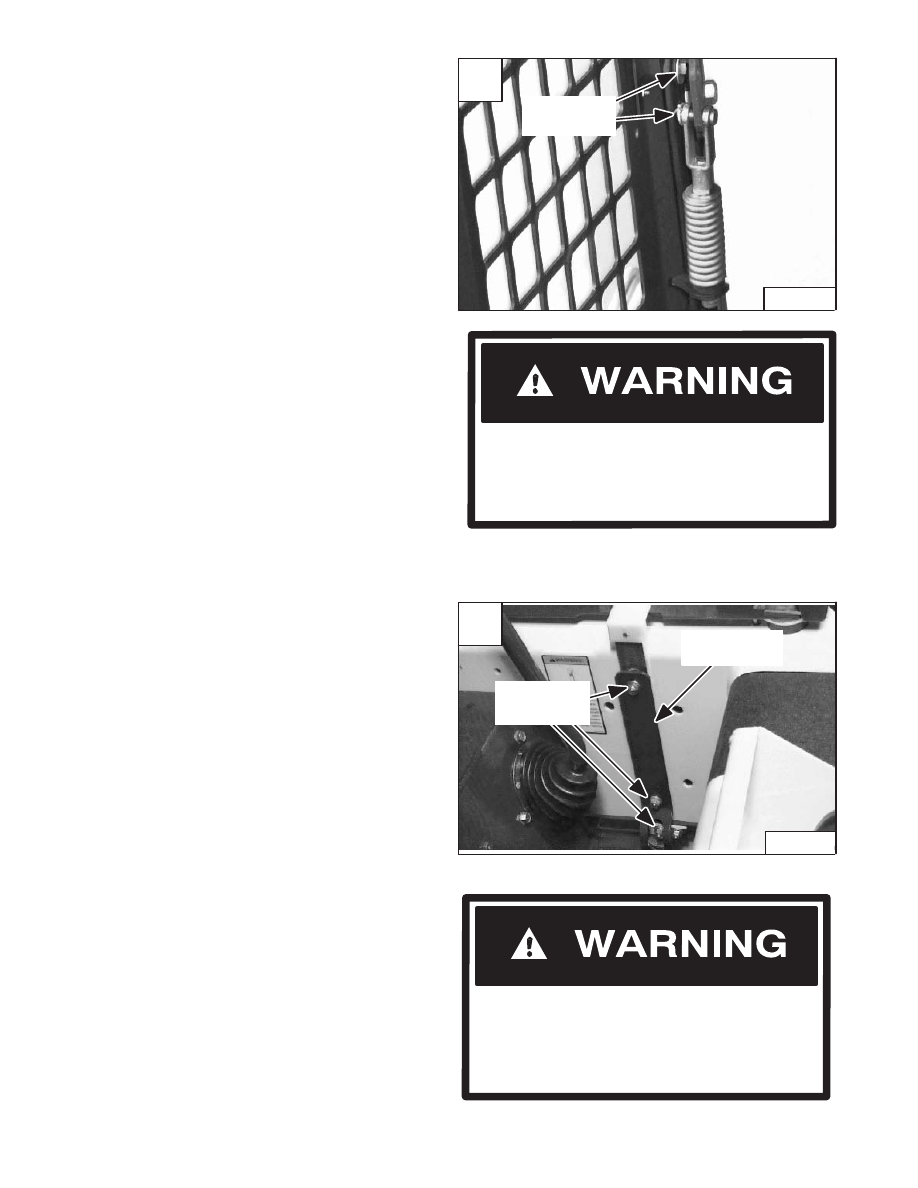

Seat Bar Inspection

Sit in the seat and fasten the seat belt. Engage the
parking brake. Pull the seat bar all the way down. Start the
engine. Loaders without seat sensors press the green
PRESS TO OPERATE Button. Operate each foot pedal
to check both the lift and tilt functions. Raise the lift arms
until the bucket is about 2 feet (600 mm) off the ground.

Raise the seat bar. Try to move each foot pedal. Pedals
must be firmly locked in neutral position. There must be
no motion of the lift arms or tilt (bucket) when the pedals
are pushed.

Pull the seat bar down. Loaders without seat sensors
press the green PRESS TO OPERATE Button. Lower the
lift arms. Operate the lift pedal. While the lift arms are
going up, raise the seat bar and the lift arms should stop.

Lower the seat bar. Loaders without seat sensors press
the green PRESS TO OPERATE Button. Lower the lift
arms and put the bucket flat on the ground. Stop the
engine. Raise the seat bar and operate the foot pedals to
be sure that the pedals are firmly locked in the neutral
position. Unbuckle the seat belt.

Seat Bar Maintenance

See the SERVICE SCHEDULE Page 1–3 and on the
loader for correct service interval.

Clean any debris or dirt from the moving parts [A] & [B].
Inspect the linkage bolts and nuts for tightness. The
correct torque is 25–28 ft.–lbs. (34–38 Nm).

If the seat bar system does not function correctly, check
for free movement of each linkage part. Check for
excessive wear. Adjust pedal control linkage. Replace
parts that are worn or damaged. Use only genuine Bobcat
replacement parts.

Revised Jan. 99

A

P–10361

Clean

(Both Sides)

Clean

Interlock

Shield

B

P–10569

(Both Sides)

773 BICS Loader

–1–11–

Service Manual

AVOID INJURY OR DEATH

Never operate loader without pedal lock shield

6705474 on both interlocks. Shields prevent feet

from unlocking interlocks when leaving loader

seat.

W–2162–1194

Seat Bar Inspection

Sit in the seat and fasten the seat belt. Engage the
parking brake. Pull the seat bar all the way down. Loaders
without seat sensors press the green PRESS TO
OPERATE Button. Start the engine. Operate each hand
control to check both the lift and tilt functions. Raise the
lift arms until the bucket is about 2 feet (600 mm) off the
ground.

Raise the seat bar. Try to move each hand control. The
controls must be firmly locked in neutral position. There
must be no motion of the lift arms or tilt (bucket) when the
controls are moved.

Pull the seat bar down. Loaders without seat sensors
press the green PRESS TO OPERATE Button. Lower the
lift arms. Operate the lift control. While the lift arms are
going up, raise the seat bar and the lift arms should stop.

Lower the seat bar. Lower the lift arms. Loaders without
seat sensors press the green PRESS TO OPERATE
Button and put the bucket flat on the ground. Stop the
engine. Raise the seat bar and operate the hand controls
to be sure that the controls are firmly locked in the neutral
position. Unbuckle the seat belt.

Seat Bar Maintenance

See the SERVICE SCHEDULE Page 1–3 for correct
service interval.

Clean any debris or dirt from the moving parts [A] & [B].
Inspect the linkage bolts and nuts for tightness. The
correct torque is 25–28 ft.–lbs. (34–38 Nm).

If the seat bar system does not function correctly, check
for free movement of each linkage part. Check for
excessive wear. Adjust hand control linkage. Replace
parts that are worn or damaged. Use only genuine Bobcat
replacement parts.

The seat bar restraint system has a pivoting, spring assist
seat bar with arm rests and has spring loaded interlocks
for the lift and tilt control functions.

The operator controls the use of the seat bar. The seat bar
in the down position helps to keep the operator in the seat.

The interlocks require the operator to lower the seat bar
in order to operate the hand controls.

When the seat bar is up, the lift and tilt control functions
are locked when returned to the NEUTRAL POSITION.

SEAT BAR RESTRAINT SYSTEM (Mechanical
Hand Controls)

Description

3.

Revised Jan. 99

AVOID INJURY OR DEATH

W–2263–0597

The Seat Bar System must lock the lift and tilt
foot pedals or hand controls in neutral when the
Seat Bar is up. Service the system if controls do
not lock correctly.

B

P–01640

Interlock

Shield

Clean

(Both Sides)

A

P–10361

Clean

(Both Sides)

–1–12–

773 BICS Loader

Service Manual

AVOID INJURY OR DEATH

Never operate loader without interlock shield

6705474 on both interlocks. Shields prevent

foot from unlocking interlocks when leaving

loader seat.

W–2158–0594

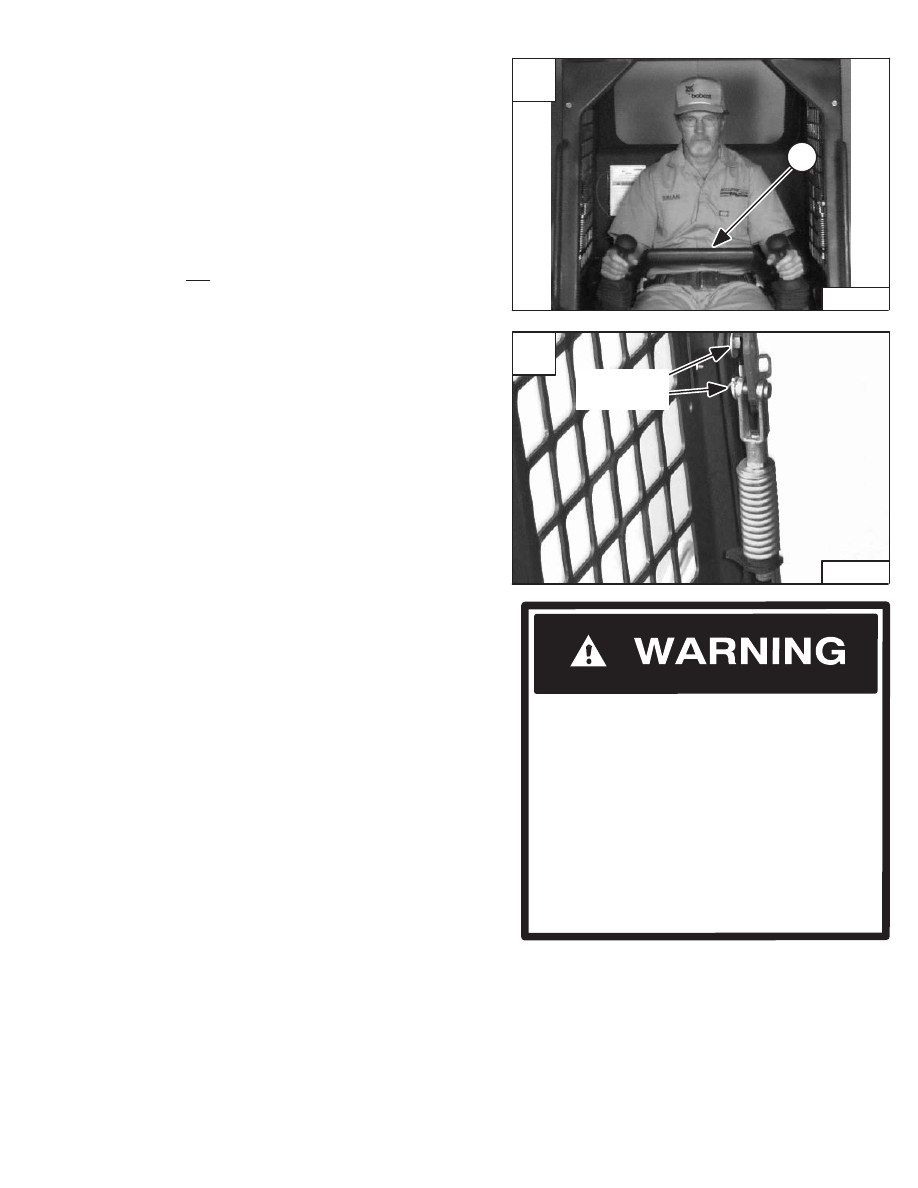

SEAT BAR RESTRAINT SYSTEM (Advanced Hand
Controls)

Description

The seat bar restraint system has a pivoting seat bar
(Item 1) [A] with arm rests.

The operator controls the use of the seat bar. The seat
bar in the down position helps to keep the operator in the
seat.

When the seat bar is down and the green PRESS TO
OPERATE Button is activated, the lift, tilt, and traction
drive functions can be operated.

When the seat bar is up, the lift, tilt, and traction drive
functions are deactivated.

Seat Bar Inspection

4.

Sit in the operator’s seat. Turn the key ON, lower the seat
bar and press the green PRESS TO OPERATE Button.
Both lights on the left handle should be ON.

Move each hand control back and forth. You should hear
the zip–zip sound of the lift and tilt actuators moving the
control valve spools (under the seat).

Raise the seat bar fully. Both lights on the left handle
should be OFF.

Move each hand control back and forth. There must be
no  zip–zip sound of the lift or tilt actuators. If either
actuator makes a sound while the seat bar is raised,
contact your dealer for service.

Seat Bar Maintenance

See the SERVICE SCHEDULE Page 1–3 for correct
service interval.

Clean any debris or dirt from the moving parts [B].

If the seat bar system does not function correctly replace
parts that are worn or damaged. Use only genuine Bobcat
replacement parts.

Revised Jan. 99

Before you leave the operator’s seat:

•

Lower the lift arms, put the attachment flat on
the ground.

•

Stop the engine.

•

Engage the parking brake.

•

Raise seat bar.

•

(Advanced Hand Controls) Move the hand
controls to the NEUTRAL POSITION to make

sure  that  both  lift  and  tilt  functions  are

deactivated.

The seat bar system must deactivate the lift

and tilt control functions when the seat bar is

up. Service the system if hand controls do

not deactivate.

W–2321–0698

Clean

(Both Sides)

B

P–10361

A

P–13721

1

773 BICS Loader

–1–13–

Service Manual
