Audi TT (2007 year). Manual - part 229

49

Table cont'd

Audi Navigation (BNS 5.0)

Audi Navigation plus (RNS-E)

Navigation

CD navigation system incl. Major Roads of Europe

DVD navigation system, single-DVD drive

Dynamic navigation system with RDS and TMC

Turning instructions and directional arrow display in driver information system

Destination input options: postcode, place name,

street name, POIs, latitude and longitude

Destination input options: postcode, place name,

street name, POIs, cursor, address book

Shortest/optimum/quickest route are selectable

max. 3 route options are given

max. 6 intermediate destinations are possible

max. 3 intermediate destinations are possible

---

 Colour screen incl. Birdview, split screen and POIs

---

 Geometric motorway exit display

---

Intersections map

---

List display of the next three route

recommendations

---

 Intelligent Speller (last city history)

Corridor function allows audio or MP3 CDs to be

played while navigating

---

Telephone

Mute function for hands-free telephone via cable or CAN

Loudspeaker control unit for hands-free telephone, adjustable volume control unit for calls

Telephone (with
optional Audi mobile
phone adaptor)

Display of reception level, network provider and roaming symbol

"accept call", "reject call" and "hang up" functions

Telephone number entry via Speller

Telephone number selection from the mobile phone phonebook

Bluetooth symbol appears in the status bar if the mobile phone is connected to the mobile phone adaptor

via Bluetooth.

Voice control functions of mobile phone adaptor

active

Voice control system integrated in mobile phone

adaptor or voice recognition system

---

  Telephone number selection from the address

book

Options

BOSE sound system

Mobile phone adaptor

---

Analog TV tuner

No auxiliary input (AUX-In)

Service

All amplifiers can be encoded for GALA, while

BOSE Sound amplifiers are encoded as standard

for Audio-Pilot

Audi Sound System has GALA while the BOSE

Sound System has Audio Pilot

Vehicle-specific sound curves can be encoded

Diagnostics via CAN (A3, TT) or L-wire (A4)

4-digit radio code incl. convenience code

Transport mode via CAN

Transport mode via adaption channel or CAN

System software is flashable by CD in service

workshops

System software is flashable by navigation DVD

50

Infotainment

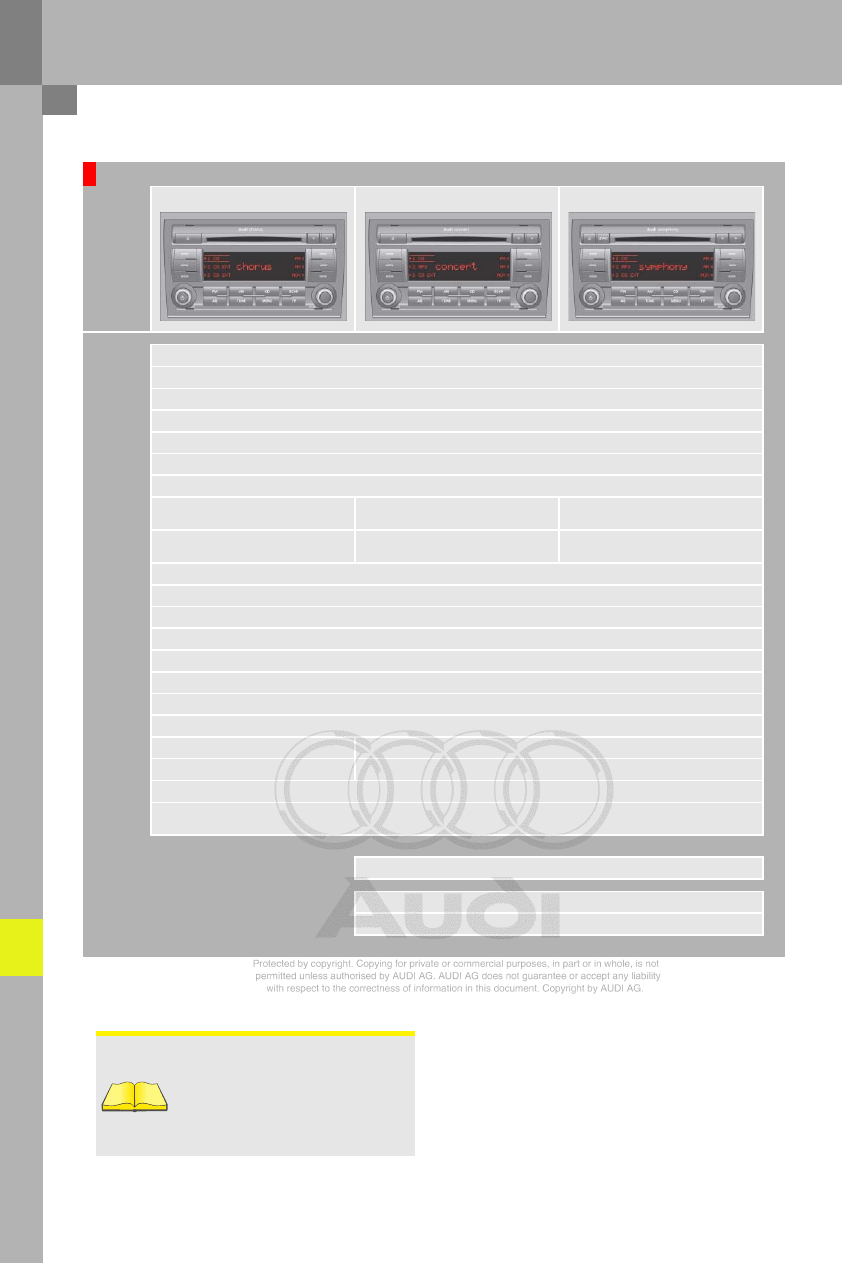

Radio systems at a glance

chorus

concert

symphony

2-DIN housing

Three-line graphic display, light dimming via CAN

can be operated via optional multifunction steering wheel

Station frequency display in the driver information system

FM/AM tuner

FM tuner with phase diversity

RDS (Radio Data System) with EON (Enhanced Other Network)

---

---

 Traffic Information Messages

(TIM = TP Memo)

Integrated single-CD drive,

CD text capable

Integrated single-CD drive for audio CDs

and MP3 CDs, CD text capable

Integrated 6-disc CD changer for

audio CDs and MP3 CDs, CD text capable

Control unit for external 6-disc CD changer or auxiliary iPod adaptor

AUX input (code-activatable)

Mute function for hands-free telephone

Loudspeaker control unit for hands-free telephone

Diagnostics via CAN (A3 8P, TT) or L-wire (A4 8E)

Transport mode (reduced power demand)

Anti-theft device with convenience coding

Integrated 2 x 20 watts power module (not used for concert and symphony radios in the Audi TT)

---

Auxiliary sound amplifier connected

---

Connectivity for optional auxiliary BOSE Surround Sound amplifier

Volume adjustment as a function of road speed (GALA)

Basic sound set-up via encoding of vehicle type (saloon/Avant/Cabrio), interior trim (fabric/leather) and

engine type (petrol/diesel engine)

 US variant

RDBS FM/AM radio (FM/MW)

 Control unit for optional digital satellite tuner

Reference

For detailed descriptions of radios
and navigation systems,
refer to Self-Study Programme 382
Audi TT Coupé ‘07 - Electrical and
Infotainment Systems

Introduction

The first generation of the Audi TT Coupé, named after the legendary "Tourist Trophy" race in the UK, was
a milestone in automotive design.
The design followed the pure geometry, with central motives being the circle, particularly distinctive on the
wheel arches, the arches of the roofline, the front end and the rear end.Audi has taken this genetic code and
developed it in authentic style.
In the new TT, the geometric shapes merge fluidly with one another.The concave and convex arches radiate
dynamism and movement while lending the TT Coupé the character of an athletic sculpture thrusting
forwards.

The front end of the new TT Coupé has gained in expressiveness and resoluteness, the most distinctive
element being the singelframe radiator grille.

Unlike the predecessor model, the rear end has a completely different outline to the front end. The rear lights
create a three-dimensional effect by virtue of their visual depth. The trapezoidal cut-out around the license
plate continues the flowing lines of the boot lid. The powerful exhaust tailpipes, wide diffusor and central rear
fog light are borrowed straight from motorsport.

The dynamic impression conveyed by the Audi TT Coupé also stems from its modified proportions.

On the exterior it is now:  - 137 mm longer

- 78 mm wider

Excellence in design & performance

Self-study programmes on the TT Coupé

SSP 381 Audi TT Coupé ‘07 -
Suspension System

–

Front  axle

–

Rear  axle

–

Shock absorber system

–

Brake system

Order number: A06.5S00.26.20

SSP 382 Audi TT Coupé ‘07 -
Electrical and Infotainment Systems

–

Networking

–

Bus  topology

–

Convenience electronics

–

Infotainment

Order number: A06.5S00.27.20

380_043

SSP 380 Audi TT Coupé ‘07

–

Body

–

Occupant protection

–

Engine

–

Suspension system

–

Electrical system

–

Air conditioning

–

Infotainment

Order number: A06.5S00.25.20

SSP 383 Audi TT Coupé ‘07 - Body

–

Audi Space Frame

–

Production processes and joining methods

–

Surface  finish

–

Electromechanical rear spoiler

–

Repair concept

–

Passive safety concept

Order number: A06.5S00.28.20

380

All rights reserved.
Technical specifications
subject to change without
notice.

Copyright
AUDI AG
I/VK-35
Service.training@audi.de
Fax +49-841/89-36367

AUDI AG
D-85045 Ingolstadt
Technical status: 05/06

Printed in Germany
A06.5S00.25.20

Audi TT Coupé ‘07
