Audi TT (2007 year). Manual - part 190

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

29

30

31

32

33

34

35

36

37

38

39

40

41

42

8J0-059040410

J

217

N

435

N

436

N

439

N

440

N

471

N

472

G

193

G

194

G

487

G

488

G

489

G

490

J

743

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

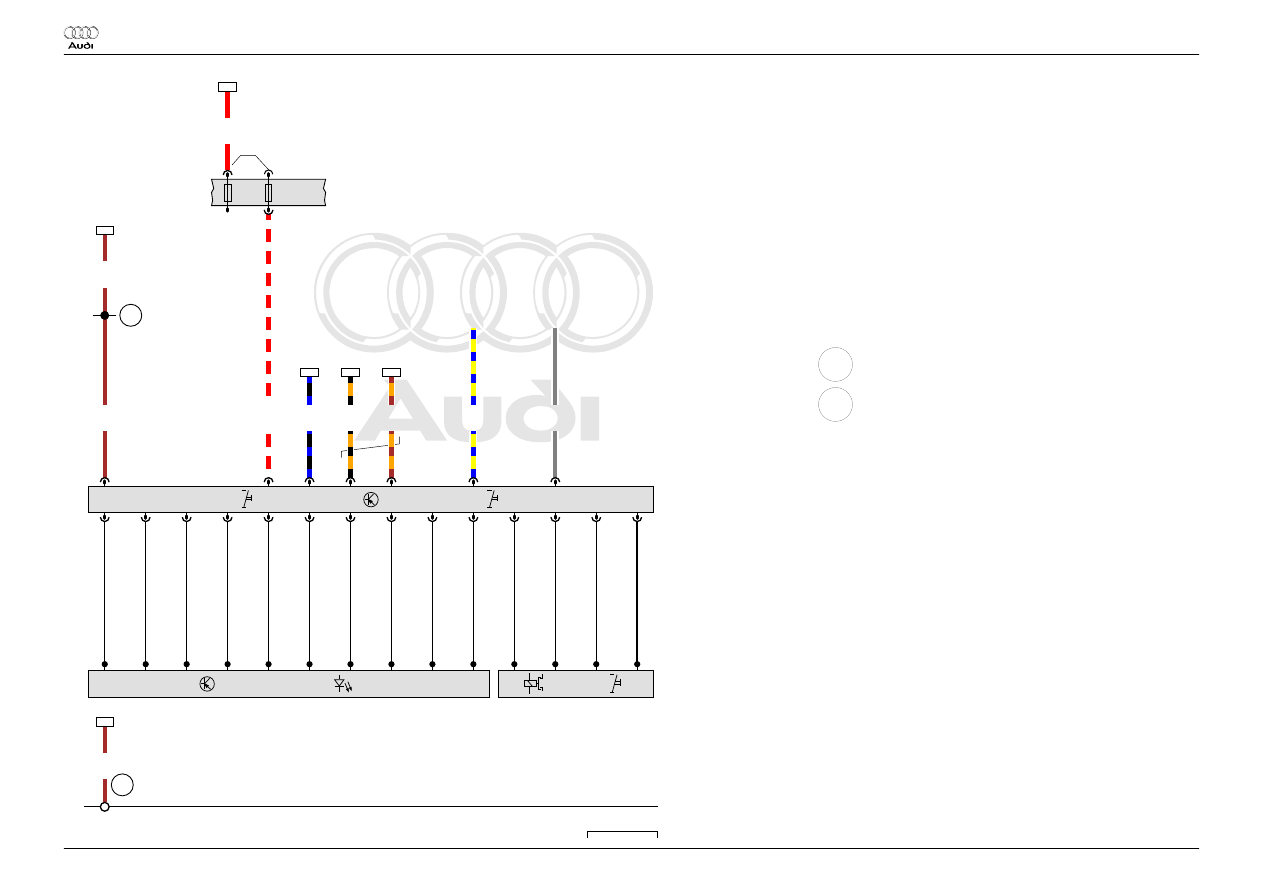

Mechatronic unit for dual clutch gearbox

G193 Automatic gearbox hydraulic pressure sender 1

G194 Automatic gearbox hydraulic pressure sender 2

G487 Gear selector movement sensor 1

G488 Gear selector movement sensor 2

G489 Gear selector movement sensor 3

G490 Gear selector movement sensor 4

J217 Automatic gearbox control unit

J743 Mechatronic unit for dual clutch gearbox

N435 Valve 3 in sub-gearbox 1

N436 Valve 4 in sub-gearbox 1

N439 Valve 3 in sub-gearbox 2

N440 Valve 4 in sub-gearbox 2

N471 Cooling oil valve

N472 Main pressure valve

 Audi TT

Current Flow Diagram

No.  59 / 4

 04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

43

44

45

46

47

48

49

50

51

52

53

54

55

56

8J0-059050410

J

587

Y

26

N

110

44

384

J

527

J

285

SC

12

SC

14

F

319

E

313

F

189

L

101

0.35

br

T10p

/1

31

1.5

br

1.5

br

43

43

0.5

sw/bl

3

T10p

/9

15

0.35

rt/ws

T10p

/10

30

14a

6.0

rt

9

12

0.35

or/sw

22

*

T10p

/7

0.35

or/br

24

*

T10p

/8

0.35

ge/bl

T10p

/2

T20c

/16

0.35

gr

T10p

/5

58s

T32

/17

58s

T10r

/1

T10r

/2

T10r

/3

T10r

/4

T10r

/5

T10r

/6

T10r

/7

T10r

/8

T10r

/9

T10p

/10

T4r

/1

T4r

/2

T4r

/3

T4r

/4

14

12a

43

43

3

9

22

24

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

Selector lever sensors control unit, Selector lever lock

solenoid

E313 Selector lever

F189 Tiptronic switch

F319 Selector lever locked in position P switch

J285 Control unit in dash panel insert

J527 Steering column electronics control unit

J587 Selector lever sensors control unit

L101 Selector lever display illumination bulb

N110 Selector lever lock solenoid

SC12 Fuse 12 on fuse holder C

SC14 Fuse 14 on fuse holder C

T4r

4-pin connector

T10p 10-pin connector

T10r 10-pin connector

T20c 20-pin connector

T32 32-pin connector

Y26 Selector lever position display

44

Earth point, lower part of left A-pillar

384 Earth connection 19, in main wiring harness

*

Data bus wire (CAN bus)

 Audi TT

Current Flow Diagram

No.  59 / 5

 04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

Energy recovery

From June 2010

 Audi TT

Current Flow Diagram

No.  60 / 1

 04.2010

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

8J0-060020410

N

253

*

A

J

367

40

J

104

B301

*2

B299

*2

J

234

P2

U

6

*3

P4

*3

B

M

J

682

*2

SD

1

SD

2

SD

3

A1

B+

-

B1

0.5

rt/vi

T2au

/2

B1

50.0

sw

A1

4.0

rt/gn

C1

T47

/1

16.0

rt

D1

16.0

rt

E1

0.5

br

T2b

/1

T75

/28

0.5

ge

T2b

/2

T75

/27

70.0

sw

F1

35.0

sw

30

4.0

rt

50

35.0

sw

35.0

sw

18

0.35

vi/ws

21

T2au

/1

18

21

ws = white

sw = black

ro

= red

br

= brown

gn

= green

bl

= blue

gr

= grey

li

= purple

ge

= yellow

or

= orange

rs

= pink

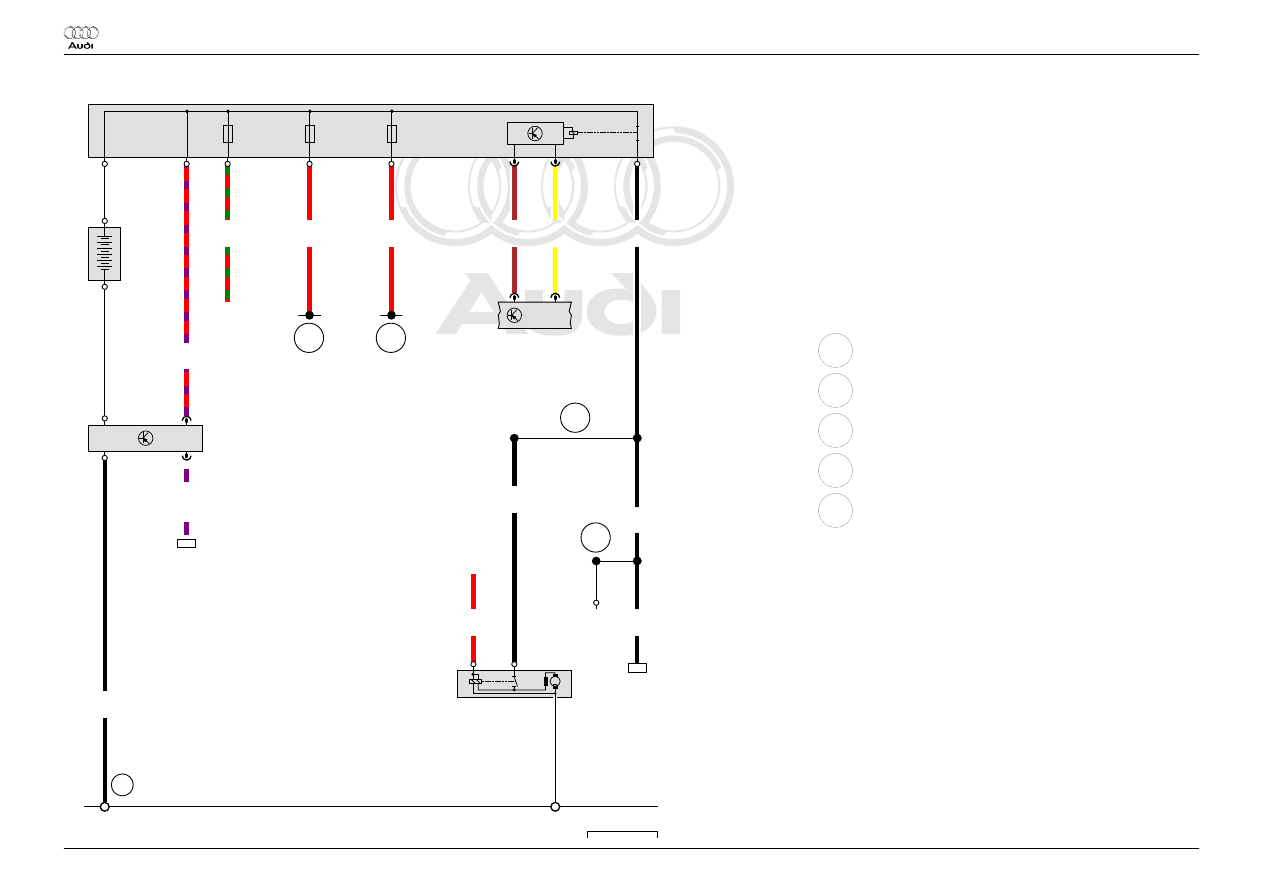

Battery, Starter, Battery monitor control unit, Battery

isolation igniter

A

Battery

B

Starter

J104 ABS control unit

J234 Airbag control unit

J367 Battery monitor control unit

J682 Terminal 50 voltage supply relay

N253 Battery isolation igniter

SD1 Fuse 1 on fuse holder D

SD2 Fuse 2 on fuse holder D

SD3 Fuse 3 on fuse holder D

T2au 2-pin connector

T2b 2-pin connector

T47 47-pin connector

T75 75-pin connector

U6

Jump start socket

40

Earth point, under rear right seat

B299 Positive connection 3 (30), in main wiring harness

B301 Positive connection 5 (30), in main wiring harness

P2

Positive connection (30), in battery wiring harness

P4

Positive connection 2 (30) in battery wiring harness

*

Main fuse box, on battery on rear right in luggage compartment

*2

see applicable current flow diagram for basic equipment

*3

Only models with jump start socket

 Audi TT

Current Flow Diagram

No.  60 / 2

 04.2010
