Procedure

Note

♦

If the valve has to be renewed as part of a repair, use a new

valve for the measurement.

♦

Only insert inlet valve into inlet guide and exhaust valve into

exhaust guide, as the stem diameters are different.

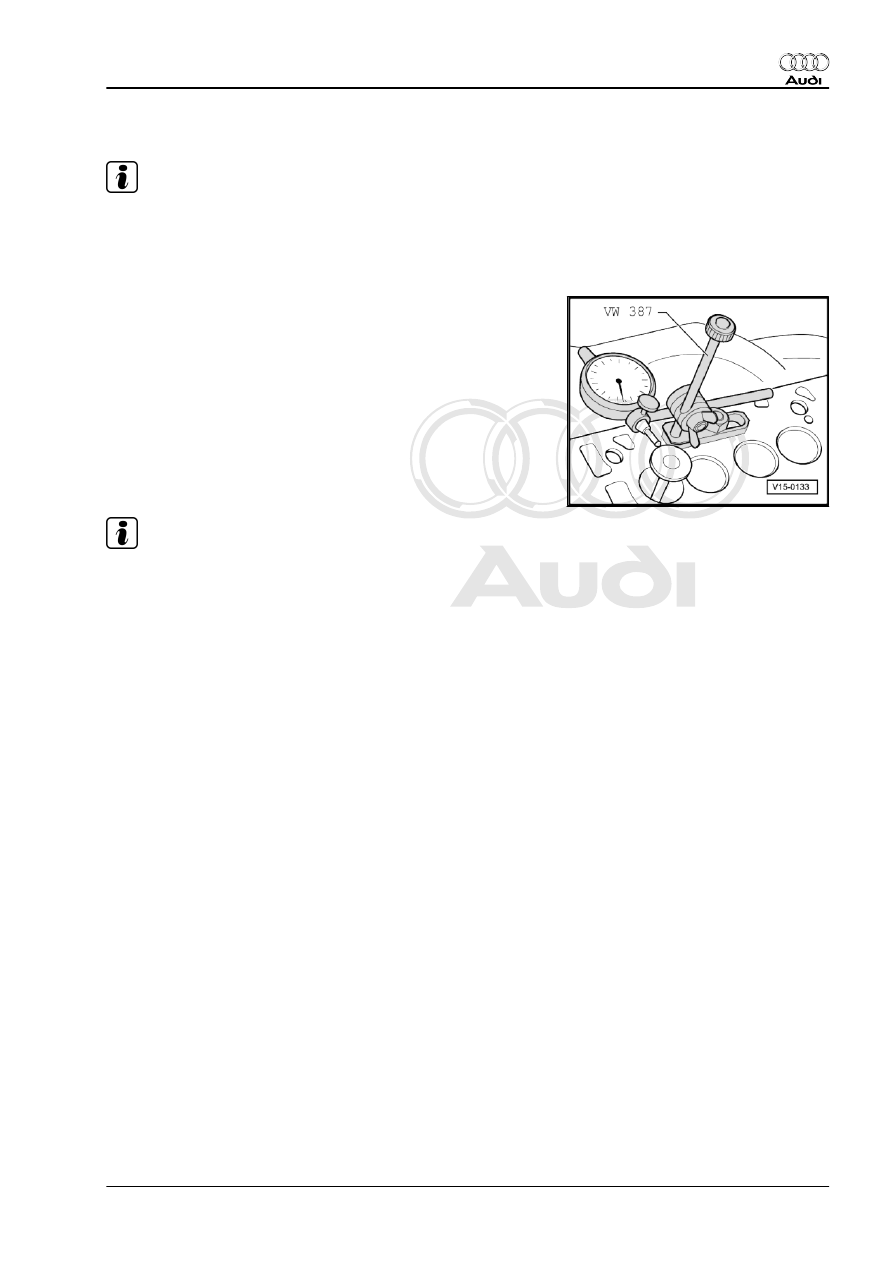

– Attach dial gauge -VAS 6079- with dial gauge bracket -

VW 387- to cylinder head.

– Insert valve into guide.
• End of valve stem must be flush with guide.
– Measure the amount of sideways play.
• Wear limit: 1.0 mm.
– If the wear limit is exceeded, repeat the measurement with

new valves.

– Renew cylinder head if wear limit is still exceeded.

Note

Valve guides cannot be renewed.

3.12

Checking valves

– Visually inspect for scoring on valve stems and valve seat sur‐

faces.

– Renew valve if scoring is clearly visible.

3. Valve gear

135

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

17 – Lubrication

1

Oil pump, sump, balance shaft as‐

sembly

Note

♦

If large quantities of metal shavings or abrasion are found

when performing engine repairs, this may be an indication of

damage to the crankshaft or conrod bearings. To prevent fur‐

ther damage, the following steps are required after completion

of repair work: clean the oil galleries carefully and renew the

oil spray jets, engine oil cooler and oil filter.

♦

Refer to ⇒  Maintenance tables for engine oil capacity, oil

specifications and viscosity grades.

♦

Oil spray jet and pressure relief valve

⇒ page 80

1.1

Oil pump, sump, balance shaft assembly - exploded view

1 - Sump

❑ Removing and installing

⇒ page 139

2 - Bolt

❑ 20 Nm

3 - Suction pipe

❑ Clean strainer if dirty

4 - Bolt

❑ 9 Nm

5 - O-ring

❑ Renew

6 - Oil pump

❑ Removing and installing

⇒ page 144

❑ Before installing, check

that the two dowel

sleeves for centring oil

pump are fitted onto bal‐

ance shaft assembly

7 - Oil pump drive shaft
8 - Circlip

❑ Must fit securely in

groove

❑ Renew circlip if dam‐

aged or stretched

9 - Spur gear for balance shaft
10 - Bolt

❑ Renew
❑ 20 Nm + 90°

11 - Hub

❑ For idler gear

136

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

❑ Renew

12 - Bolt

❑ Renew
❑ 90 Nm + 90°

13 - Thrust washer

❑ For idler gear
❑ Renew

14 - Idler gear

❑ Renew
❑ To achieve the correct backlash a coating is already applied to the new idler gear. The coating is worn

down rapidly and the backlash is then correct

❑ On idler gears with coating applied to teeth on parts of circumference only, a white dot indicates correct

installation position

❑ If there is no white dot, the complete circumference of the idler gear is coated
❑ Installation position: Part No. must be visible.
❑ Make sure thrust washer is properly seated

⇒ page 138

15 - Thrust washer

❑ For idler gear
❑ Renew
❑ Installation position

⇒ page 138

❑ When installing idler gear, apply grease to hold washer on balance shaft assembly

16 - Crankshaft gear
17 - Balance shaft assembly

❑ Removing

⇒ page 144

❑ Re-installing "old" balance shaft assembly

⇒ page 149

❑ Installing new balance shaft assembly

⇒ page 146

❑ Before installing, check that the two dowel sleeves for centring balance shaft assembly are fitted on

cylinder block

18 - Bolt

❑ Renew
❑ Tightening torque and sequence

⇒ page 139

19 - Bolt

❑ 9 Nm

20 - Oil intake pipe
21 - Bolt

❑ 9 Nm

22 - Seal

❑ Renew

23 - Oil level and oil temperature sender -G266-

❑ Removing and installing

⇒ page 139

24 - Bolt

❑ Self-locking
❑ Renew
❑ 9 Nm

25 - Bolt

❑ Tightening torque and sequence

⇒ page 138

26 - Seal

❑ Renew

1. Oil pump, sump, balance shaft assembly

137

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

27 - Oil drain plug

❑ 30 Nm

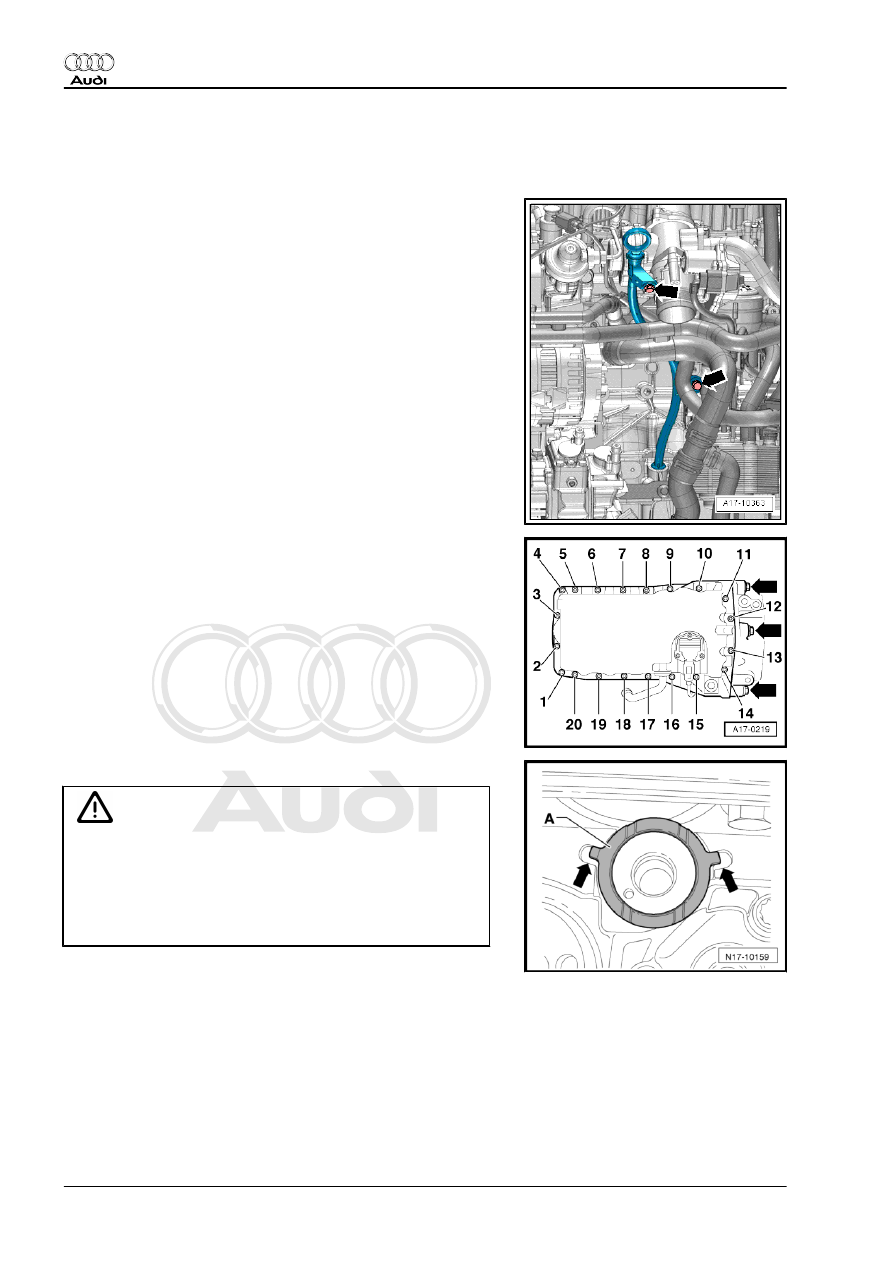

Guide tube for oil dipstick - tightening torque
– Tighten bolts -arrows- to 9 Nm.

Sump - tightening torque and sequence

– Renew bolts for sump.

– Tighten bolts in 3 stages and in diagonal sequence as follows:

1.

Pre-tighten bolts -1 ... 20- in diagonal sequence to 5 Nm.

2.

Tighten bolts -arrows- securing sump to gearbox to 40 Nm.

3.

Tighten bolts -1 ... 20- in diagonal sequence and in stages

to 15 Nm.

Installation position of thrust washer

Caution

Thrust washer can slip out of position behind idler gear.

♦ Make sure that thrust washer -A- does not slip out of the

recesses in the balance shaft assembly -arrows- when fit‐

ting the idler gear. If this is neglected, the thrust washer

can become trapped. If necessary, apply grease to hold

washer on balance shaft assembly.
