10 – Removing and installing engine

1

Removing engine

Special tools and workshop

equipment required

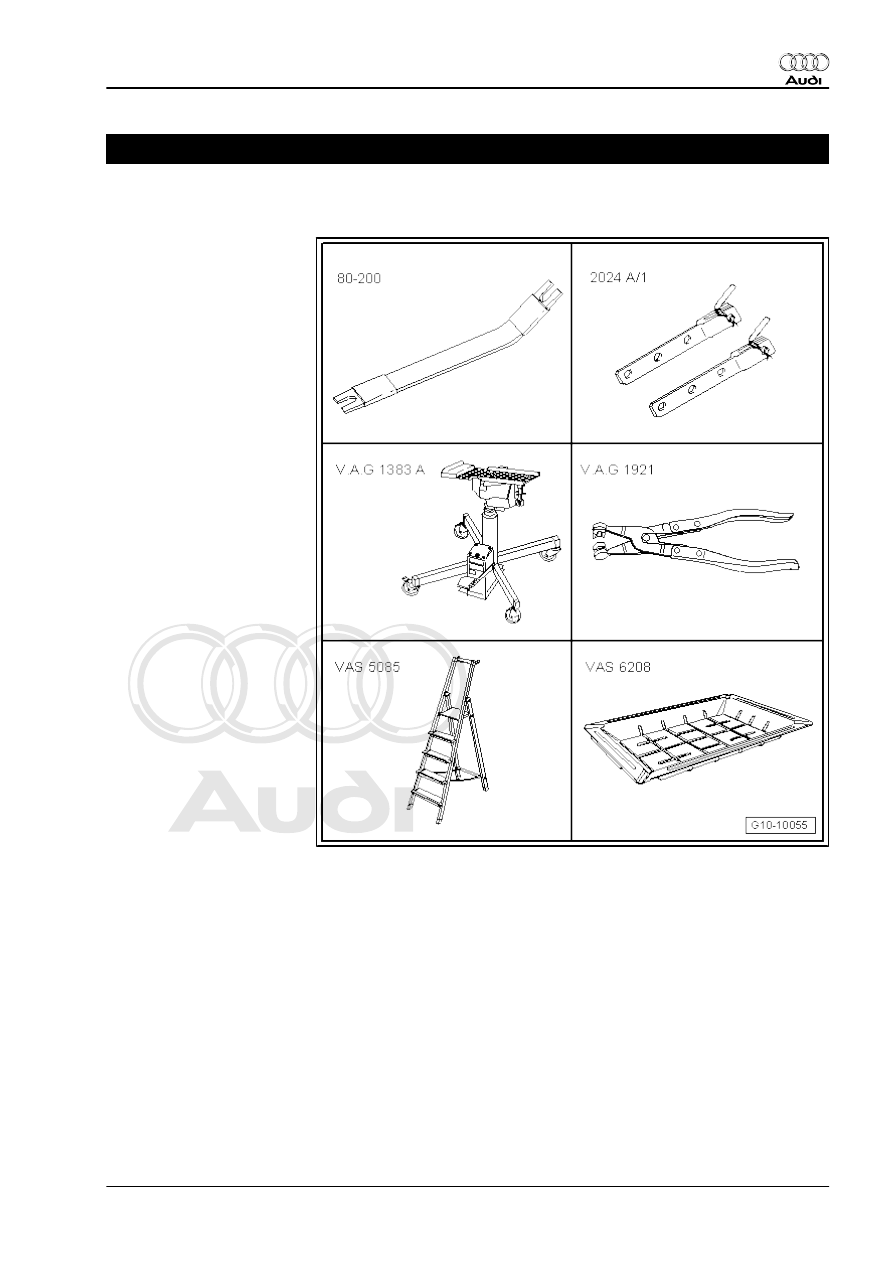

♦ Removal lever -80 - 200-
♦ Extension -2024 A /1-
♦ Engine and gearbox jack -

V.A.G 1383 A-

♦ Hose clip pliers -

V.A.G 1921-

♦ Stepladder -VAS 5085-
♦ Drip tray for workshop hoist

-VAS 6208-

1. Removing engine

7

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

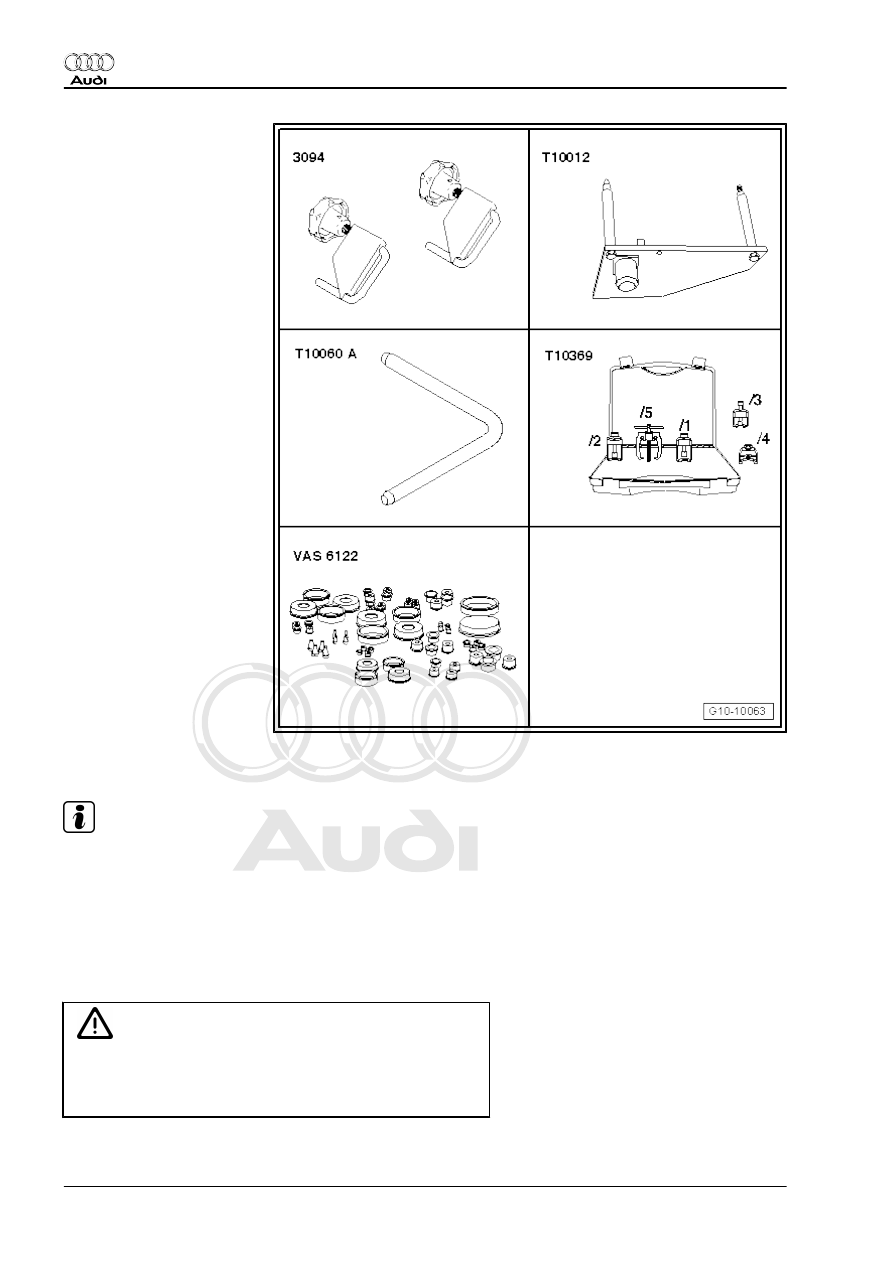

♦ Hose clamps for hoses up

to 25 mm -3094-

♦ Engine bracket -T10012-
♦ Locking pin -T10060 A-
♦ Puller -T10369-
♦ Engine bung set -VAS

6122-

♦ Safety goggles
♦ Protective gloves

Procedure

Note

♦

The engine is removed from underneath together with the

gearbox.

♦

Collect drained coolant in a clean container for re-use or dis‐

posal.

♦

Fit cable ties in the original positions when installing.

♦

Fit heat insulation sleeves in the original positions when in‐

stalling.

Caution

To prevent damage to the electronic components when dis‐

connecting the battery:

♦ Observe notes on procedure for disconnecting the battery.

8

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

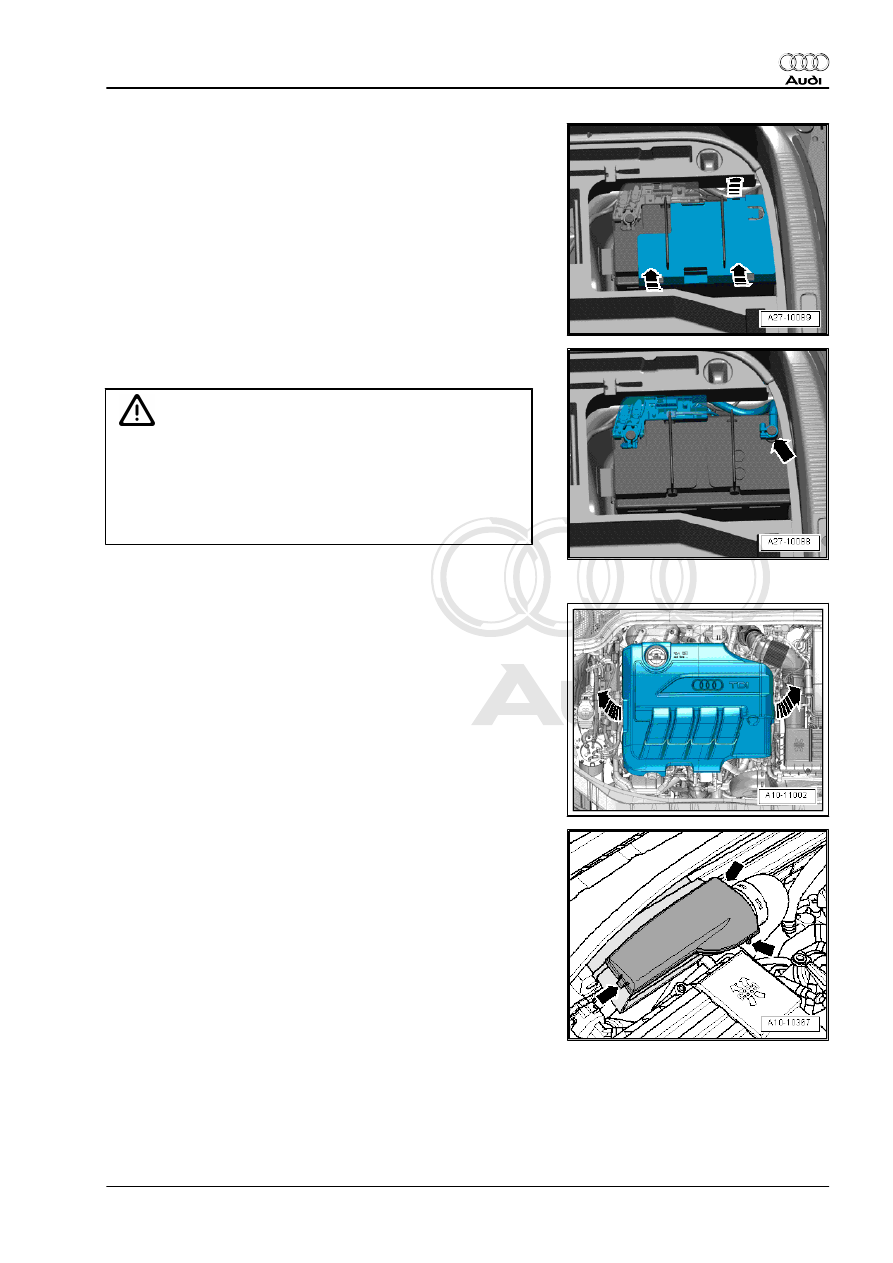

– Take out luggage compartment floor covering.
– Take out luggage compartment floor mat.
– Remove rear cross panel trim if cover for negative battery ter‐

minal is located behind rear cross panel trim ⇒  Rep. Gr.  70 .

– Release retaining clips -arrows- and detach cover for negative

terminal.

– Loosen nut a few turns and disconnect battery clamp on earth

wire -arrow- from battery terminal.

WARNING

Hot steam/hot coolant can escape - risk of scalding.

♦ The cooling system is under pressure when the engine is

hot.

♦ To allow pressure to dissipate, cover filler cap on coolant

expansion tank with cloth and open carefully.

– Open filler cap on coolant expansion tank.

– Remove engine cover panel -arrows-.

– Pull cover off air duct (release clips on sides) -arrows-.

1. Removing engine

9

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

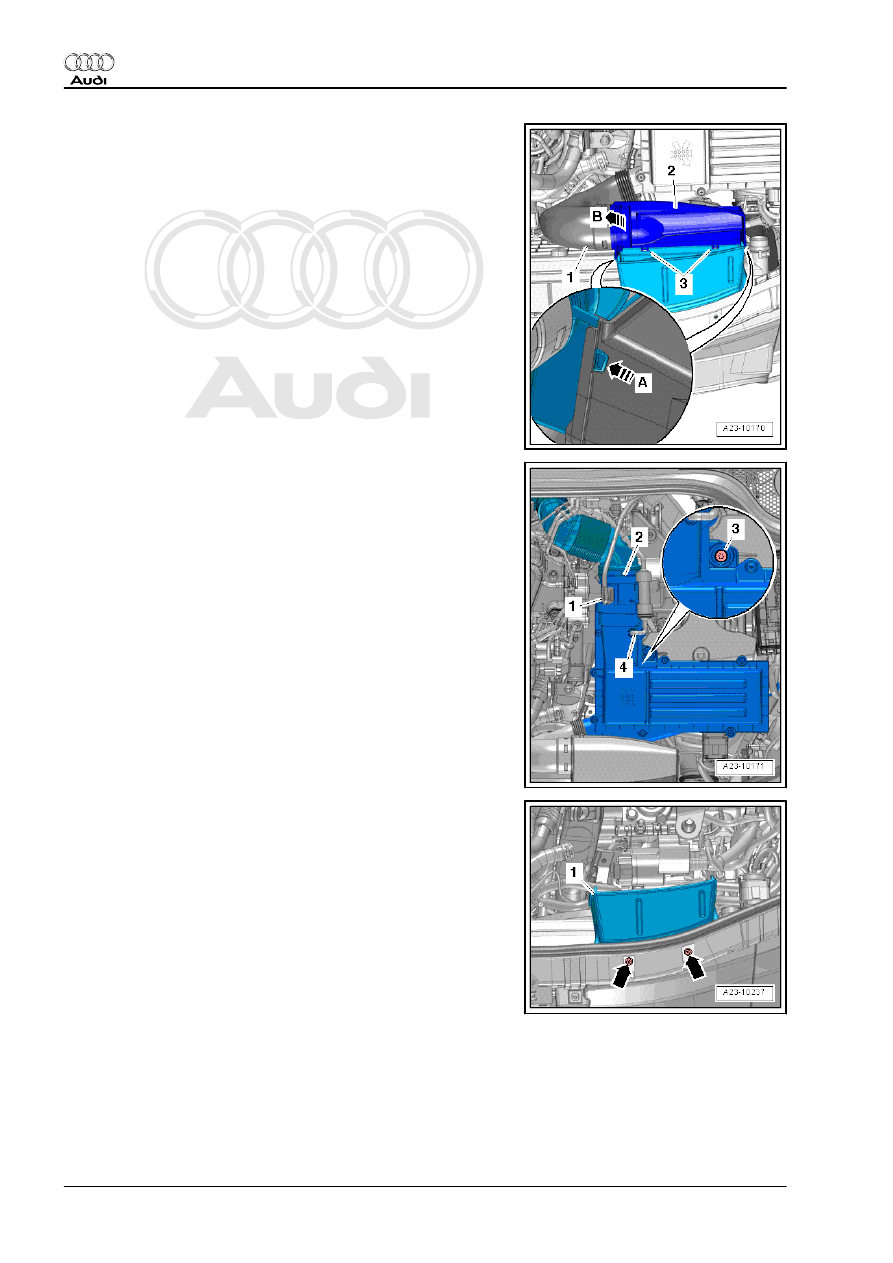

– Release clips on left and right -arrow A- and unclip air duct at

bottom -2-.

– Swivel air duct (bottom) slightly to the rear and detach air duct

(bottom) from retainers -3-.

– Detach air pipe -1- from air duct (bottom) -arrow B-.

– Unplug electrical connector -1- from air mass meter -G70- .
– Detach hose -4-.
– Release hose clip -2- and detach air hose.
– Unscrew bolt -3- and remove air cleaner housing.

– Remove bolts -arrows- and detach air duct -1- from lock car‐

rier.
