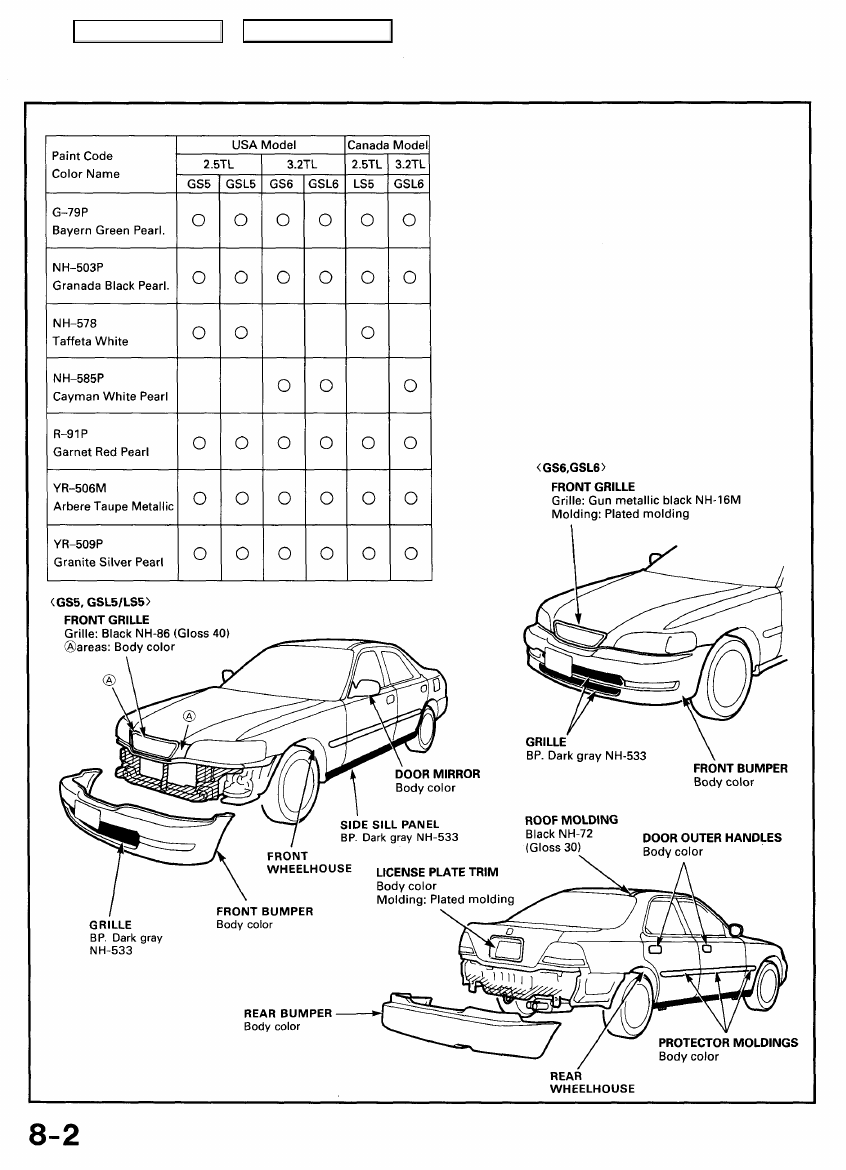

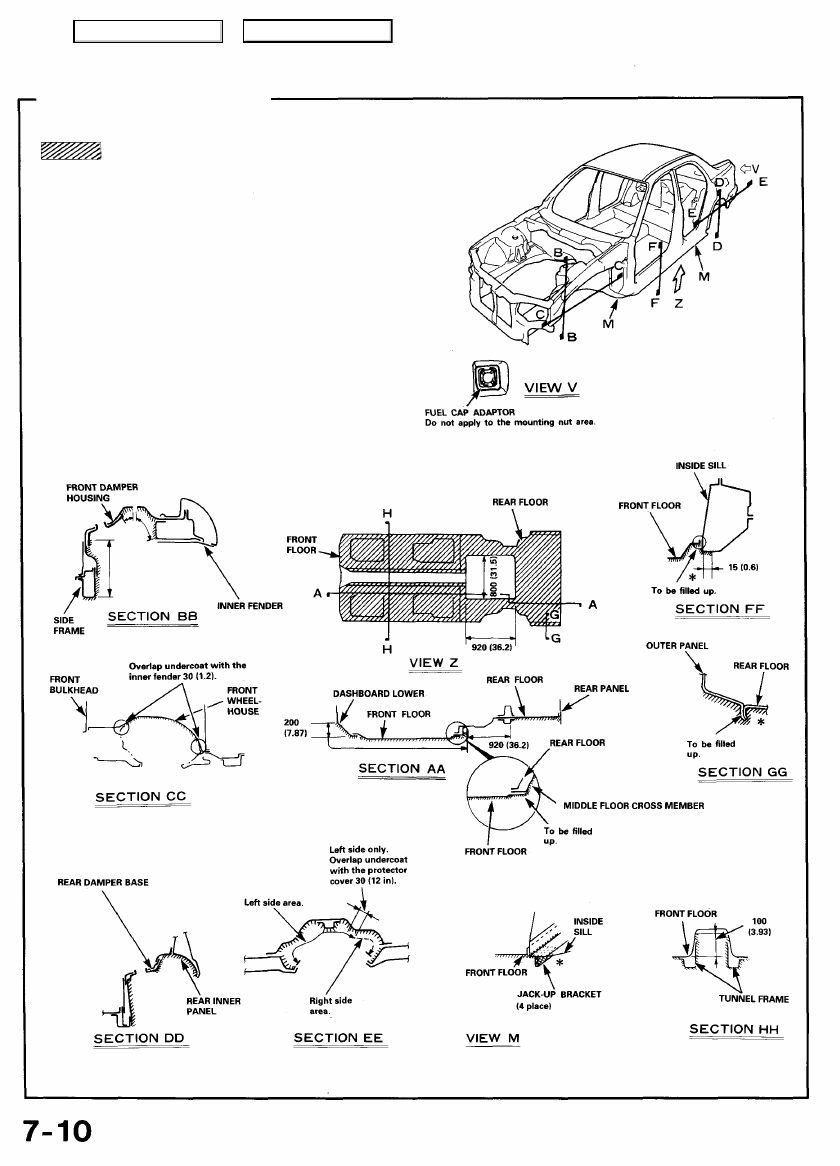

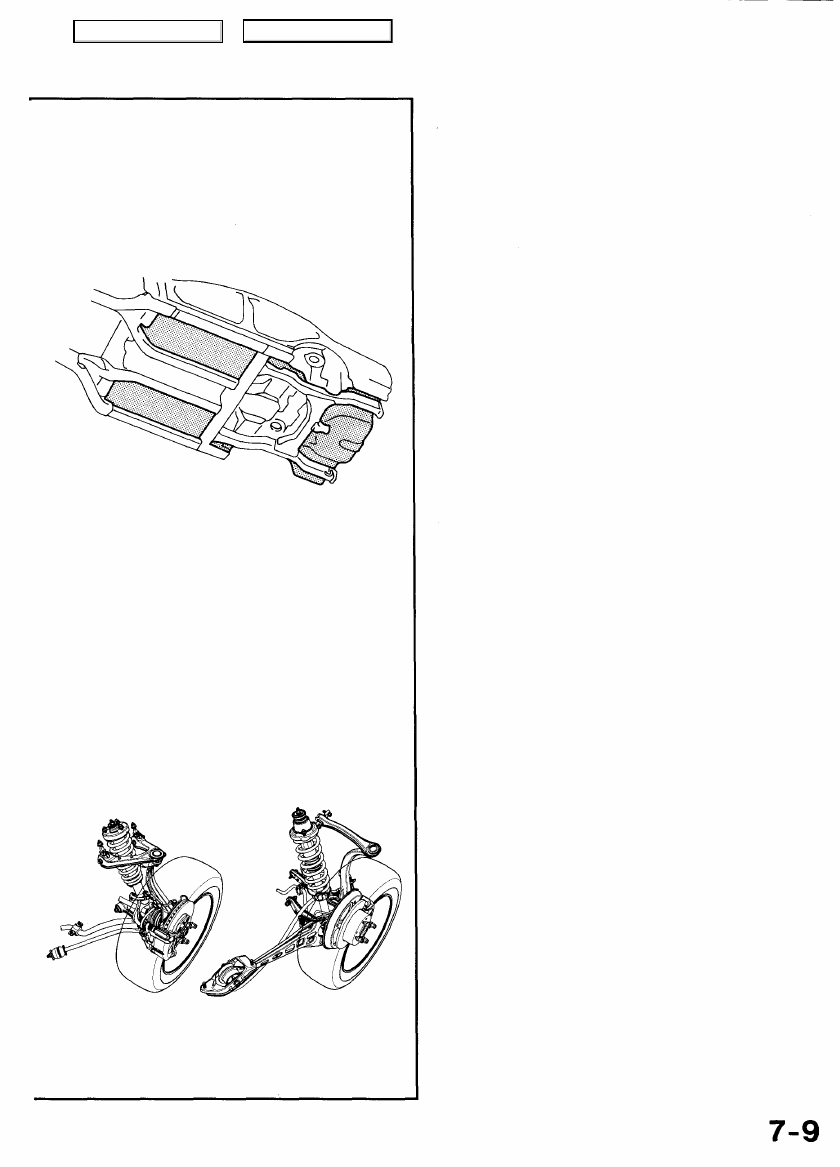

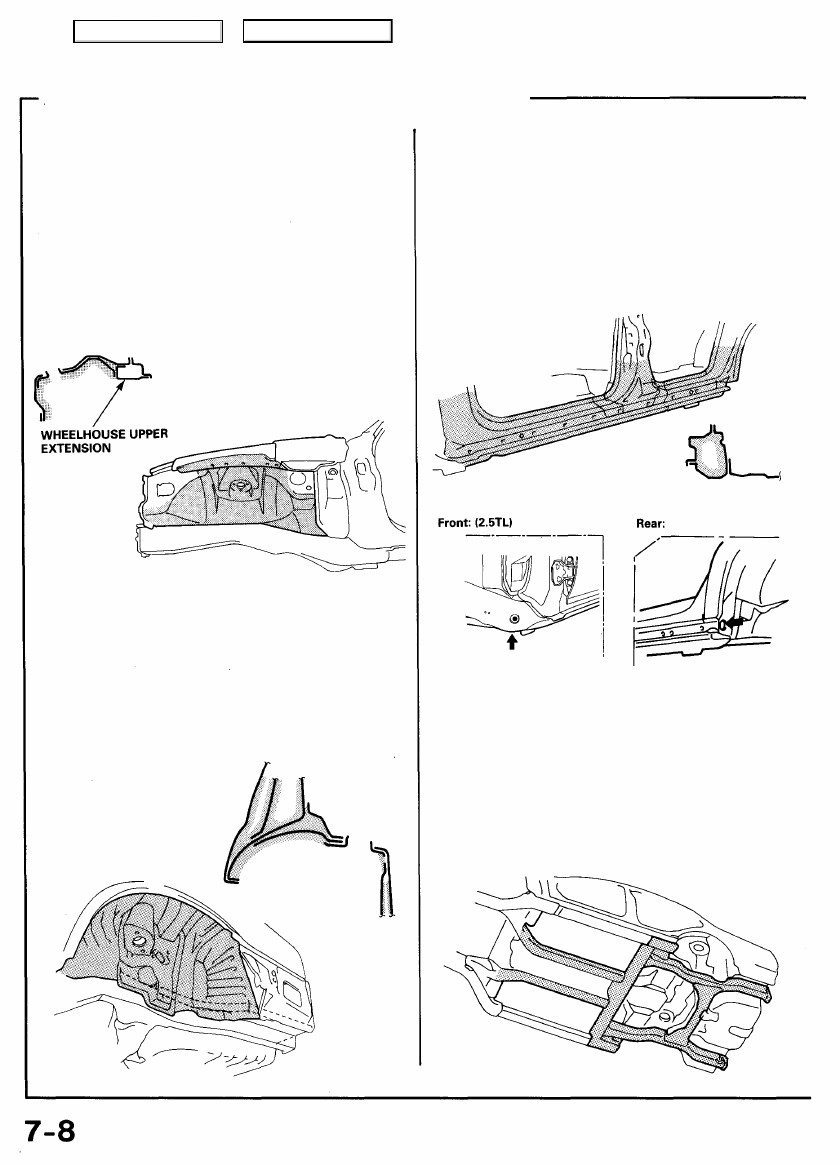

Areas to be Covered by Anti-rust Agents (cont'd) Rust-preventive Treatments Front Wheelhouse • Spray agent on the wheelhouse, front fender stay, upper member and damper bracket as shown. • Undercoat the wheelhouse where anti-rust agent or undercoat has not yet been applied. NOTE: • Coat the wheelhouse extension, particularly the upper face. • Undercoat the inner fender mounting area of the wheelhouse and upper face of the inner fender Nozzles used: A and C Side Sill, Inside • Remove the front and rear grommets and side sill panel to spray agent. • Insert the nozzle all the way through the grommet holes and spray. Move the nozzle right and left, and up and down while NOTE: Spray agent until it drips from the drain hole. Nozzles used: A and B Rear Wheelhouse • Coat the gaps between the inner and outer wheelhouses, including the damper base. • Apply agent to the edge of the rear side frame, side sill and rear floor. • Undercoat the wheelhouse where undercoat or anti-rust agent has not yet been applied. Nozzles used: B and C Under-Floor Member/Floor Frame, Inside • To spray agent to the inside of the under floor member, insert the nozzle in the holes in the members. • Also coat the under-floor, side sill, and front and rear wheelhouses at the ends. Nozzle used: A Main Menu Table of Contents |
