Five-step Troubleshooting
Wire Color Codes
22-6

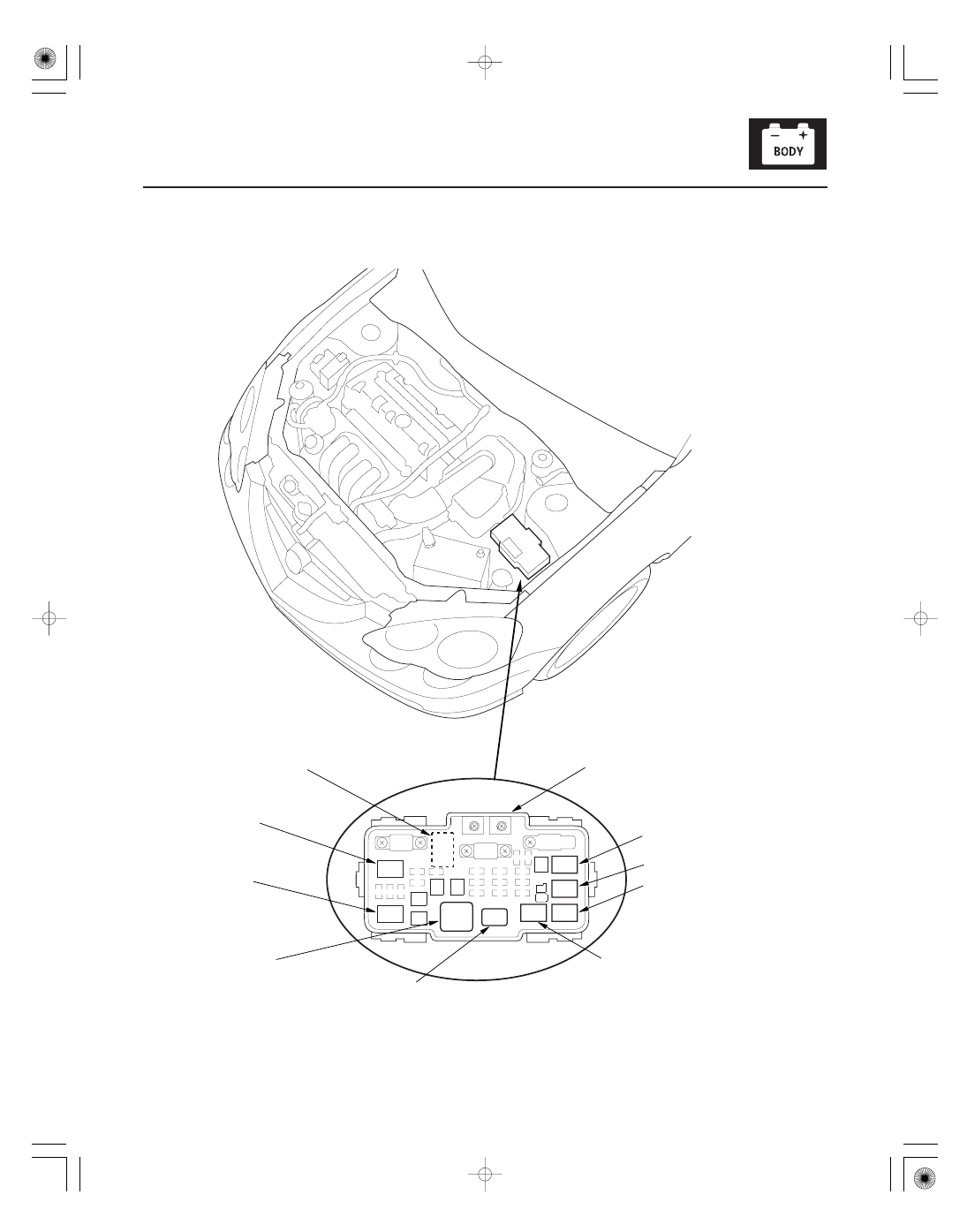

Body Electrical
General Troubleshooting Information (cont’d)
WHT/BLK
1. Verify The Complaint
Turn on all the components in the problem circuit
to verify the customer complaint. Note the
symptoms. Do not begin disassembly or testing
until you have narrowed down the problem area.
2. Analyze The Schematic
Look up the schematic for the problem circuit.
Determine how the circuit is supposed to work by
tracing the current paths from the power feed
through the circuit components to ground. If
several circuits fail at the same time, the fuse or
ground is a likely cause.
Based on the symptoms and your understanding of
the circuit operation, identify one or more possible
causes of the problem.
3. Isolate The Problem By Testing The Circuit
Make circuit tests to check the diagnosis you made
in step 2. Keep in mind that a logical, simple
procedure is the key to efficient troubleshooting.
Test for the most likely cause of failure first. Try to
make tests at points that are easily accessible.
4. Fix The Problem
Once the specific problem is identified, make the
repair. Be sure to use proper tools and safe
procedures.
5. Make Sure The Circuit Works
Turn on all components in the repaired circuit in all
modes to make sure you’ve fixed the entire
problem. If the problem was a blown fuse, be sure
to test all of the circuits on the fuse. Make sure no
new problems turn up and the original problem
does not recur.
The following abbreviations are used to identify wire
colors in the circuit schematics:
...................................
.....................................
.....................................
....................................
....................................
....................................
....................................
....................................
....................................
....................................
....................................
...............................
..............................
...................................
.....................................
.....................................
....................................
....................................
....................................
....................................
....................................
....................................
....................................
....................................
...............................
..............................
WHT
.
White
YEL
.
Yellow
BLK
.
Black
BLU
.
Blue
GRN
.
Green
RED
.
Red
ORN
.
Orange
PNK
.
Pink
BRN
.
Brown
GRY
.
Gray
PUR
.
Purple
LT BLU
.
Light Blue
LT GRN
.
Light Green
The wire insulation has one color or one color with
another color stripe. The second color is the stripe.
