Acura RSX Honda Integra. Manual - part 359





02

03

Service Check Signal (SCS) Circuit Method

19-33

A

Example of DTC 15

ON

OFF

Long blink

Short blinks
(five times)

ON

OFF

Example of DTC 22

Long blinks (two times)

Short blinks
(two times)

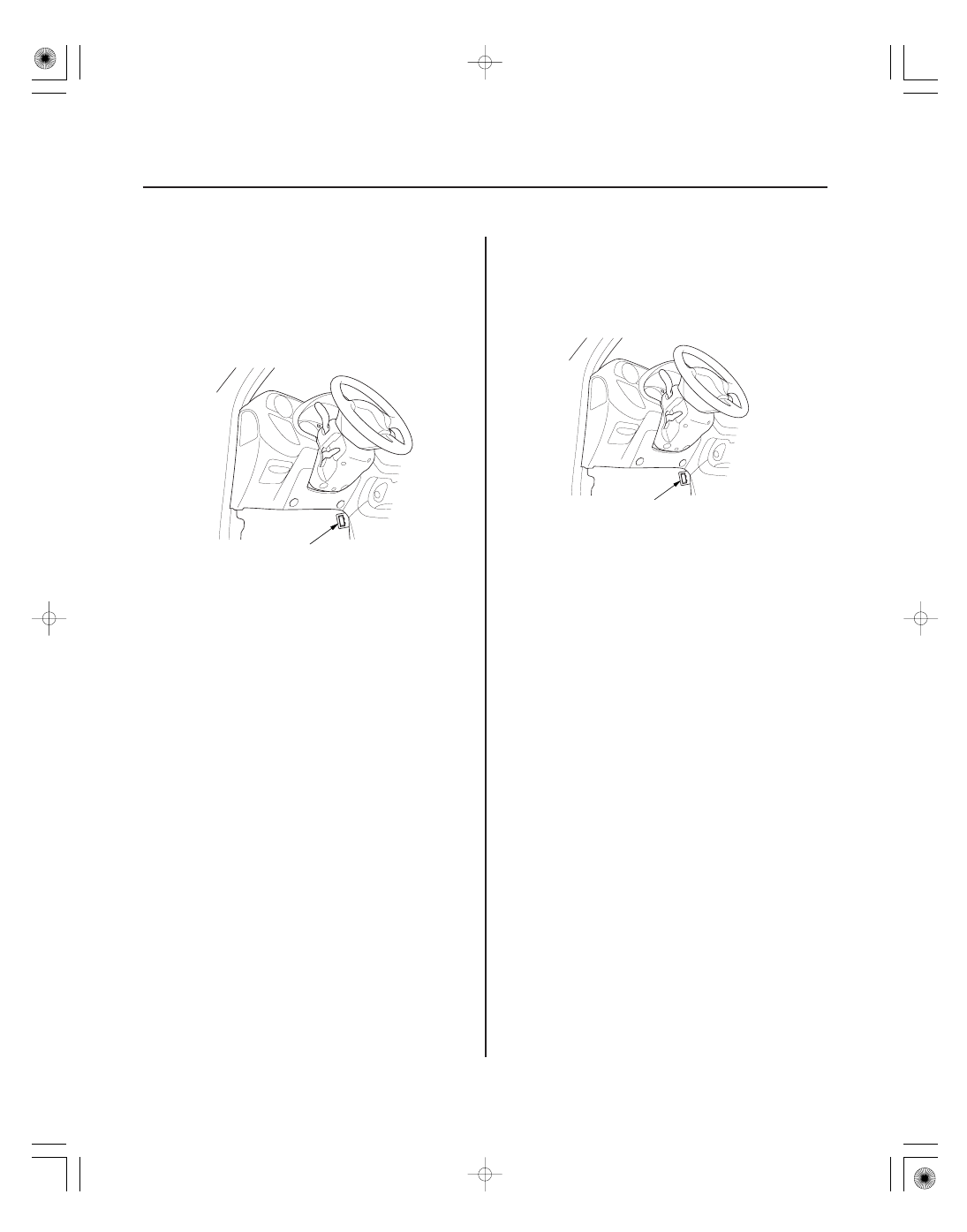

1. With the ignition switch OFF, connect the HDS to

the 16P data link connector (DLC) (A) under the
driver’s side of the dashboard next to the
accelerator pedal.

2. Short the SCS circuit to body ground using the HDS.

3. Turn the ignition switch ON (II) without the brake

pedal pressed.

NOTE: If the brake pedal is pressed when turning
the ignition switch ON (II), the system shifts to the
DTC clearing mode.

4. The blinking frequency indicates the DTC. DTCs are

indicated by a series of long and short blinks. One
long blink equals ten short blinks. Add the long and
short blinks together to determine the DTC. After
determining the DTC, refer to the DTC
Troubleshooting.

NOTE:

• If the DTC is not memorized, the ABS indicator

will go off for 3.6 seconds, and then come back
on.

• If the ABS indicator stays on, troubleshoot for

‘‘ABS indicator does not go off, and no DTCs are
stored’’ (see page 19-56).

The system will not indicate the DTC unless these
conditions are met:

• The brake pedal is not pressed.
• The ignition switch is turned ON (II).
• The SCS circuit is shorted to body ground before

the ignition switch is turned ON (II).

5. Turn the ignition switch OFF.

6. Disconnect the HDS from the DLC.

(cont’d)

05/06/27 18:19:53 61S6M040_190_0033

04

05

How to Clear DTCs

HDS Method

Service Check Signal (SCS) Circuit Method

19-34

ABS Components

General Troubleshooting Information (cont’d)

A

A

1. With the ignition switch OFF, connect the HDS to

the 16P data link connector (DLC) (A) under the
driver’s side of the dashboard next to the
accelerator pedal.

2. Turn the ignition switch ON (II), and clear the

DTC(s) by following the screen prompts on the HDS.

NOTE: See the HDS Help menu for specific
instructions.

1. With the ignition switch OFF, connect the HDS to

the 16P data link connector (DLC) (A) under the
driver’s side of the dashboard next to the
accelerator pedal.

2. Short the SCS circuit to body ground using the HDS.

3. Press the brake pedal.

4. Turn the ignition switch ON (II) while continuing to

press the brake pedal.

5. After the ABS indicator goes off, release the brake

pedal.

6. After the ABS indicator comes on, press the brake

pedal again.

7. After the ABS indicator goes off, release the brake

pedal.

You cannot clear the DTC unless these conditions
are met:

• The vehicle speed is 6 mph (10 km/h) or less.
• The SCS circuit is shorted to body ground before

the ignition switch is turned ON (II).

• The brake pedal is pressed before the ignition

switch is turned ON (II).

8. After a few seconds, the ABS indicator blinks twice

and the DTC is cleared. If the indicator does not
blink twice, repeat steps 1 thru 7. If the ABS
indicator stays on after it blinks twice, check the
DTC, because a problem was detected during initial
diagnosis before shifting to DTC clearing mode.

9. Turn the ignition switch OFF.

10. Disconnect the HDS from the DLC.

05/06/27 18:19:53 61S6M040_190_0034

S6M6A06D10600000000GAAT10

DTC

Detection Item

Note

19-35

DTC Troubleshooting Index

11

Right-front wheel sensor (open/short to body ground/short to power)

(see page 19-47)

12

Right-front wheel sensor (electrical noise/intermittent interruption)

(see page 19-48)

13

Left-front wheel sensor (open/short to body ground/short to power)

(see page 19-47)

14

Left-front wheel sensor (electrical noise/intermittent interruption)

(see page 19-48)

15

Right-rear wheel sensor (open/short to body ground/short to power)

(see page 19-47)

16

Right-rear wheel sensor (electrical noise/intermittent interruption)

(see page 19-48)

17

Left-rear wheel sensor (open/short to body ground/short to power)

(see page 19-47)

18

Left-rear wheel sensor (electrical noise/intermittent interruption)

(see page 19-48)

21

Right-front pulser

(see page 19-50)

22

Left-front pulser

(see page 19-50)

23

Right-rear pulser

(see page 19-50)

24

Left-rear pulser

(see page 19-50)

31

ABS solenoid

(see page 19-50)

32

ABS solenoid

(see page 19-50)

33

ABS solenoid

(see page 19-50)

34

ABS solenoid

(see page 19-50)

35

ABS solenoid

(see page 19-50)

36

ABS solenoid

(see page 19-50)

37

ABS solenoid

(see page 19-50)

38

ABS solenoid

(see page 19-50)

41

Right-front wheel lock

(see page 19-51)

42

Left-front wheel lock

(see page 19-51)

43

Right-rear wheel lock

(see page 19-51)

44

Left-rear wheel lock

(see page 19-51)

51

Motor lock

(see page 19-51)

52

Motor stuck OFF

(see page 19-52)

53

Motor stuck ON

(see page 19-52)

54

ABS fail-safe relay

(see page 19-53)

61

Low FSR

B voltage

(see page 19-53)

62

High FSR

B voltage

(see page 19-53)

71

Different diameter tire

(see page 19-54)

81

Central processing unit (CPU) diagnosis, and ROM/RAM diagnosis

(see page 19-54)

05/06/27 18:19:54 61S6M040_190_0035

S6M6A06D10600000000HBAT01

Symptom

Diagnostic procedure

19-36

ABS Components

Symptom Troubleshooting Index

ABS indicator does not come on

Symptom Troubleshooting (see page 19-55)

ABS indicator does not go off, and no DTCs are stored

Symptom Troubleshooting (see page 19-56)

05/06/27 18:19:54 61S6M040_190_0036
