Acura RSX Honda Integra. Manual - part 68





*01

S6M6A00A18400025501KDAT00

9-14

Intake Manifold and Exhaust System

Exhaust Manifold Removal and Installation

GASKET

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

COVER

EXHAUST MANIFOLD
BRACKET
(K20A3 engine)

WASHER

10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)

10 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

SELF-LOCKING NUT
10 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

EXHAUST
MANIFOLD

EXHAUST MANIFOLD BRACKET
(K20A2, K20Z1 engines)

8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)

WASHER

10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)

FLEXIBLE JOINT
GASKET
2002-2004 models:

2005-2006 models:

1. Remove the rocker arm oil control solenoid (VTEC solenoid valve) (see page 11-324).

2. Remove the intermediate shaft cover (see step 36 on page 14-278).

3. Remove the cover and exhaust manifold bracket, then remove the exhaust manifold.

NOTE: With a 2005-2006 models, do not reuse the flexible joint gasket, when removing it. Check the flexible joint
gasket for damage. If the flexible joint gasket is damaged, replace the flexible joint gasket (see page 9-16).

4. Install the exhaust manifold and tighten the bolts/nuts in a crisscross pattern in two or three steps, beginning with

the inner bolt.

5. Install the other parts in the reverse order of removal.

Replace.

Replace.

Replace.

Replace.
Tighten the bolts in steps,
alternating side-to-side.

Replace.

Replace when
damaged or removed.

*01

S6M6A00A18400025601KBAT00

9-15

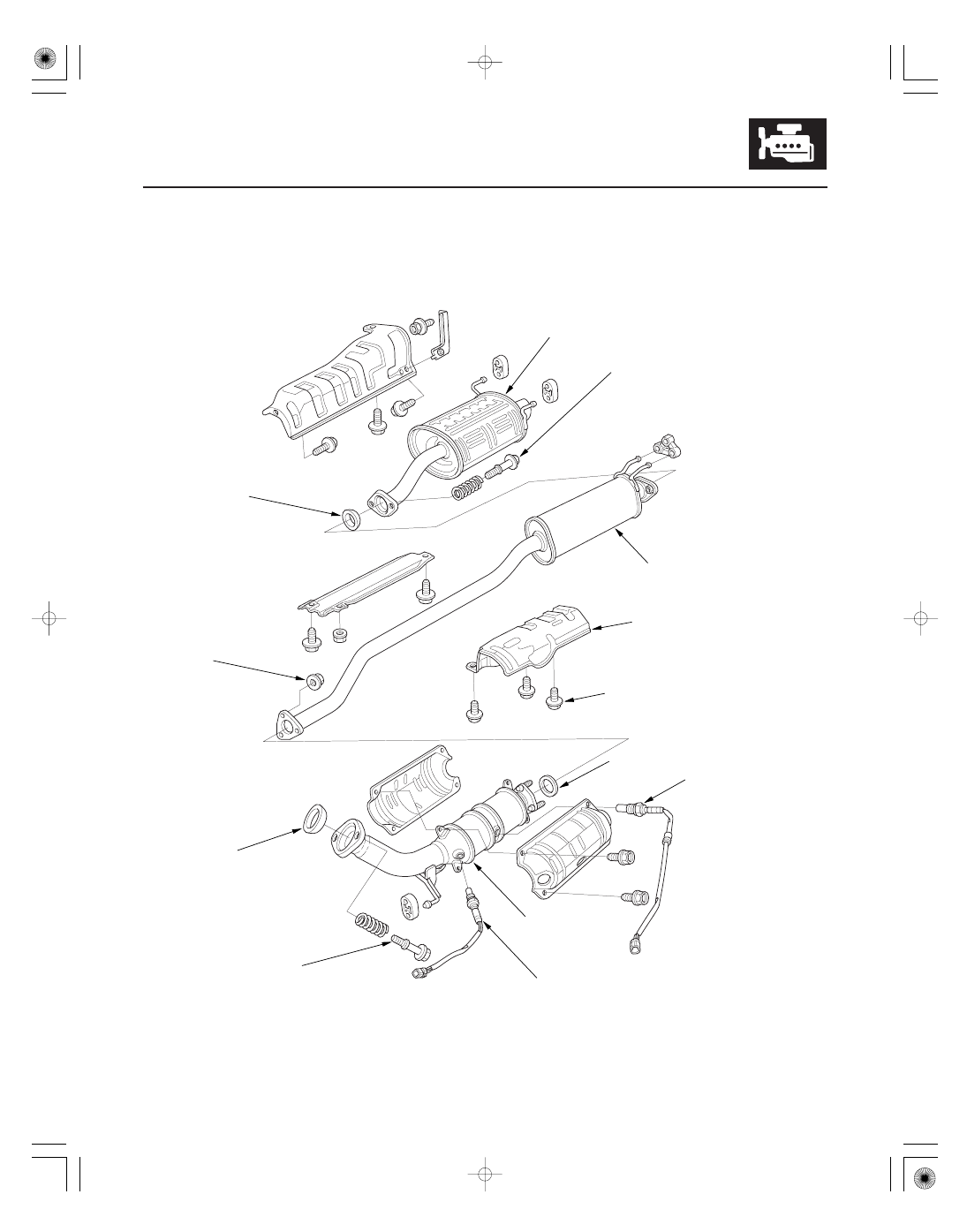

Exhaust Pipe and Muffler Replacement

HEAT SHIELD

SECONDARY HEATED
OXYGEN SENSOR
(SECONDARY HO2S)
44 N·m
(4.5 kgf·m, 33 lbf·ft)

MUFFLER

GASKET

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

THREE WAY CATALYTIC
CONVERTER (TWC)

AIR FUEL RATIO (A/F) SENSOR
44 N·m (4.5 kgf·m, 33 lbf·ft)

8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

EXHAUST PIPE B

8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

SELF-LOCKING NUT
10 x 1.25 mm
33 N·m
(3.4 kgf·m, 25 lbf·ft)

FLEXIBLE JOINT GASKET
2002-2004 models:

2005-2006 models:

GASKET

NOTE:

• Use new gaskets and self-locking nuts when reassembling.
• With a 2005-2006 models, do not reuse the flexible joint gasket, when removing it. Check the flexible joint gasket for

damage. If the flexible joint gasket is damaged, replace the flexible joint gasket (see page 9-16).

Replace.

Replace.
Tighten the bolts in steps,
alternating side-to-side.

Replace.
Tighten the bolts in steps,
alternating side-to-side.

Replace.

Replace.

Replace when
damaged or removed.

Replace.

01

S6M6AZHA18400027004KBAT00

2005-2006 Models

9-16

Intake Manifold and Exhaust System

Flexible Joint Gasket Replacement

B

A

1. Disconnect the air fuel ratio (A/F) sensor connector

and secondary heated oxygen sensor (secondary
HO2S) connector, then remove the three way
catalytic converter (TWC) assembly (see step 28 on
page 5-6).

2. Check the flexible joint gasket for damage. If the

flexible joint gasket is damaged, remove the
flexible joint gasket.

3. Using the wooden block (A) and plastic mallet (B),

gently tap in the new flexible joint gasket until the
gasket bottoms on the exhaust manifold flange.

NOTE:

• When installing the flexible joint gasket, flat side

is facing the exhaust manifold flange.

• Do not reuse the flexible joint gasket, when

removing it.

• Do not install the TWC to the exhaust manifold,

before flexible joint gasket is seated properly.

• Take care not to damage the sliding surface of

the flexible joint gasket.

4. Using the 0.05 mm (0.002 in.) feeler gauge, check

the flexible joint gasket properly seated on the
exhaust manifold flange.

5. Visually check the flexible joint gasket for damage,

if a damaged or loosen string is dedetected, replace
the flexible joint gasket.

6. Install the TWC assembly, then connect the A/F

sensor connector and secondary HO2S connector
(see step 20 on page 5-15).

S6M6A000000000J1001ZCAT00

Engine Cooling

Cooling System

Fan Controls

........................................

........................................................

................................................................

.............................................................

..........................................................

..............................................

..........................................

..............................................................

..................................................

...........................................

......................................

.........................................

..................................

........................................

........................................................

................................................................

.............................................................

..........................................................

..............................................

..........................................

..............................................................

..................................................

...........................................

......................................

.........................................

..................................

Component Location Index

. 10-2

Radiator Cap Test

. 10-3

Radiator Test

. 10-3

Fan Motor Test

. 10-4

Thermostat Test

. 10-4

Water Pump Inspection

. 10-5

Water Pump Replacement

. 10-5

Coolant Check

. 10-6

Coolant Replacement

. 10-6

Thermostat Replacement

. 10-8

Water Passage Replacement

. 10-9

Water Outlet Replacement

. 10-11

Radiator and Fan Replacement

. 10-12

........................................

..............................

............................................................

.......................

.........................................................................

.........................................................................

............................................

.............................

........................................

..............................

............................................................

.......................

.........................................................................

.........................................................................

............................................

.............................

Component Location Index

. 10-13

Symptom Troubleshooting Index

. 10-14

Circuit Diagram

. 10-15

Radiator Fan Circuit Troubleshooting

. 10-16

Radiator Fan Switch Circuit Troubleshooting

(Open)

. 10-18

Radiator Fan Switch Circuit Troubleshooting

(Short)

. 10-18

Radiator Fan Switch Test

. 10-19

Radiator Fan Switch Replacement

. 10-19
