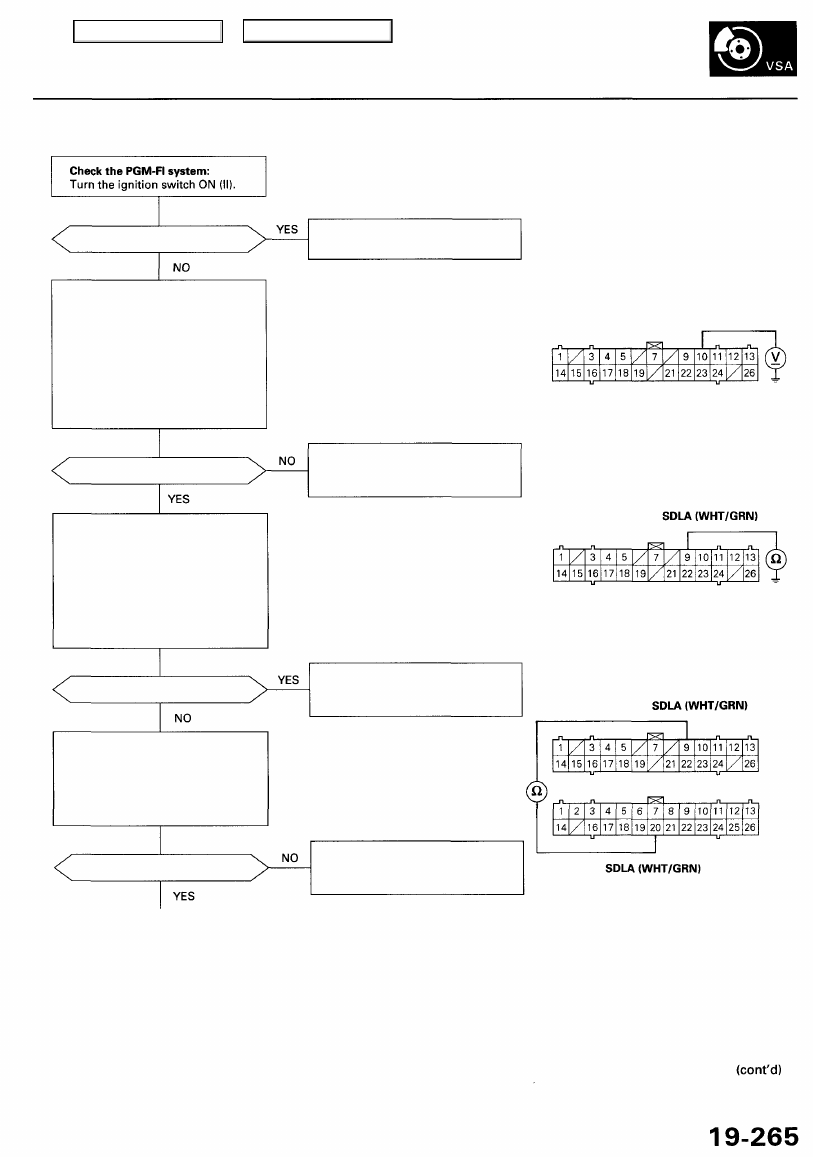

DTC 98: Different Model

Does the MIL stay ON?

Check for an open in the IG2 cir-
cuit:

1. Turn the ignition switch OFF.

2. Disconnect the VSA converter

unit 26P connector.

3. Turn the ignition switch ON (II).
4. Measure the voltage between

the VSA converter unit 26P
connector terminal No. 10
and body ground.

Is there battery voltage?

Check for a short to body ground
in the SDLA circuit:

1. Turn the ignition switch OFF.

2. Disconnect the PCM connector

E (26P).

3. Check for continuity between

the VSA converter unit 26P
connector terminal No. 9 and

body ground.

Is there continuity?

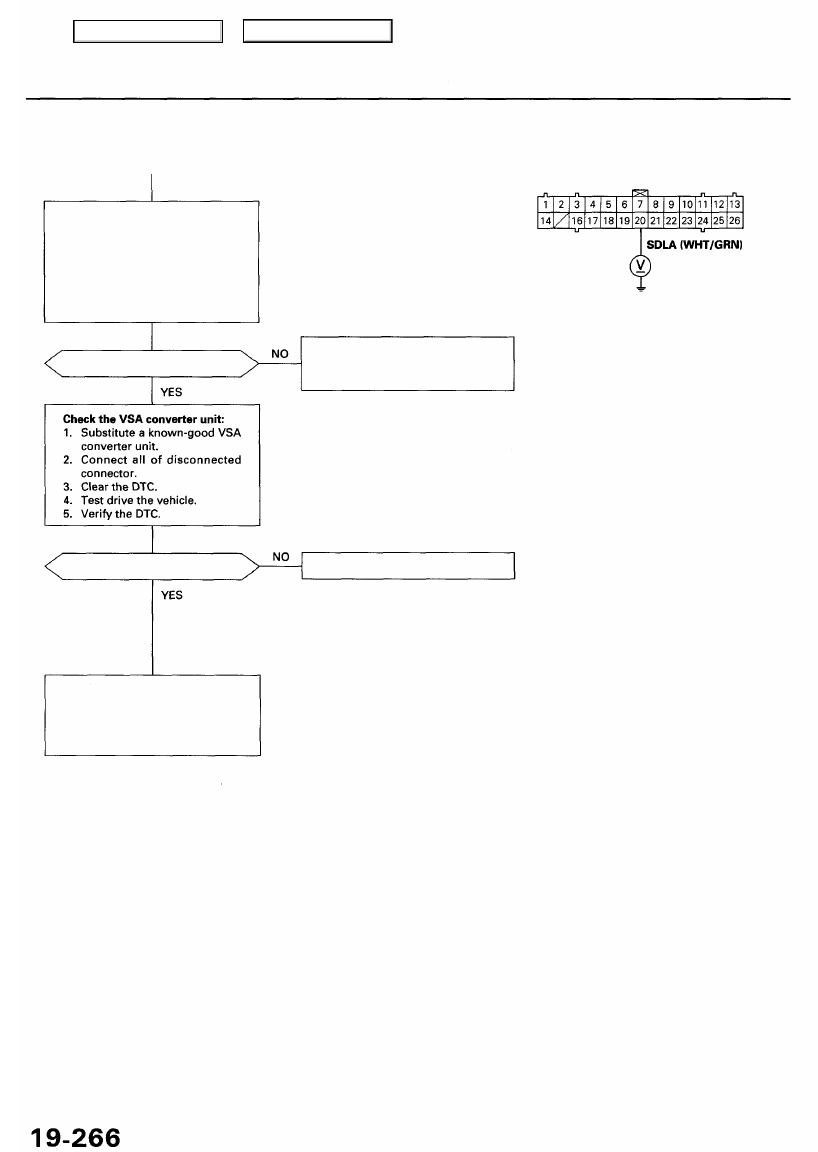

Check for an open in the SDLA
circuit:
Check for continuity between the
VSA converter unit 26P connector
terminal No. 9 and the PCM con-
nector E (26P) terminal No. 20.

Is there continuity?

(To page

19-266

)

Preform the troubleshooting for

the PGM-FI system.

VSA CONVERTER UNIT 26P CONNECTOR

IG2 (YEL/BLK)

Wire side of female terminals

Repair open in the wire between

the under-dash fuse/relay box

and the VSA converter unit.

Repair short to body ground in
the wire between the PCM and
the VSA converter unit.

PCM CONNECTOR E (26P)

Repair open in the wire between

the PCM and the VSA converter

unit.

Wire side of female terminals

Main Menu

Table of Contents

Troubleshooting

DTC 98: Different Model (cont'd)

(From page

19-265

)

PCM CONNECTOR E (26P)

Check the PCM:

1. Connect the PCM connector E

(26P).

2. Turn the ignition switch ON (II).
3. Measure the voltage between

the PCM connector E (26P)
terminal No. 20 and body
ground.

Wire side of female terminals

Is there about 10V?

Replace the PCM. (The PCM is
not for this vehicle model, or
PCM failure.)

Is DTC 98 indicated?

Replace the VSA converter unit.

Check for loose terminals of the
VSA control unit connector. If

necessary, substitute a known-
good VSA modulator-control
unit and recheck.

Main Menu

Table of Contents

Steering Angle Sensor

Replacement

CAUTION: Do not damage or drop the steering angle sensor as it is sensitive.

1. Remove the combination switch (see

section 17

).

2. Remove the circlip and screw, then remove the steering angle sensor from the combination switch.

3. Install in the reverse order of removal.

CAUTION: Do not apply any grease or oil to the steering angle sensor.

4. Perform the steering angle sensor neutral position memorizing procedure (see page

19-268

).

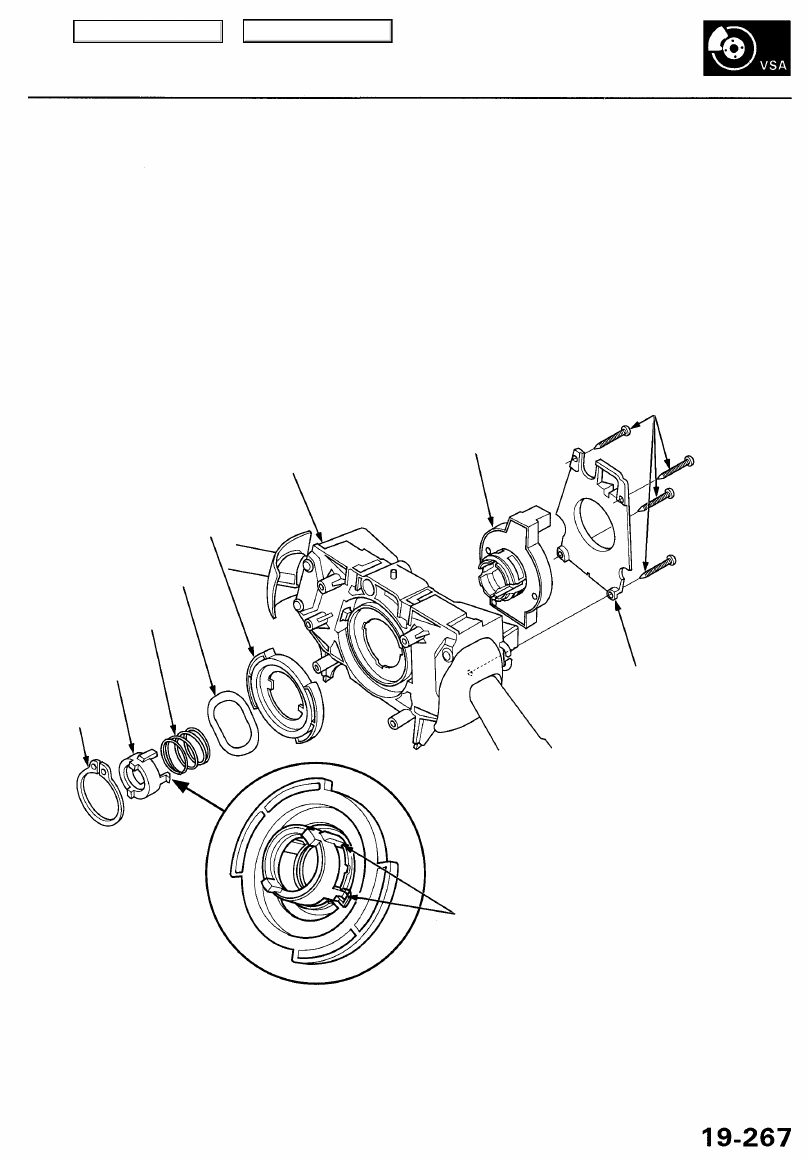

SCREWS

STEERING ANGLE SENSOR

COMBINATION SWITCH

CANCEL CAM

WAVE WASHER

SPRING

JOINT

LOWER COVER

CIRCLIP

NOTE: When reassembling, align the tabs of the joint and

cancel cam to the slit of the steering angle sensor.

Main Menu

Table of Contents

Steering Angle Sensor

Neutral Position Check and Memorizing

Check

1. Connect the SCS service connector to the service check connector (2P) under the glove box.

2. Turn the ignition switch ON (II). The VSA activation indicator comes on then goes off.

3. Press the VSA off switch one time before the VSA activation indicator comes on again.

4. Check that the VSA activation indicator comes on when the steering wheel is in the straight ahead position (neutral

position), and the indicator goes off when the steering wheel turns to the right or left more than 2.5 degrees.

5. If the VSA activation indicator does not come on or go off, perform the neutral position memorizing procedure.

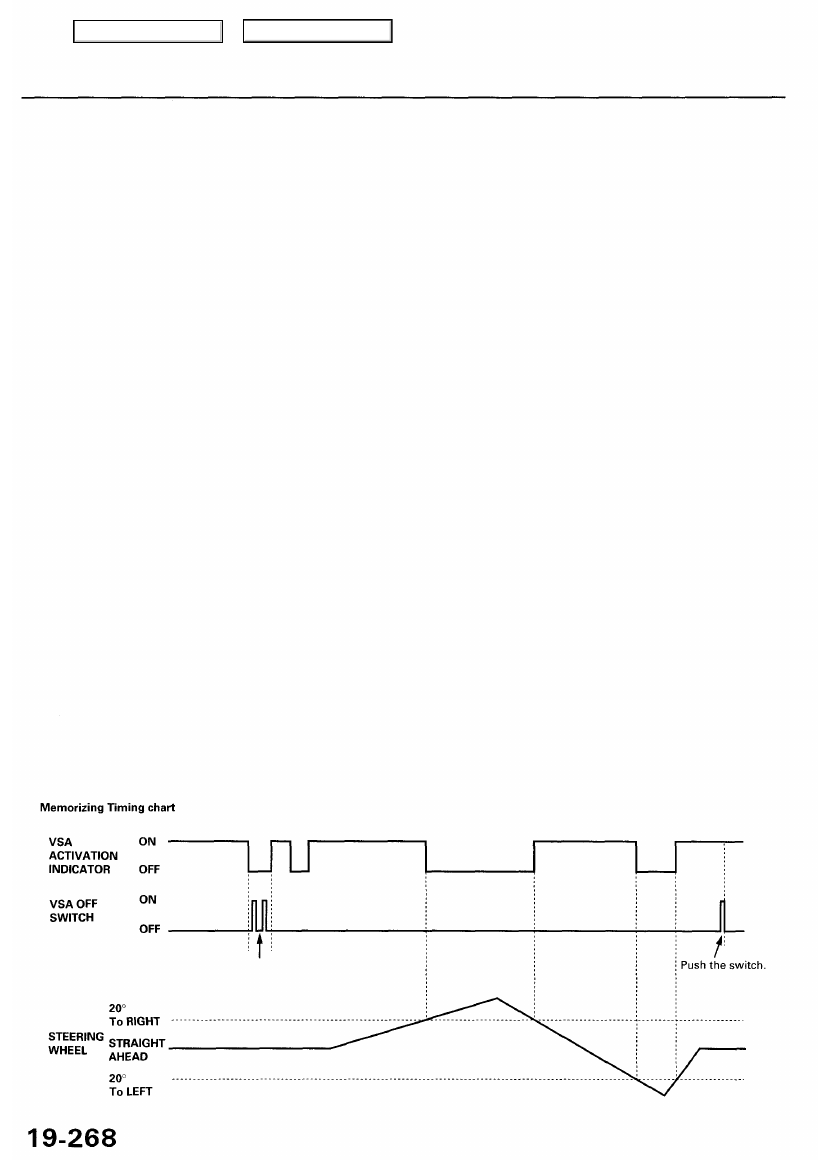

Memorizing

1. Connect the SCS service connector to the service check connector (2P) under the glove box.

2. Turn the ignition switch ON (II).

3. Press the VSA off switch twice before the VSA activation indicator comes on again.

4. The VSA activation indicator comes on for 0.3 seconds, then the indicator goes off 0.2 seconds and comes on.

5. Turn the steering wheel from the straight ahead position to the right until the VSA activation indicator goes off within 8

seconds after the VSA activation indicator comes on.

6. Turn the steering wheel from the straight ahead position then to the left until the VSA activation indicator goes off

within 8 seconds after performing step 5.

7. Turn the steering wheel to the straight ahead position and press the VSA off switch within 12 seconds after performing

step 6. The VSA activation indicator goes off for 0.3 seconds, then the VSA system shifts to the neutral position check
mode.

8. Check that the VSA activation indicator comes on when the steering wheel is in the straight ahead position (neutral

position), and the indicator goes off when the steering wheel turns to the right or left more than 2.5 degrees.

9. Press the VSA off switch. The VSA activation indicator will blink. If the indicator does not blink, repeat the neutral posi-

tion memorizing procedure.

Push the switch twice.
