Acura RL (1996-2004 year). Manual - part 510





Troubleshooting

DTC 2-1: Parking Brake (cont'd)

(From page

19-60

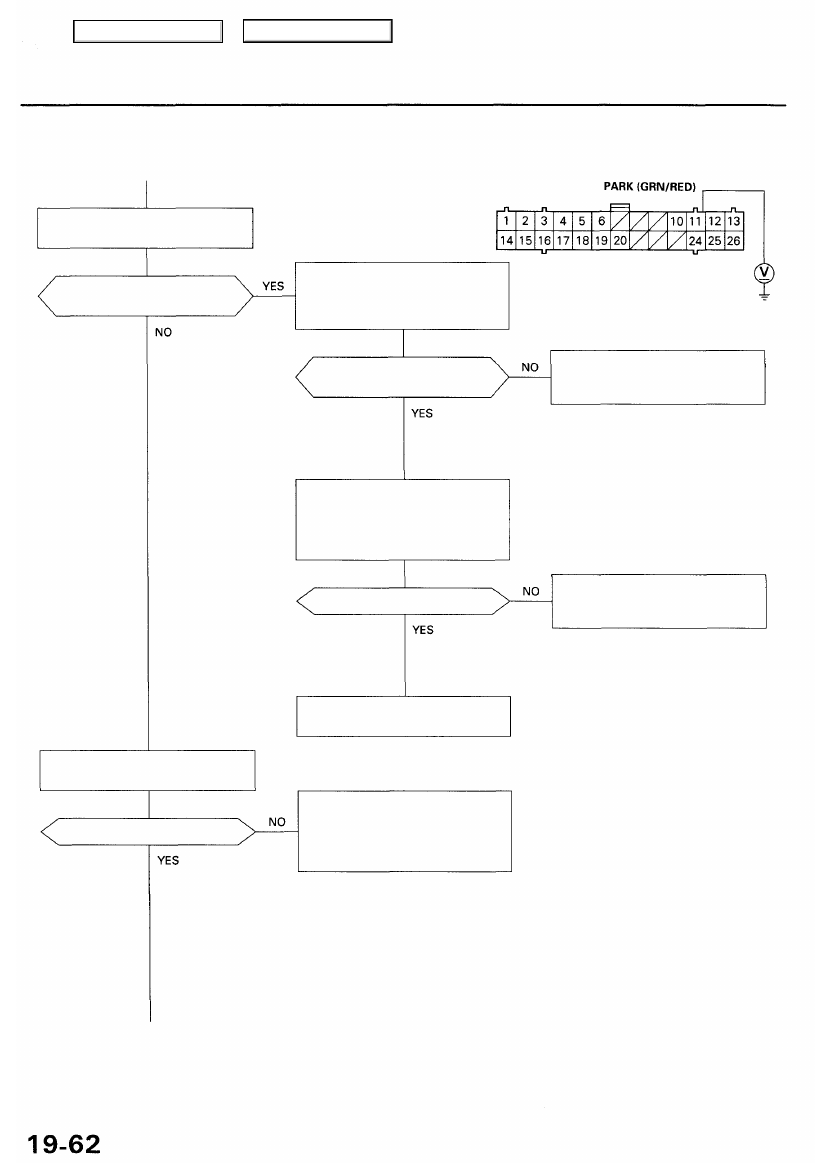

) ABS CONTROL UNIT 26P CONNECTOR

Does the brake system light
go off?

Problem verification:

Test-drive the vehicle at speeds

of 6 mph (10 km/h) or more for
more than 30 seconds.

Wire side of female terminals

Does the ABS indicator light
come on?

The probable cause was driving
with the parking brake applied
for more than 30 seconds.

Check for an open in the PARK cir-
cuit:

Measure the voltage between the

ABS control unit 26P connector
terminal No. 11 and body ground.

Is there battery voltage?

Repair open in the wire between

the gauge assembly and ABS con-
trol unit.

Is the level is correct?

Check the front brake pad thick-

ness and brake system for leaks.
If there are no problems, refill the
master cylinder reservoir to the
correct level.

(To page

19-63

)

Replace the ABS control unit.
(Open circuit inside the unit)

Check the brake fluid level in the
master cylinder reservoir.

Check the parking brake switch:
Release the parking brake pedal.

Main Menu

Table of Contents

(From page

19-62

)

Check the brake fluid level switch:

Disconnect the brake fluid level
switch connectors.

Does the brake system light go off?

Replace the brake fluid level
switch. (Switch stuck ON)

Is the switch OK?

Replace the parking brake switch.
(Switch stuck ON)

Check for a short to body ground
in the PARK circuit:

Disconnect the ABS control unit
26P connector.

Does the brake system light
go off?

Replace the ABS control unit.
(Short to body ground inside the
unit)

Repair short to body ground in

the wire between the brake sys-
tem light, parking brake switch

and brake fluid level switch.

Check the parking brake switch
(see page 19-8).

Main Menu

Table of Contents

Troubleshooting

DTC 3-1, 3-2, 3-4, 3-8: Pulser, DTC 3-12: Different Diameter Tire

DTC 3-1, 3-2, 3-4, 3-8: Pulser

The ABS control unit monitors the wheel sensor signals during the regular diagnosis (during driving). It turns the ABS indi-
cator light on if it detects a periodic change in the wheel sensor signal of each wheel caused by a chipped pulser gear, etc.

Possible causes:

Chipped pulser gear

Improperly installed wheel sensor

DTC

3

1

2

4

8

Pulser

Right-front

O

Left-front

O

Right-rear

Left-rear

O

DTC 3-12: Different Diameter Tire

The ABS control unit detects the wheel sensor signal speed during the regular diagnosis (during driving). This diagnosis is

not performed when the parking brake switch signal is ON. The ABS control unit may turn the ABS indicator light on when

one or more different diameter tires are installed.

Main Menu

Table of Contents

DTC 4-1 (Right-front), 4-2 (Left-front), 4-4 (Right-rear), 4-8 (Left-rear):

Wheel Sensor

The ABS control unit monitors the wheel sensor signal during the regular diagnosis (at speeds of 6 mph (10 km/h) or

more). This diagnosis is not performed when the parking brake signal is ON. The ABS control unit turns the ABS indicator
light on if it detects that there is no wheel sensor signal from the wheel.
Possible causes:

Open circuit, internal short or short to body ground in the wheel sensor
Open circuit or short to body ground in the positive (+) wire between the wheel sensor and ABS control unit
Open circuit or short to body ground in the negative (-) wire between the wheel sensor and ABS control unit
Positive (+) wire shorted to the negative (-) wire between the wheel sensor and ABS control unit
Loose connector or poor contact of terminals
Improper wheel sensor air gap
Faulty ABS control unit

Missing or damaged pulser
Modulator does not decrease pressure properly

Wheel lock by downshift

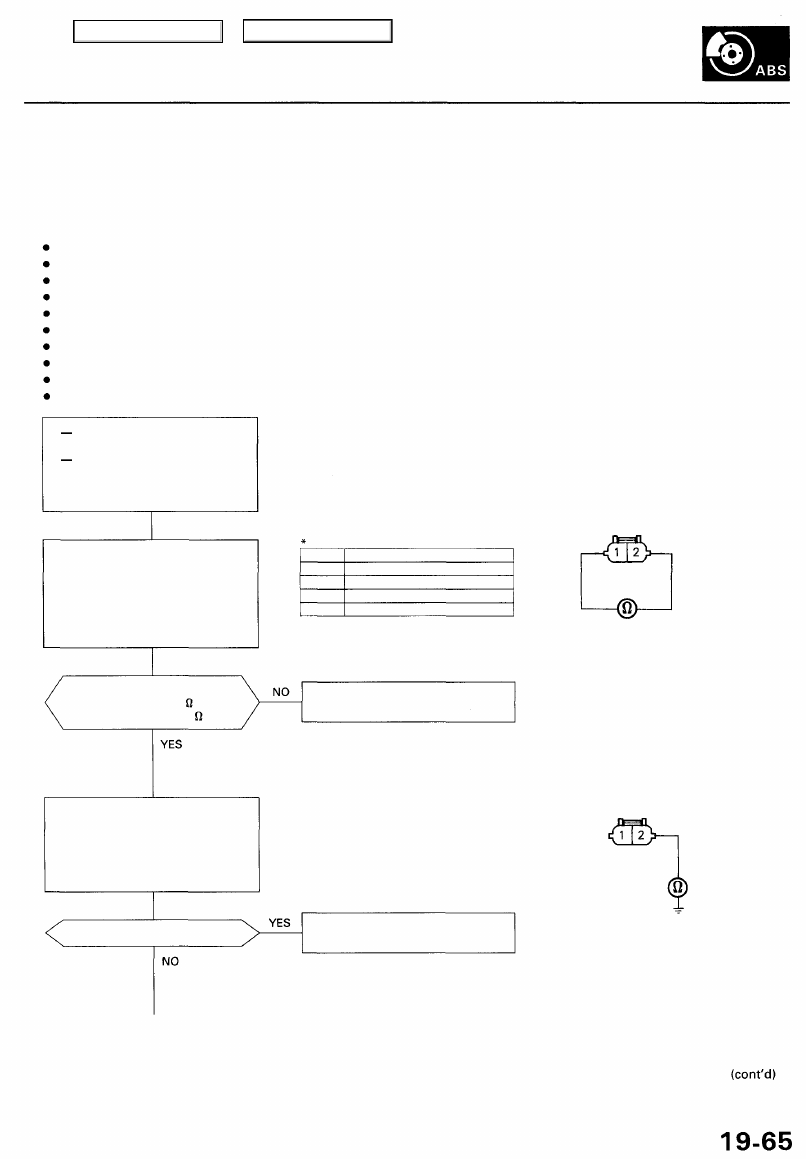

Is the resistance as specified?

— Front: 700-1,100
— Rear: 1,400-2,000

Check the continuity of the wheel
sensor:
Check for continuity between the
appropriate wheel sensor 2P con-

nector terminal No. 2 and body
ground.

Is there continuity?

(To page

19-66

)

WHEEL SENSOR 2P CONNECTOR

DTC

4-1

4-2

4-4

4-8

Appropriate Wheel Sensor

Right-front

Left-front

Right-rear

Left-rear

Wire side of female terminals

Replace the appropriate wheel
sensor.

Replace the appropriate wheel
sensor.

When vehicle is driven, ABS
indicator light is ON.
With the SCS service connec-
tor connected (see page

19-40

),

DTCs 4-1, 4-2, 4-4 and/or 4-8
are indicated.

Check the wheel sensor resis-

tance:

1. Disconnect the appropriate

wheel sensor* 2P connector.

2. Measure the resistance

between the No. 1 and No. 2

terminals.

Main Menu

Table of Contents
