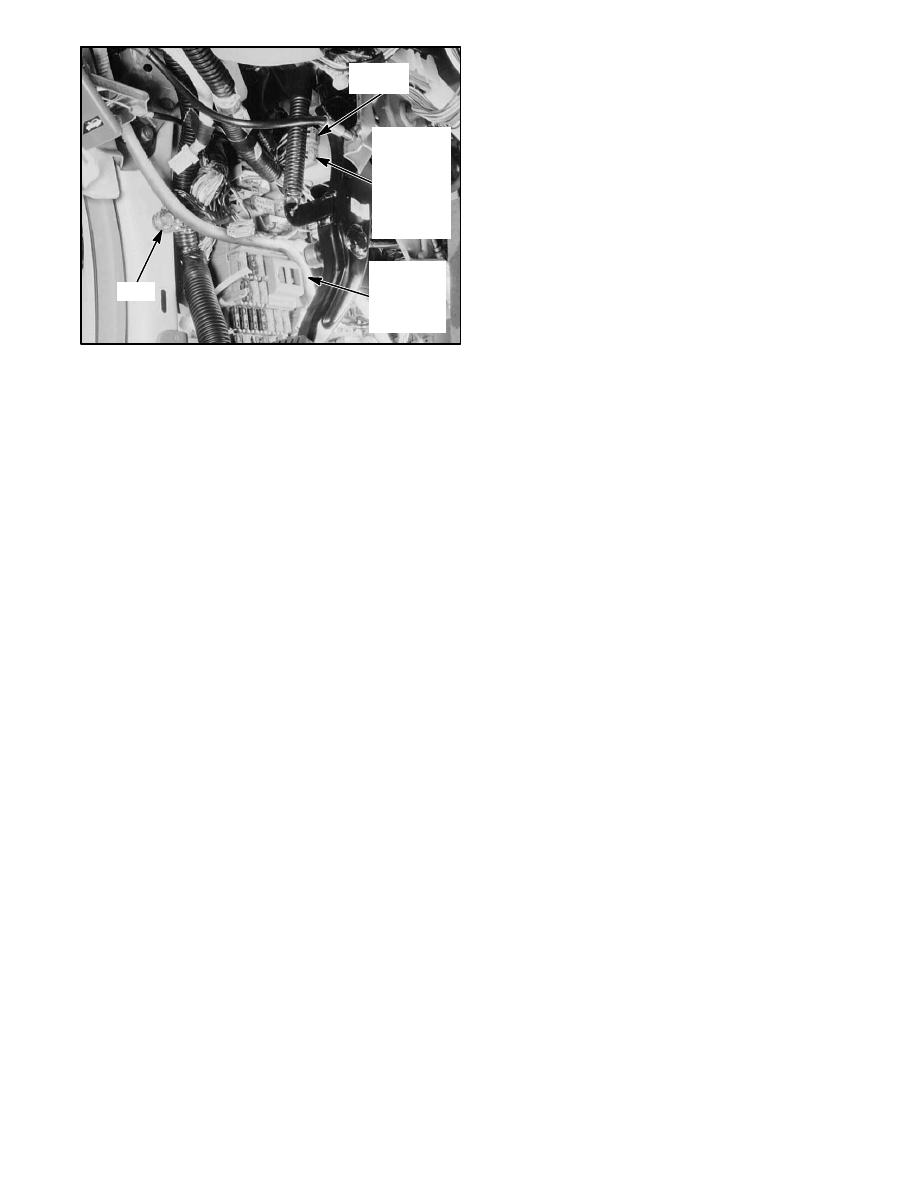

79. Behind Left Kick Panel

C409
(14-GRY)

G401

C410
(12-GRY)
(ALL ’96-’01,
’02-’04
(CANADA))
(8-GRY)
(’02-’04
(USA))

DRIVER’S
MULTIPLEX
CONTROL
UNIT
(BEHIND)

2004 American Honda Motor Co., Inc.

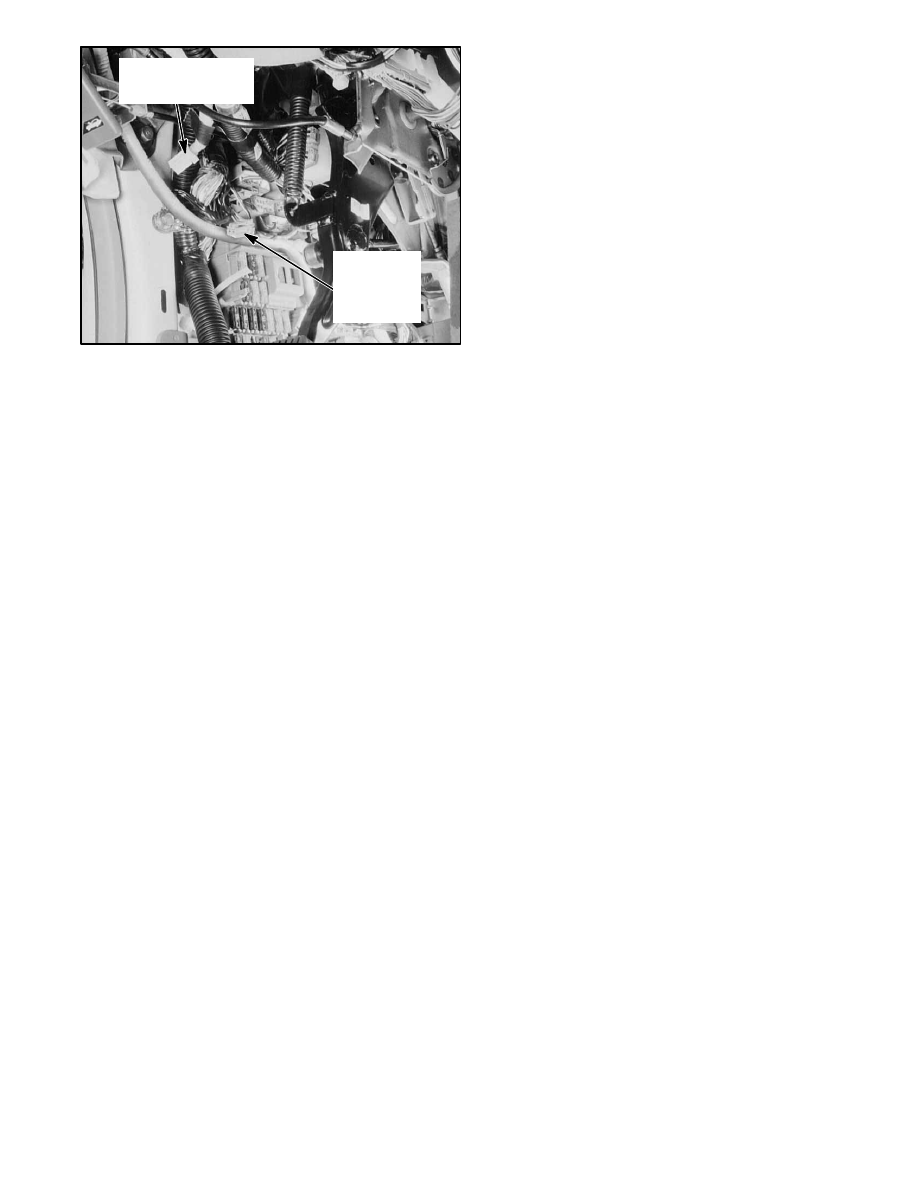

80. Behind Left Kick Panel

SRS MEMORY ERASE
SIGNAL (MES)
CONNECTOR (2-YEL)

MULTIPLEX
CONTROL
INSPECTION
CONNECTOR
(2-GRN)

2004 American Honda Motor Co., Inc.

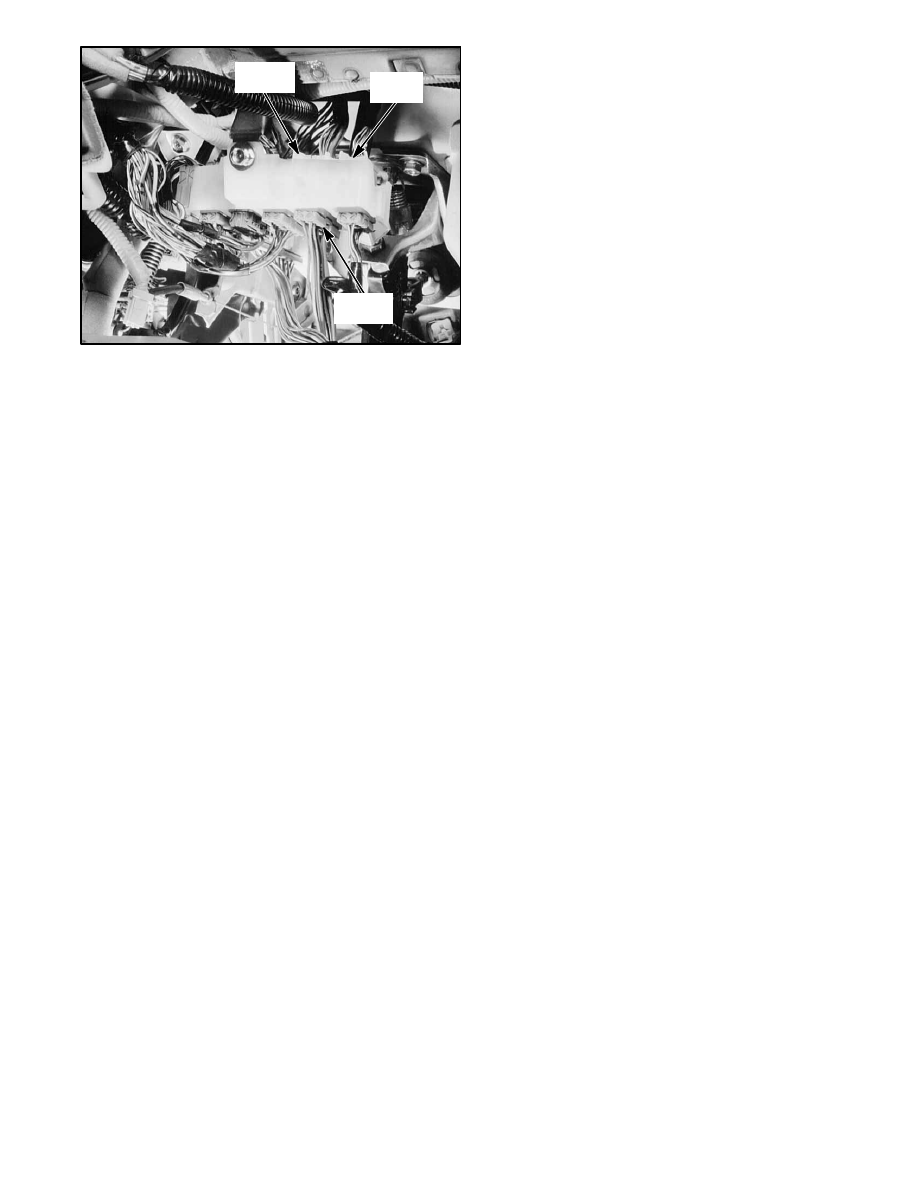

81. Left of Steering Column

BRAKE
PEDAL
POSITION
SWITCH

PARKING
BRAKE
SWITCH

C415
(20-GRY)

2004 American Honda Motor Co., Inc.

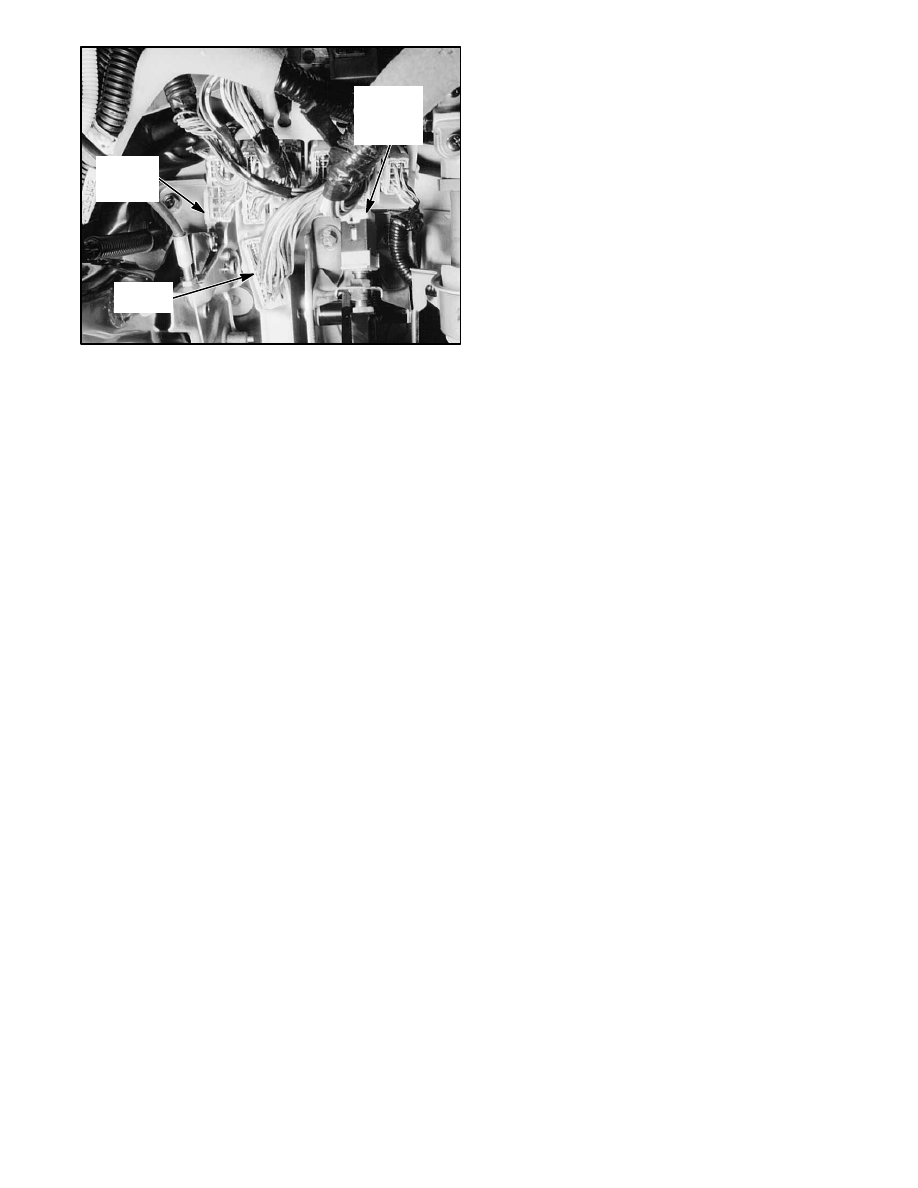

82. Left of Steering Column

C431
(8-GRY)

C430
(12-GRY)

C429
(14-GRY)
