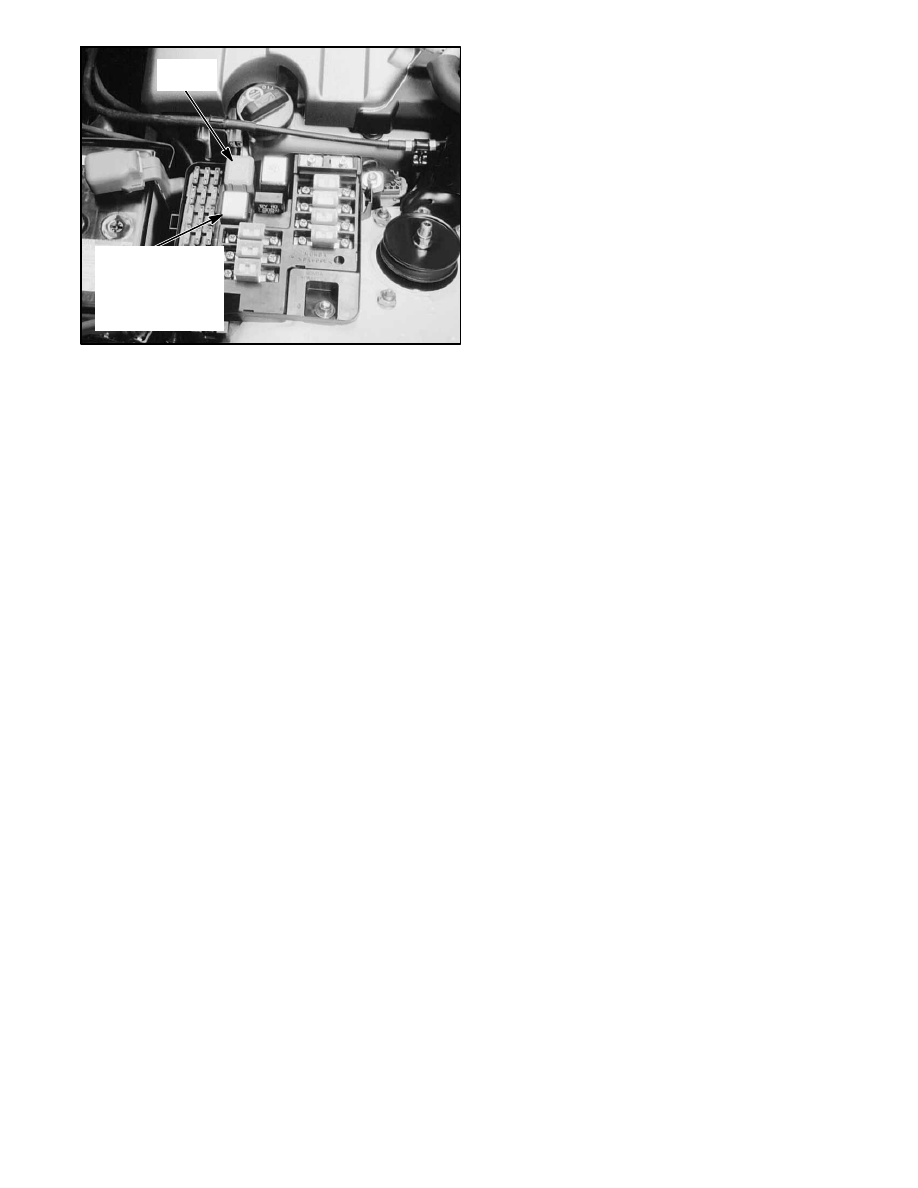

35. In Under-hood Fuse/Relay Box

DIMMER
RELAY

HEADLIGHT RELAY
(’96-’98)
or
HEADLIGHT LOW
BEAM RELAY
(’99-’04)

2004 American Honda Motor Co., Inc.

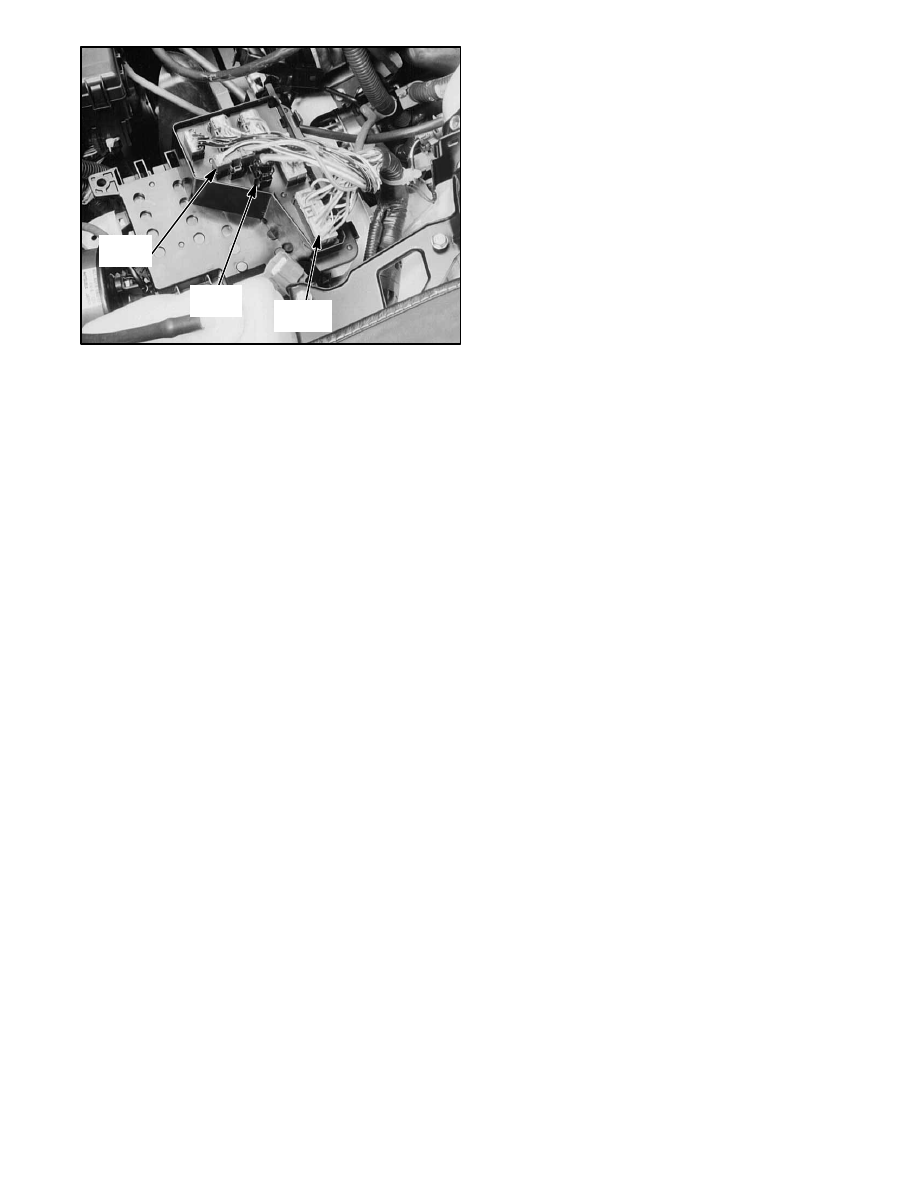

36. Bottom of Under-hood Fuse/Relay Box

C301
(5-BRN)

C302
(2-BRN)

C305
(7-BRN)

C306
(9-GRY)

2004 American Honda Motor Co., Inc.

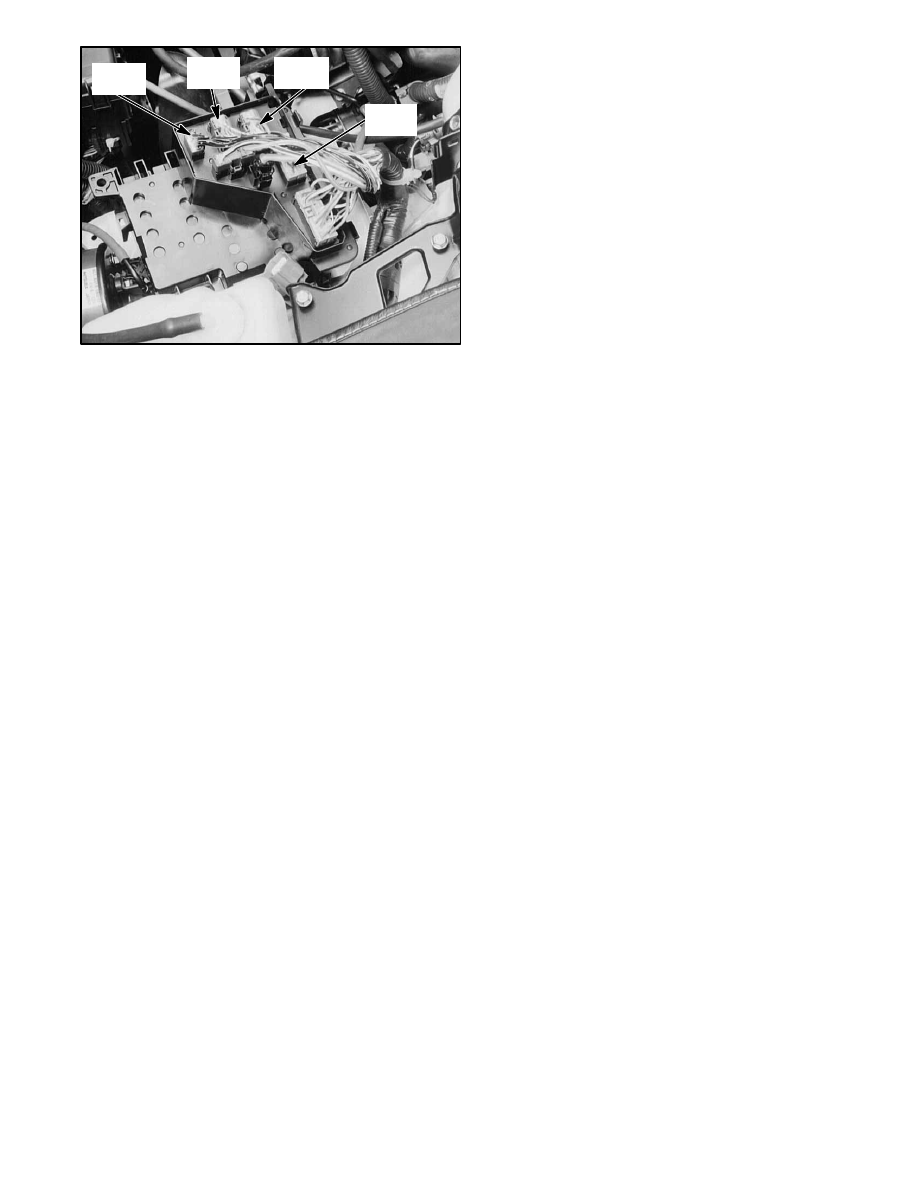

37. Bottom of Under-hood Fuse/Relay Box

C303
(3-BRN)

C307
(11-GRY)

C304
(1-BLK)

2004 American Honda Motor Co., Inc.

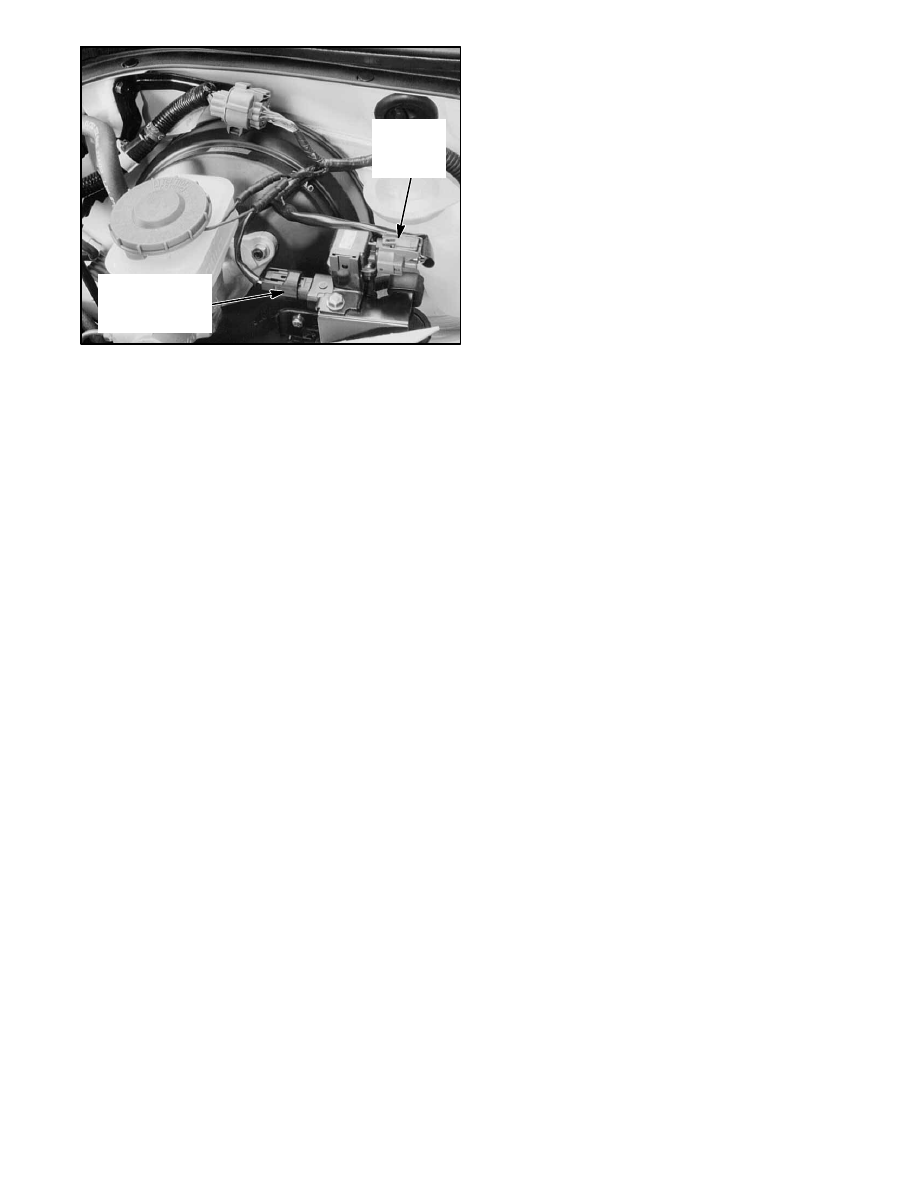

38. Left Rear Corner of Engine Comp. (’96-’99)

FUEL
TANK
PRESSURE
SENSOR

EVAPORATIVE
EMISSION (EVAP)
BYPASS
SOLENOID VALVE
