Does the TPMS indicator go off within one minute?

YES - The system is OK at this time. Clear the DTC with the HDS.

NO - Go to step 2.

2. Check the FR, FL, RR, or RL in the TPMS DATA LIST with the HDS.

DTC TROUBLESHOOTING CHART

Is LOW indicated?

YES - Replace the appropriate tire pressure sensor (see TIRE PRESSURE SENSOR
REPLACEMENT ).

NO - Check for loose terminals and poor connections at the TPMS control unit. If necessary,
substitute a known-good TPMS control unit (see TPMS INDICATOR OR TIRE(S) INDICATOR
(S) DOES NOT GO OFF, AND NO DTCS ARE STORED ), and recheck.

DTC 32,34,36,38: TIRE PRESSURE SENSOR TRANSMISSION FAILURE

1. Check the indicated location to make sure the wheel is a TPMS type with the tire pressure sensor.

DTC TROUBLESHOOTING CHART

Is a TPMS type wheel with a tire pressure sensor mounted on the vehicle?

NOTE:

If the HDS screen shows UNDEFINED for sensor status, turn the
ignition switch OFF, rotate the tire 1/4 turn, then turn the ignition switch
ON (II), and try again. If UNDEFINED is still shown, repeat the rotating
procedure until NORMAL is shown.

DTC Tire location

31

Right-front

33

Left-front

35

Right-rear

37

Left-rear

NOTE:



Inspect for an aftermarket device interfering with the RF signal from the
sensors when turning the ignition switch ON (II).



Vehicle must be driven for 3 minutes at 15 mph (24 km/h) or more for
DTC 32, 34, 36, or 38 to set.

DTC Tire location

32

Right-front

34

Left-front

36

Right-rear

38

Left-rear



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

YES - Go to step 4.

NO - Go to step 2.

2. Install a known-good TPMS wheel.

3. To memorize the sensor ID, drive the vehicle above 15 mph (24 km/h) for 40 continuous seconds, or

memorize the ID with the HDS (see MEMORIZE THE ID WITH THE HDS ).

4. Test-drive the vehicle.

5. Check the VSP in the TPMS DATA LIST with the HDS.

Is the vehicle speed indicated?

YES - Go to step 9.

NO - Go to step 6.

6. Turn the ignition switch OFF.

7. Turn the ignition switch ON (II).

8. Check for DTCs with the HDS.

Is DTC 85 indicated?

YES - Go to the DTC 85 TROUBLESHOOTING .

NO - Check for loose terminals and poor connections at the TPMS control unit. If necessary,
substitute a known-good TPMS control unit (see TPMS INDICATOR OR TIRE(S) INDICATOR
(S) DOES NOT GO OFF, AND NO DTCS ARE STORED ), and recheck.

9. Turn the ignition switch OFF.

10. Turn the ignition switch ON (II).

11. With the HDS, check the indicated tire for the tire sensor status changing to normal.

DTC TROUBLESHOOTING CHART

Is NORMAL indicated within one full turn of the tire?

YES - The system is OK at this time. Clear the DTC with the HDS.

NOTE:

If the HDS screen shows UNDEFINED for sensor status, turn the
ignition switch OFF, rotate the tire 1/4 turn, then turn the ignition switch
ON (II), and try again. If UNDEFINED is still shown, repeat the rotating
procedure until NORMAL is shown.

DTC Tire location

32

Right-front

34

Left-front

36

Right-rear

38

Left-rear



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

NO - Go to step 12.

12. Turn the ignition switch OFF.

13. Install a wheel with a known-good tire pressure sensor on the vehicle.

14. To memorize the sensor ID, drive the vehicle above 15 mph (24 km/h) for 40 continuous seconds, or

memorize the ID with the HDS (see MEMORIZE THE ID WITH THE HDS ).

15. Turn the ignition switch OFF.

16. Turn the ignition switch ON (II).

17. With the HDS, check the indicated tire for a normal pressure sensor signal.

DTC TROUBLESHOOTING CHART

Is NORMAL indicated within one full turn of the tire?

YES - Replace the tire pressure sensor on the client's wheel (see TIRE PRESSURE SENSOR
REPLACEMENT ).

NO - Go to step 18.

18. Turn the ignition switch OFF.

19. Disconnect the appropriate initiator 3P connector.

DTC TROUBLESHOOTING CHART

20. Disconnect the TPMS control unit connector A (14P) and B (20P).

21. Check for continuity between the appropriate terminal in TPMS control unit connector A (14P) and

appropriate initiator 3P connector terminal No. 1 (see CONTINUITY CHART).

CONTINUITY CHART

NOTE:

If the HDS screen shows UNDEFINED for sensor status, turn the
ignition switch OFF, rotate the tire 1/4 turn, then turn the ignition switch
ON (II), and try again. If UNDEFINED is still shown, repeat the rotating
procedure until NORMAL is shown.

DTC Tire location

32

Right-front

34

Left-front

36

Right-rear

38

Left-rear

DTC Initiator location

32

Right-front

34

Left-front

36

Right-rear

38

Left-rear

DTC TPMS control unit terminal Initiator name/ terminal No.

32

No. 9

RIGHT-FRONT/1



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

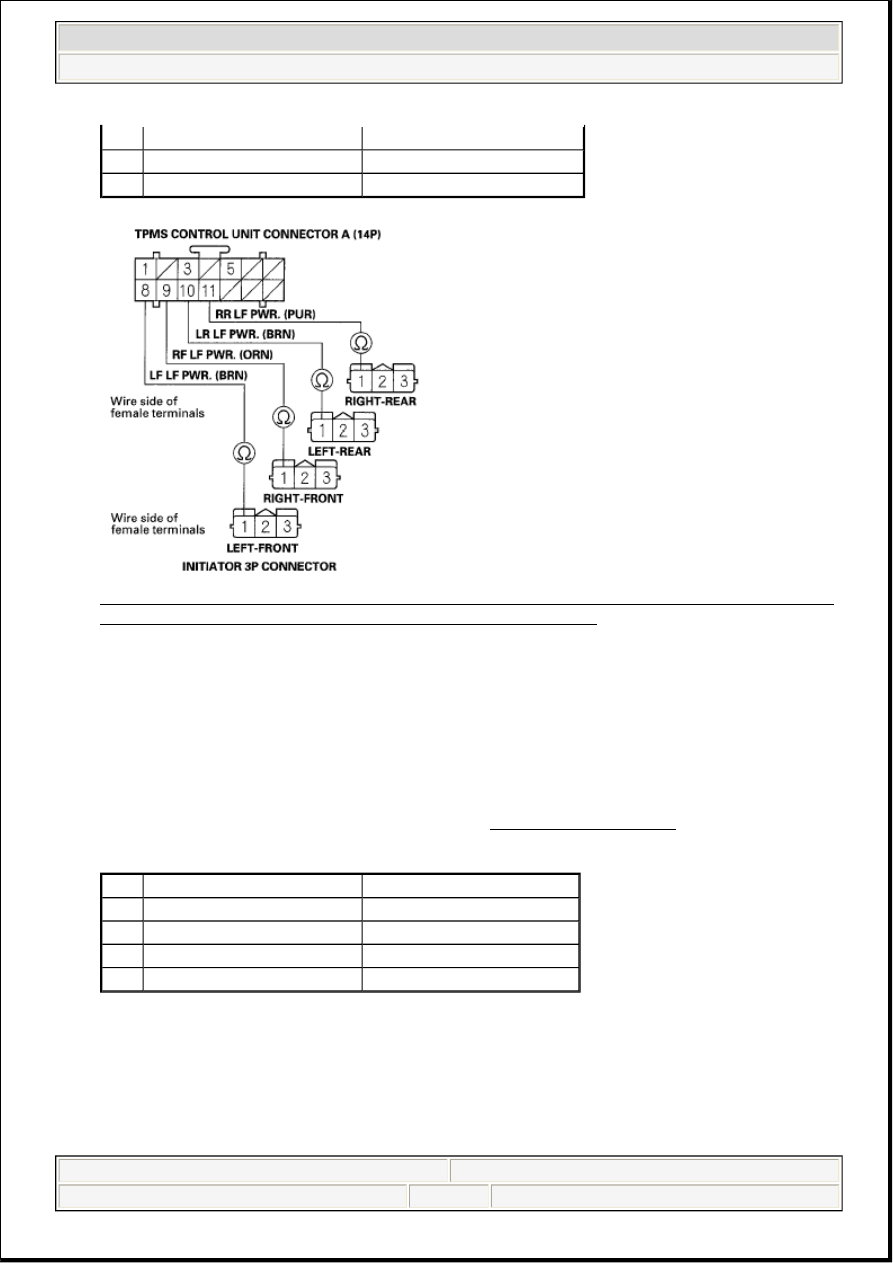

Fig. 15: Checking Continuity Between Appropriate Terminal In TPMS Control Unit Connector
A (14P) And Appropriate Initiator 3P Connector Terminal No. 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 22.

NO - Repair open in the wire between the TPMS control unit and the appropriate initiator.

22. Check for continuity between the appropriate terminal in TPMS control unit connector B (20P) and

appropriate initiator 3P connector terminal No. 3 (see CONTINUITY CHART).

CONTINUITY CHART

34

No. 8

LEFT-FRONT/1

36

No. 11

RIGHT-REAR/1

38

No. 10

LEFT-REAR/1

DTC TPMS control unit terminal Initiator name/terminal No.

32

No. 14

RIGHT-FRONT/3

34

No. 13

LEFT-FRONT/3

36

No. 16

RIGHT-REAR/3

38

No. 15

LEFT-REAR/3



2007 Acura RL

2005-08 SUSPENSION TPMS (Tire Pressure Monitoring System) - RL



me



Friday, June 05, 2009 3:22:24 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.
