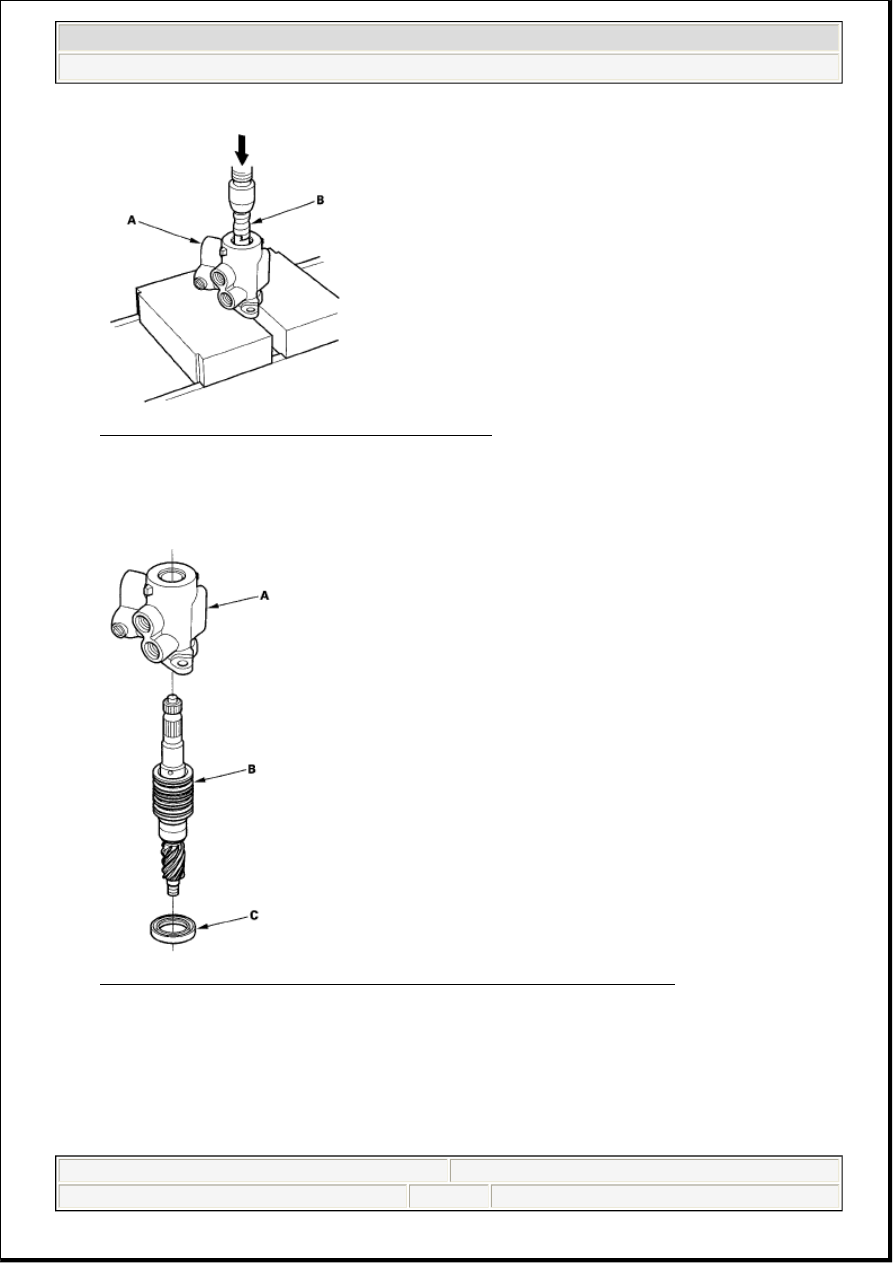

Fig. 95: Identifying Valve Housing And Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Separate the valve housing (A) from the pinion shaft/valve (B) using a press, then remove the pinion

oil seal (C).

Fig. 96: Identifying Valve Housing, Pinion Shaft/Valve And Pinion Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

24. With your finger, check the inner wall of the valve housing where the seal ring slides. If there is a step

in the wall, the housing is worn. Replace it.

NOTE:

There may be sliding marks from the seal ring on the wall of the valve
housing. Replace the valve housing only if the wall is stepped.

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 59

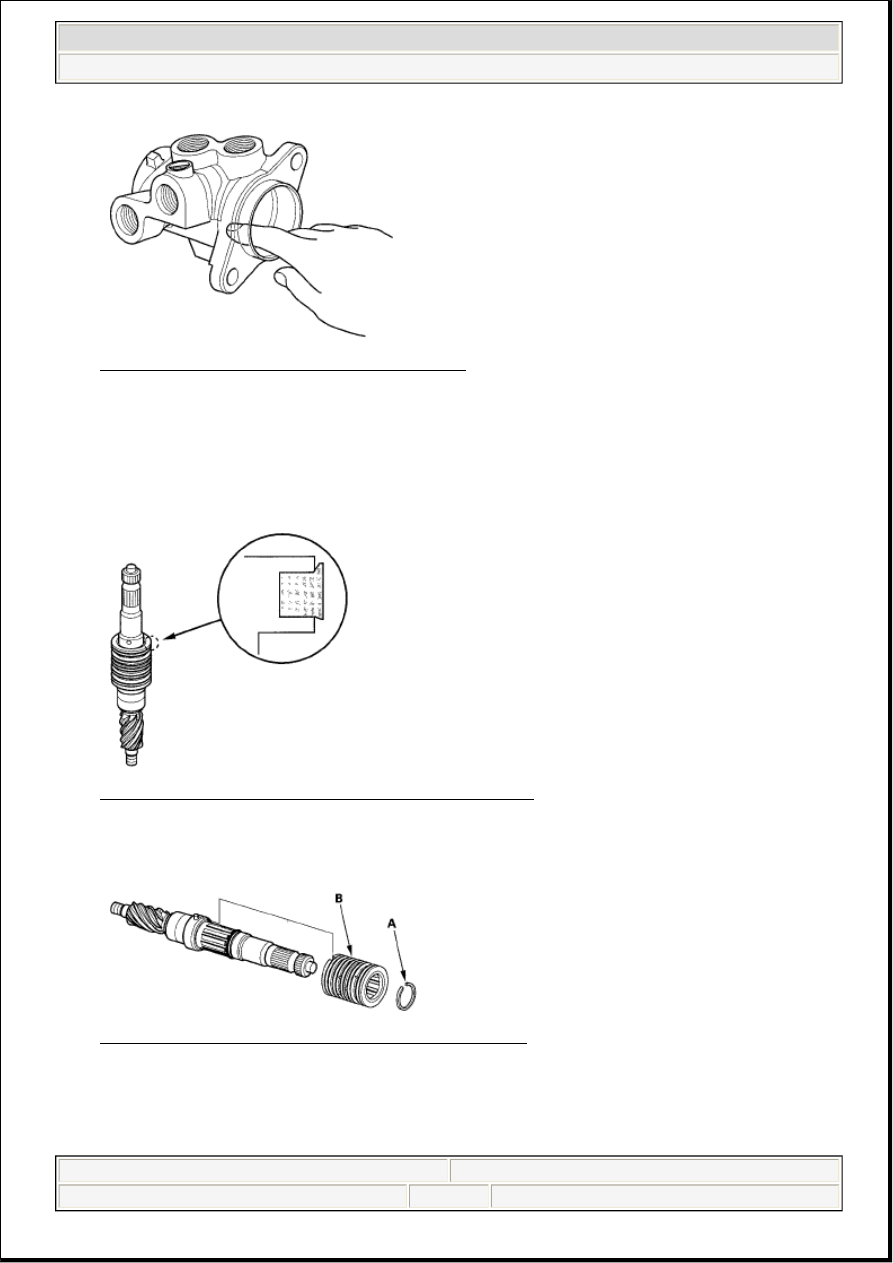

Fig. 97: Checking Inner Wall Of Valve Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

25. Check for wear, burrs, and other damage to the edges of the grooves in the sleeve.

Fig. 98: Identifying Edges Of The Grooves In The Sleeve
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Remove the snap ring (A) and sleeve (B) from the pinion shaft.

Fig. 99: Identifying Snap Ring, Sleeve And Pinion Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Using a cutter or an equivalent tool, cut and remove the four seal rings from the sleeve. Be careful not

to damage the edges of the sleeve grooves and outer surface when removing the seal rings.

NOTE:

The pinion shaft and sleeve are a precision matched set. If either the
pinion shaft or sleeve must be replaced, replace both parts as a set.

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 60

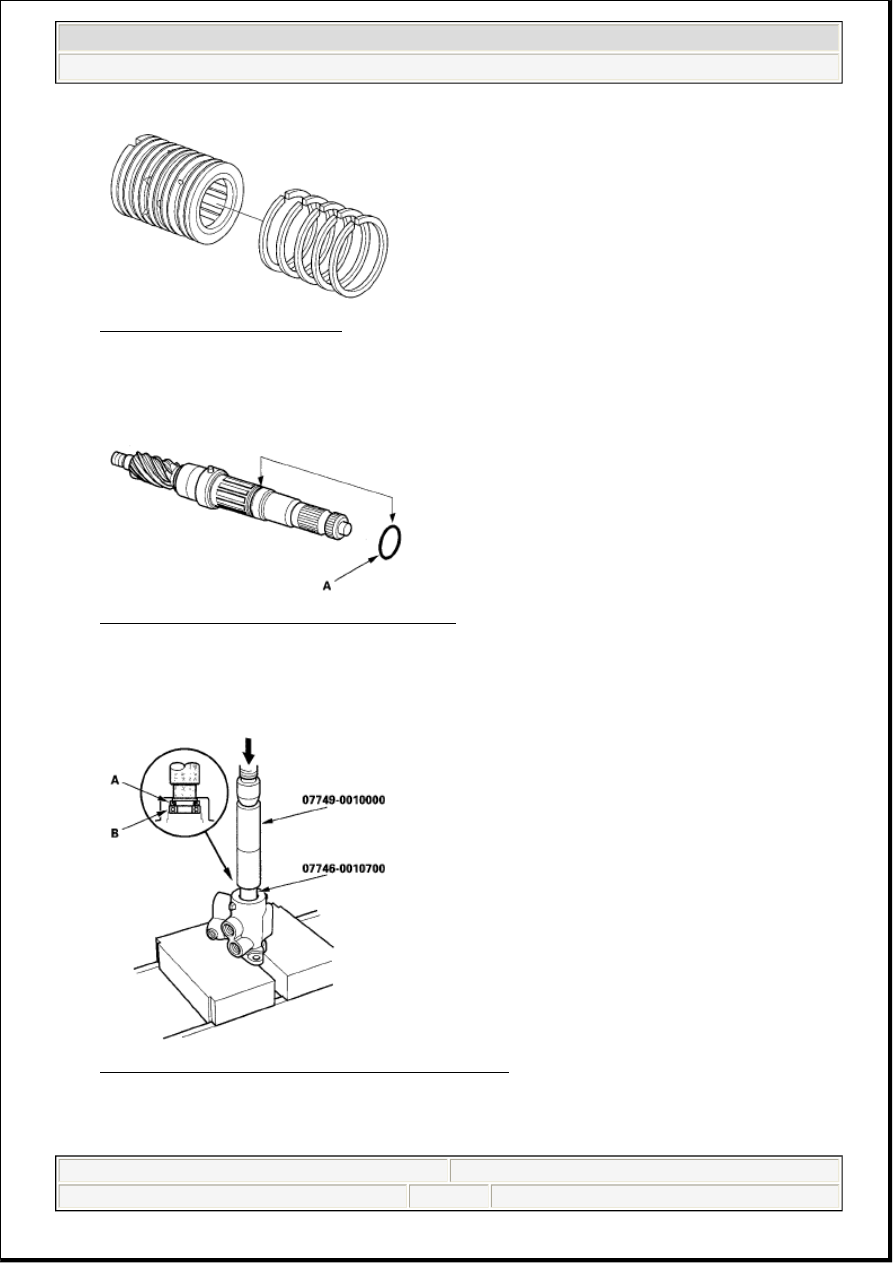

Fig. 100: Identifying Seal Rings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

28. Remove the O-ring (A). Be careful not to damage the edges of the pinion shaft groove and outer

surface when removing the O-ring.

Fig. 101: Identifying O-Ring And Pinion Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

29. Press the valve oil seal (A) and ball bearing (B) out of the valve housing using a hydraulic press,

driver and attachment, 24 x 26 mm.

Fig. 102: Identifying Valve Oil Seal And Ball Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Clean the disassembled parts with solvent, and dry them with compressed air. Do not dip rubber parts

in the solvent.

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 61

Reassembly

31. Apply power steering fluid to the surface of the ball joint boot clip guide. Slip two new seal rings (A)

over the ball joint boot clip guide from the smaller diameter end, and expand them. Install only two
rings at a time from each end of the pinion shaft sleeve (B).

Note these items when installing the seal ring:



Do not over-expand the seal ring. Install the resin seal rings with care so as not to damage them.
After installation, make sure you contract the seal rings using the sleeve seal ring sizing tool.



There are two types of sleeve seal rings: black and brown. Do not mix the different types of
rings as they are not compatible.

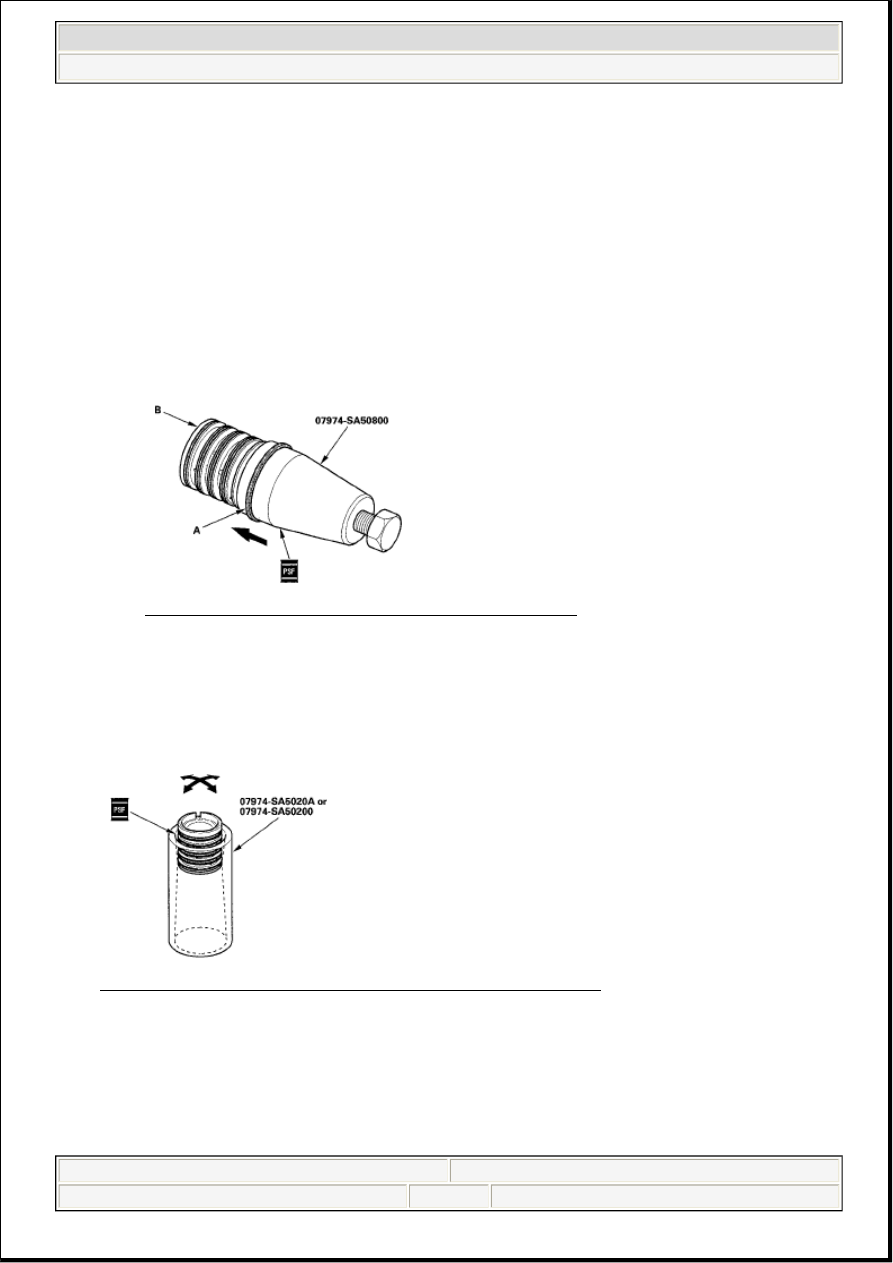

Fig. 103: Identifying Seal Rings And Pinion Shaft Sleeve
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Align the ball joint boot clip guide with each groove in the sleeve, and slide a sleeve seal ring into

each groove. After installation, compress the seal rings with your fingers temporarily.

33. Apply power steering fluid to the seal rings on the sleeve, and to the entire inside surface of the sleeve

seal ring sizing tool, then slowly insert the sleeve into the sleeve seal ring sizing tool.

Fig. 104: Identifying Seal Rings And Sleeve Seal Ring Sizing Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.

34. Move the sleeve back and forth several times to make the seal rings snugly fit in the sleeve. Make sure

the seal rings are not twisted.

35. Apply power steering fluid to the surface of the pinion shaft (A). Slide the sleeve (B) onto the pinion

shaft by aligning the locating pin (C) on the inside of the sleeve with the cutout (D) in the shaft. Then
install the new snap ring (E) securely in the pinion shaft groove. Be careful not to damage the valve
seal ring when inserting the sleeve.

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 62
