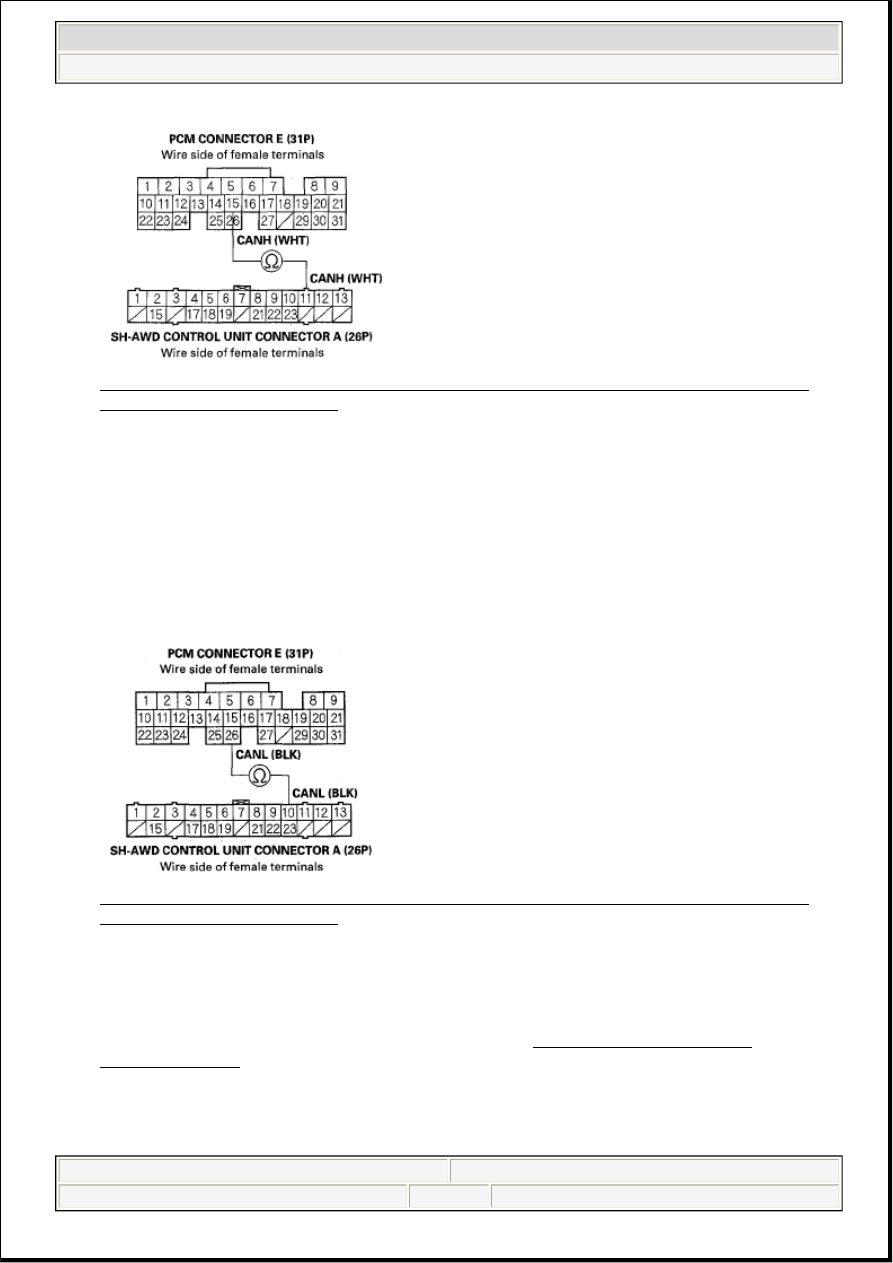

Fig. 59: Checking Continuity Between SH-AWD Control Unit Connector Terminal A11 And
PCM Connector Terminal E15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 12.

NO - Repair open in the wire between SH-AWD control unit connector A and PCM connector E.

12. Check for continuity between SH-AWD control unit connector terminal A10 and PCM connector

terminal E26.

Fig. 60: Checking Continuity Between SH-AWD Control Unit Connector Terminal A10 And
PCM Connector Terminal E26
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Check for loose connector terminals at the SH-AWD control unit, the PCM, and G602. If all
connections are OK, replace the SH-AWD control unit (see SH-AWD CONTROL UNIT
REPLACEMENT ).

NO - Repair open in the wire between SH-AWD control unit connector A and PCM connector E.

DTC 41-2: LOSS OF COMMUNICATION WITH VSA CONTROL UNIT



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:18 PM

Page 55

© 2005 Mitchell Repair Information Company, LLC.

1. Turn the ignition switch ON (II).

2. Make sure the HDS communicates with the vehicle and the SH-AWD control unit. If it doesn't,

troubleshoot the DLC circuit; '05-07 models (see '05-07 MODELS ), '08 model (see '08 MODEL ).

3. Clear the DTC with the HDS.

4. Start the engine.

5. Check for DTCs with the HDS.

Is DTC 41-2 indicated?

YES - Go to step 6.

NO - Intermittent failure, the system is OK at this time.

6. Check for DTCs in the VSA system with the HDS.

Are any VSA System DTCs indicated?

YES - Go to the indicated DTCs troubleshooting.

NO - Go to step 7.

7. Turn the ignition switch OFF.

8. Disconnect SH-AWD control unit connector A (26P).

9. Disconnect the VSA modulator-control unit 47P connector.

10. Check for continuity between SH-AWD control unit connector terminal A11 and VSA modulator-

control unit 47P connector terminal No. 14.

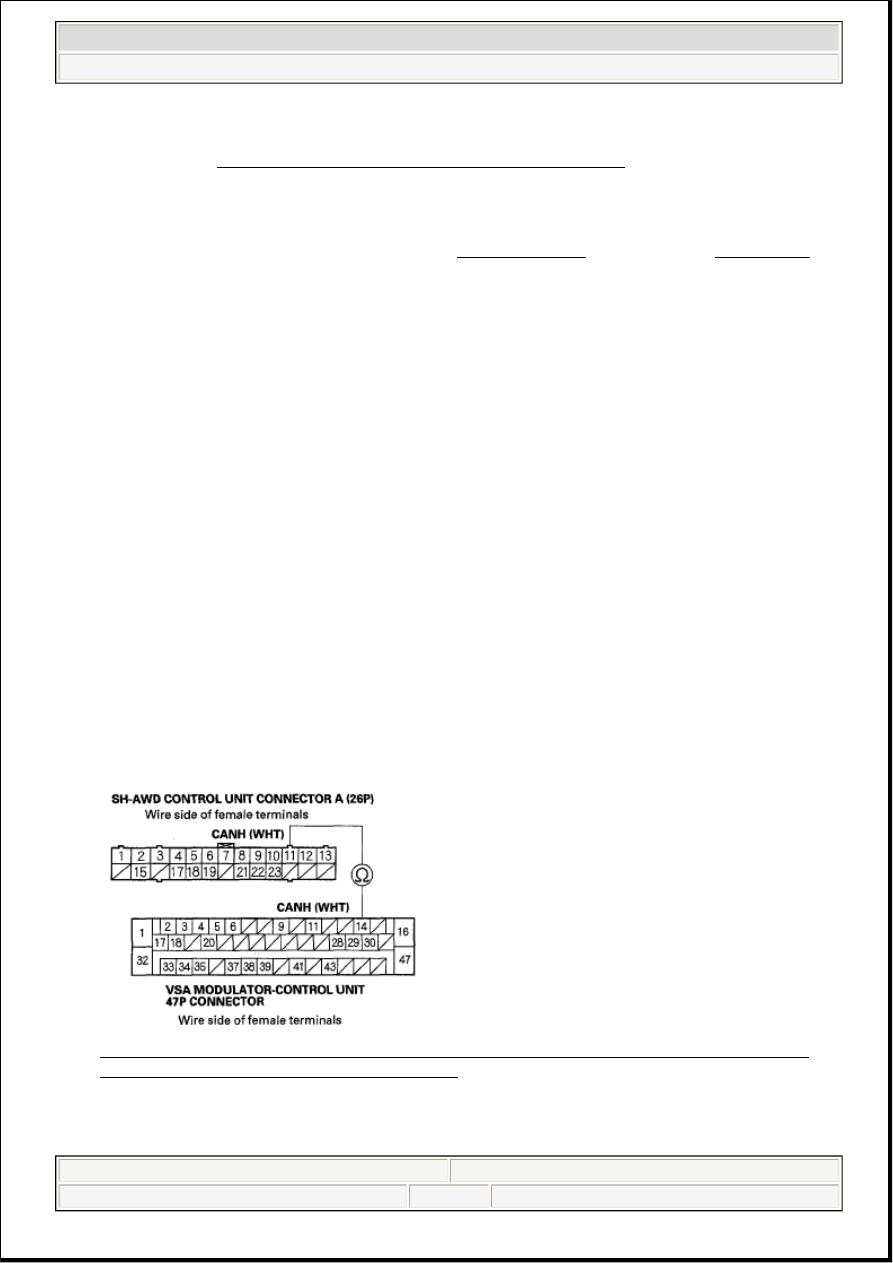

Fig. 61: Checking Continuity Between SH-AWD Control Unit Connector Terminal A11 And
VSA Modulator-Control Unit Terminal No. 14
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

NOTE:

Before you troubleshoot, review the general troubleshooting information
(see GENERAL TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:18 PM

Page 56

© 2005 Mitchell Repair Information Company, LLC.

YES - Go to step 11.

NO - Repair open in the wire between SH-AWD control unit connector A and the VSA modulator-
control unit connector.

11. Check for continuity between SH-AWD control unit connector terminal A10 and VSA modulator-

control unit 47P connector terminal No. 30.

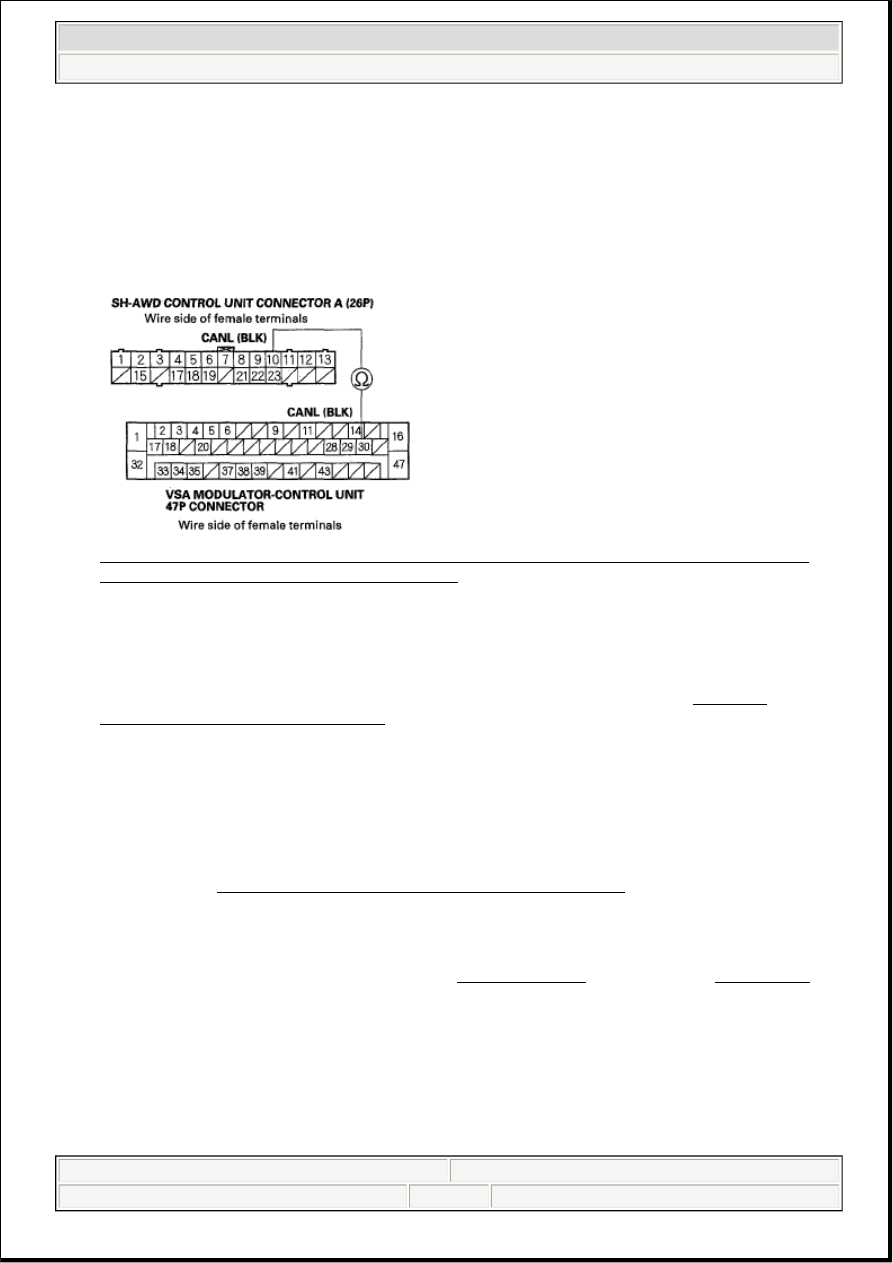

Fig. 62: Checking Continuity Between SH-AWD Control Unit Connector Terminal A10 And
VSA Modulator-Control Unit Terminal No. 30
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Check for loose connector terminals at the SH-AWD control unit, the VSA modulator-control
Unit, and G602. If all connections are OK, replace the SH-AWD control unit (see SH-AWD
CONTROL UNIT REPLACEMENT ).

NO - Repair open in the wire between SH-AWD control unit connector A and the VSA modulator-
control unit connector.

DTC 41-3: LOSS OF COMMUNICATION WITH GAUGE ASSEMBLY

1. Turn the ignition switch ON (II).

2. Make sure the HDS communicates with the vehicle and the SH-AWD control unit. If it doesn't,

troubleshoot the DLC circuit; '05-07 models (see '05-07 MODELS ), '08 model (see '08 MODEL ).

3. Clear the DTC with the HDS.

4. Start the engine.

5. Check for DTCs with the HDS.

Is DTC 41-3 indicated?

YES - Go to step 6.

NOTE:

Before you troubleshoot, review the general troubleshooting information
(see GENERAL TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:18 PM

Page 57

© 2005 Mitchell Repair Information Company, LLC.

NO - The system is OK at this time.

6. Check for gauge control system DTCs with the HDS.

Are any DTCs indicated?

YES - Go to the indicated DTCs troubleshooting.

NO - Go to step 7.

7. Turn the ignition switch OFF.

8. Disconnect SH-AWD control unit connector A (26P).

9. Disconnect gauge assembly connector B (28P).

10. Check for continuity between SH-AWD control unit connector terminal A11 and gauge assembly

connector terminal B16.

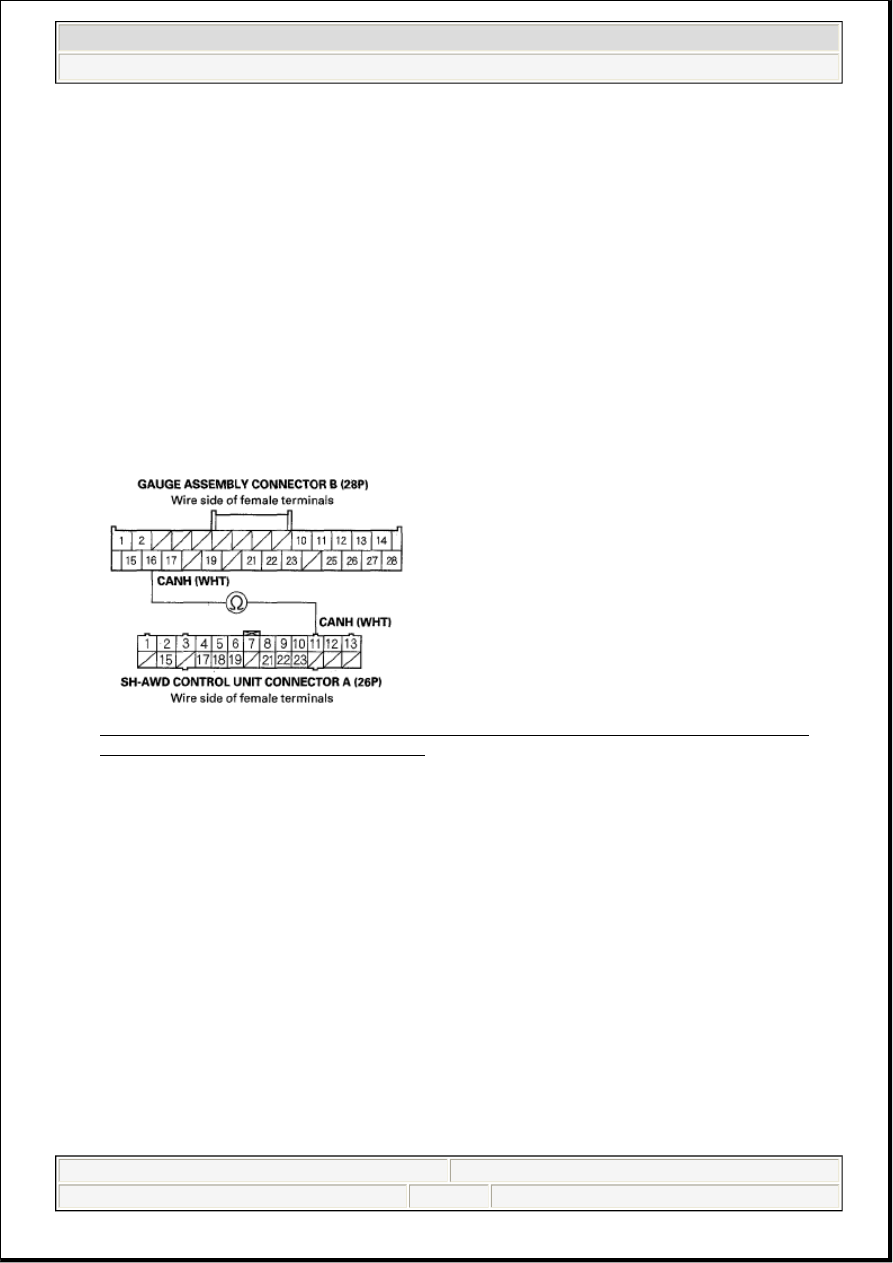

Fig. 63: Checking Continuity Between SH-AWD Control Unit Connector Terminal A11 And
Gauge Assembly Connector Terminal B16
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 11.

NO - Repair open in the wire between SH-AWD control unit connector A and gauge assembly
connector B.

11. Check for continuity between SH-AWD control unit connector terminal A10 and gauge assembly

connector terminal B15.
