will show "NG" in red. Use the troubleshooting index, and other diagnostic screens to help locate the
problem.



The indication on the screen may not change until you cycle the ignition switch. After repairing the
affected cable or system, repeat this diagnostic.



Select "Return" to return to the Diagnosis Menu.

Map type

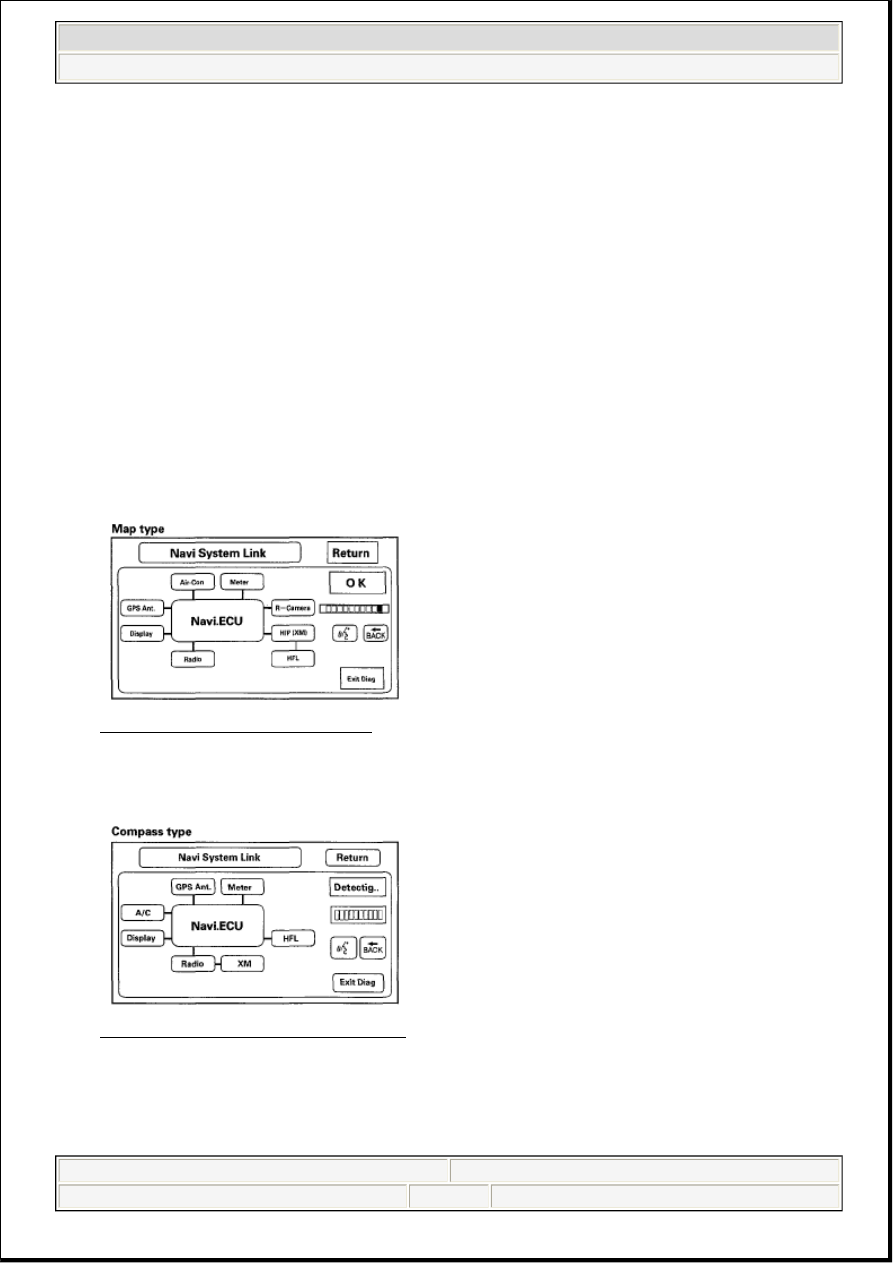

Fig. 52: Screen Display - Map Type
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Compass type

Fig. 53: Screen Display - Compass Type
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



Green boxes and green "OK" indicate that the communications
lines (cables) are intact. This diagnostic does not necessarily
imply that the individual components are functioning properly. For
instance, the GPS antenna wire may be crushed, but still show as
"green." A road test, or other diagnostic may be necessary to find
the problem.



Compass type is not equipped with TALK/BACK buttons and the
microphone.

NOTE:



The mic level indicator must reach the 6th bar or greater to pass
the test.



If the XM link is red or flashing red, go to audio system symptom

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:15 PM

Page 83

MONITOR CHECK

Overview of display unit



The display unit communicates with the navigation unit over its own GA-Net bus. Information sent by
the navigation unit to the display unit includes commands to control the LCD back light.



The navigation unit also sends navigation and rear camera video information to the screen using Red,
Green, Blue and Composite Video signals.



The security system protects the display by daisy-chaining the security signal through it, and then
passing the signal to the audio unit.



The illumination input from the gauge brightness control provides back lighting for the buttons
surrounding the screen.

These screens allow you to troubleshoot the display unit. Select the item you want to troubleshoot, and
follow the diagnostic instructions.

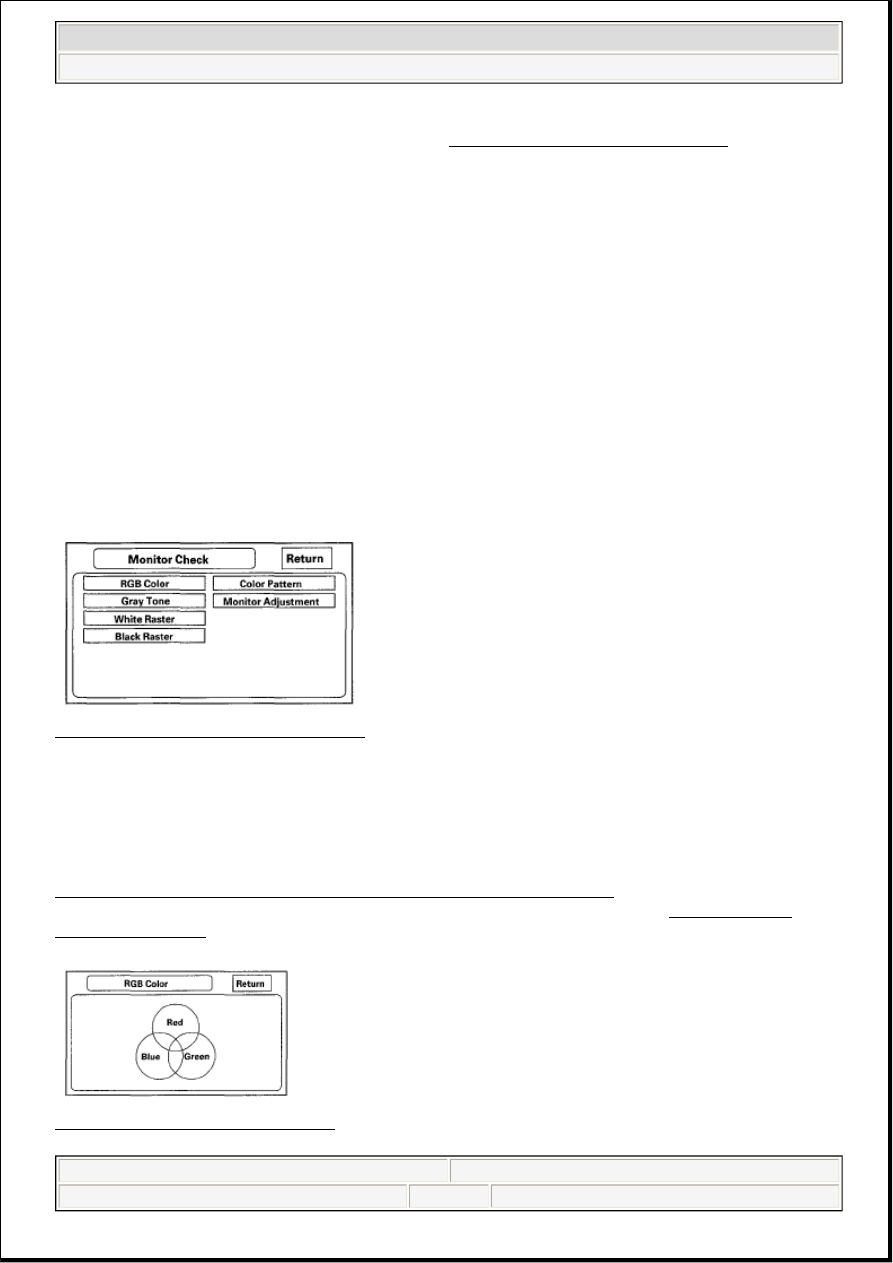

Fig. 54: Screen Display - Monitor Check
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RGB Color

This screen verifies that the display unit is receiving the video (R, G, B and Composite sync) signals
properly. The three primary colors should all be shown without distortion. The combination of all three
should produce a central white section. If any of the colors are missing, troubleshoot for the color signal (see
PICTURE IS MISSING A COLOR OR TONE OR IS AN ODD COLOR ). If the picture has lines in it
or scrolls horizontally, or vertically, troubleshoot for a Composite sync problem (see PICTURE HAS
LINES OR ROLLS ).

Fig. 55: Screen Display - RGB Color
Courtesy of AMERICAN HONDA MOTOR CO., INC.

troubleshooting (see SYMPTOM TROUBLESHOOTING ), or see XM
(HIP) diagnostic screen.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:15 PM

Page 84

Gray Tone

This screen diagnoses problems with contrast. You should be able to see the changes from bar to bar across
the scale. It is normal for the two bars on either side to appear the same.

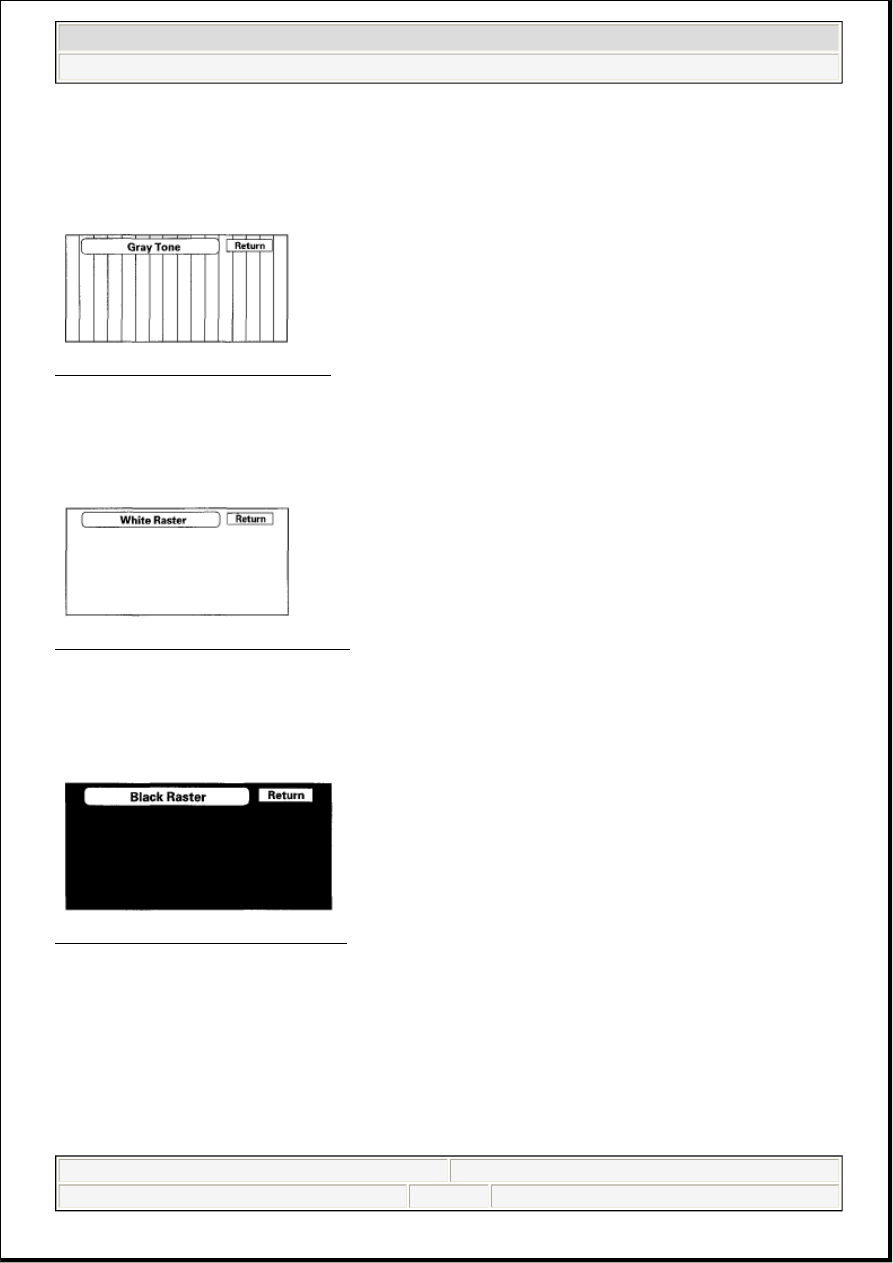

Fig. 56: Screen Display - Gray Tone
Courtesy of AMERICAN HONDA MOTOR CO., INC.

White Raster

The entire display must be white.

Fig. 57: Screen Display - White Raster
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Black Raster

The entire display must be black.

Fig. 58: Screen Display - Black Raster
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Color Pattern

The chart below shows the colors being used for the map and menu screens. This is for factory use only. To
check the color signal use the "RGB Color" diagnostic found under the Monitor Check.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:15 PM

Page 85

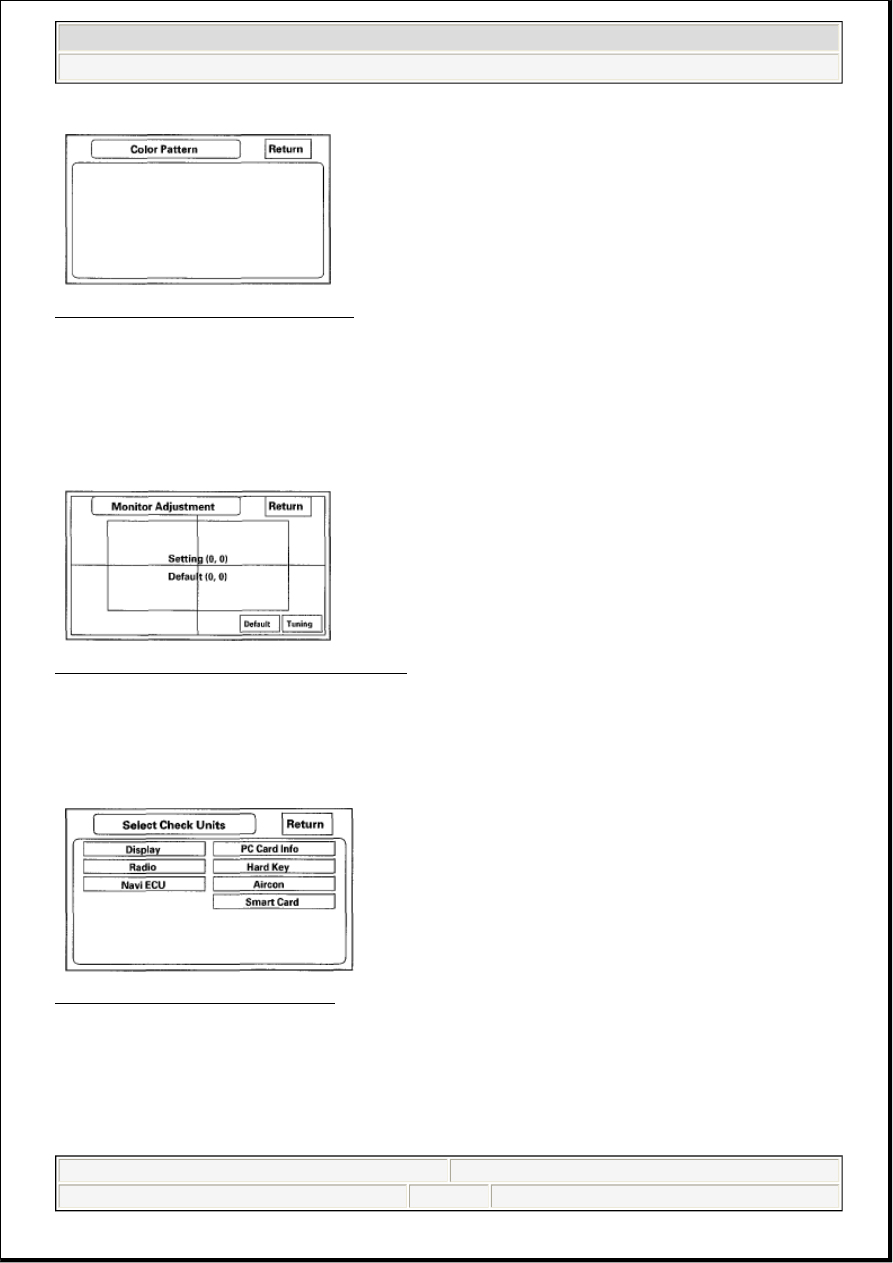

Fig. 59: Screen Display - Color Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Monitor Adjustment

This allows you to center the navigation display. Use the joystick to move the picture up/down or left/right.
It is unlikely that you will ever need to adjust the monitor position. The "Default" button will reset the
display position to factory specifications.

Fig. 60: Screen Display - Monitor Adjustment
Courtesy of AMERICAN HONDA MOTOR CO., INC.

UNIT CHECK

To start the test, select the item you want to check.

Fig. 61: Screen Display - Unit Check
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Display

This diagnostic performs additional checks on the communication bus between the control unit and the
display. In addition, the internal electronics functionality are confirmed.
