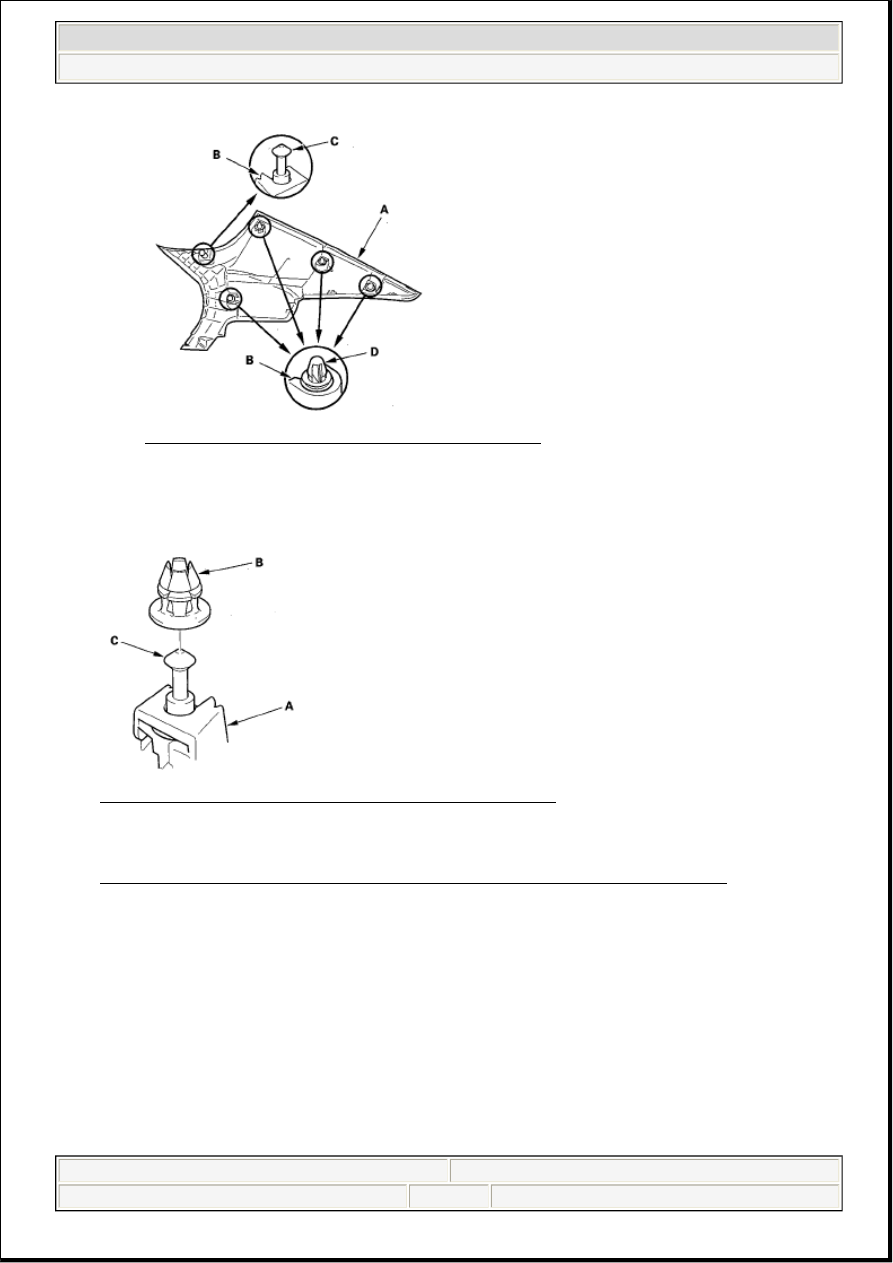

Fig. 28: Identifying Trim Upper Clip Pin And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Before installing the C-pillar trim (A), carefully remove the grommet (B) from the pin (C) on the new

upper clip.

Fig. 29: Removing Grommet From Pin On New Upper Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Check the overlap between the headliner and C-pillar trim, and if necessary, adjust it (see

CHECKING AND ADJUSTING THE HEADLINER/PILLAR TRIM OVERLAP ).

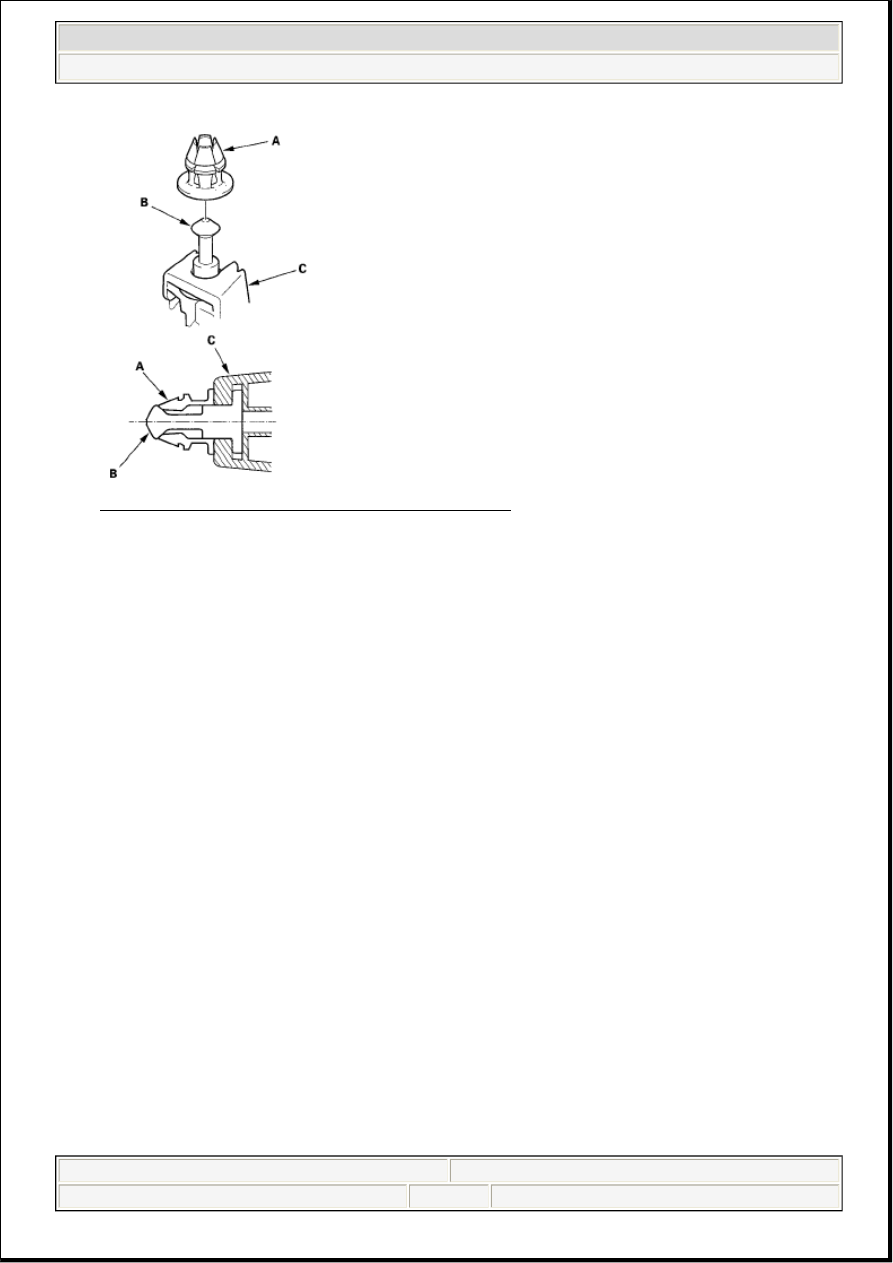

11. Carefully reinstall the grommet (A) on the pin (B) and seat them on the C-pillar trim (C) as shown.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL



me



Friday, June 05, 2009 3:37:01 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

Fig. 30: Identifying C-Pillar Trim, Grommet And Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.

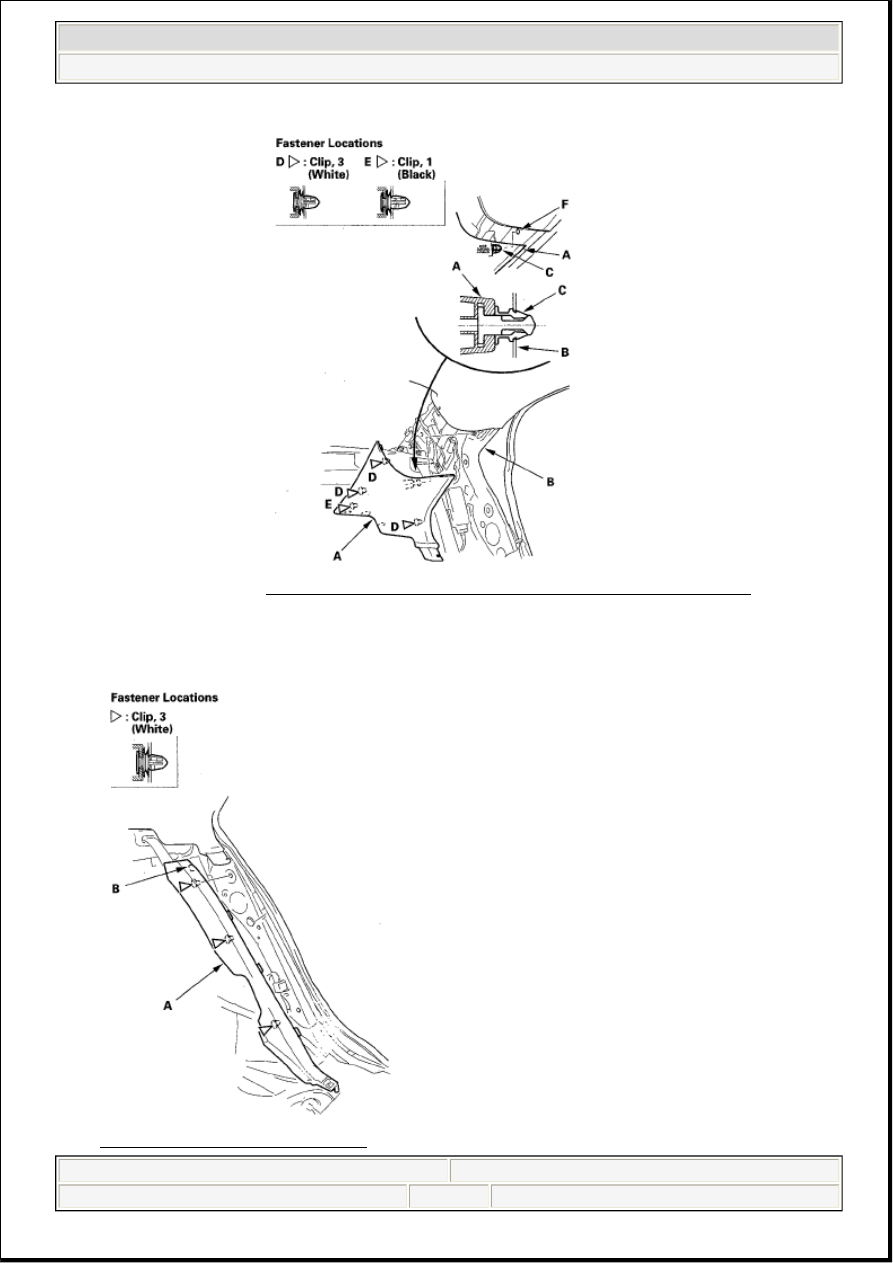

12. Place the C-pillar trim (A) over the C-pillar (B), and fit its upper clip (C) and the other clips (D, E)

into holes (F) in the C-pillar, then lightly push the trim into place.

NOTE:



Make sure the side curtain airbag isn't tucked down under the
clips.



Push lightly on the upper clip. If you push too hard, the clip will be
damaged, and it will not hold the trim properly.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL



me



Friday, June 05, 2009 3:37:01 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

13. Reinstall the seat side trim (A). Push the clips and hook (B) portions into place securely.

Fig. 32: Identifying Seat Side Trim

Fig. 31: Identifying C-Pillar Trim, C-Pillar, And Upper Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL



me



Friday, June 05, 2009 3:37:01 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Reinstall all remaining removed parts.

TRIM REMOVAL/INSTALLATION - REAR SHELF AREA

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )
before doing repairs or service.

1. Remove the C-pillar trim from both sides (see C-PILLAR TRIM ).

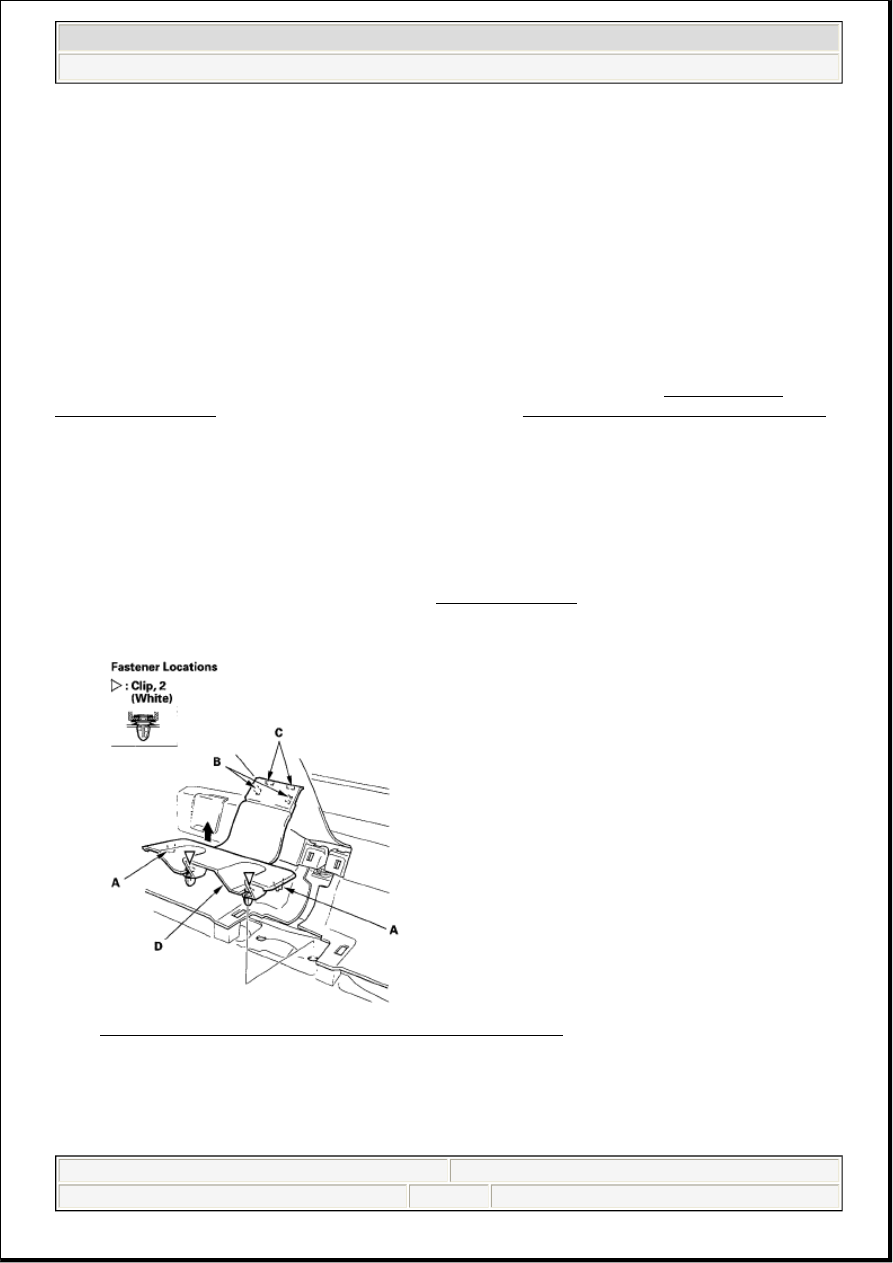

2. Detach the clips and release the hooks (A, B, C), then remove the rear center seat belt cover (D).

Fig. 33: Identifying Rear Center Seat Belt Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the rear shelf (A).

1. Pull up on the front edge of the rear shelf with a door panel tool to release the three clips (B)

and the four clips (C).

NOTE:



Put on gloves to protect your hands.



Take care not to bend or scratch the trim and panels.



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.
