Fig. 577: Identifying 1st Clutch Piston, 1st/1st-Hold Clutch Drum And O-Rings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the O-rings (A) on the 2nd, 3rd, 4th, and 5th clutch piston (B).

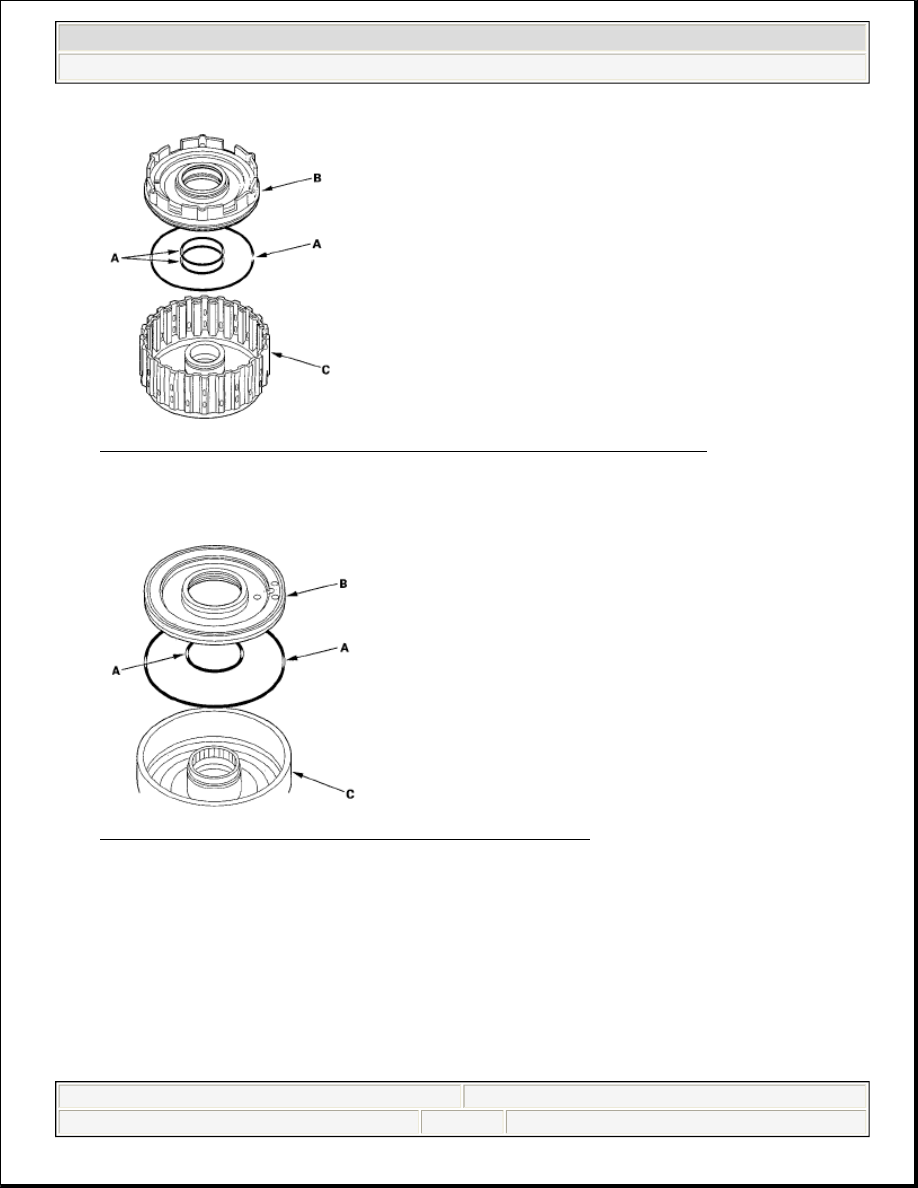

Fig. 578: Identifying O-Rings, Clutch Piston And Clutch Drums
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the clutch pistons in the clutch drums (C) while applying pressure and rotating to ensure proper

seating. Do not pinch the O-ring.

6. Install the return spring (A) and spring retainer (B) of the 1st, 2nd, 3rd, and 4th clutches, and position the

snap ring (C) on the spring retainer.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 515

© 2005 Mitchell Repair Information Company, LLC.

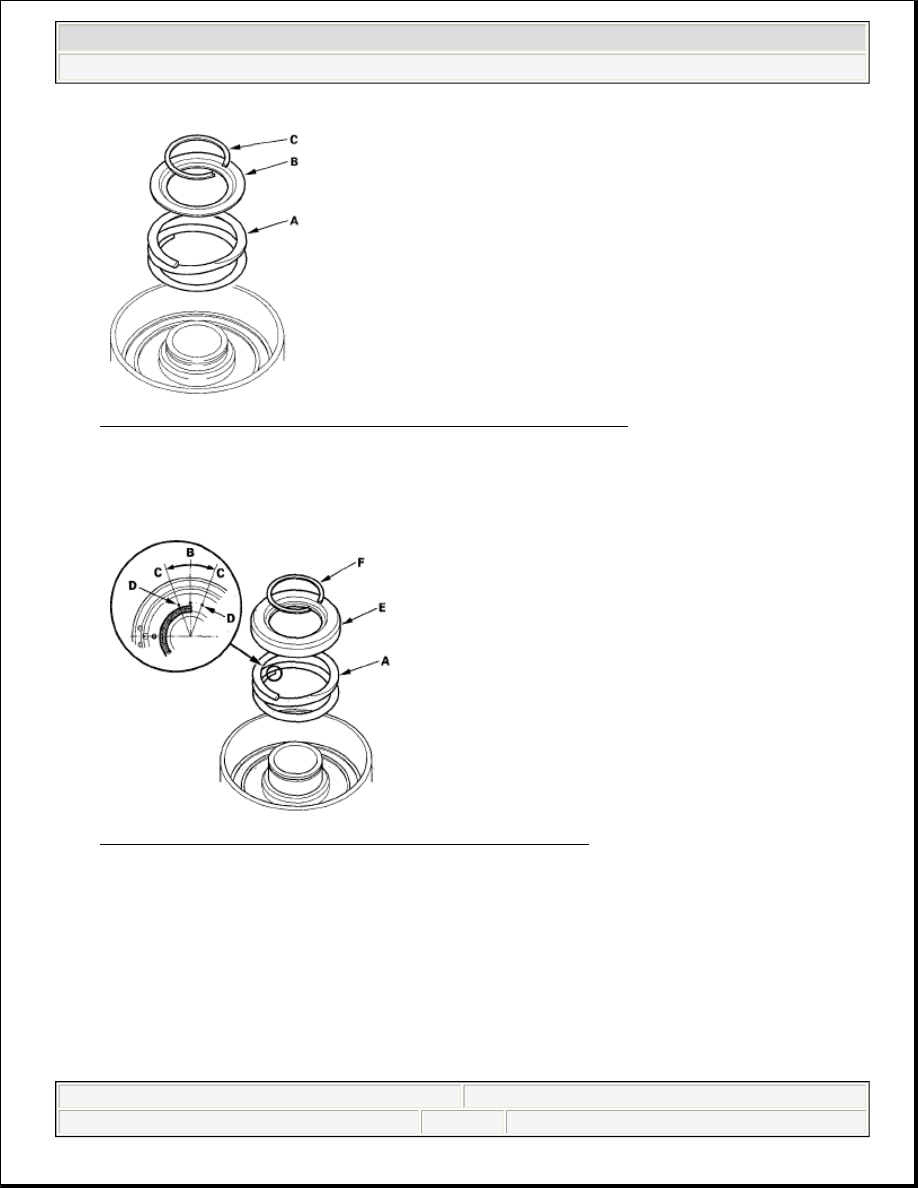

Fig. 579: Identifying Return Spring, Spring Retainer And Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the 5th clutch return spring (A) on the clutch piston while positioning the spring end (B) in the

range (C) of the reference marks (D) on the piston.

Fig. 580: Identifying 5th Clutch Return Spring Mark Reference
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the spring retainer (E) on the return spring, and position the snap ring (F) on the retainer.

9. Install the clutch spring compressor attachment and the clutch spring compressor bolt assembly.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 516

© 2005 Mitchell Repair Information Company, LLC.

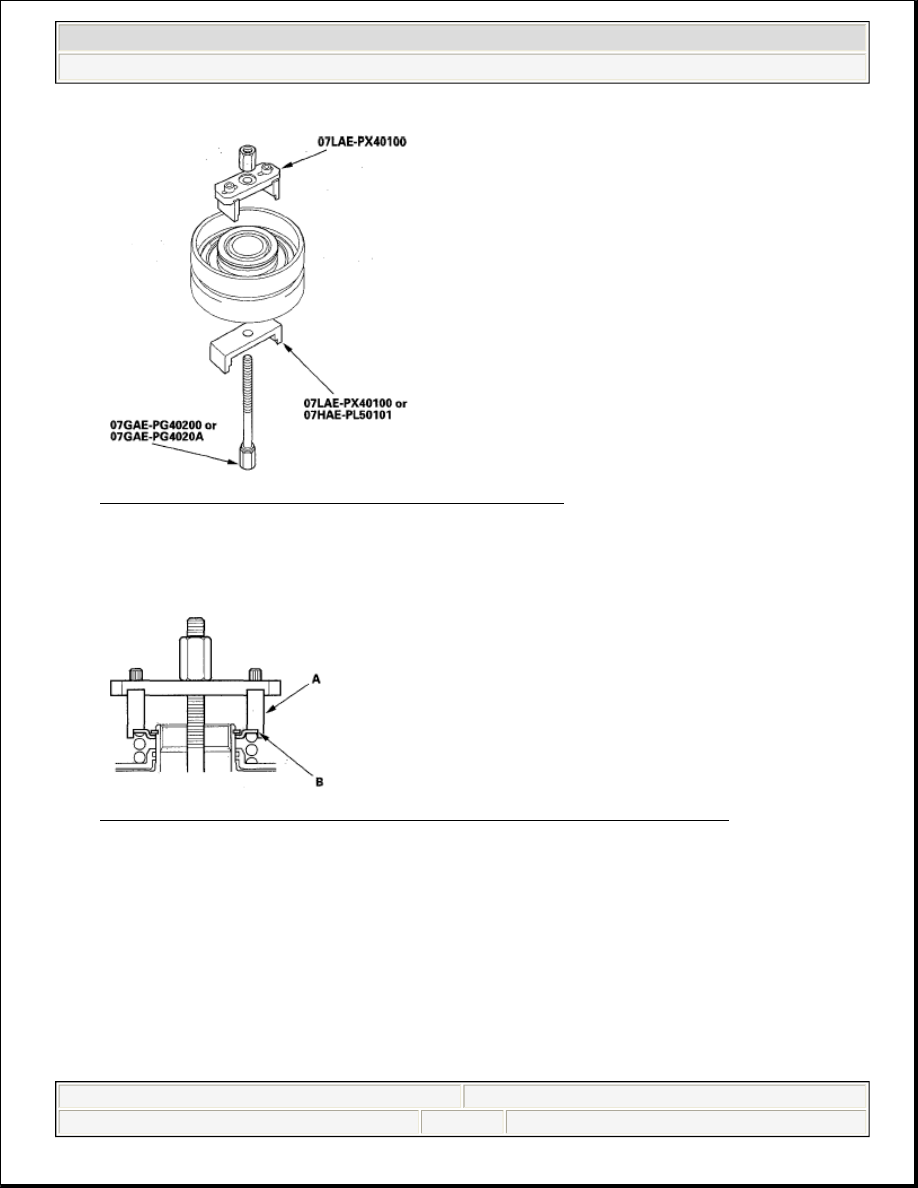

Fig. 581: Identifying Clutch Spring Compressor Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Be sure the clutch spring compressor attachment (A) is adjusted to have full contact with the spring

retainer (B) on the 1st, 2nd, and 4th clutches.

Fig. 582: Identifying Clutch Spring Compressor Attachment And Spring Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. If either end of the clutch spring compressor attachment is set over an area of the spring retainer that is

unsupported by the return spring, the retainer may be damaged.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:18 PM

Page 517

© 2005 Mitchell Repair Information Company, LLC.

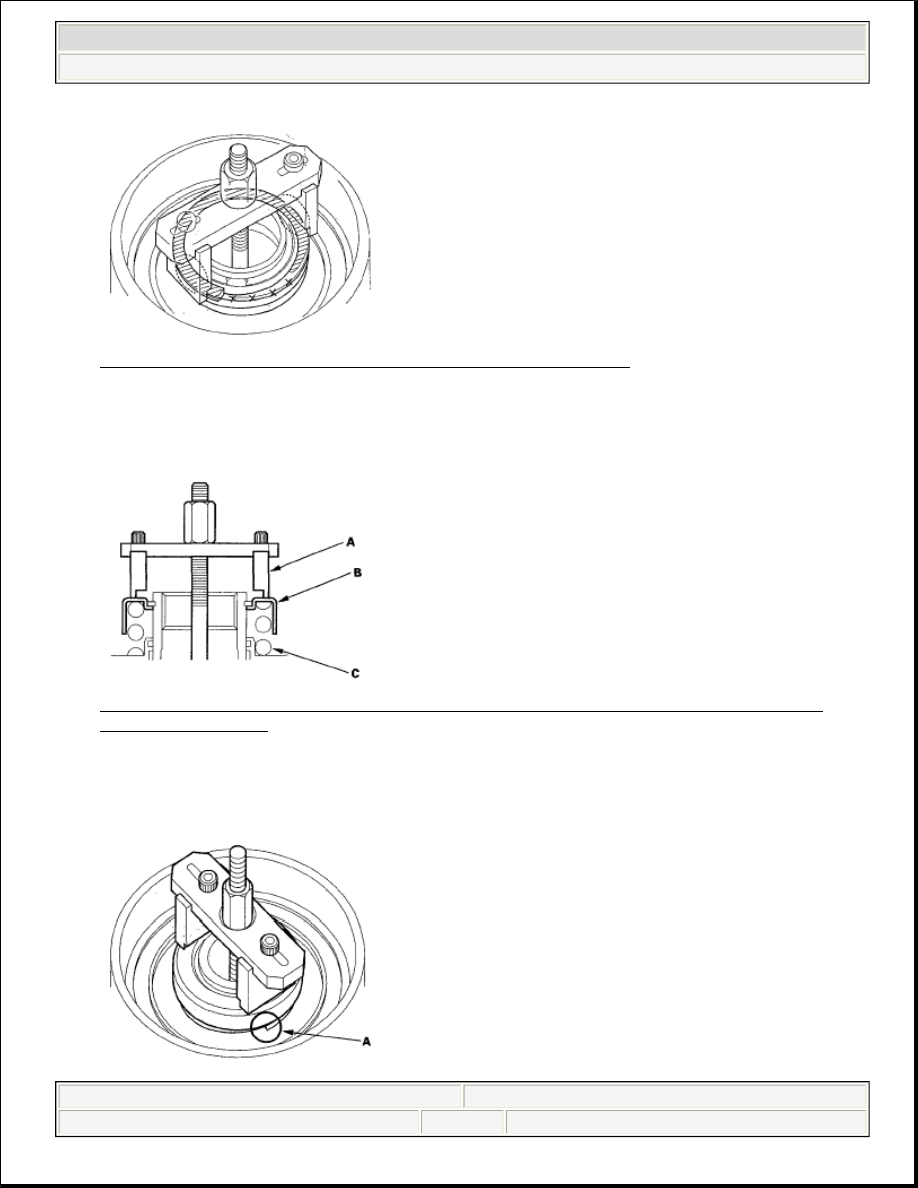

Fig. 583: Identifying Clutch Spring Compressor Attachment Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Set the clutch spring compressor attachment (A) on the spring retainer (B) of the 3rd and 5th clutches so

the clutch spring compressor attachment works on the clutch return spring (C).

Fig. 584: Identifying Identifying Clutch Spring Compressor Attachment, Spring Retainer And
Clutch Return Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. If either end of the clutch spring compressor attachment is not set over the clutch return spring end (A),

the retainer may be damaged.
