CIRCUIT DIAGRAM

2005 model

inflator

8

BLU

LCA-

Ground for left side
curtain airbag inflator

9

GRY

RCA+

Power source for right
side curtain airbag
inflator

10

RED

RCA-

Ground for right side
curtain airbag inflator

11

PNK

LBS1 +

Power source for left
side impact sensor (first)

12

GRY

LBS-

Ground for left side
impact sensor (first)

15

BRN/YEL

RBS1 +

Power source for right
side impact sensor (first)

16

LT GRN

RBS1-

Ground for right side
impact sensor (first)

17

GRN

LSC1 +

Power source for left
side impact sensor
(second)

18

ORN

LSC1-

Ground for left side
impact sensor (second)

19

LT GRN

RCS1 +

Power source for right
side impact sensor
(second)

20

YEL

RCS1-

Ground for right side
impact sensor (second)



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 48

© 2005 Mitchell Repair Information Company, LLC.

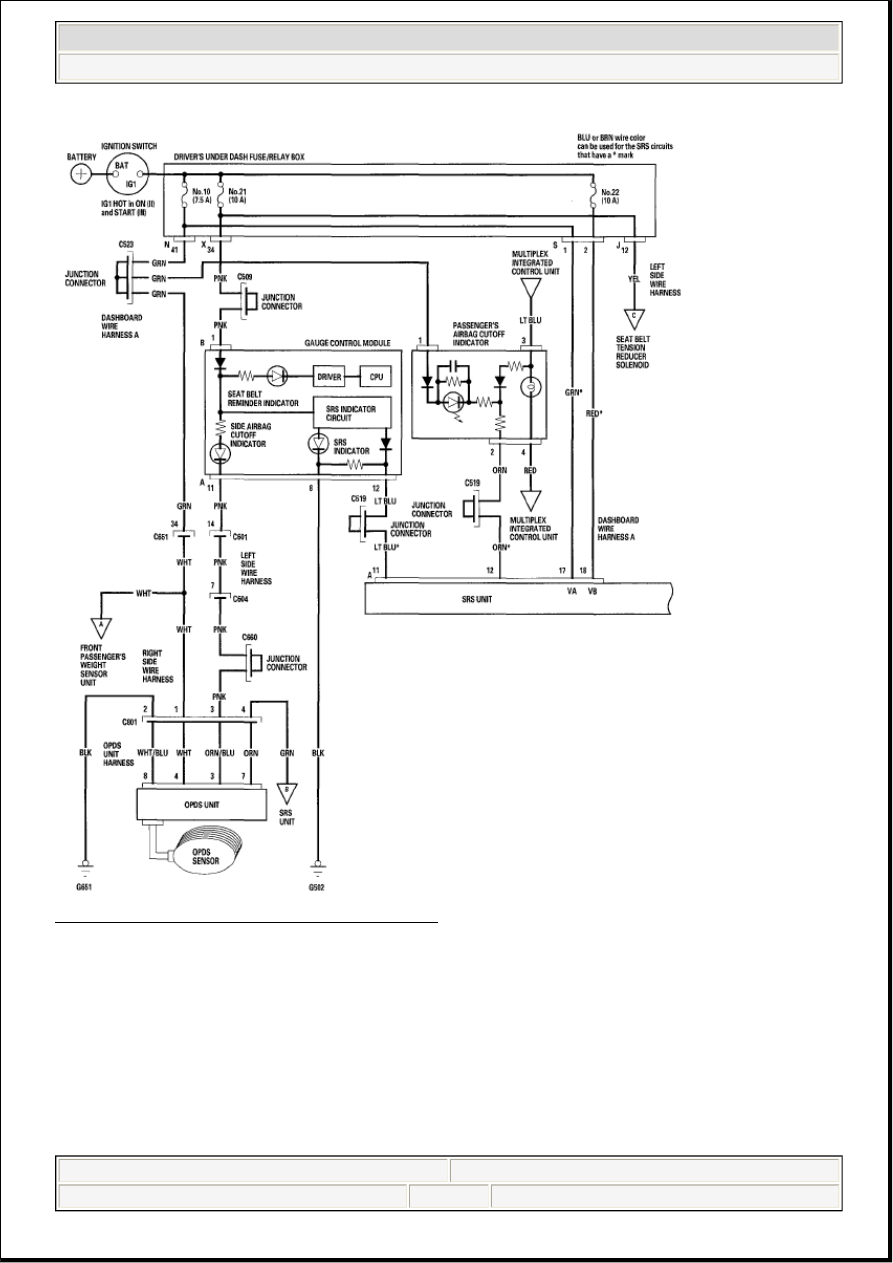

Fig. 54: SRS Circuit Diagram - '05 Model (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

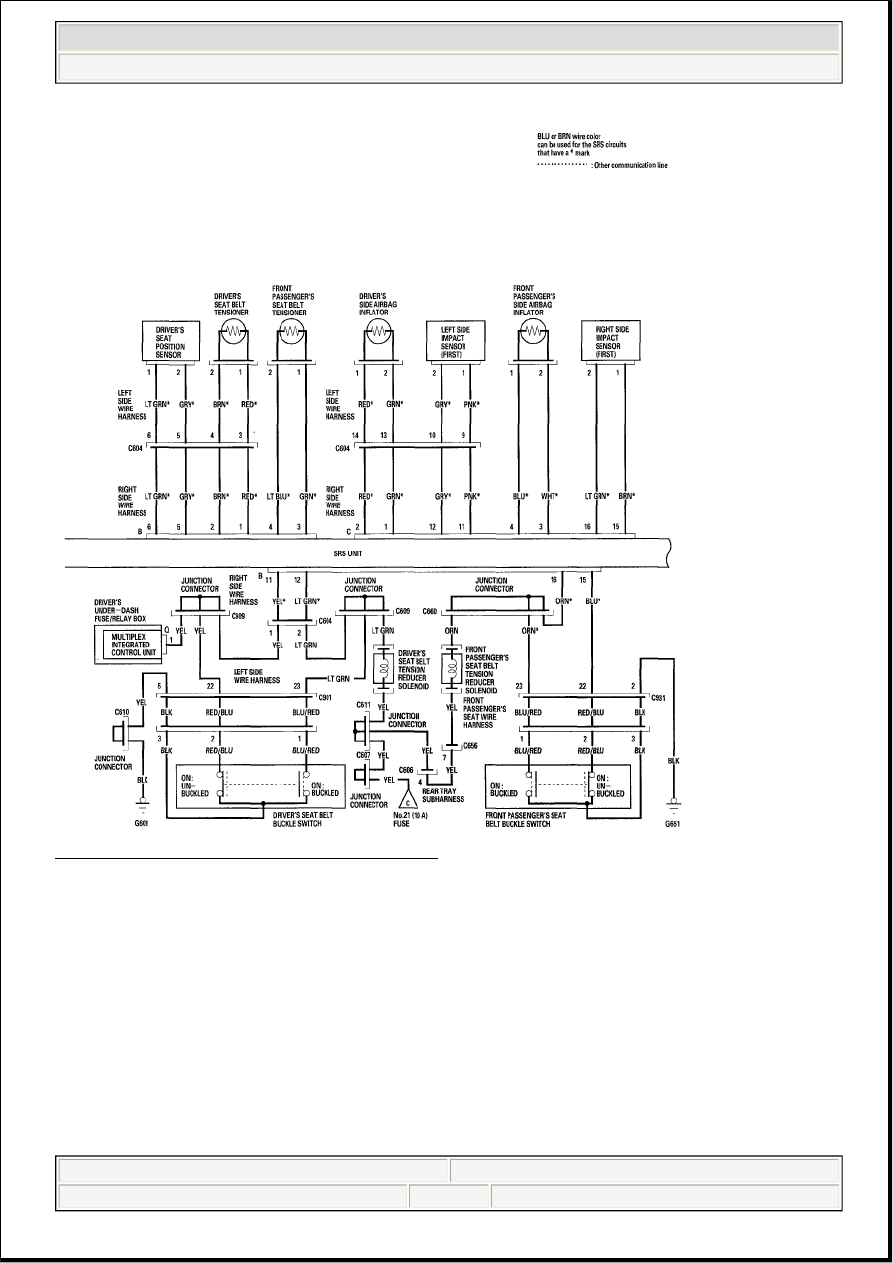

Fig. 55: SRS Circuit Diagram - '05 Model (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

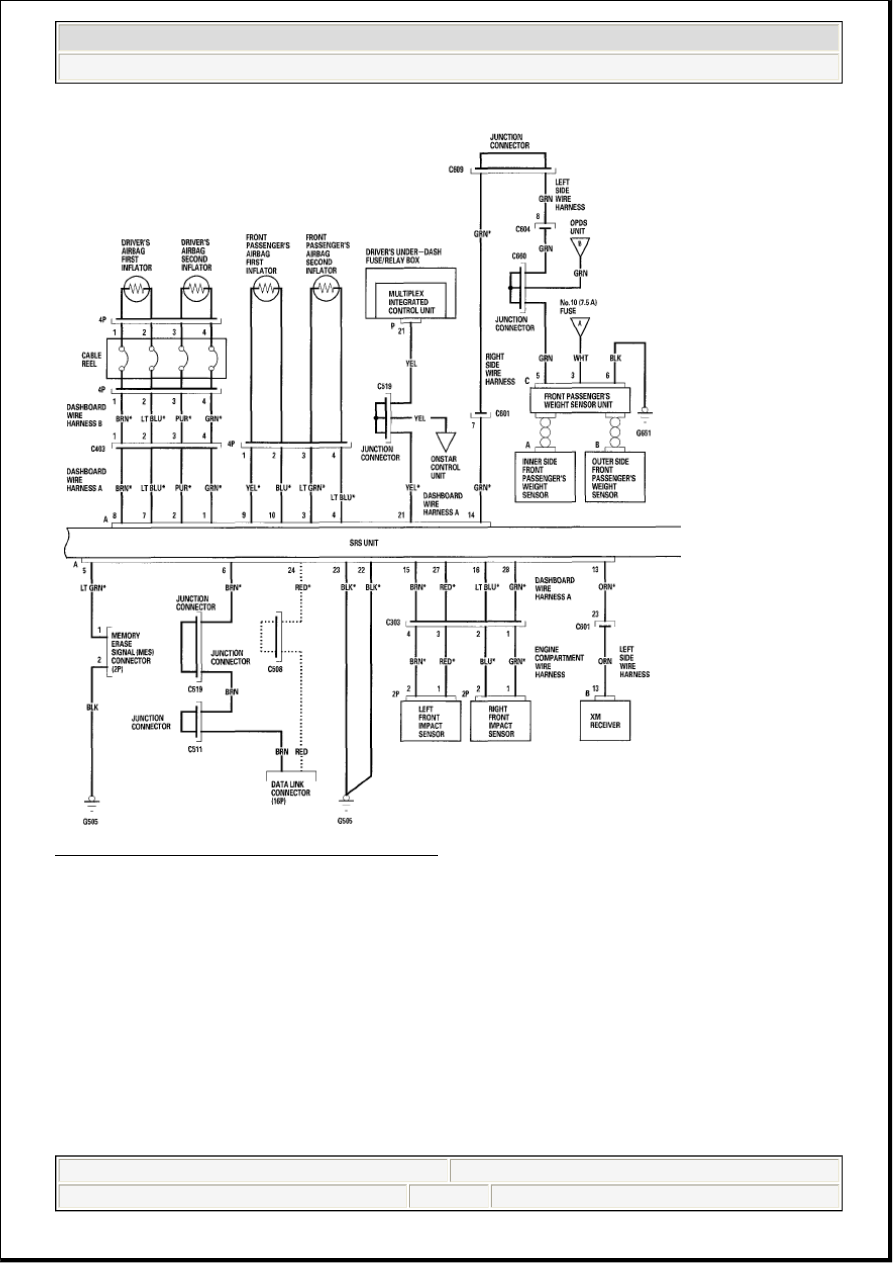

Fig. 56: SRS Circuit Diagram - '05 Model (3 Of 4)
