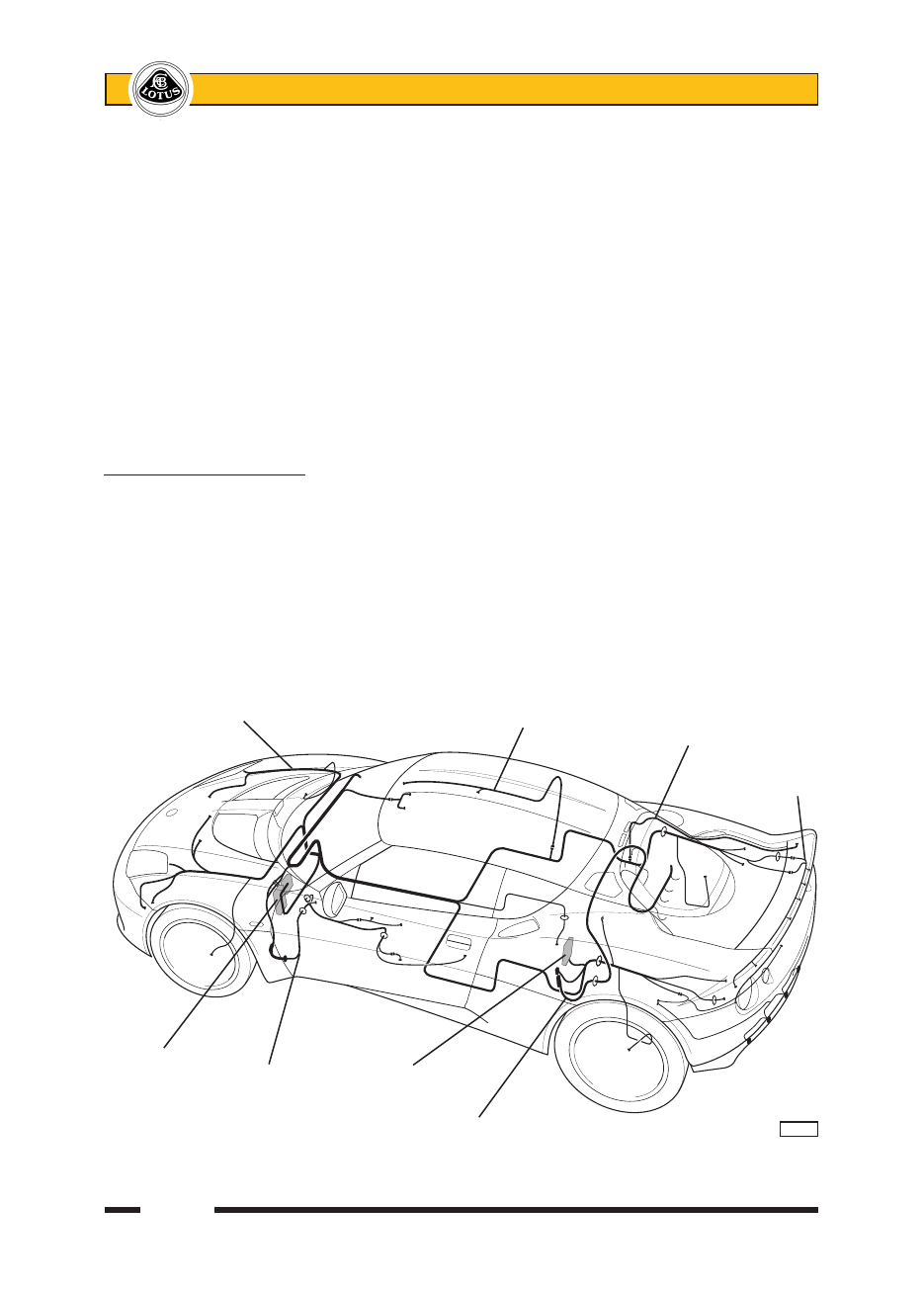

Section MR Component Location Other electrical components may be found as follows: - CDL module; passenger side of scuttle beam vertical face. - Alarm components; see sub-section MR.1. - Horns; one beneath the front end of each front longeron, aligned with apertures in the air intake duct. Accessible after removal of front undertray. - Ambient air temperature sensor; mounted in RH side of the air intake duct, clipped to the undertray pylon. Accessible after removal of front undertray. - Audio speaker cross-over units; one on each end of the scuttle vertical rear face. - Forward crash sensor; one on the outboard face of each front subframe longeron, towards the front. Ac- cessible after removal of the front undertray. - Engine management components; see section EMR. - TPMS module; in boot, on back of LH wheelarch. - Reversing camera module; in boot, on LHS of rear transom.

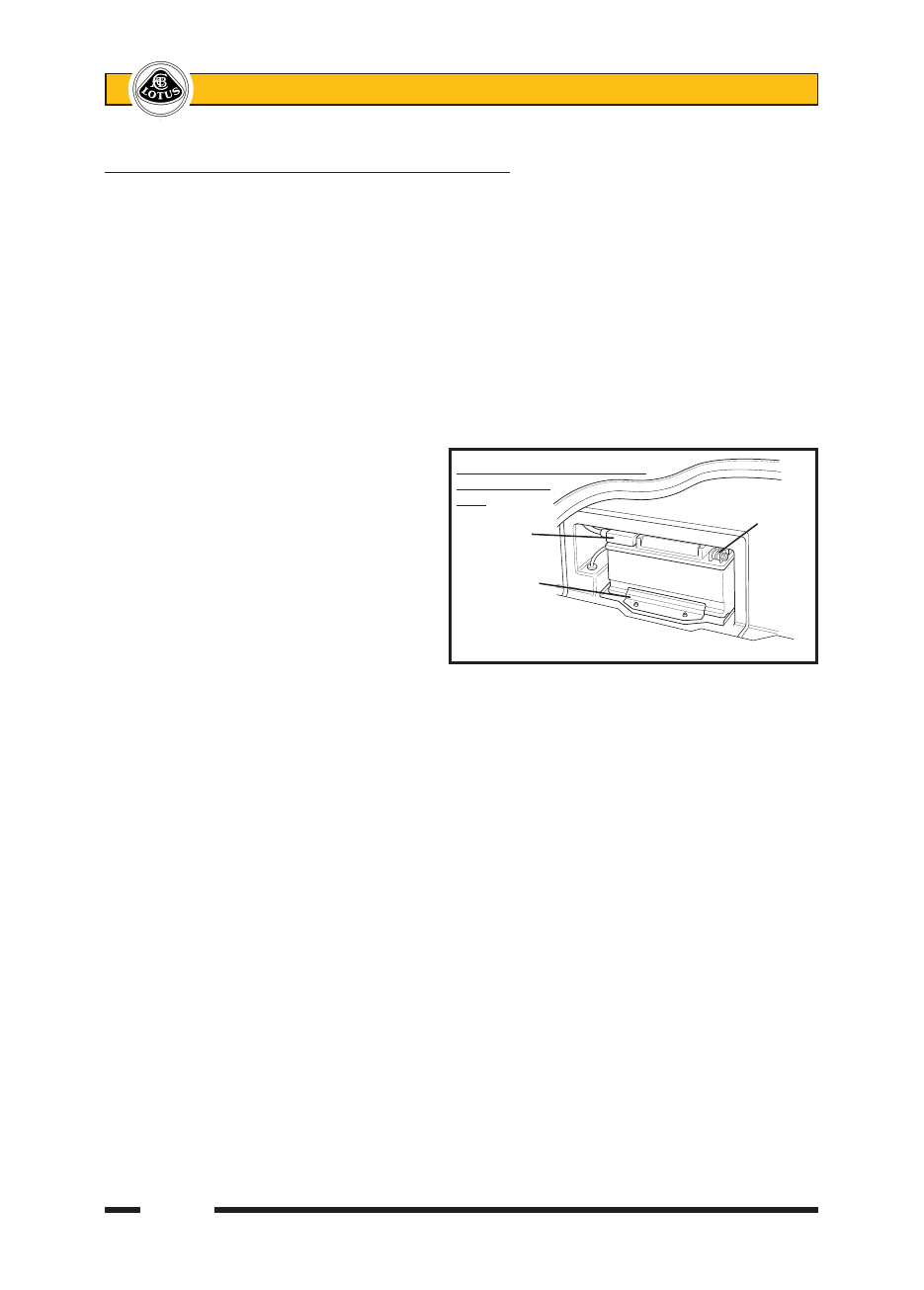

MR.7 - AUDIO EQUIPMENT Operating instructions for the unit fitted are contained in a separate booklet supplied by the equipment manufacturer. The audio set will operate with the ignition key inserted, and in any of its positions, including the ‘0’ lock position. On cars fitted with a 2-DIN audio system and 175mm display screen, the following features are also in- cluded: - AM/FM radio; - CD audio; - DVD video, operable only with the parking brake engaged; - i-pod to i-pod video interaction/control; - MP3 player; - Satellite navigation; - Integrated microphone for Bluetooth phone operation; - When set is switched on, automatic display from reversing camera when reverse gear is engaged. - Note that the screen should be cleaned occasionally with a lint free, spectacle polishing cloth. Note • The ‘satnav’ system includes a road network safety camera database, which may be activated at the owner’s request when the system is set up. If using the vehicle in territories where such a feature is illegal, it is the owner’s responsibility to ensure that the system is de-activated. • Note that the quality of radio reception will vary according to audio equipment fitted and local area signal strength. Speakers: A main speaker is fitted into each of the door trim panels, and a high frequency ‘tweeter’ incorporated into each end of the dash fascia panel. In addition, some cars are fitted with a single sub-woofer, low freqency speaker in the right hand rear quarter trim panel. Door speakers - Alpine LUK-SB01B (4-speaker base spec.): 145mm aperture, 63mm depth Door speakers - Alpine LUK-SB02T: (4/5-speaker high spec.): 145mm aperture, 63mm depth Sub-woofer - Alpine SWE 843 (5-speaker high spec.): 183mm aperture, 111mm depth Tweeters - Alpine LUK-ST01: 42mm aperture, 12mm depth Security: Some audio sets feature a removable front panel; For details, refer to the set manufacturer’s litera ture. |
