Pedal Position Sensor 'E' Circuit Low                    P2127

Description

Two potentiometers are built into the throttle pedal  unit in order to provide a throttle demand signal to the ECU.

Note that the potentiometers operate on 5 volts.

Enable Criteria: None

Disable Criteria: None

Potential failure modes:

# Signal short circuit (< 0.283 V)

# Reference voltage open circuit

# Reference voltage short to ground

# Sensor failure

Notes: A maximum throttle opening of 15% may be imposed due to this single code.  In the case of multiple

codes, a mechanically sprung 7% opening may be applied.

Pedal Position Sensor 'E' Circuit High                    P2128

Enable Criteria: None

Disable Criteria: None

Potential failure modes:

# Signal open circuit (> 4.487 V)

# Reference voltage open circuit

# Reference voltage short to ground

# Sensor failure

Notes: A maximum throttle opening of 15% may be imposed due to this single code.  In the case of multiple

codes, a mechanically sprung 7% opening may be applied.

Throttle Position Sensor 'A'/'B' Voltage Correlation           P2135

Description

Two potentiometers are built into the throttle actuator unit in order to provide a throttle position signal to the

ECU.  Two processors within the ECU compare the two output signals, which should match within a defined

tolerance. Note that the potentiometers operate on 5 volts.

Enable Criteria: None

Disable Criteria: Throttle position greater than 60%

Potential failure modes:

# TPS1 reading incorrectly

# TPS2 reading incorrectly

Notes: A maximum throttle opening of 15% may be imposed.

sn_emp_cyclone.indd   54

03/03/2006   11:03:42





Lotus Service Notes





  Section EMP

Page 55

Pedal Position Sensor/Switch 'D'/'E' Voltage Correlation        P2138

Description

Two potentiometers are built into the throttle pedal unit in order to provide a throttle demand signal to the ECU.

Two processors within the ECU compare the two output signals, which should match within a defined tolerance.

Note that the potentiometers operate on 5 volts.

Enable Criteria: None

Disable Criteria: None

Potential failure modes:

# PPS1 reading incorrectly

# PPS2 reading incorrectly

Notes: A maximum throttle opening of 15% may be imposed.

Throttle Actuator Control System – High Airflow Detected      P2173

Description

The mass air flow is compared with the throttle position to determine whether an incorrect correlation exists.

Enable Criteria: None

Disable Criteria: MAF fault(s) present

Potential failure modes:

# Throttle plate damage

# Air leak in intake system

Notes: A mechanically sprung 7% throttle opening may be imposed, or the injectors may be shut off to stop

the engine.

sn_emp_cyclone.indd   55

03/03/2006   11:03:43

Page 1





Lotus Service Notes





     Section FJ







TRANSMISSION

SECTION FJ

                                                    Sub-Section       Page





Introduction













FJ.1



2





Gearchange Mechanism











FJ.2



4





Lubrication













FJ.3



10





Driveshafts













FJ.4



11





Transmission Replacement









FJ.5



14





Transmission Overhaul & Special Tools







FJ.6



15





See also Toyota transmission repair manual D120T0327J

sn_fj_cyclone.indd   1

03/07/2006   15:06:28





Lotus Service Notes





     Section FJ

Page 2

FJ.1 - INTRODUCTION

The 5-speed Elise S transmission, and the 6-speed variant used on all other models, are both 'end on' type,

mounted on the left hand end of the engine unit, and comprise the clutch housing, gearbox, final drive gears, and

differential.  Both units are supplied by Toyota, and are designated 'C56' and 'C64', (C = series; 5 or 6 = no. of

gears; 6 or 4 = ratio set) with Toyota publication RM930E covering the description and overhaul of the 6-speed

transmission (5-speed TBA).  Two control cables are used to transmit the movement of the gearchange lever

to the transmission selector housing, running along the centre of the cabin and beneath the power unit.

The two shaft gearbox is housed within a three part casing comprising clutch housing, main case and end

cover, all being alloy castings.

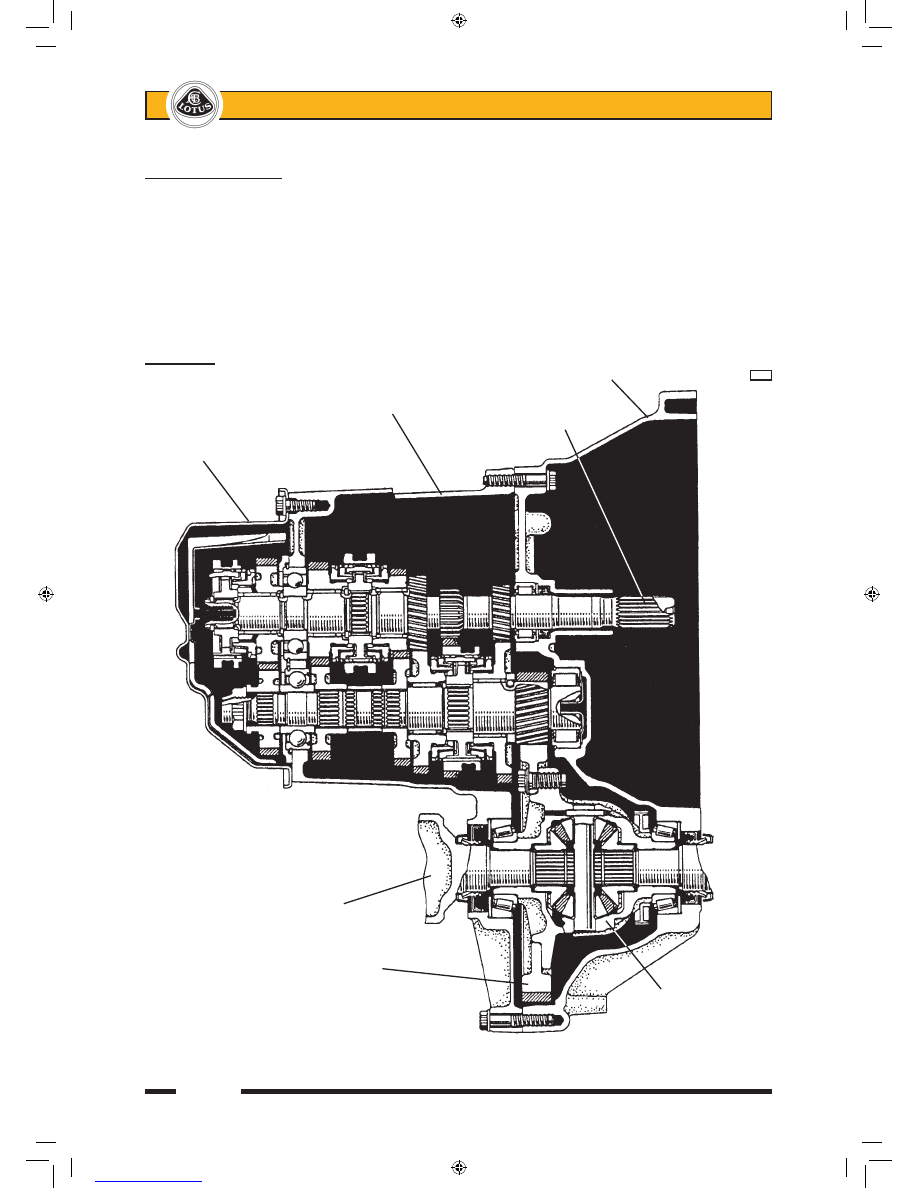

C56 Shown

                                        Clutch housing

f138



                    Main case

                                    Clutch splines

End cover

(casting on Lotus)

            LH driveshaft

            inboard CV joint

                  Final drive

                  output gear

                                                        Bevel gear

                                                        differential
