BR.15 - CENTRAL DOOR LOCKING

(Parts List 10.17)

On cars so equipped, the central door locking (CDL) operates on the driver’s and passenger’s doors in

conjunction with the Cobra 8185/8186 security alarm system.  For full details of the alarm system, see sub-
section MP.1.

To lock the car, remove the ignition key, close both doors and check that the engine cover and front body

access panels are secure.  Arm the security alarm in the usual way by pressing once, for a full second, the
larger of the two buttons on the transmitter key.  This action will both arm the alarm and electrically lock the
driver’s and passenger’s doors.

If it is desired to lock the doors from inside the vehicle, for example to deter highjack attempts, a CDL

rocker switch is provided on the front of the gear lever shroud which should be pressed to the right to lock both
doors with or without the ignition switched on.  Alternatively, the doors can be locked individually by depressing
the button at the rear end of each door sill.  Note that whichever locking method is used,  the doors will be
‘deadlocked’ such that the interior door release handles are inoperative.

To unlock the doors, press once, for a full second, the larger button on the transmitter key.  The alarm will

be disarmed and both doors unlocked.  Alternatively, from inside the car, press to the left the rocker switch on
the gear lever shroud to unlock both doors, or raise the sill button on each door.  Note that in the event of a
vehicle collision which causes the safety inertia switch to be tripped, the doors will automatically be unlocked.

Notes:
-

In the event of a flat vehicle battery, the central door locking will not operate.  The doors can be unlocked
only after opening the boot lid and restoring power to the battery by substitution, re-charging or ‘jumping’ to
a second battery.

-

To lock the car with a flat or disconnected battery, use the mechanical key in each exterior door button to
disconnect each release button from the latch.  This technique does not 'deadlock' the interior release
handles, but does allow continued key access to the car until restoration of battery power.

-

To deadlock the car with a flat vehicle bat-
tery, or without the use of the transmitter
or mechanical key, close and lock one door
using the sill button, and for the second
door, hold the exterior release button
pressed in and depress the sill button be-
fore closing the door.  Access is now avail-
able only on restoration of electrical power.

Door Locking Actuator

A CDL actuator is screw fixed to the door

shell below the latch mechanism, and uses a
link rod which passes through the rearmost
(shortest lever length) hole on the latch lever,
before continuing upwards to the door sill but-
ton.  The latch mechanism within the door is
protected from tamper attempts by a plastic
security shield fixed with screws through the
door shut face.  To remove an actuator, re-
move the door trim panel, security shield, re-
lease the two actuator fixing screws, unhook
the actuator from the link rod and disconnect
the harness.

Refit in reverse order to removal, noting

that no adjustment is required.

Door sill button

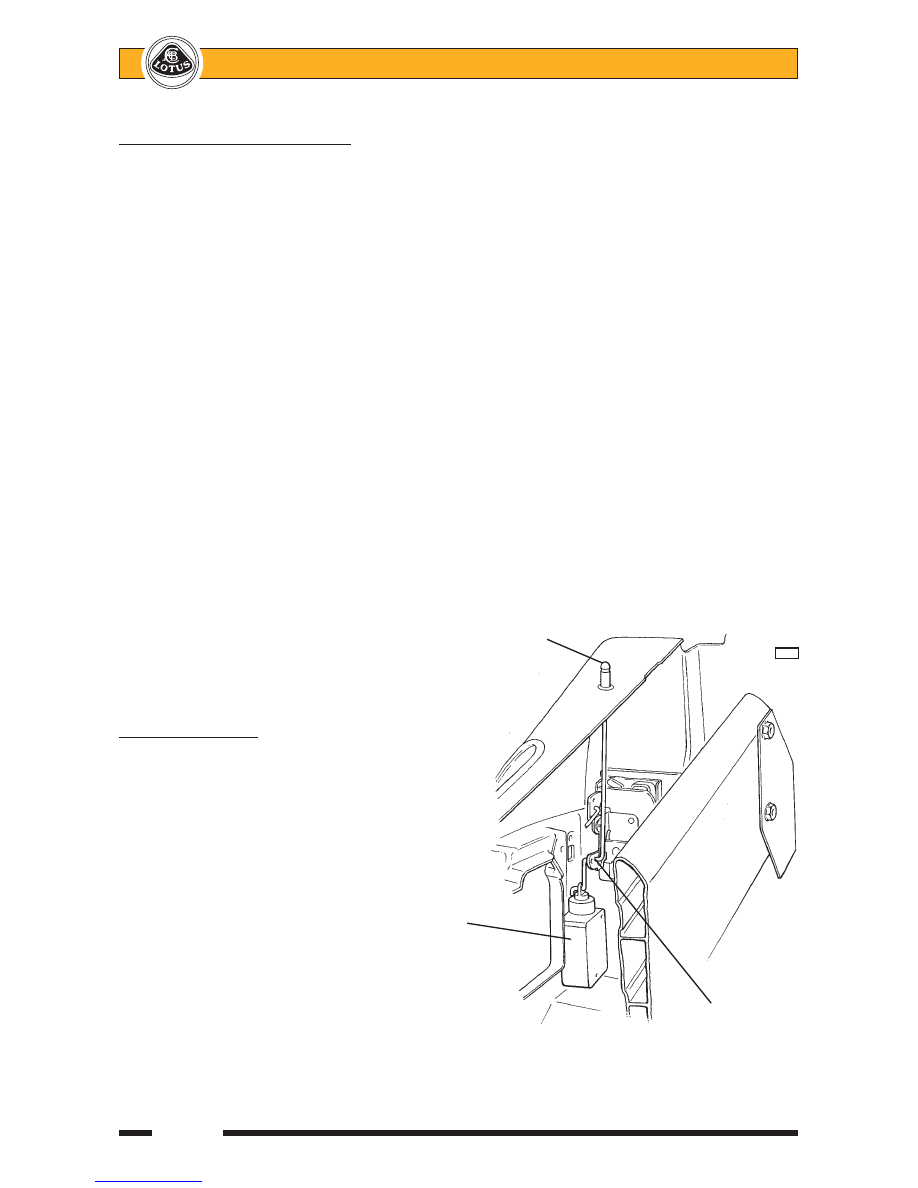

          b338

CDL
actuator

Rearmost
hole





Lotus Service Notes                                  Section BR

Page 27

BR.16 - INSTRUMENT BINNACLE & DASH PANEL

(Parts List 14.10, 14.05, 14.05b)

The dash panel comprises interlinking alloy extrusions which join the chassis scuttle beam to the  base of

the windscreen pillars, and also provide a mounting for the fascia top trip panel.  The lowermost extrusion,
which incorporates a curved shelf, is keyed into a slot in the scuttle beam and is secured by rivets at each end
to the beam.  On non-airbag cars, two interlinking extrusions are joined by self tapping screws to form the top
part of the dash panel, which is divided into two sections by the steering column.  This upper dash is used to
house the face level vents and audio set.  On airbag cars, the two upper extrusions are combined into a single
extrusion, which profile and function is similar to non-airbag cars, and which bridges the steering column area
and includes an aperture through which the passenger airbag is deployed.

The upper extrusion(s) slots behind the top edge of the lower dash, and is secured at each end by two

screws to threaded inserts in the base of the windscreen pillars.  Additional location is provided by rivets
securing the speaker or door sill trim panel mounting brackets.

On non-airbag cars, a skinned foam fascia top panel, trimmed with suede material, joins the top of the

dash to the base of the windscreen and incorporates the demist ducting and four windscreen outlet vents, with
a moulded plastic capping panel around the front of the fascia top and surrounding the vents.  At each end of
the fascia, a moulded plastic panel joins the fascia to the door sill finisher, and is used to mount the front
speakers and lighting switches.

On airbag cars, the untrimmed skinned foam panel incorporates the ducting to the six fixed demist outlet

vents, and also houses the front speakers.  The face level vent outlets are housed in the moulded plastic
panels joining the fascia to the door sill finishers and in a central moulding also housing the audio set.

For access to the climate controls, or electrical components mounted on top of the chassis scuttle beam,

the fascia top panel must be removed.

To Remove Fascia Top Panel - non airbag cars
1.

Remove the steering column upper and
lower shrouds:
- Remove the four screws securing the
shroud upper section.
- Pull out the grommet from around the
ignition switch and remove the three
screws securing the lower
shroud to the column.
- Disconnect the trip reset button from
the lower shroud.

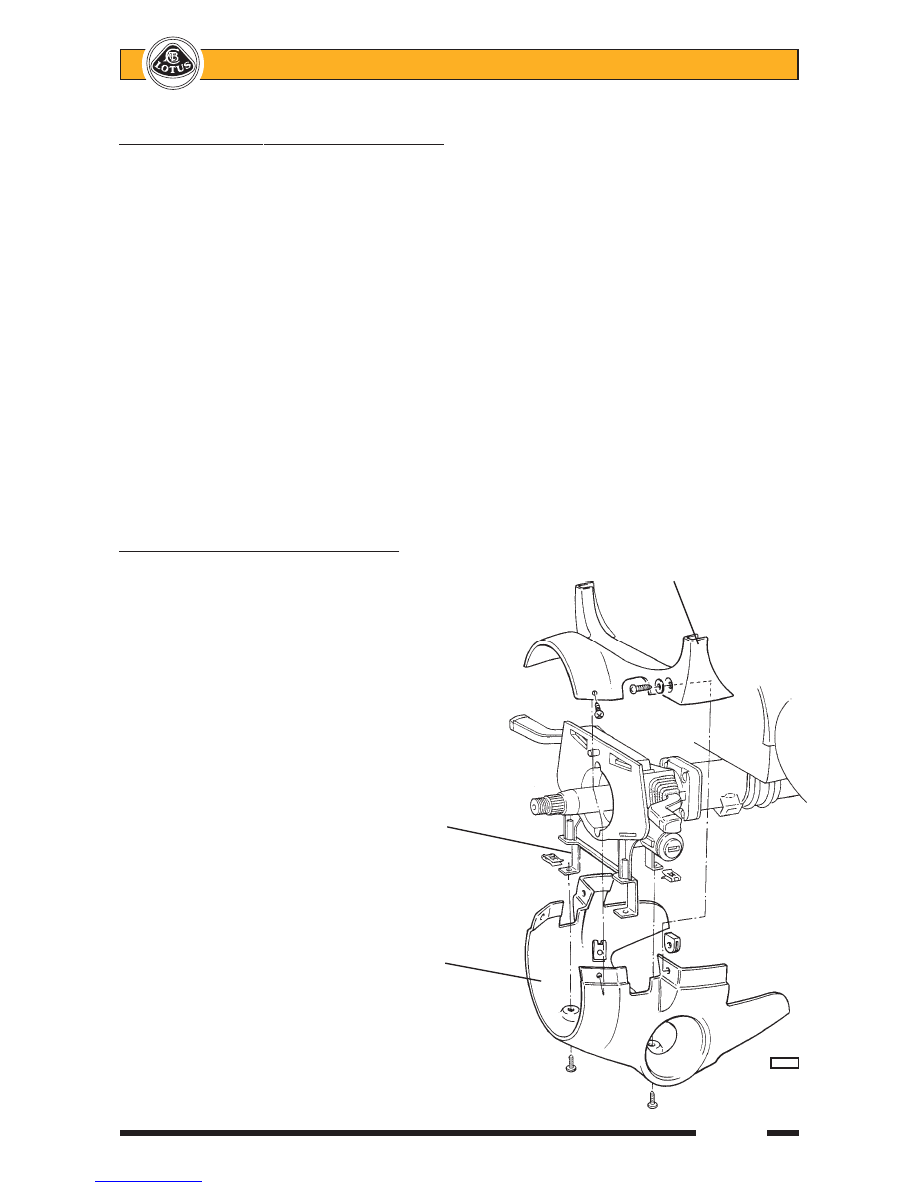

     Column upper shroud

Lower shroud
mounting
bracket

Column lower
shroud

           b258a





Lotus Service Notes                                  Section BR

Page 28

2.

Release the two fixings securing the binnacle mounting brackets to the column, and withdraw the instru-
ment pack and cowl.  Unplug the harness connector.

3.

Release the screws securing each fascia end (speaker) panel, disconnect the switch and speaker har-
nesses and withdraw the panels.

4.

Carefully prise each windscreen outlet vent from the fascia.

5.

Remove the screws at each end securing the fascia capping panel, and withdraw the panel.

6.

Remove the plastic finisher above the climate controls.  Remove the four screws securing the top flange
of the dash extrusion to the underside of the fascia top.

7.

Lift the rear of the fascia top to release the two locating bosses from the keyhole slots in the dash, and pull
the fascia rearwards to withdraw the two front edge spigot pins.

8.

If the demist ducting is found to have become detached, or loose from the facia top foam moulding, the
duct should be refixed as follows:
- Remove any fixing screws, separate the duct from the fascia and remove any glue from the ducting.
- Roughen the bonding surface of the fascia with sand paper and clean and degrease with Betaclean 3900
or Acetone.  Similarly clean and degrease the bonding surface of the demist duct.
- Prime bonding surfaces with Betaprime 5404 and bond with Betaseal 1701 or similar one component
polyurethane adhesive.

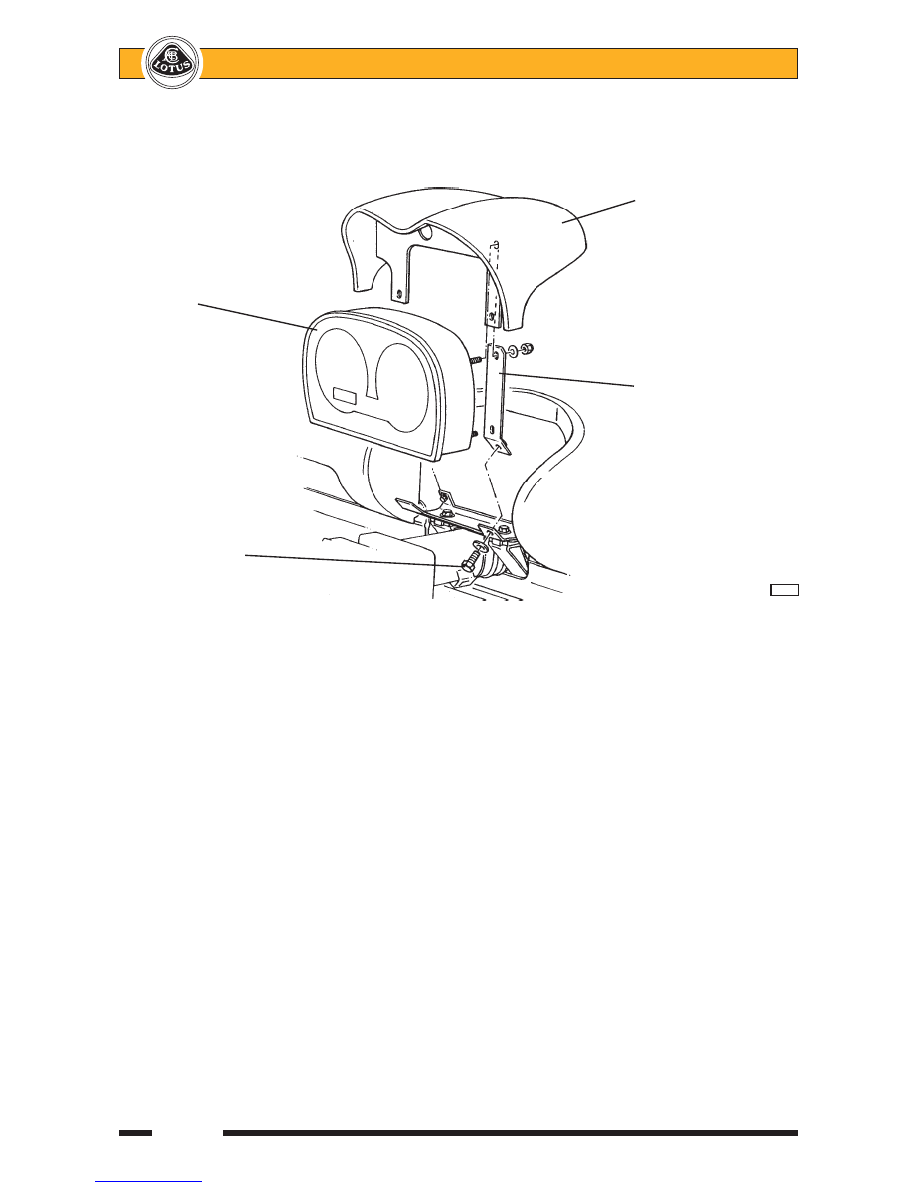

Instrument cowl

Instrument
pack

Binnacle
mounting
bracket

Mounting bracket
fixing screw

      b259a





Lotus Service Notes                                  Section BR

Page 29

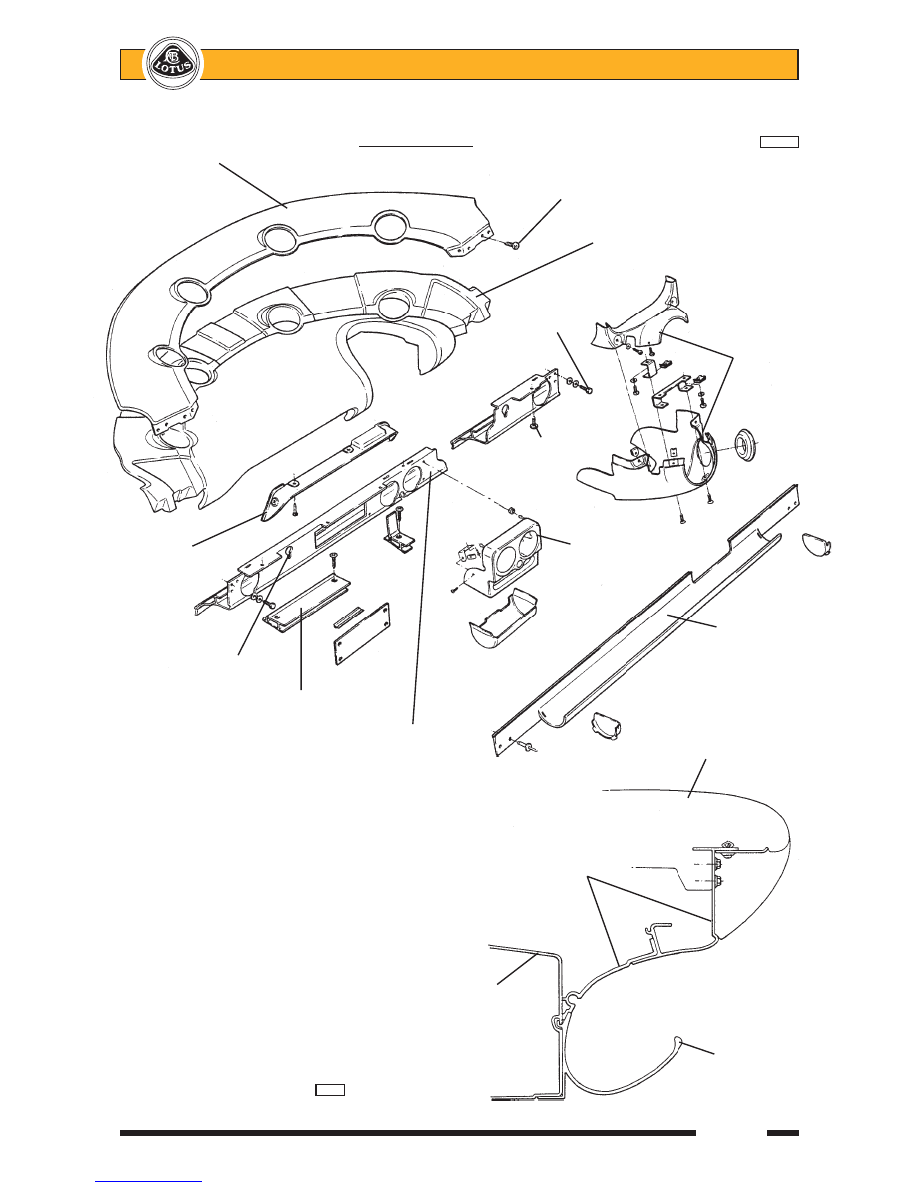

Moulded plastic

Non-Airbag Type

                 pl1405mt

capping panel

Capping panel fixing

Fascia top panel

Dash fixing
to screen
frame

    Column
    shroud

Fascia
to dash
fixing

Fascia top

   FLV/climate

recess finisher

   control
   housing

Dash lower
extrusion

Keyhole slot
for fascia

Audio set
support

Dash upper
extrusion

Fascia top

Upper & centre
extrusions

Chassis
scuttle
beam

Lower
extrusion

b202a
