Lotus Service Notes                                 Section PL

Page 23

6.

Refit in reverse order to removal, ensuring that the sealing foam between the unit and baffle panel and on
the chassis scuttle is present and in good condition.  Secure by re-rivetting the retaining bracket.

PL.13 - REFRIGERANT PIPES

The main feed and return (high pressure liquid and low pressure suction) lines to the compressor take the

form of aluminium pipes routed along the outside of the RH chassis rail, such that removal of the body sill panel
is required for access to the pipes.  Replacement of the pipes is unlikely to be necessary other than as a result
of accident damage, in which case the body sill will be replaced in accordance with Service Notes Section BQ.

PL.14 - AIR BLENDER & RE-CIRC. FLAP ACTUATORS

The stepper motor (actuator) for the air temperature blender flap is mounted on the side of the heater/a.c.

casing and is secured by two screws.  A moulded plastic cover is hooked over the actuator to provide protection
from direct water contamination.  On installations where the actuator is on the rear of the unit (RHD Rover
powertrain; LHD Toyota powertrain), access to the actuator requires the unit to be removed from the chassis
(see sub-section PL.12).

With the heater/a.c. unit removed, pull off the moulded water shield and release the two fixings securing

the actuator to the casing.  The nuts are accessible inside the casing via the air outlet aperture, but the air
blender flap may need to be moved to allow access to both nuts.  In order to allow flap movement, the flap must
be mechanically disconnected from the motor by unclipping the actuator outer cover and sliding a drive gear
off its shaft.

On installations where the actuator is on the front of the unit (LHD Rover powertrain; RHD Toyota powertrain),

and the car is not fitted with air conditioning, the actuator is accessible with the unit 'in-situ'.  Remove the front
clamshell (sub-section BR.6), release the harnesses from the the front edge of the climate chamber and tie
back the harnesses and water hoses to allow optimum access to the actuator.  Pull off the moulded water
shield, unclip the actuator outer cover and slide off a drive gear to allow the flap to be moved for access to the
two fixing nuts inside the casing.  To aid reassembly, it is recommended to glue the two fixing spacers in
position.

The re-circulation flap actuator on both RHD and LHD cars is accessible only with the heater/a.c. unit

removed.  If this should occur, the re-circ. flap actuator water shield should be fitted (if not already present) by
withdrawing the re-circ. flap assembly from the channel in the front of the climate chamber, hooking the water
shield over the actuator and refitting into the chassis, noting that the actuator lead is looped downwards to
prevent water tracking along the lead and into the actuator.

Early cars built before May 2004 will benefit from the fitment of an extended clamshell gutter (if not

already fitted).  On later cars, the fettling of the clamshell was revised to prevent water spilling directly into the
actuator area.

Parts Required

Part Number

Qty

Gutter Extension Panel, RHD

A117B0703K

1

Gutter Extension Panel, LHD

A117B0704K

1

1.

Remove both front body access panels, and the two louvre panels.  Remove the two air deflector panels
to which the louvre panels attach.

2.

The rear of the radiator is secured by two pairs of screws along the top rear edge.  Release the inboard
screw on each side.

3.

Before attempting to install the new gutter extension panel, protect the top surface of the radiator with a
rigid plastic sheet or similar to avoid damage to the delicate finning.  Manoeuvre the gutter extension
panel into the underside of the clamshell spine, and retain with the two radiator fixing screws.  Note that
the panel incorporates a hot air dam for the spine area.

4.

Refit the two air deflector panels, the louvres and the access panels.



Lotus Service Notes                                 Section PL

Page 24

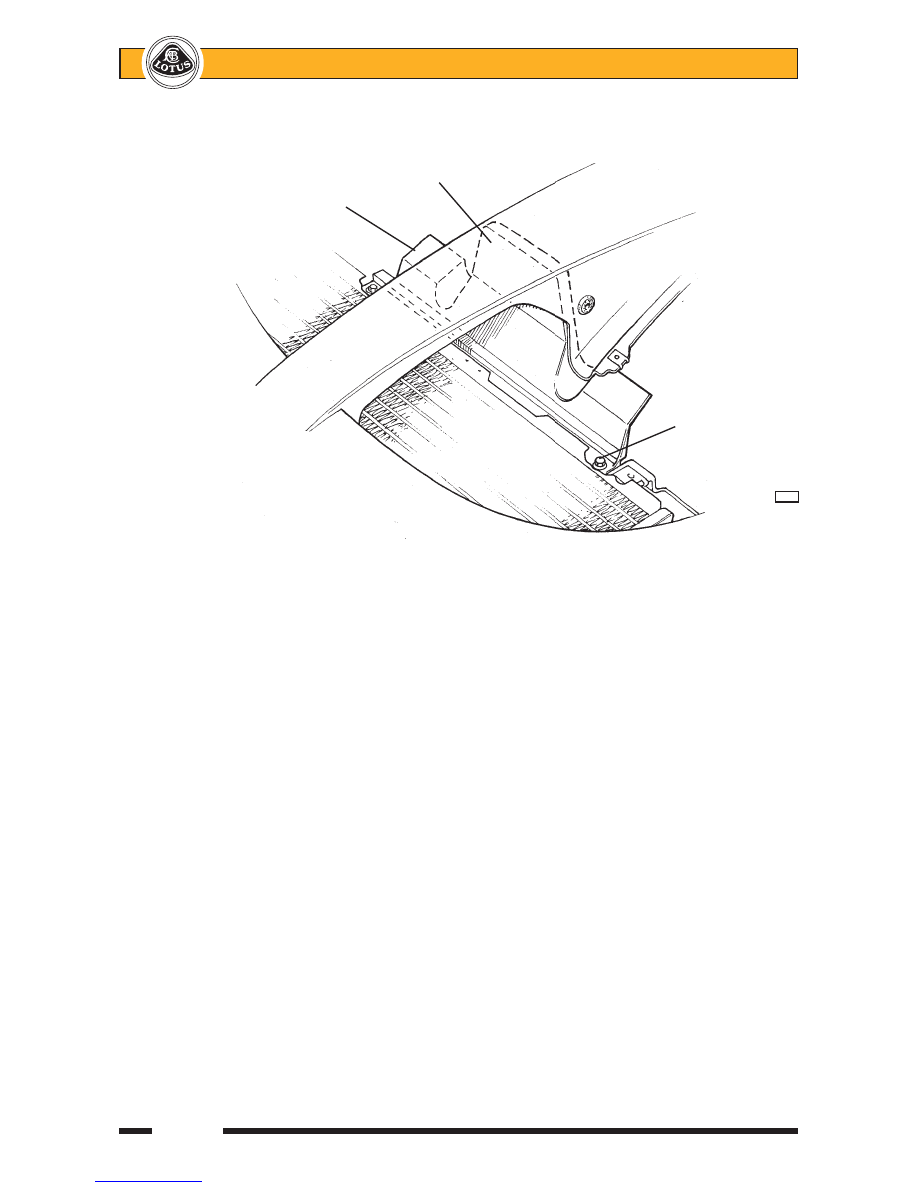

Hot air dam

Gutter extension panel

Radiator
inboard fixing

        sb79





Lotus Service Notes                                  Section QH

Page 1

CLUTCH

SECTION QH

                                                   Sub-Section    Page

      General Description                              QH.1        3

      Clutch Pedal                                  QH.2        3

      Hydraulic Release System                          QH.3        3

      Clutch Assembly                                QH.4        6

      Supplement for 2011 Elise                          QH.5        9

Updated 9th June 2010

Updated 9th June 2010





Lotus Service Notes                                  Section QH

Page 2

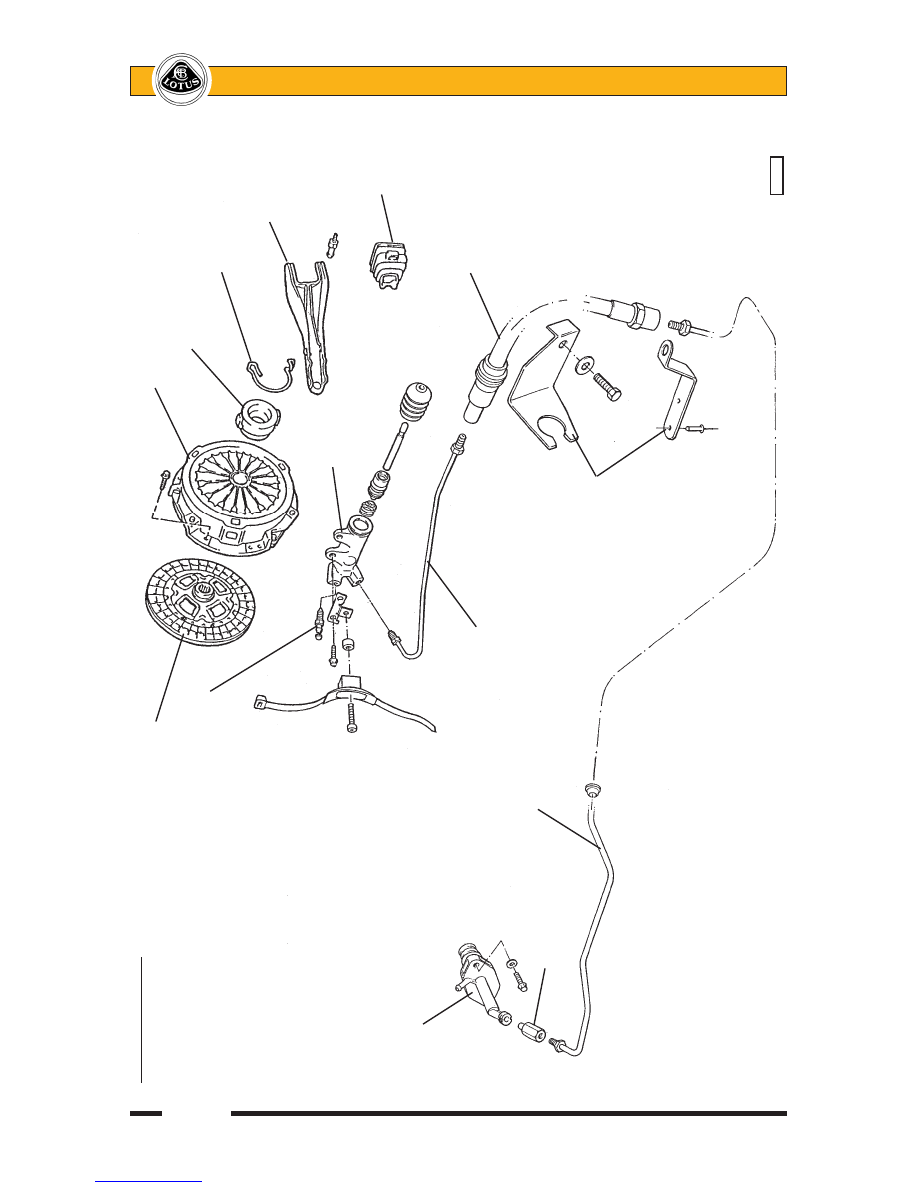

GENERAL

 LA

YOUT



















































Friction plate





































Clutch cover













































































Release bearing

































Bleed nipple





















































































Bearing retaining























































































spring



























































































Release



























































































fork

































































Slave

































































cylinder





























































































Fork





























































































gaiter































































































Master cylinder





























































































Flexible hose









































Steel pipe





























Steel pipe













Pipe adaptor





















































Hose abutment





















































brackets





























































































pl4701mt
