Page 27
Lotus Service Notes

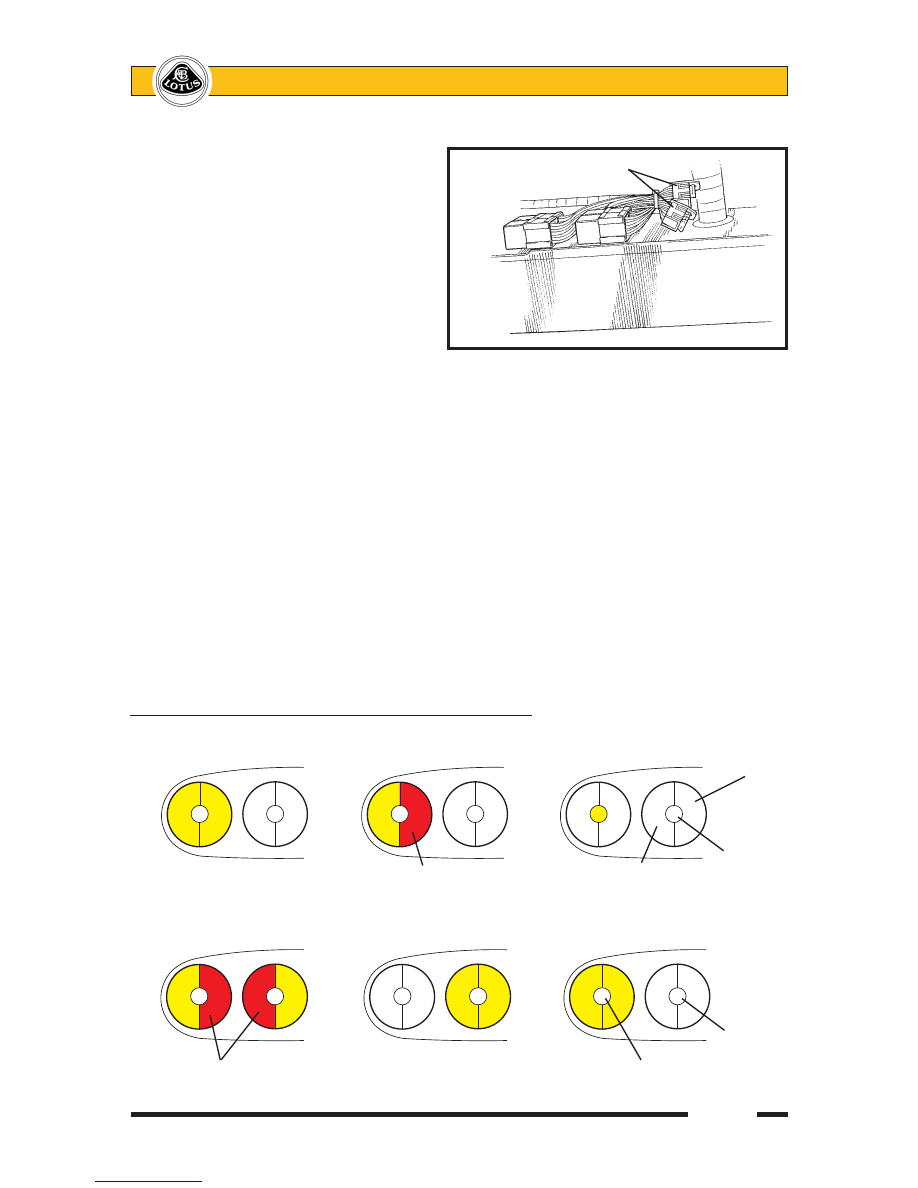

Section MP Interior Fuses & Relays The wash/wipe module, turn/hazard flasher relay, horn relay and a relay for inertia switch activation of the central door locking, are mounted on the scuttle beam above the passenger footwell, with two 4-slot fuse holders secured to the harness in that area. Relay Position RHD: Inboard top; Wiper
Inboard bottom; Flasher
Outboard top; CDL trip
Outboard bottom; Horn LHD: Inboard top; Flasher
Inboard bottom; Wiper
Outboard top; Horn
Outboard bottom; CDL trip Fuse no. Rating Circuit
Supply
C1 20A Interior fan
Start drop out C2 15A Wiper motor
Start drop out C3 7.5A Audio key-in
Key in C4 7.5A A.C. compressor Ignition C5 15A Aux. Driving lamps Battery LED Rear Lamps Introduced on all 6-speed Elise variants for ’06 M.Y. are new rear lamp clusters incorporating LEDs in the annular segments of the lamps. The central elements continue to use filament bulbs. The non-USA Elise also adopts the USA centre high mounted stop lamp (CHMSL) featuring red LEDs behind a white lens. The light emitting diodes are extremely durable and are serviced only by lamp cluster replacement. The turn indicators in the centre of the outboard lamps, and the reverse lamps in the centre of the inboard units, use W16W bayonet fitting filament bulbs in twist release holders. Note that on USA cars, the outboard lamps are fitted with ballast modules secured by the lamp fixing nuts. Lamp Configuration - filament bulb & LED types (LH lamps shown) Front Fuseboxes ‘C’ Viewed from beneath
m248b
Non-USA Tail Stop Turn Rear Fog
Reverse Additional segment used on LED lamps Not used USA Tail Stop Turn Reverse Additional segments used on LED lamps Not used |
