LJ.1 - GENERAL DESCRIPTION

The 43.5 litre fuel tank is fabricated from Neotec coated steel, and is externally powder coated for further

corrosion resistance.  The tank is mounted within the chassis crossmember between the passenger compart-
ment and engine bay, and is secured by two support brackets from beneath.  The fuel filler neck connects with
the right hand top of the tank, with the filler breather pipe routed to the centre, and the fuel pump/fuel gauge
sender unit mounted into the left hand top surface.  The modular fuel pump/sender assembly includes a
submerged turbine type pump with non-return valve, integrated fuel filter and a pressure regulator valve, to
supply a single line fuel rail for the four fuel injectors at a pressure of around 325 kPa.  The single line fuel
supply eliminates fuel circulation back to the tank, thus reducing fuel tank temperature and evaporative emis-
sions.

When the ignition is switched on, the engine management ECU energises the fuel pump for a period of

about 3 seconds to prime the system before switching off.  If a signal from the crankshaft sensor indicates that
the engine is being cranked or is running, the fuel pump feed will be maintained.  The pump is switched off
immediately when the ignition is switched off, or about 3 seconds after a stall.  Note that if coolant temperature
at the time of ignition switch off is over 88°C, the ECU remains powered for a period of 20 minutes to allow for
heat soak management (see sub-section KH.5).  Re-energising the ignition during this period will not run the
fuel pump until a crank signal is received.

A safety inertia switch is incorporated into the fuel pump electrical circuit, and operates in a severe impact

(indicative of a vehicle collision) to switch off the fuel pump feed and minimise the fire risk.  The switch is
located in the engine bay on the inner face of the left hand chassis siderail, and is reset once tripped, by
pressing the rubber button on the top of the switch.

An evaporative emissions 'charcoal' canister is mounted at the right hand front of the engine bay and is

connected to the air space inside the fuel tank via a port in the top plate of the fuel pump assembly.  The
connecting pipe is routed through a roll over shut off valve mounted by the canister, to protect against fuel
spillage in case of vehicle inversion.  The purge port of the canister is routed through a solenoid valve mounted
on top of the canister, to a port on the inlet manifold.  The evaporative emissions control system prevents
untreated fuel vapour from the tank reaching the atmosphere, by absorbing the tank vapour in a bed of acti-
vated charcoal in the canister.  When the engine is running, the engine management ECM opens the purge
solenoid valve and allows intake manifold depression to draw fresh air through the canister, purging absorbed
fuel from the charcoal, and consuming the resultant vapour in the normal combustion process.  In this way, the
charcoal bed is 'cleaned' ready to absorb more tank vapour.

LJ.2 - FUEL FILLING

Fuel Requirement

Use only UNLEADED fuel with a minimum octane rating of 95 RON (‘Premium’ unleaded in U.K.) or

higher for optimum engine performance.  Using fuel with a lower octane rating may cause knocking (pinking)
which, if severe, can cause serious engine damage.  Light knocking may occasionally be heard for short
periods when accelerating or driving up hills, and this should cause no concern, although using a lower gear
would be advised.  If, however, persistent heavy knocking is heard when using the specified fuel, diagnosis of
the cause should be undertaken without delay.

Note that the filler neck is restricted in size so that only the smaller diameter nozzle used on unleaded

petrol pumps may be inserted.  The use of leaded fuel or lead replacement petrol (LRP) would cause irreparable
contamination of the catalytic converter and of the exhaust gas sensor used by the computer controlled engine
management system.

Fuel Filling
WARNING:  - Be aware of the danger of explosion when dealing with petrol and its attendant fumes.
Before stopping at a filling station, switch off mobile phones, ensure that all cigarettes are extinguished
and that no naked flames or other potential ignition sources are present.  Switch off the engine before
refuelling.
- Remove the filler cap slowly to allow any pressure to bleed off gradually.  Hasty removal may result
in a small amount of fuel spray with a possible health or fire hazard.

Filler Cap: The key locking filler cap is located in the right hand rear quarter panel:



Lotus Service Notes

     Section LJ

Page 4

-

To unlock the cap, insert the key (same key as ignition), turn ¼ counterclockwise and withdraw the cap
with the key.  As the cap is unlocked, any slight pressure differential between the tank and atmosphere will
be released, and a brief hiss may be heard, which is completely normal.  Note that the key can withdrawn
only from a locked cap.

-

To refit, engage the ears on the cap with the slots in the neck, turn the key ¼ clockwise to lock and
withdraw the key.

Filling Procedure: Insert the pump nozzle fully into the neck, and fill until the first time the auto-shut off mecha-
nism is triggered.  Do not attempt to ‘brim’ the tank to the top of the filler neck, as expansion of the fuel due to
temperature change (especially in hot weather - the temperature in underground storage tanks is significantly
colder) may cause flooding of the charcoal canister, or spillage of fuel.

The total usable fuel capacity is 43.5 litres.

LJ.3 - PRECAUTIONS

The fuel line between pump and injector rail, and the injector rail itself, contain pressurised fuel both when

the ignition is switched on, and for a period after switching off.  This feature aids engine starting by reducing the
time needed to build up operating fuel pressure, and by inhibiting the formation of vapour pockets in the supply
line of a stopped hot engine.

WARNING:
i)

To minimise the risk of fire and personal injury, relieve the fuel system pressure before servicing
any part of the fuel supply circuit.  See ‘Fuel Pressure Relief Procedure’ below.

ii)

To reduce the possibility of sparks occurring when a fuel line is disconnected, or when fuel
vapour is present, the negative battery cable should be disconnected before work is commenced.

iii)

When fuel lines are disconnected, absorb any escaping fuel in an absorbent cloth and dispose of
safely.

Fuel Pressure Relief Procedure

This procedure should be used prior to disconnecting any part of the fuel line.

-

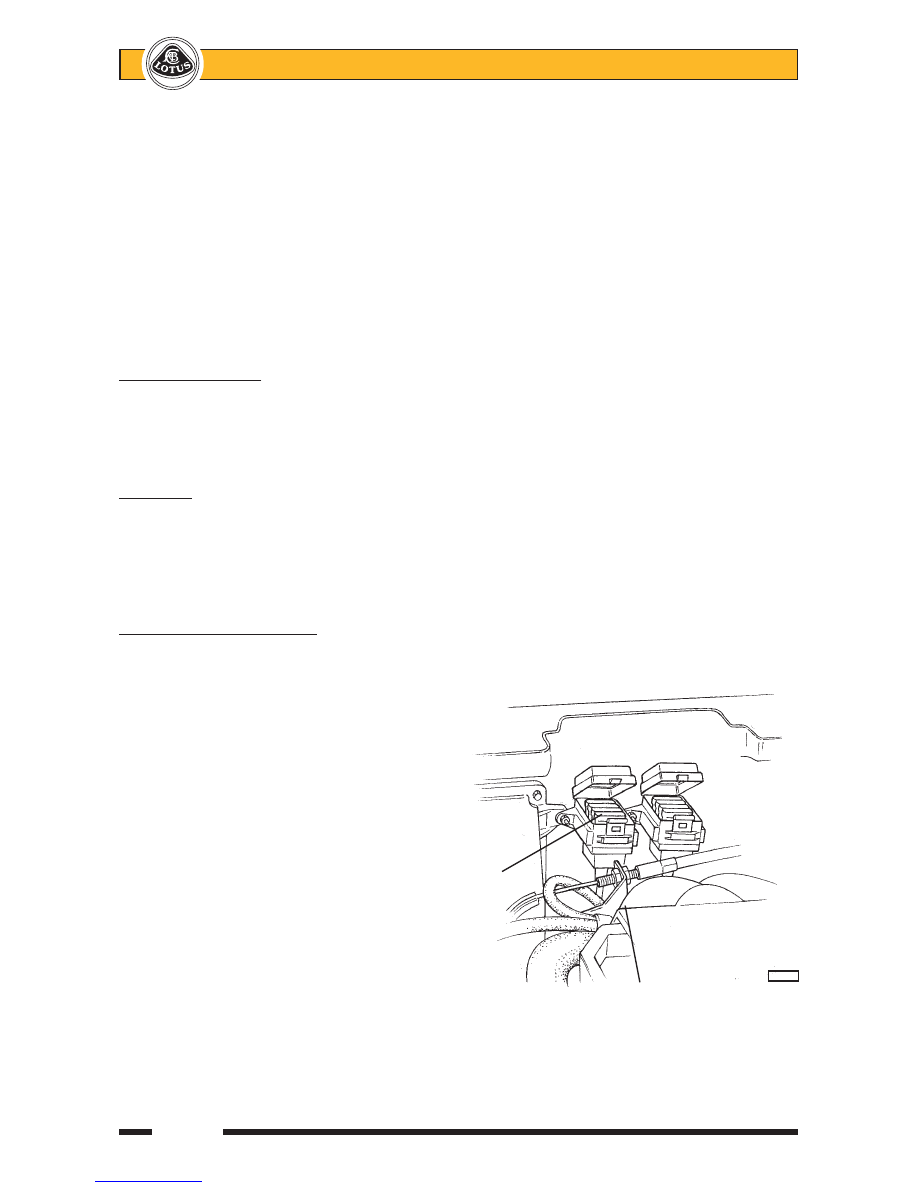

Pull out the fuel pump fuse (on the left
hand side of the engine bay bulkhead,
as shown), start the engine, and run until
it stops from starvation.  Crank the
engine for a further few seconds.

-

If the engine is a non-runner, pull out the
fuel pump fuse, and crank the engine for
20 seconds to minimise residual fuel
pressure.

-

Disconnect the battery.
It is recommended first to release the
quick fit connector located to the rear of
the coolant header tank:

-

Release the retaining clip securing the
pipe joint to the header tank bracket.

-

Slide the orange coloured safety lock to
allow access to the connector release
buttons.

-

Surround the pipe joint with a shop towel
to absorb fuel contained in the pipework
before pressing the release buttons and
separating the joint.

WARNING: Be aware of the possibility of full pressure retention in the fuel line caused by a
system fault.

Fuel pump
fuse (20A)



ohs136



Lotus Service Notes

     Section LJ

Page 5

-

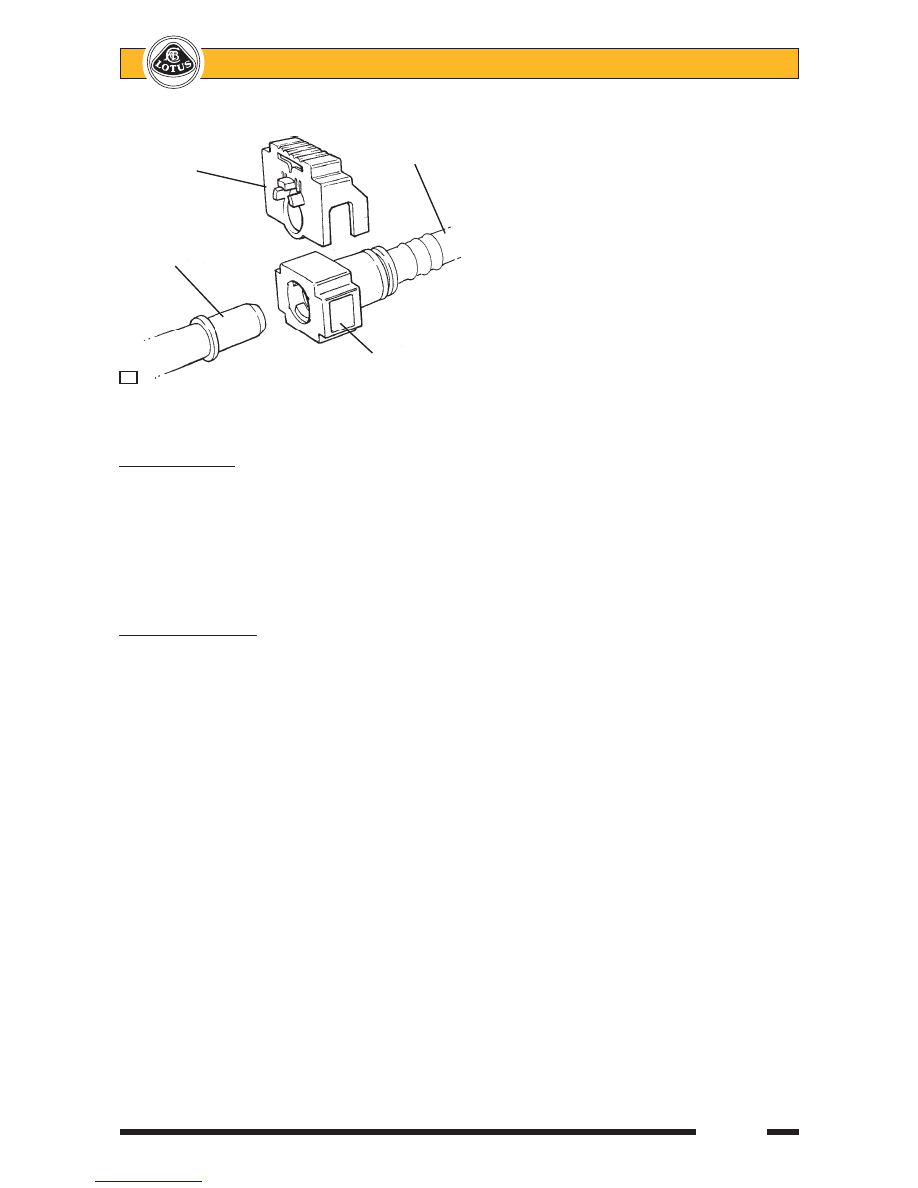

Before re-making the joint, ensure that the or-
ange safety lock is fitted onto the pipe connec-
tor in the orientation shown in the illustration.

-

Push the male pipe end fully into the female
connector until a click is heard.  Pull on the
pipe to ensure complete engagement.

-

Slide the orange safety lock over the connector
to prevent accidental pressing of the release
buttons.

-

Secure the pipe/connector using the pipe  clip
on the header tank bracket.

LJ.4 - FUEL TANK

The 43.5 litre fuel tank is fabricated from Neotec coated steel, and is externally powder coated for further

corrosion resistance.  The tank is mounted within the chassis crossmember between the passenger compart-
ment and engine bay, and is secured by two support cradles from beneath.  The fuel filler neck connects with
the right hand top of the tank, with the filler breather pipe routed to the centre, and the fuel pump/fuel gauge
sender unit mounted into the left hand top surface.  A removeable panel is provided in the top of the chassis
crossmember in the cabin, which provides access to the fuel pipe connections and harness connector.  If the
pump/gauge sender unit is to be replaced, the tank must be removed from the chassis.

To Remove Fuel Tank

If necessary, syphon fuel from the tank to reduce the weight before removal.

1.

WARNING: The fuel line between pump and engine remains pressurised after switching off the
ignition.  Before disconnecting the fuel line, carry out the fuel pressure relief procedure detailed
in sub-section LJ.3.
-

Carry out the fuel pressure relief procedure detailed in sub-section LJ.3.

-

Disconnect the battery.

It is recommended first to release the quick fit connector located to the rear of the coolant header tank:
-

Release the retaining clip securing the pipe joint to the header tank bracket.

-

Slide the orange coloured safety lock to allow access to the connector release buttons.

-

Surround the pipe joint with a shop towel to absorb fuel contained in the pipework before pressing
the release buttons and separating the joint.

WARNING: Be aware of the possibility of full pressure retention in the fuel line caused by a
system fault.

2.

Remove the left hand seat and rear bulkhead trim panel.  From the left hand rear corner of the cabin,
remove the access panel on the top of the chassis rear crossmember for access to the fuel pump
connections.  Release the quickfit type connector on the fuel vapour line connection to the pump/sender
unit top plate.  Prise out the retaining spring clip and withdraw the fuel feed pipe.  Disconnect the wiring
harness plug from the pump unit, and from the pressure sensor.

3.

Remove the RH rear wheel and wheelarch liner to provide access to the filler hose connections.  Release
the filler hose and filler breather hose from the tank spigots, and cap both orifices to prevent debris
ingress and reduce the fire hazard.

4.

Remove the engine bay undertray/diffuser.

Fuel pipe to

Orange

engine

safety lock

Fuel pipe
from tank

Release

L64

button



Lotus Service Notes

     Section LJ

Page 6

5.

Disconnect control cables:
-

Release the two gearchange cables from the transmission levers and abutment bracket.

-

Release the parking brake cable from the horseshoe compensator and abutment brackets.

-

Release the throttle cable from the engine.

-

Release the gearchange cable and throttle cable 'P' clips from the perforated 'shear panel' below
the fuel tank.

6.

From beneath the fuel tank, release the fixings securing the 'shear panel' front and rear edges to the
chassis, and those at each side securing the composite sills to the panel.  Note that this panel is a
structural part of the chassis, and that the car should not be used without the panel fitted.

7.

Support the tank before removing the two support cradles from the chassis.  Each cradle uses two bolts
at the front end of the bracket, and a single bolt at the rear, all threading into Rivnuts in the chassis.

8.

Carefully lower the tank from the chassis.

8.

Before re-fitting the tank, ensure that all the clamping pads are in place:
- EPDM foam sponge block on upper and lower edges of both tank side faces;
- Expanded Polypropylene saddles on top face of tank;
- Neoprene isolating strip between tank and support cradles;
- EPDM rubber wedge between front bottom edge of tank and support cradles;
- Neoprene sponge foam between upper front of tank and chassis.

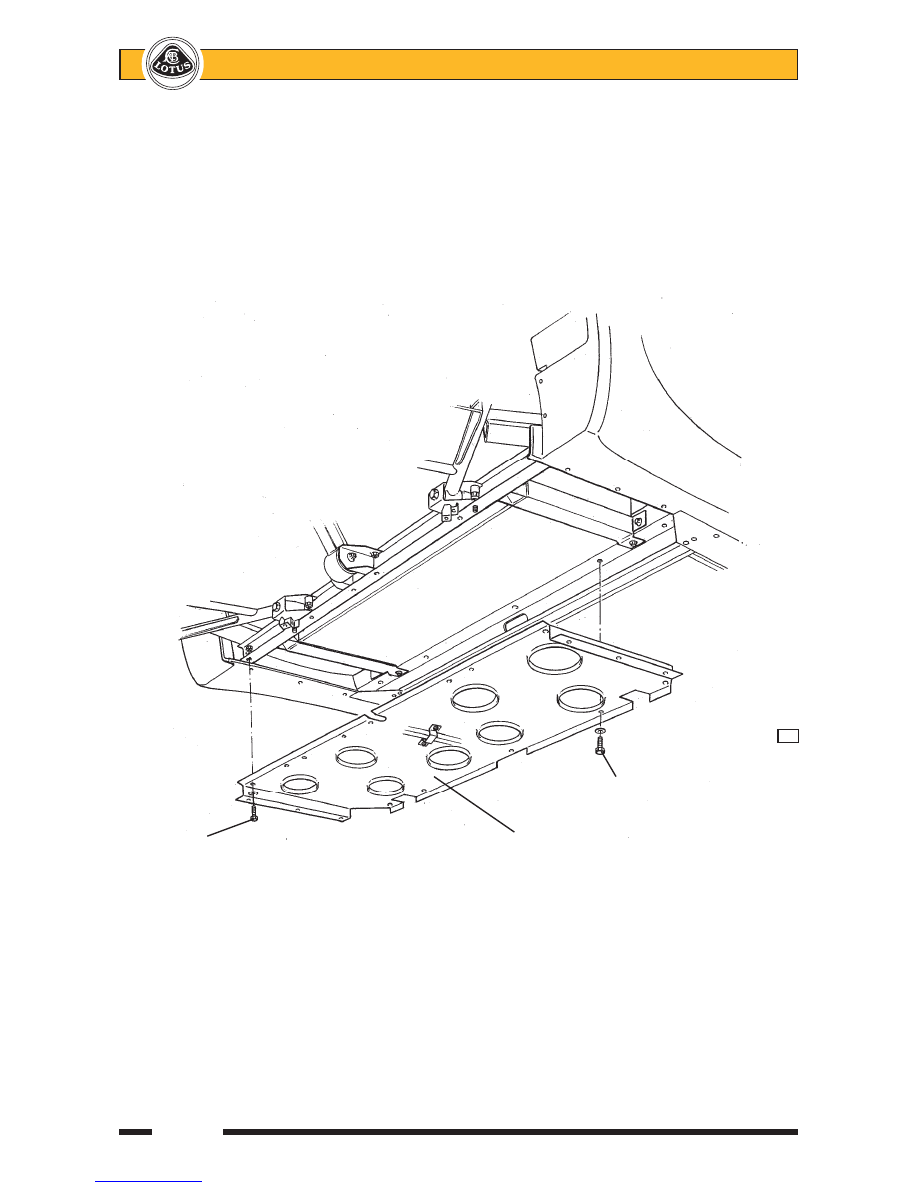

                  l58b

Fixing to chassis

Fixing to sill

Fuel tank 'shear panel'
