Lotus Eleven/Elise/Exige. Manual - part 3

Page 9

Lotus Service Notes

Introduction

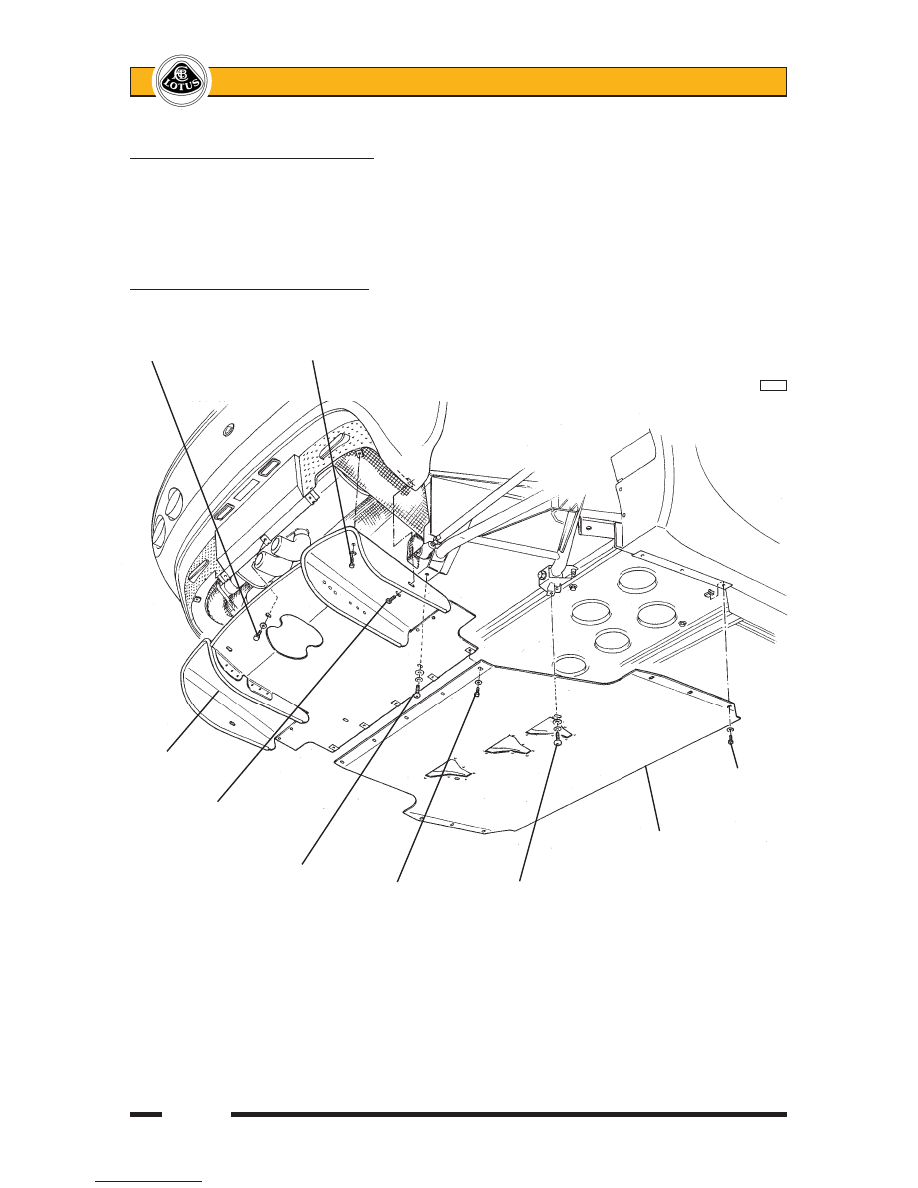

ENGINE BAY UNDERTRAY/DIFFUSER

For certain service operations, it may by necessary to remove the engine bay undertray and/or diffuser

panel. The panels contribute to the aerodynamic performance of the car, and also help to keep the engine bay

clean. Do not run the car without the panels fitted.

Typical model shown - others similar

3 screws to licence 1 screw each side

plate plinth to grille panel

b275b

Diffuser panel

3 screws

each side

Single screw each to tank bay

side to clamshell panel

Undertray

front edge

M8 button head slots into

(2) to subframe 5 screws M8 button head chassis

undertray (2) to lower

to diffuser link brackets

Page 10

Lotus Service Notes

Introduction

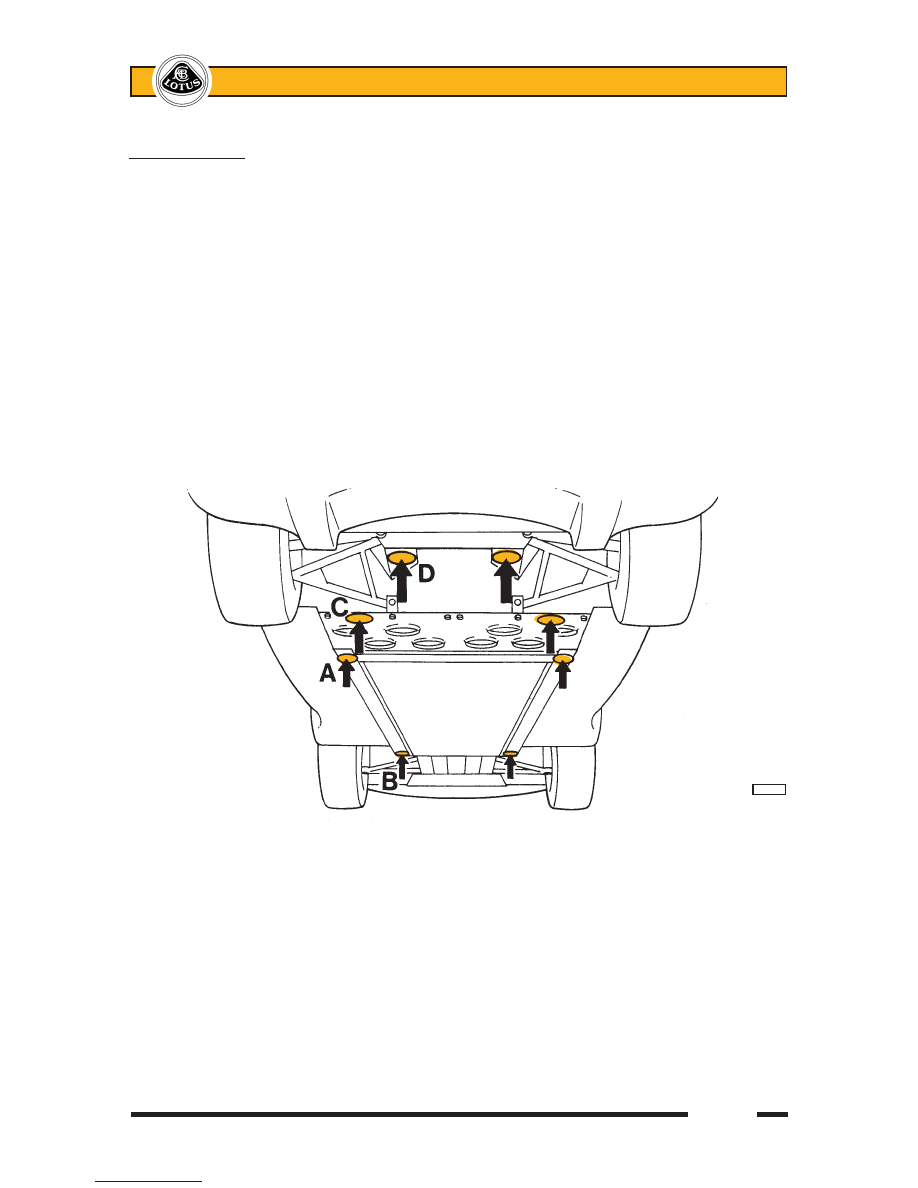

JACKING POINTS

Care must be taken when using a lifting jack or hoist to position the device only in one of the the areas

shown in the illustration, with a suitable rubber or timber pad protecting the chassis from surface damage. If a

4-point lift is to be used, the engine bay undertray/diffuser panel (if fitted) must first be removed. When using

a 4-point lift, it is strongly recommended that for optimum stability and safety, positions B and D are used.

A; Identified by a blue sticker. Beneath crossmember ahead of fuel tank bay. To be used one side at a time

for wheel changing - lifts both wheels on one side. Do not use with a four point garage lift.

B; Beneath the front end of the right or left hand main chassis rail, behind the front wheelarch. Garage use

with 4-point lift in conjunction with (C).

C; The engine undertray/diffuser panel must first be removed. Beneath the outboard end of the chassis

crossmember ahead of the rear wheelarches. Take care to position the jack between the fixing screws

for the fuel tank bay perforated undershield. Garage use with 4-point lift in conjuction with (B).

D; The engine undertray/diffuser panel must first be removed. Beneath the rear subframe, close to the lower

wishbone rearmost mountings.

Jacking at any other point may damage the chassis or body structure and/or jeopardise safety.

ohs49sn

Publication Part Number A120T0327J

This publication has been designed for use by Lotus Dealers familiar with general workshop safety proce-

dures and practices. Take all appropriate action to guard against injury to persons or damage to property.

Lotus policy is one of continuous product improvement, and the right is reserved to alter specifications at

any time without notice.

Whilst every care has been taken to ensure correctness of information, it is impossible to guarantee com-

plete freedom from errors or omissions, or to accept liability arising from such errors or omissions, but nothing

herein contained shall affect your statutory rights.

Page 1

Lotus Service Notes

Introduction

CONTENTS

ELISE & EXIGE; 2004 M.Y. ONWARDS; WITH 1ZZ/2ZZ/1ZR ENGINE

Section

Technical Data - Engine TDP

- Vehicle TDQ

Chassis AH

Bodycare & Repair BQ

Body Fittings BR

Front Suspension CI

Rear Suspension DH

Engine & Engine Management - Lotus supplement EH

- Toyota 1ZZ/2ZZ repair manual *

* see separate manual E120T0327J

- Toyota 1ZR repair manual **

** see separate CD T000T1523F

Engine Management EMP

Transmission - Lotus supplement FJ

- Toyota C64/C56 repair manual #

# see separate manual E120T0327J

- Toyota EC60 repair manual ##

## see separate CD T000T1523F

Wheels & Tyres GH

Steering HG

Brakes JJ

Engine Cooling KH

Fuel System - Except North America LJ

- North America LK

Electrics MP

Circuit Diagrams: non - USA prior '06 MP14a

Circuit Diagrams: USA - prior '06 MP14b

Circuit Diagrams: '06 Onwards MP14c

Circuit Diagrams: '08 Onwards MP14d

Circuit Diagrams: '11 Onwards 1ZR Powertrain MP14e

Maintenance & Lubrication OI

Air Conditioning, Heating & Ventilation PL

Clutch QH

Supplementary Restraint System - SRS (Airbags) WD

Supplement - Exige Supercharged (S/C) Exige S/C

Supplement - 2-Eleven 2-Eleven
