Porshe 911 (997). Manual - part 936

- Removing console for telephone
- Installing console for telephone

Removing console for telephone

Removing console for telephone

Installation Location:

Installation position

Unscrewing fastening screw -1-

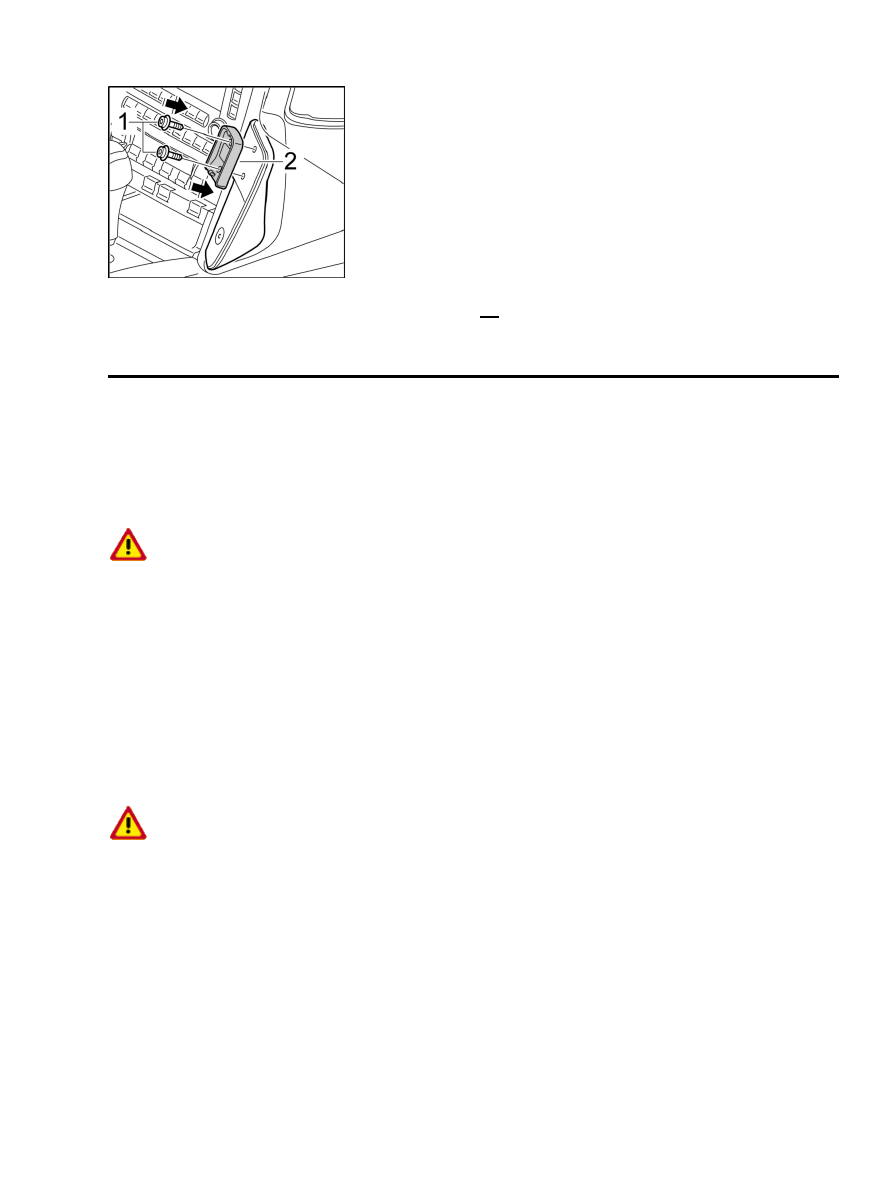

1. Unscrew the two fastening screws -1- and remove the mounting plate -2- .

3901

Unclipping cap

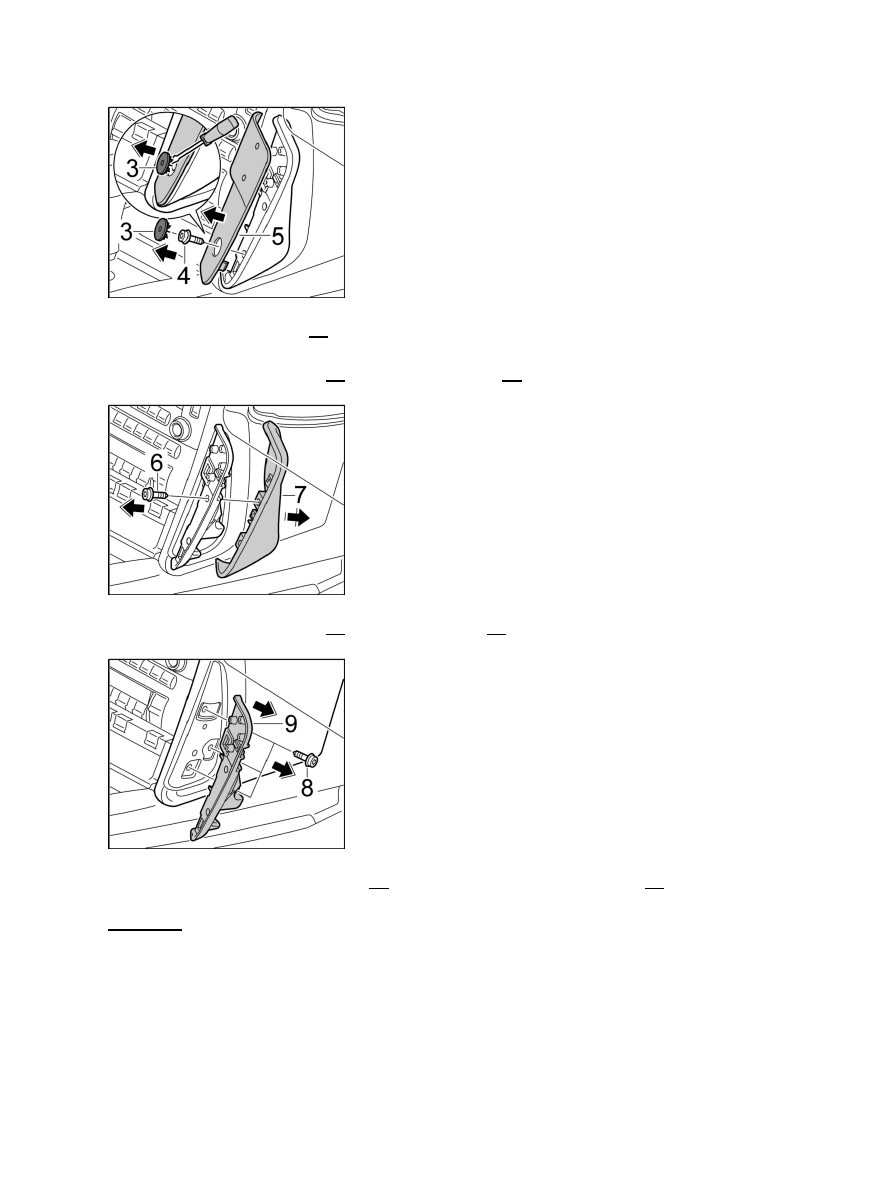

2. Carefully unclip the cover -3- with a

screwdriver.

3. Unscrew the fastening screw -4- and remove the carrier -5- .

Unscrewing fastening screw and removing trim

4. Unscrew the fastening screw -6- and remove the trim -7- .

Unscrewing fastening screw and removing telephone console

5. Unscrew the three fastening screws -8- and remove console for the telephone -9- .

Installing console for telephone

Diagnostic system: reading out fault memory and activating systems

Removing console for telephone

3902

Installing console for telephone

Positioning and securing telephone console

1. Position console for telephone -9- and screw down with the three fastening screws -8- . →

Tightening torque: 1.5 ftlb. +/-0.2 ftlb.

Positioning trim and securing with the fastening screw

2. Press trim -7- on the console and screw down with the fastening screw -6- . → Tightening torque: 1.5

ftlb. +/-0.2 ftlb.

Positioning and securing carrier

3. Press carrier -5- on the console and screw down with the fastening screw -4- . → Tightening torque: 1.5

ftlb. +/-0.2 ftlb.

4. Position the cover -4- and clip it into place.

Diagnostic system: reading out fault memory and activating systems

Installing console for telephone

3903

Securing mounting plate

5. Secure the mounting plate with the fastening screws -1- . → Tightening torque: 1.5 ftlb. +/-0.2 ftlb.

6. Place the handset in the bracket.
