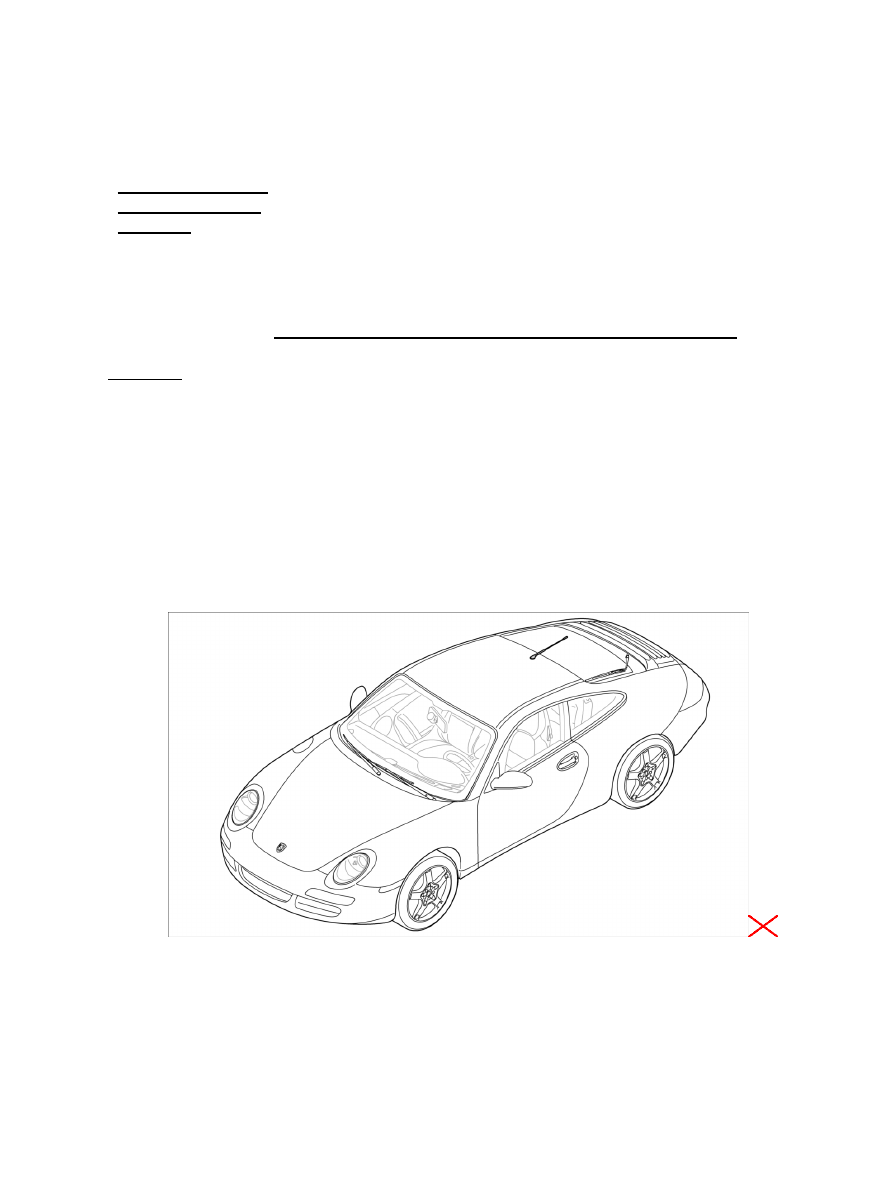

1. Push both connectors -A and B- onto the antenna base until they are felt to engage. Inserting the antenna base 2. Insert antenna base in the cut-out from below. The bar of the antenna base must be inserted in the guide Inserting the seal on the antenna base cover 3. Insert seal with the locating pins -A- in the holes -B- on the antenna base cover. Note The seal (arrow) must make contact all the way around on the antenna base cover. Antenna base cover 4. Position antenna base cover -A- and tighten the fastening nut -B- . → Tightening torque: 3 (2 ftlb.) Nm 5. Screw in antenna rod hand-tight in the antenna base cover. Diagnostic system: reading out fault memory and activating systems Installing rod antenna 3785 |
