2. Check fastening clips -3- , and replace if necessary.

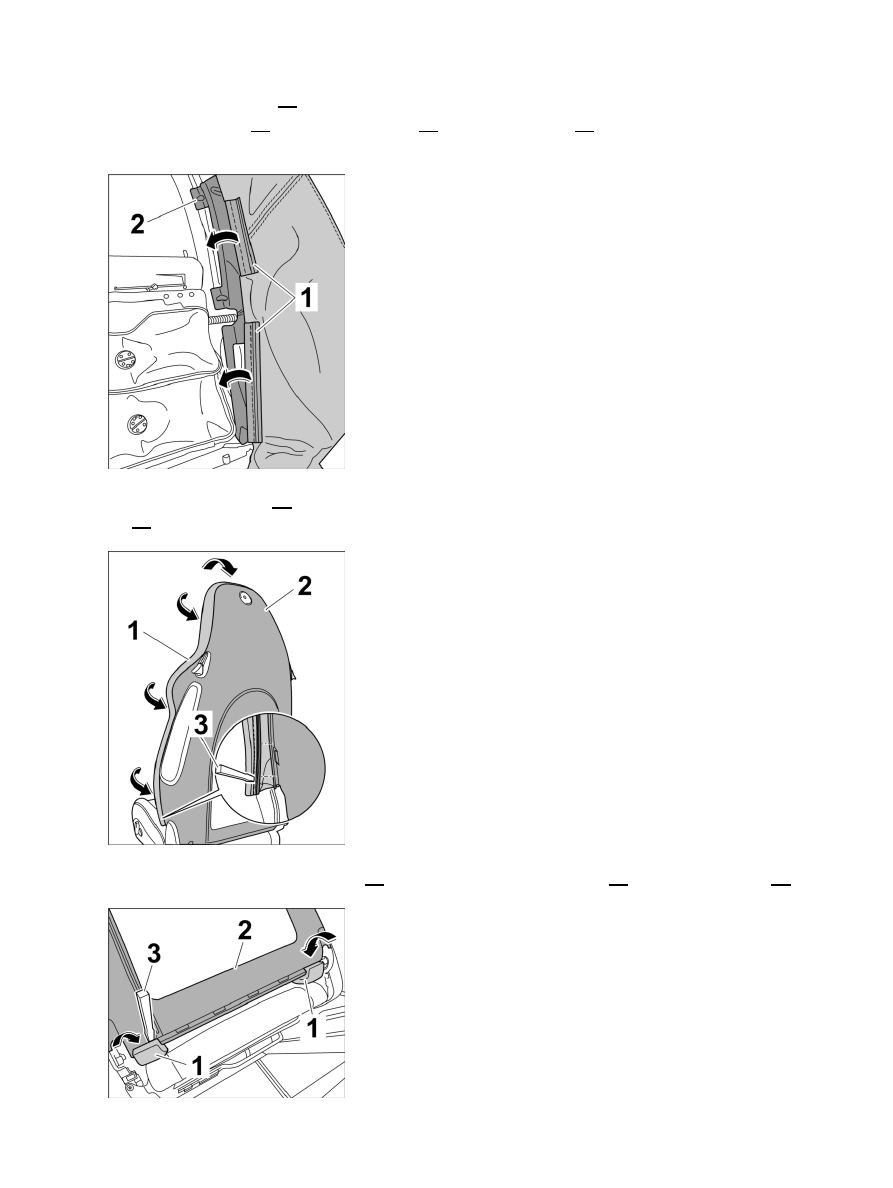

3. Press plastic strip -2- on cover for backrest -1- into the fixing clips -3-

.

Fastening cover piping

4. Engage cover piping -1- right and left into backrest frame

-2-

 .

Fastening cover for backrest at sides

5. Press connection of backrest cover -1- sideways into the backrest frame -2- with a plastic wedge -3- .

Diagnostic system: reading out fault memory and activating systems

Installing cover for backrest

3393

Fastening cover for backrest at bottom

6. Press cover for backrest -1- into the backrest shell -2- lower left and right using a screwdriver -3- .

Installing guide for seat belt

Marking seat-belt guide mounting points

Note

If the backrest cover -1- has been replaced after repairs, the seat-belt guide mounting points must be measured
again and marked.

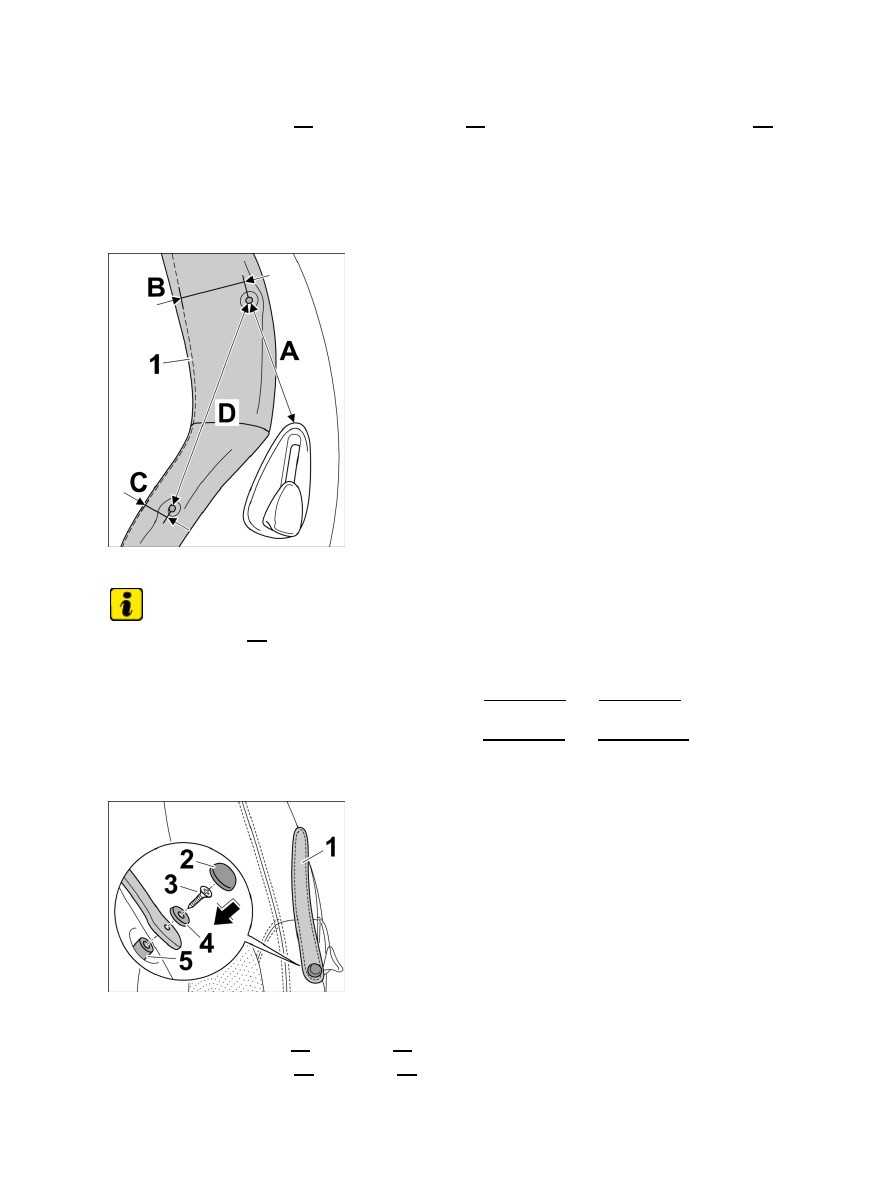

Mark upper mounting point with the dimensions -A= 95 mm- and -B= 50 mm- .

•

Mark lower mounting point with the dimensions -C= 25 mm- and -D= 155 mm- .

•

Fastening guide for seat belt at bottom

1. Position seat-belt guide -1- with sleeve -5- with the aid of the marking on the backrest cover.

2. Tighten fastening screw -3- with spacer -4- .

Diagnostic system: reading out fault memory and activating systems

Installing guide for seat belt

3394

3. Press in -2- cap

Fastening guide for seat belt at top

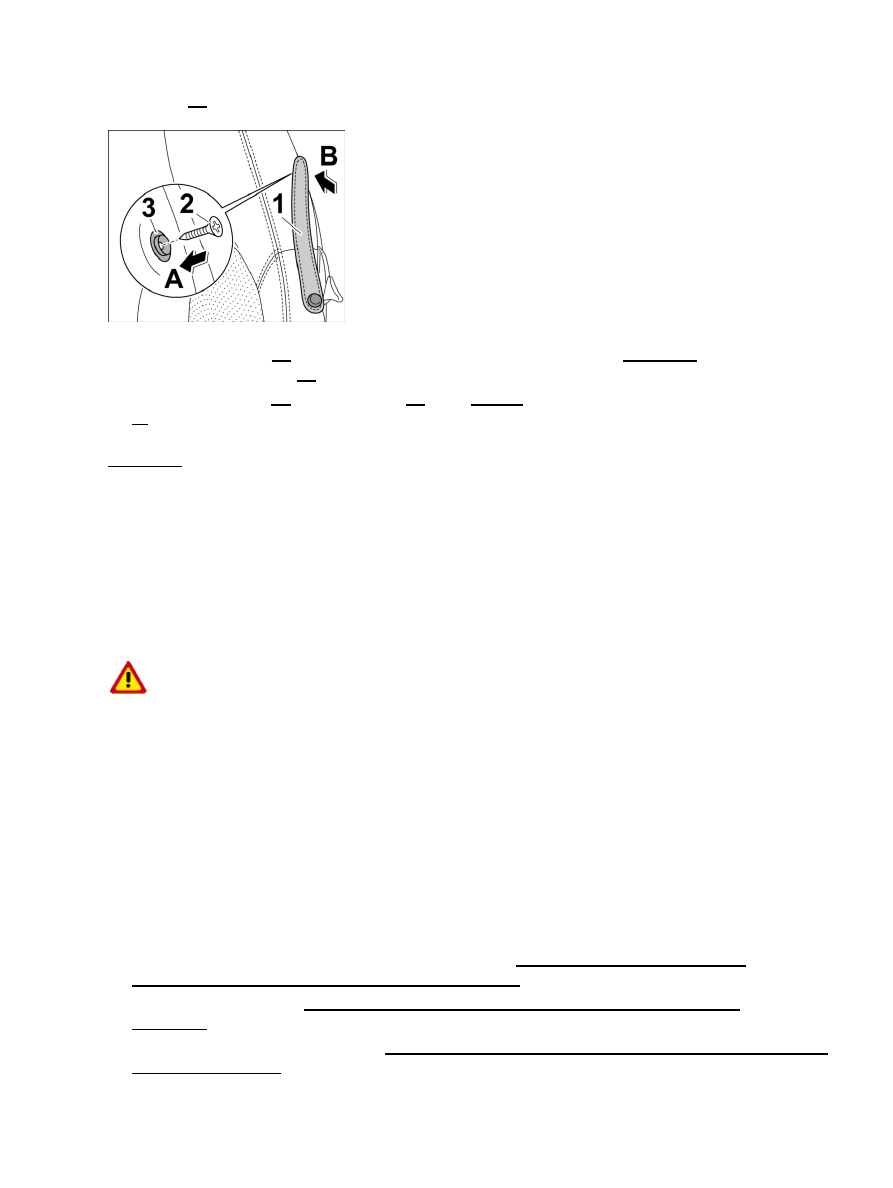

4. Position push button -3- with the aid of the marking on the backrest cover -Arrow A- and screw down

with the fastening screw -2- .

5. Press seat-belt guide -1- into push button -3- at top -Arrow

B-

 .

Subsequent work

Removing creases in the cover

ATTENTION

Danger of material damage if excessive heat is applied.

→ If creases have formed, only short partial warming with the hot-air gun is permissible.

→ The hot-air temperature of approx. 50 degrees Celsius (122 Fahrenheit) must always be

observed.

If creases have formed in areas of the cover, partially heat them with the hot-air gun and smooth out with the
tool.

Subsequent work

1. Install control button for backrest release at right and left. → 723119 Removing and installing

control button for backrest release - chapter on "Installing"

2. Install cover for backrest. → 722619 Removing and installing cover for backrest - chapter on

"Installing"

3. Install cover for front centre backrest. → 742019 Removing and installing cover for front centre backrest -

chapter on "Installing"

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

3395

4. Install front seat. → 720119 Removing and installing front seat - chapter on "Installing"  [997110

997120 997410 997430]→ 720119 Removing and installing front seat - chapter on "Installing"
 [997111 997121 997411 997431]

Subsequent work

1. Install cover for front centre backrest. → 742019 Removing and installing cover for front centre backrest -

chapter on "Installing"

2. Install front seat. → 720119 Removing and installing front seat - chapter on "Installing"  [997110

997120 997410 997430]→ 720119 Removing and installing front seat - chapter on "Installing"
 [997111 997121 997411 997431]
