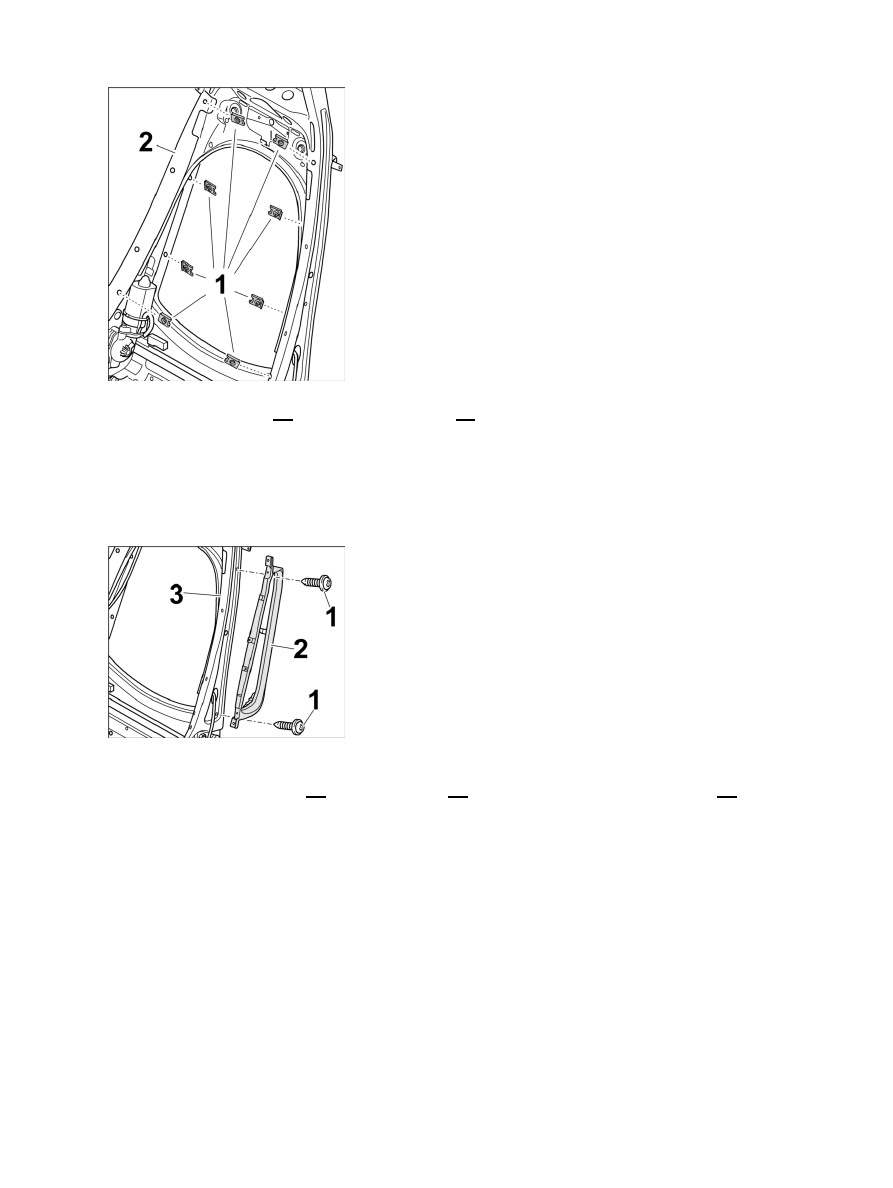

Screwing on fastening nuts

2. Screw fastening nuts -1- onto the backrest frame -2- .

Installing frame for side airbag

Installing frame for side airbag

1. Clip frame for side airbag -2- to backrest frame -3- and secure with the fastening screws -1-

.

Securing wire harnesses on backrest frame

Diagnostic system: reading out fault memory and activating systems

Assembling backrest frame

3201

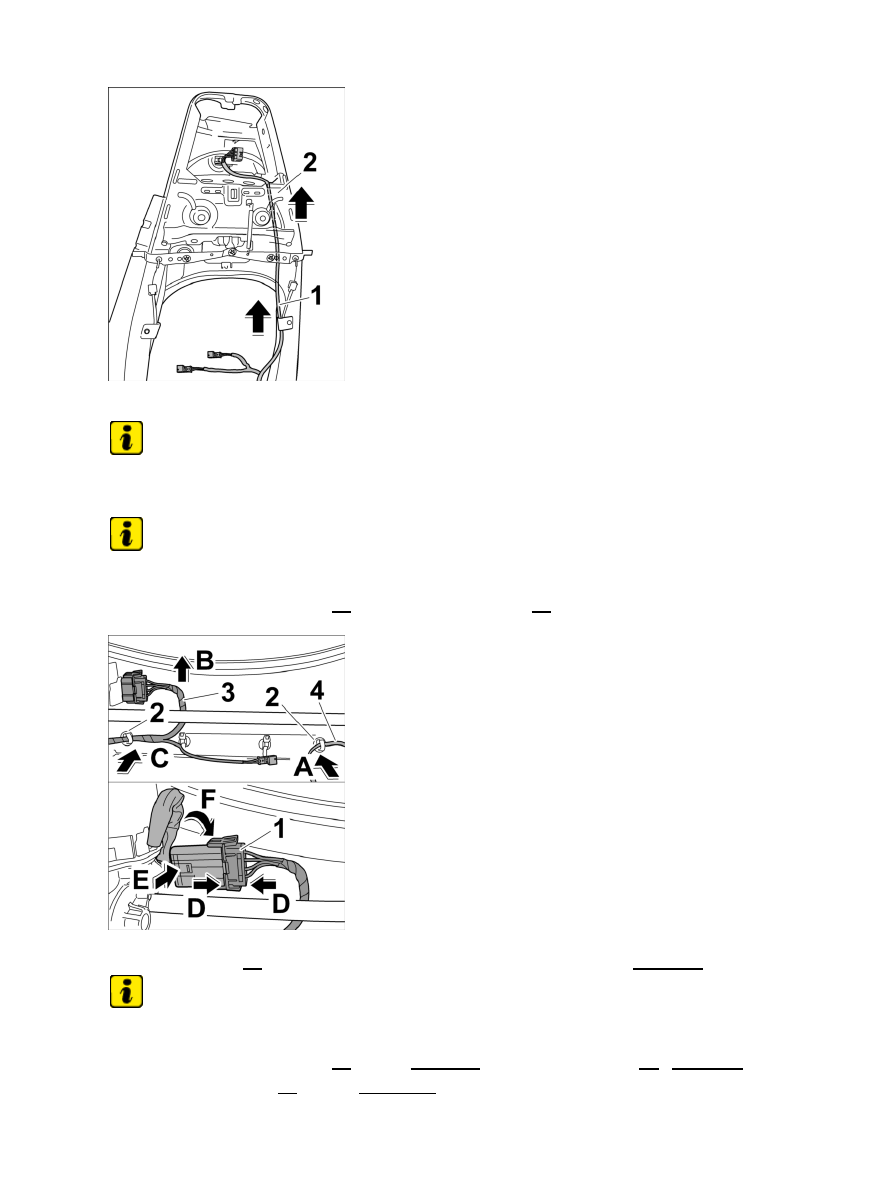

Pulling through wire harness for backrest

Note

Only for vehicles with lumbar support.

Note

Make sure not to trap or damage the wire harness when pulling it through.

1. Pull wire harness for backrest -1- up into the backrest frame -2- .

Securing wire harness for backrest

2. Press fixing clip -2- on wire harness for side airbag onto the backrest frame -arrow A- .

Note

Make sure not to trap or damage the wire harness when pulling it through.

3. Pull wire harness for backrest -3- through -arrow B- and press in fixing clip -2- ( -arrow C- ).

4. Push plug connection -1- together -arrows D- until it engages securely.

Diagnostic system: reading out fault memory and activating systems

Securing wire harnesses on backrest frame

3202

5. Insert plug connection -1- into the backrest frame -arrow E- and turn it clockwise by approx. 90° -arrow

F-

 .

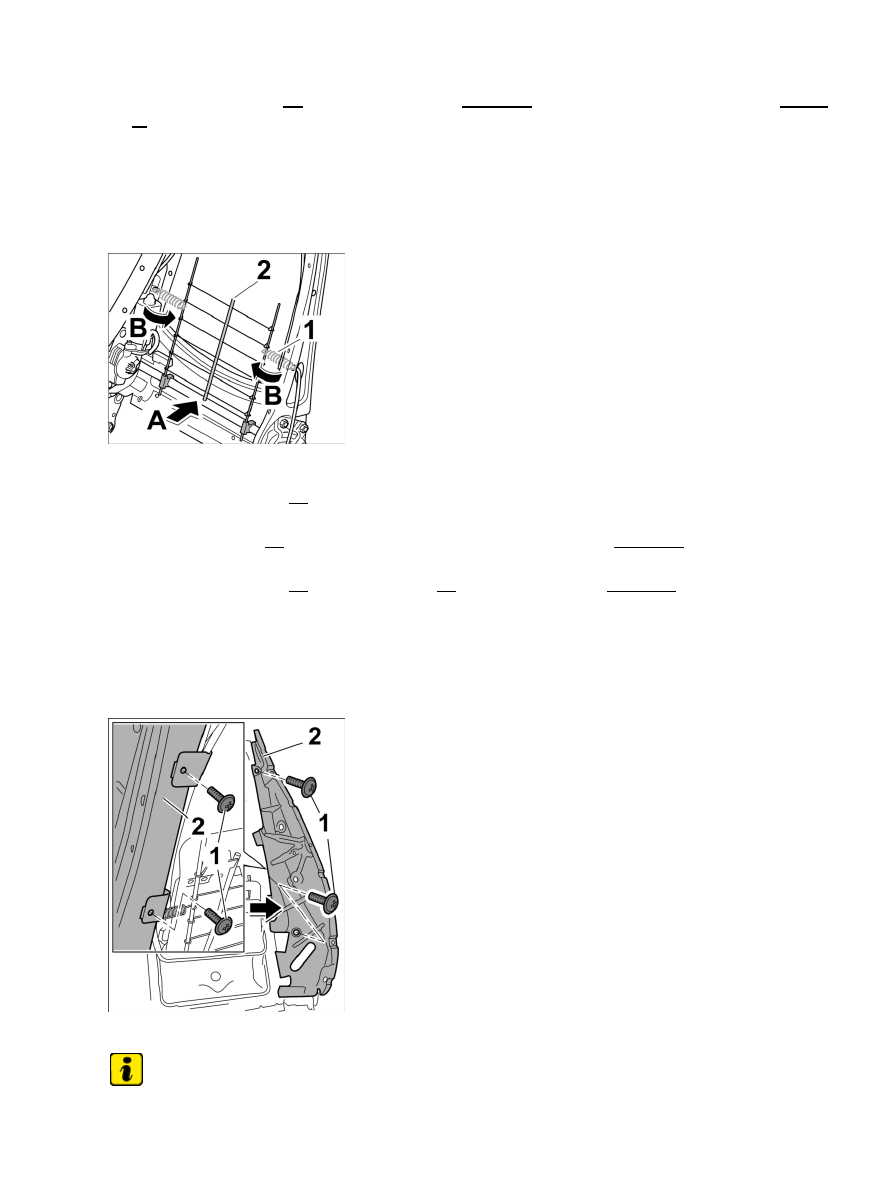

Installing inner spring on backrest frame

Engaging inner spring on backrest frame

1. Engage tension springs -1- in the backrest

frame.

2. Clip in inner spring -2- on lower part of backrest frame at the drive shaft -arrow A-

.

3. Engage tension springs -1- in the inner spring -2- on the backrest frame -arrow B- .

Installing supports for backrest side parts

Installing support for left backrest side part

Note

Diagnostic system: reading out fault memory and activating systems

Installing inner spring on backrest frame

3203

Observe hose routing!
In vehicles with lumbar support, make sure the hoses are routed correctly in the area of the backrest side
support.

1. Insert support for left backrest side part -2- and secure with the fastening screws

-1-

 .

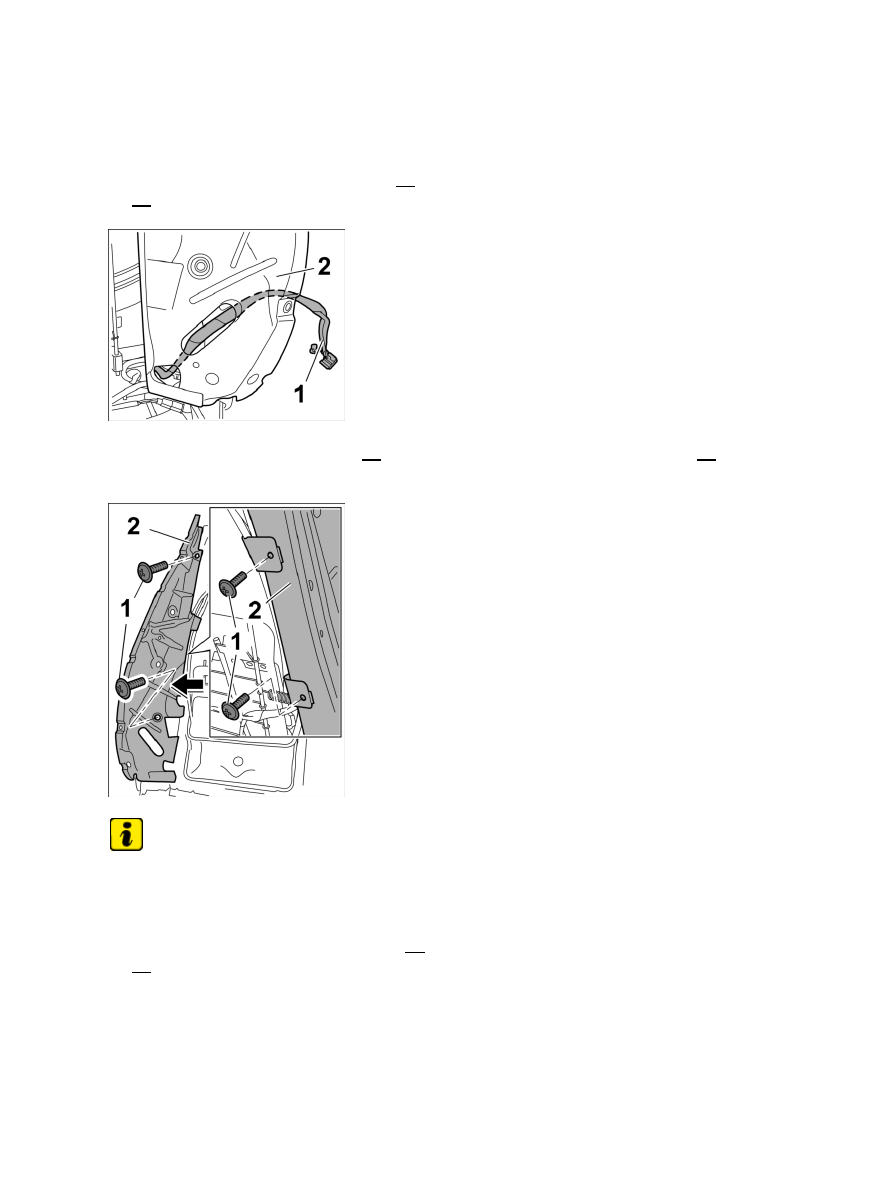

Routing wire harness for side airbag

2. Route wire harness for side airbag -1- as shown behind the backrest side part support -2-

.

Installing support for right backrest side part

Note

Observe hose routing!
In vehicles with lumbar support, make sure the hoses are routed correctly in the area of the backrest side
support.

3. Insert support for right backrest side part -2- and secure with the fastening screws

-1-

 .

Fitting foam part

Diagnostic system: reading out fault memory and activating systems

Installing supports for backrest side parts
